8-15 — FIXING PARTS; WIRING HARNESS (#74239) — 215 parça

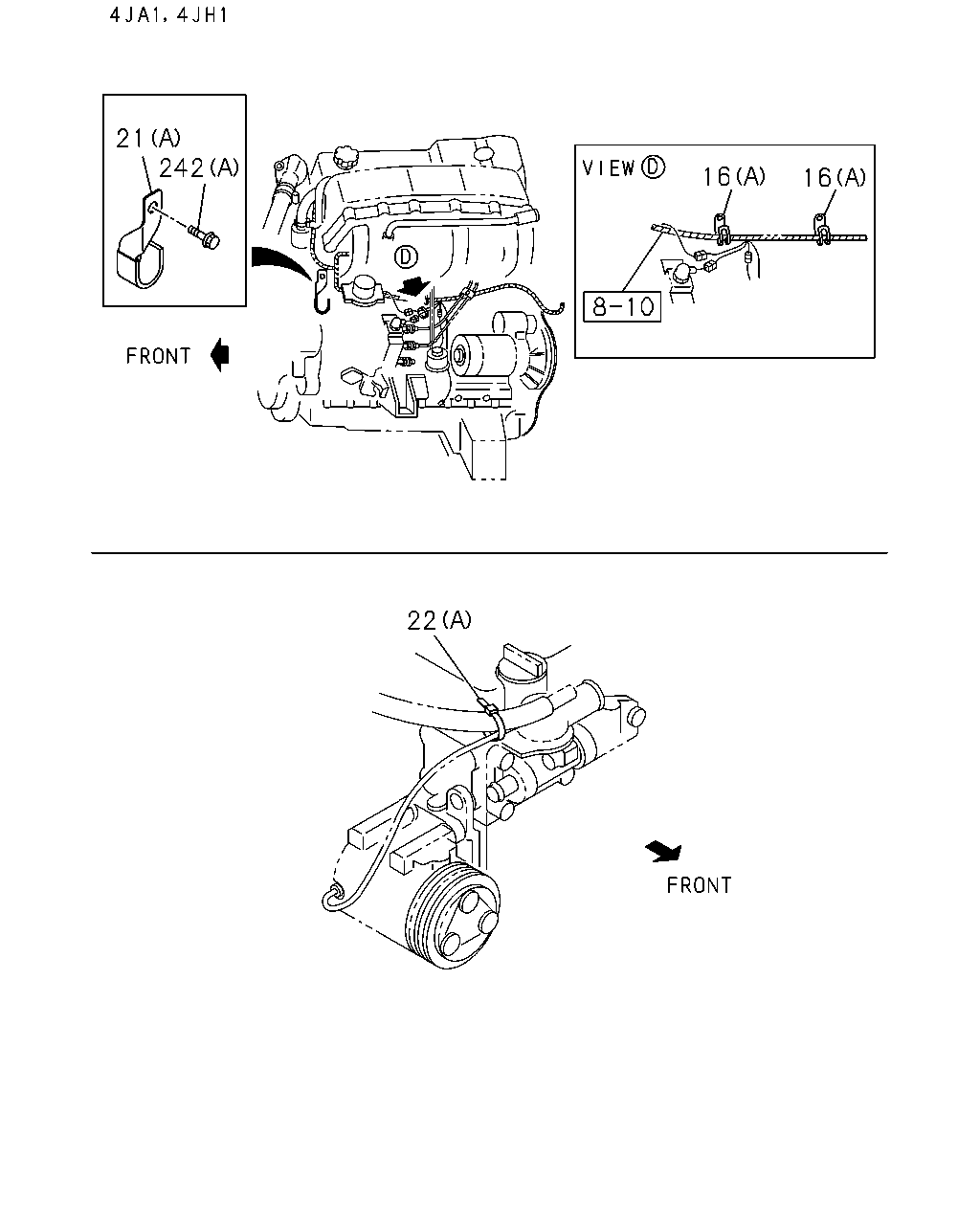

çizim 153240
21 242 16 16 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0509-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97943-788-0 01 1 0306-0410 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97943-788-0 01 1 0411-0609 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97373-034-0 01 1 0710-0710 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
(B) 		8-97373-034-0 01 1 0711- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) FRIGID ZONE<YL3> 03.680 (F) ID=16.5 & 7 		8-97226-171-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRIGID ZONE<YL3> 03.680 (F) ID=16.5 & 7 		8-97226-171-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) FRIGID ZONE<YL3> (G) L=400 		8-98193-590-0 02 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRIGID ZONE<YL3> (G) L=400 		8-98193-590-0 02 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0409-0410 ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0409-0410 ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0411-0508 ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0411-0508 ● ●
22 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0411-0508 ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0509-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0509-0609 ● ●
22 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0509-0609 ●
22 02.559 CLIP; ENG HARNESS
02.363 (A) L=140 		8-97920-656-0 01 1 0610- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) 09.663 (B) ID=15 		1-09709-003-0 01 1 0610-0709 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (B) ID=15 		1-09709-003-0 01 1 0710- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
03.483 (C) ID=6 & 10 		8-94154-844-0 01 1 0610- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
(D) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (E) 		8-98062-229-0 01 1 0612- ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0410 ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0411-0609 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ●

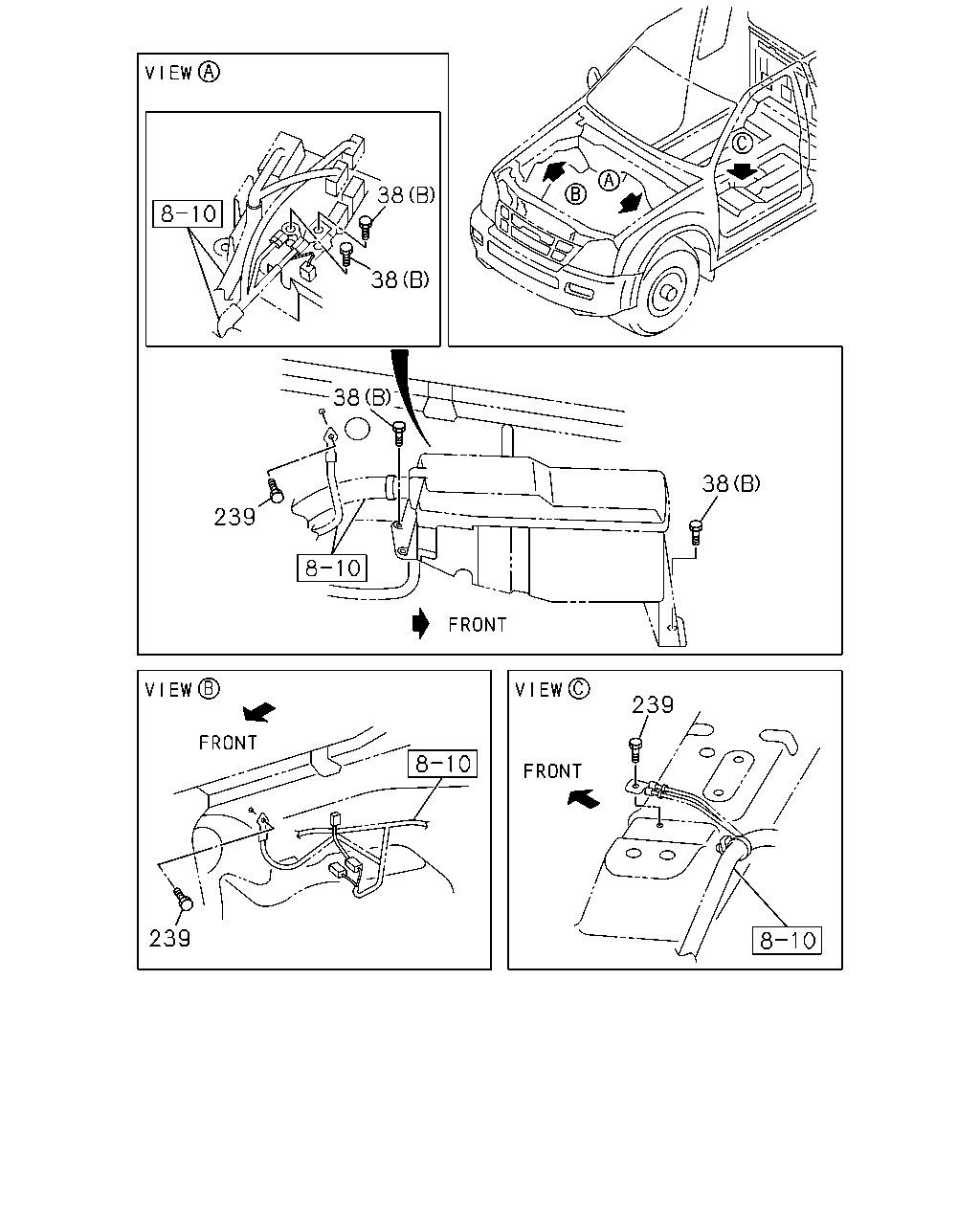

çizim 153241
38 38 38 38 239 239 239
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0306-0410 ● ● ● ● ●
239 02.559 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 03 1 0411- ● ● ● ● ● ●

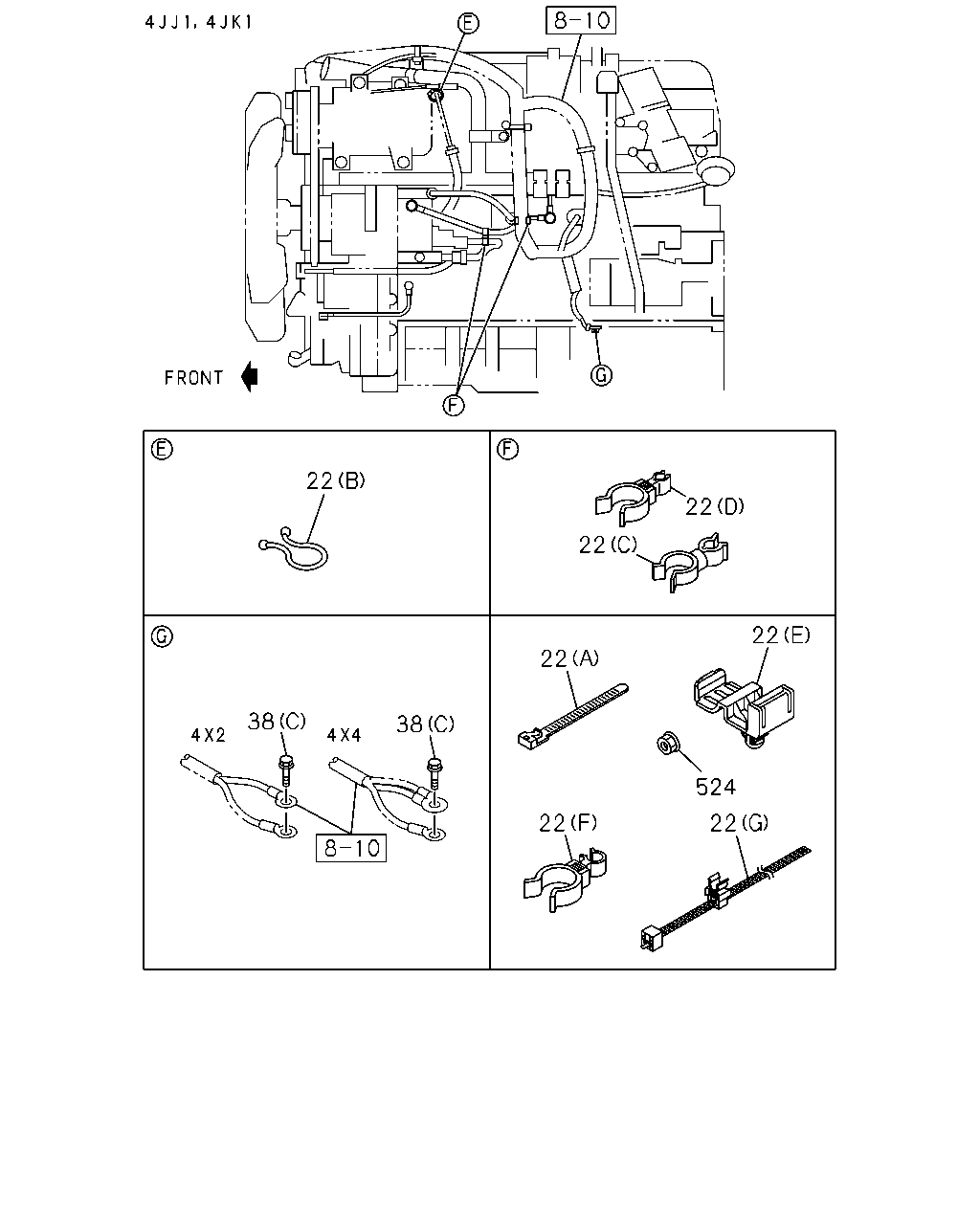

çizim 153259
22 22 22 22 22 38 38 524 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) FRIGID ZONE<YL3> 03.680 (F) ID=16.5 & 7 		8-97226-171-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRIGID ZONE<YL3> 03.680 (F) ID=16.5 & 7 		8-97226-171-0 01 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) FRIGID ZONE<YL3> (G) L=400 		8-98193-590-0 02 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FRIGID ZONE<YL3> (G) L=400 		8-98193-590-0 02 1 1110- ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0306-0408 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0409-0410 ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0409-0410 ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0411-0508 ● ● ●
22 02.559 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0411-0508 ● ●
22 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0411-0508 ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0509-0609 ● ● ●
22 02.559 CLIP; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0509-0609 ● ●
22 02.559 CLIP; ENG HARNESS
4JH1-TC ENG(RDM) AIR CONDITIONER MANUAL CONT(C60) 02.363 (A) L=140 		8-97920-656-0 01 1 0509-0609 ●
22 02.559 CLIP; ENG HARNESS
02.363 (A) L=140 		8-97920-656-0 01 1 0610- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0) 09.663 (B) ID=15 		1-09709-003-0 01 1 0610-0709 ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HEATER & DEFROSTER(C42) 09.663 (B) ID=15 		1-09709-003-0 01 1 0710- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
03.483 (C) ID=6 & 10 		8-94154-844-0 01 1 0610- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
(D) ID=10 & 11 		8-94438-996-0 01 1 0610- ● ● ● ● ● ●
22 02.559 CLIP; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (E) 		8-98062-229-0 01 1 0612- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ● ● ● ●
524 02.559 NUT; HARNESS
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ● ● ● ● ●

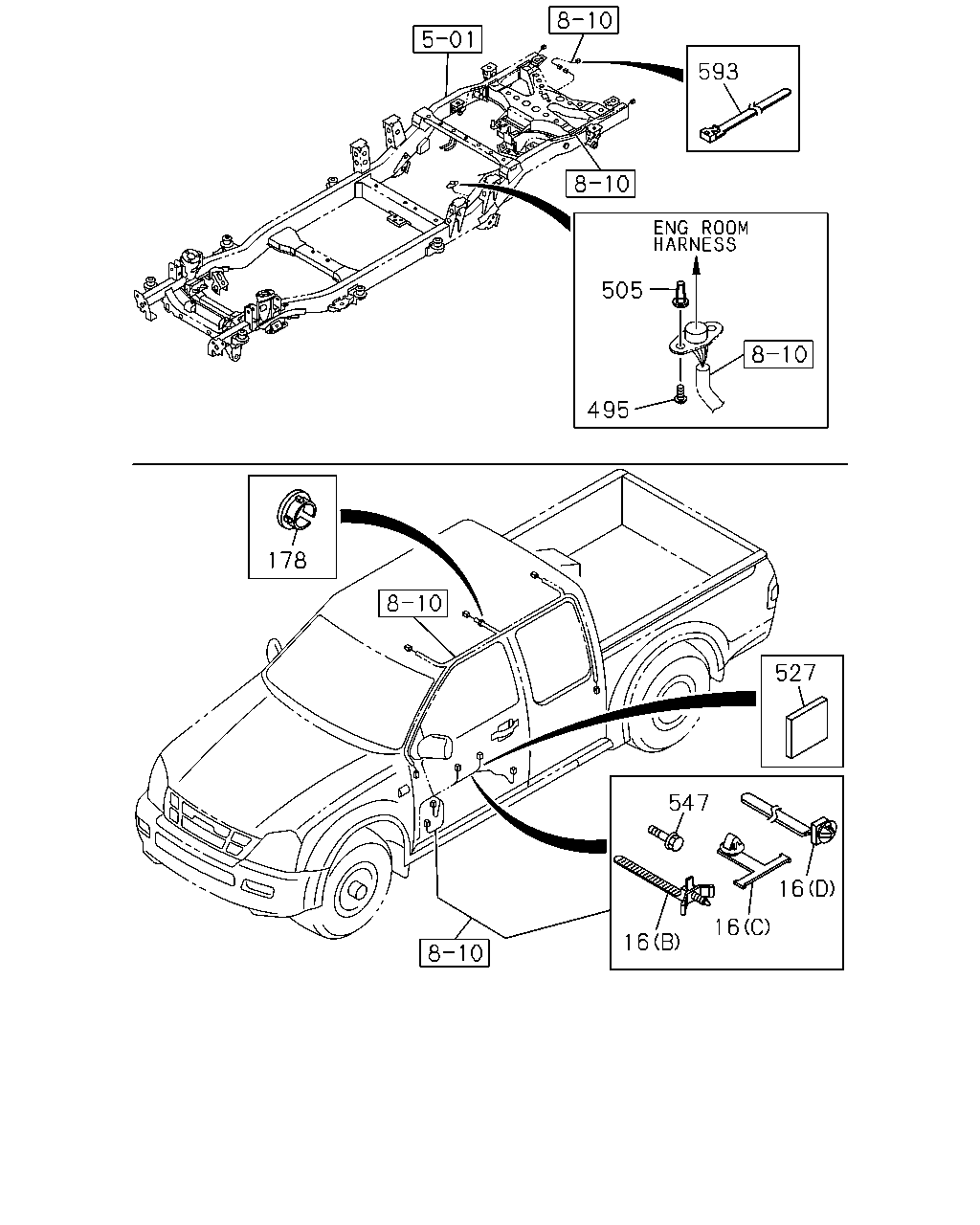

çizim 153264
593 505 495 178 527 547 16 16 16
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
16 02.559 CLIP; HARNESS
02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
02.313 (A) ID=18 L=44 		8-97367-985-0 03 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 03 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 02 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0509-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (B) L=135 		8-94473-399-0 01 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 02 1 0411-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (C) L=60 H=10.9 		8-97128-114-0 01 1 0610- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0306-0410 ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 06 1 0411-0508 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 05 1 0509-0609 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 02 1 0610-0709 ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ● ● ●
16 02.559 CLIP; HARNESS
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> (D) L=155 		8-97173-307-0 04 1 0710- ● ● ● ● ● ●
178 02.559 GROMMET; HARNESS
09.647 		8-97027-381-0 01 1 0306- ● ● ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0306-0410 ● ● ● ● ●
495 00.685 BOLT; CABLE TO BODY
10.240 M5X14 		8-94120-095-0 02 1 0411- ● ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0306-0410 ● ● ● ● ●
505 02.559 RETAINER; HARNESS
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 02 1 0411- ● ● ● ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> 70X45 		8-97304-372-0 01 1 0306-0410 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45 		8-97304-372-0 01 1 0306-0410 ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> 70X45 		8-97304-372-0 01 1 0411-0508 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIRROR ELEC CONT<DG2>,DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> 70X45 		8-97304-372-0 01 1 0411-0508 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> 70X45 		8-97304-372-0 01 1 0509-0609 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 70X45 		8-97304-372-0 01 1 0509-0609 ● ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9>,DOOR MIRROR ELECTRI C CONT BRIGHT<7HX> 70X45 		8-97304-372-0 01 1 0610-0709 ● ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> 70X45 		8-97304-372-0 01 1 0610-0709 ●
527 02.559 TAPE; SOFT,CONNECTOR
POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 70X45 		8-97304-372-0 01 1 0610-0709 ● ● ●
547 02.559 BOLT
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0306-0410 ● ● ● ● ●
547 02.559 BOLT
M6X14 W/LK&PL WASHER 		8-97086-822-0 01 1 0411- ● ● ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) L=250 		5-09707-030-1 01 1 0306-0410 ● ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) L=250 		5-09707-030-1 01 1 0411-0609 ● ● ● ● ● ●
593 02.559 CLIP
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6) L=250 		5-09707-030-1 01 1 0610- ● ● ● ● ● ●

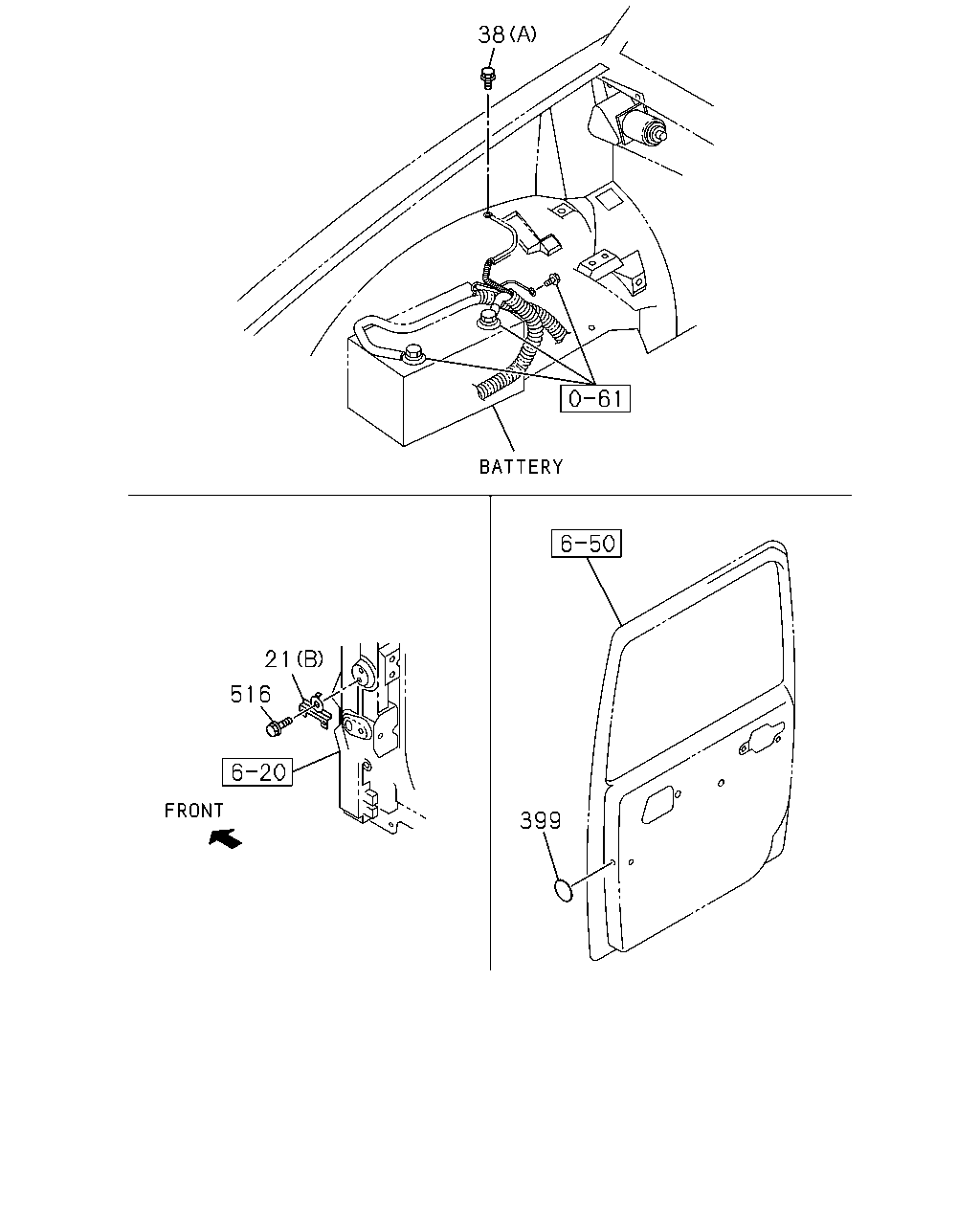

çizim 153269
38 21 516 399
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97943-788-0 01 1 0306-0410 ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97943-788-0 01 1 0411-0609 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97373-034-0 01 1 0710-0710 ● ● ● ● ● ●
21 02.483 BRACKET; ENG HARNESS
(B) 		8-97373-034-0 01 1 0711- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ● ● ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0306-0609 ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0306-0609 ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0610-0709 ● ●
399 02.559 COVER; HOLE,HARNESS,RR DOOR
GRADE DX(RBA) EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 16.165 OD=50 T=0.08 BLACK 		8-94111-754-0 02 1 0710- ● ●
516 02.559 BOLT; HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0710-0710 ● ● ● ● ● ●
516 02.559 BOLT; HARNESS
09.171 M6X16 FLANGE 		0-28450-616-0 01 1 0711- ● ● ● ● ● ●

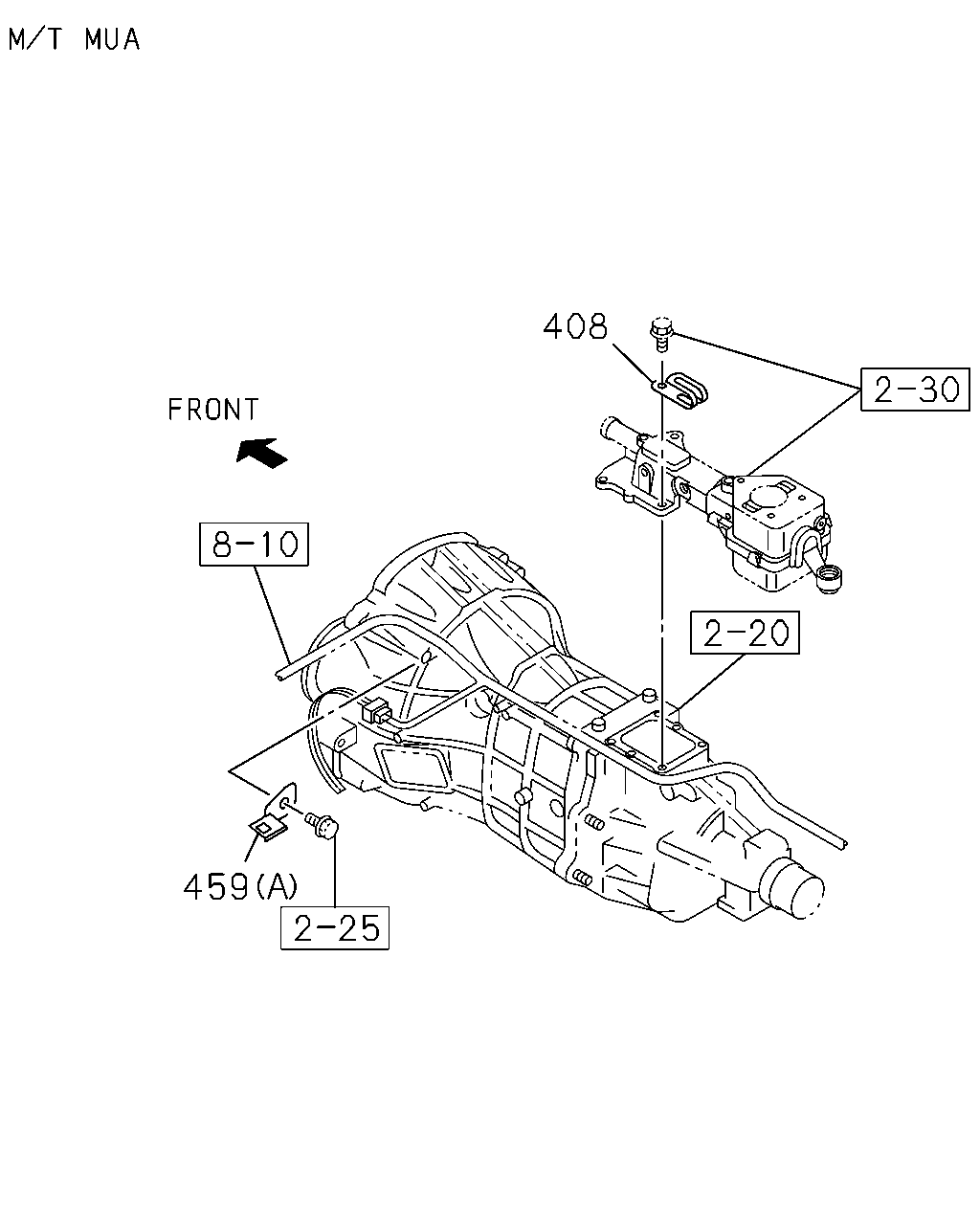

çizim 153302
408 459
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0306-0410 ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
M/T MUA 5 SPEED 5G(RSP) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0411-0508 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 04 1 0509-0604 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-0 04 1 0605-0609 ● ● ● ● ● ●
408 02.559 CLIP; TRANS HARNESS
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 03.671 ID=12 VINYL CHLORIDE 		8-97367-984-1 04 1 0610- ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0306-0410 ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0411-0508 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0509-0608 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0609-0609 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98050-882-0 01 1 0610-0710 ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98050-882-0 01 1 0711- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (B) 		8-98050-720-0 01 1 0610- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-98035-740-0 01 1 0610- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (E) 		8-98035-741-0 01 1 0610- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-97382-804-0 01 1 0610-0709 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (C) 		8-97382-804-0 01 1 0710- ● ● ●

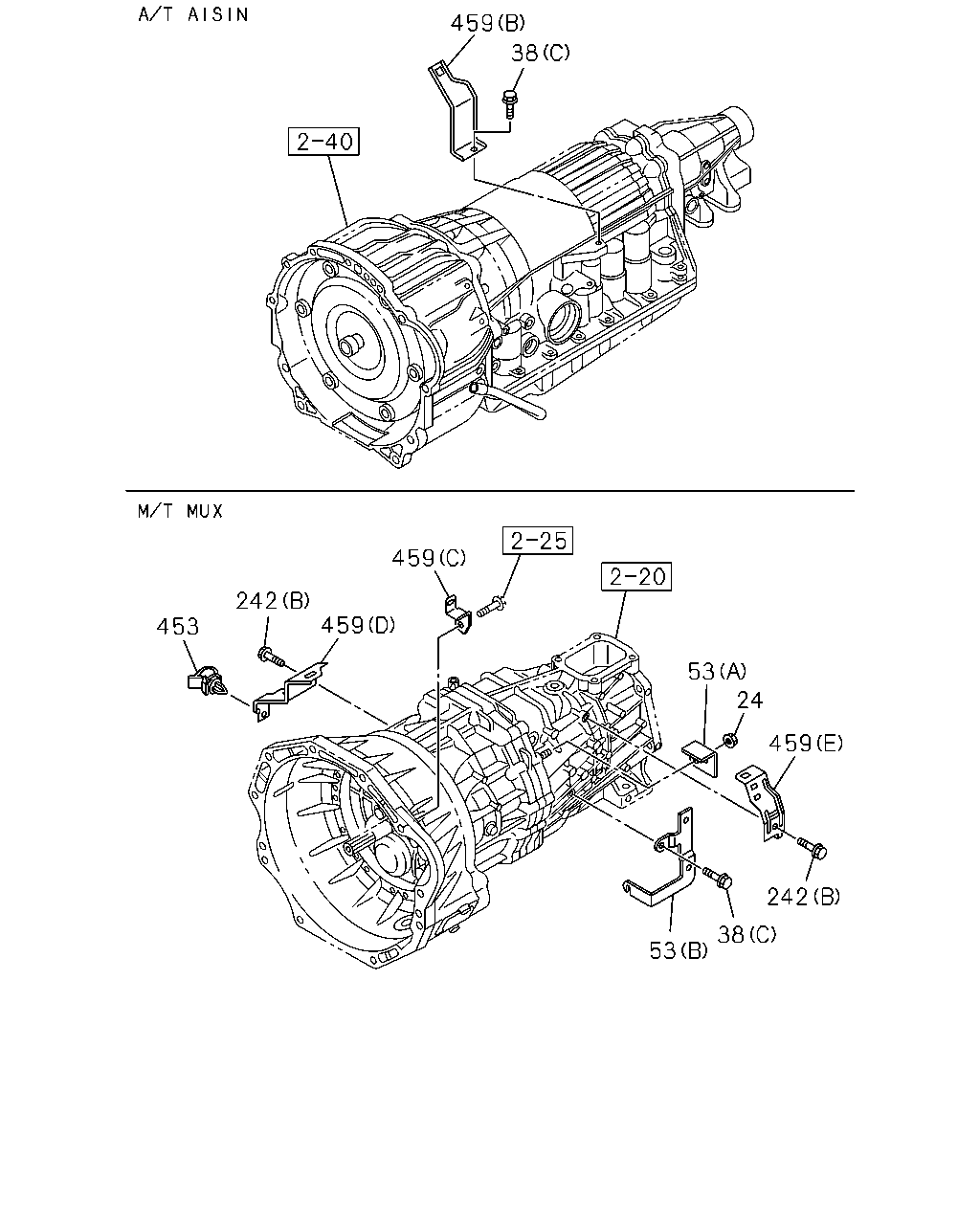

çizim 153514
459 38 459 242 459 453 53 24 459 242 38 53
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
24 02.559 NUT; HARNESS
M/T MUX 5 SPEED 5S(MZJ) 01.540 M6 FLANGE 		0-91180-206-0 01 1 0610- ● ● ●
38 02.559 BOLT; CLIP,HARNESS
08.900 (A) M8X12 FLANGE 		0-28080-812-0 01 1 0306-0402 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0403-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0306-0410 ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (B) M6X16 FLANGE 		0-28650-616-0 05 1 0411- ● ● ● ● ● ●
38 02.559 BOLT; CLIP,HARNESS
02.343 (C) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ● ● ● ●
53 02.483 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (A) 		8-97944-510-1 01 1 0610- ● ● ●
53 02.483 BRACKET; HARNESS
M/T MUX 5 SPEED 5S(MZJ) (B) 		8-97944-511-1 01 1 0610- ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0306-0410 ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.343 (A) M8X12 FLANGE 		0-28050-812-0 01 1 0411-0609 ● ● ● ● ● ●
242 02.483 BOLT; BRKT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) 02.343 (B) M8X16 FLANGE 		0-28050-816-0 02 1 0610- ● ● ●
453 02.559 CLIP; CABLE HARNESS
M/T MUX 5 SPEED 5S(MZJ) 04.342 ID=6.5 		5-09709-117-0 01 1 0610- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0306-0410 ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0411-0508 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-94315-284-0 01 1 0509-0608 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (A) 		8-98050-882-0 01 1 0609-0609 ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98050-882-0 01 1 0610-0710 ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98050-882-0 01 1 0711- ● ● ● ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) (B) 		8-98050-720-0 01 1 0610- ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (D) 		8-98035-740-0 01 1 0610- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (E) 		8-98035-741-0 01 1 0610- ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) (C) 		8-97382-804-0 01 1 0610-0709 ● ● ●
459 02.483 BRACKET; SUPPORT,HARNESS
M/T MUX 5 SPEED 5S(MZJ) (C) 		8-97382-804-0 01 1 0710- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
