◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#74238) — 688 parça

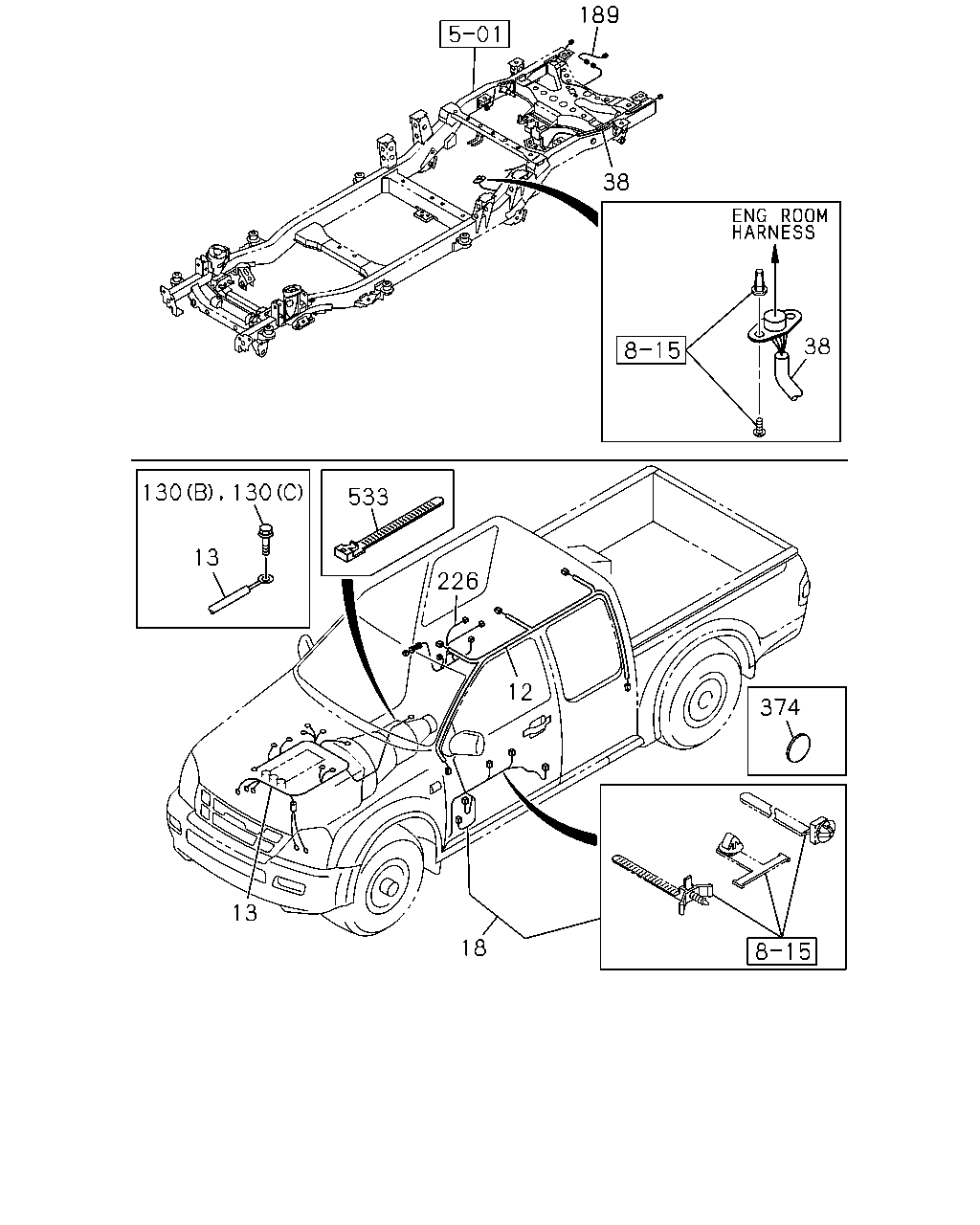

çizim 153232
189 38 38 130 130 533 13 226 12 374 13 18
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> ,ROOF RADIO ANTENNA<U71> 		8-98053-429-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97237-025-4 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97385-703-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-97385-703-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-98047-407-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-98047-407-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-98047-407-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-460-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-457-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97237-026-4 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97385-704-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-704-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-704-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-441-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-443-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF 8-97353-916-0 01 1 0306-0410 ●
12 02.480 HARNESS; ROOF 8-97353-916-0 01 1 0411-0508 ● ●
12 02.480 HARNESS; ROOF 8-97385-699-0 01 1 0509-0709 ●
12 02.480 HARNESS; ROOF
EXC. HEADER CONSOLE<DK6> 		8-97385-699-0 01 1 0509-0709 ●
12 02.480 HARNESS; ROOF 8-97385-699-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> ,ROOF RADIO ANTENNA<U71> 		8-98053-433-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97237-029-3 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-97385-707-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-97385-707-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> 		8-98047-411-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-98047-411-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6> 		8-98047-411-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> ROOF RADIO ANTENNA<U71> EXC. HEADER CONSOLE<DK6> 		8-98053-545-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-465-0 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> EXC. HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-468-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97237-030-3 01 1 0306-0508 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49> 		8-97385-708-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-708-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-97385-708-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6>,ROOF RADIO ANTENNA<U71> 		8-98053-447-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,HEADER CONSOLE<DK6> 		8-98053-449-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-926-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-926-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-430-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-97384-925-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98047-405-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98047-405-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-453-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-930-0 01 1 0509-0609 ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-97384-930-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. REAR DEFOGGER<C49>,MAP LAMP<C74> 		8-98053-434-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-97384-929-0 01 1 0509-0608 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98047-409-0 01 1 0609-0609 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-98047-409-0 01 1 0610-0709 ● ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> ROOF RADIO ANTENNA<U71> EXC. MAP LAMP<C74> 		8-98053-464-1 01 1 0710- ● ●
12 02.480 HARNESS; ROOF
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74> 		8-97384-921-0 01 1 0509-0709 ●
12 02.480 HARNESS; ROOF
REAR DEFOGGER<C49> HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,ROOF RADIO ANTENNA<U71> 		8-98053-454-0 01 1 0710- ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) FRIGID ZONE<YL3> 		8-98194-060-0 01 1 1110- ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) FRIGID ZONE<YL3> 		8-98194-061-0 01 1 1110- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) FRIGID ZONE<YL3> 		8-98194-063-0 01 1 1110- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) FRIGID ZONE<YL3> 		8-98194-065-0 01 1 1110- ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC CONTROL<K20> 		8-98011-544-6 01 1 0801-0802 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. ELECTRONIC CONTROL<K20> 		8-98011-546-6 01 1 0801-0802 ● ●
13 02.525 HARNESS; ENG 8-97361-280-4 01 1 0306-0609 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98011-547-6 01 1 0610-0709 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-915-1 01 1 0710-0712 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98067-915-1 01 1 0801-0802 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-915-1 01 1 0803-1109 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRIGID ZONE<YL3> 		8-98067-915-1 01 1 1110- ● ● ●
13 02.525 HARNESS; ENG
A/T 4 SPEED-JATCO(RMK) 		8-97361-283-4 01 1 0306-0609 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98011-544-6 01 1 0610-0709 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98067-912-1 01 1 0710-0712 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> 		8-98067-912-1 01 1 0801-0802 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 		8-98067-912-1 01 1 0803-1109 ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. FRIGID ZONE<YL3> 		8-98067-912-1 01 1 1110- ● ● ●
13 02.525 HARNESS; ENG
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-282-5 01 1 0306-0410 ● ●
13 02.525 HARNESS; ENG
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-282-5 01 1 0411-0609 ● ●
13 02.525 HARNESS; ENG
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97361-282-5 01 1 0411-0609 ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98011-548-6 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-916-1 01 1 0710-0710 ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-916-1 01 1 0711-0712 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> 		8-98067-916-1 01 1 0801-0802 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98067-916-1 01 1 0803-1109 ● ● ●
13 02.525 HARNESS; ENG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRIGID ZONE<YL3> 		8-98067-916-1 01 1 1110- ● ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98011-546-6 01 1 0610-0709 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98067-914-1 01 1 0710-0712 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> 		8-98067-914-1 01 1 0801-0802 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-98067-914-1 01 1 0803-1109 ● ●
13 02.525 HARNESS; ENG
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. FRIGID ZONE<YL3> 		8-98067-914-1 01 1 1110- ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-347-0 01 1 0306-0410 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-97362-347-0 01 1 0411-0508 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-895-0 01 1 0509-0609 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97384-895-0 01 1 0509-0609 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97384-895-0 01 1 0610-0709 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-895-0 01 1 0610-0709 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-98053-493-0 01 1 0710-0809 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98053-493-0 01 1 0810- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-407-0 01 1 0306-0410 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-407-0 01 1 0411-0508 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97384-896-0 01 1 0509-0609 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97384-896-0 01 1 0610-0709 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-98053-494-0 01 1 0710-0809 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98053-494-0 01 1 0810- ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97254-855-2 01 1 0306-0410 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97254-855-2 01 1 0411-0508 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97384-901-0 01 1 0509-0709 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-98053-474-0 01 1 0710- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97237-042-2 01 1 0306-0410 ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97237-042-2 01 1 0411-0508 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97384-897-0 01 1 0509-0709 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-98053-473-0 01 1 0710- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-406-0 01 1 0306-0410 ● ● ● ● ●
18 02.480 HARNESS; DOOR
REMOTE CONT DOOR LOCK<AP5> POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-406-0 01 1 0411-0508 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-915-0 01 1 0509-0511 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97384-915-0 01 1 0509-0511 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98032-418-0 01 1 0512-0609 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98032-418-0 01 1 0512-0609 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98032-418-0 01 1 0610-0709 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> 		8-98032-418-0 01 1 0610-0709 ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-98053-500-0 01 1 0710-0809 ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98053-500-0 01 1 0810- ● ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97384-898-0 01 1 0509-0511 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98032-410-0 01 1 0512-0609 ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-98032-410-0 01 1 0610-0709 ● ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-98053-497-0 01 1 0710-0809 ● ● ● ●
18 02.480 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT&REAR DOOR<A31> DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-98053-497-0 01 1 0810- ● ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-394-0 01 1 0306-0410 ● ● ● ● ●
38 02.480 HARNESS; CHAS
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-394-0 01 1 0411-0609 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-588-0 01 1 0610-1101 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-299-0 01 1 1102- ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-395-0 01 1 0306-0410 ● ● ● ● ●
38 02.480 HARNESS; CHAS
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97334-395-0 01 1 0411-0609 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98045-589-0 01 1 0610-1101 ● ● ● ● ● ●
38 02.480 HARNESS; CHAS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-300-0 01 1 1102- ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0306-0410 ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0411-0601 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0602-0609 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (B) M6X20 W/WASHER 		8-94112-987-1 02 1 0610-0611 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (C) M6X20 W/WASHER 		8-98056-282-0 01 1 0612- ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0306-0410 ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0411-0609 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (C) M6X20 W/WASHER 		8-98056-282-0 02 1 0612- ● ● ● ● ● ●
189 02.480 HARNESS; EXT 8-97250-356-0 01 1 0306-0410 ● ● ● ● ●
189 02.480 HARNESS; EXT 8-97250-356-0 01 1 0411-0609 ● ● ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6) 		8-97250-356-0 01 1 0610-0709 ● ● ● ● ● ●
189 02.480 HARNESS; EXT
EXC. REAR STEP BUMPER(VF6) 		8-98085-269-0 01 1 0710- ● ● ● ● ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97323-417-2 02 1 0306-0709 ● ●
226 02.480 HARNESS; RR DOOR
AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-410-1 02 1 0710-1007 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-97302-156-2 02 1 0306-0709 ● ●
226 02.480 HARNESS; RR DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-408-1 02 1 0710- ● ●
226 02.480 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97302-186-2 02 1 0306-0609 ●
226 02.480 HARNESS; RR DOOR
4-SPEAKER SYSTEM BASE<UQ4> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-97302-186-2 02 1 0610-0709 ● ●
226 02.480 HARNESS; RR DOOR
GRADE LT(RBD) 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 		8-98053-409-1 02 1 0710- ● ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0306-0609 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0306-0609 ●
374 02.530 PLUG; HARNESS CONNECTOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOWFRT&REAR DOOR<A31>,4-SPEAKER SYSTEM BASE<UQ4> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0610-0709 ● ●
374 02.530 PLUG; HARNESS CONNECTOR
GRADE DX(RBA) EXC. POWER WINDOW FRT&REAR DOOR<A31>, 4-SPEAKER SYSTEM BASE<UQ4>,6-SPEAKER SYSTEM BASE<UW5> 02.559 D=58 BLACK 		8-97302-191-0 02 1 0710- ● ●
533 02.559 CLIP
02.363 L=140 		8-97920-656-0 01 1 0610- ● ● ●

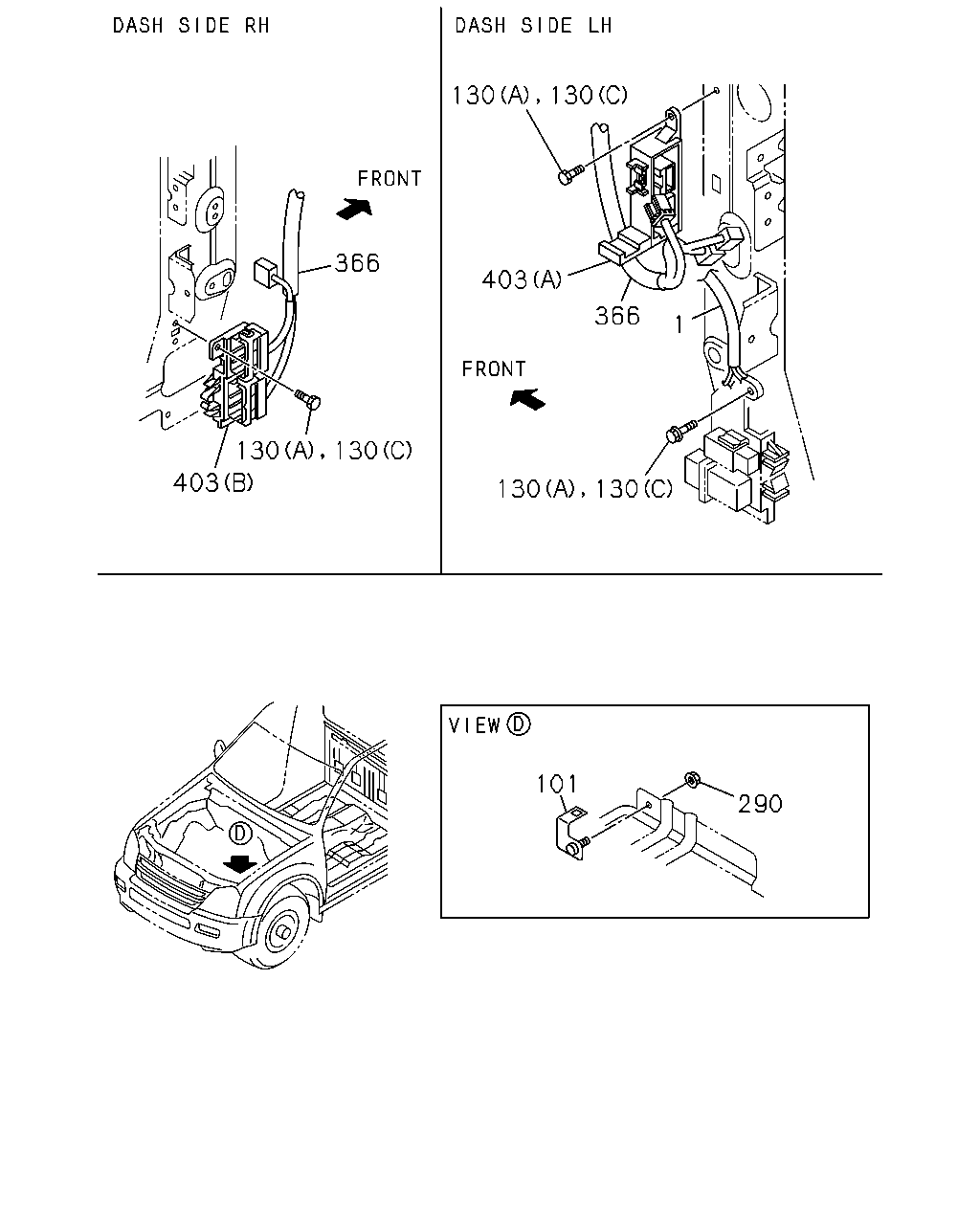

çizim 153243
130 130 366 403 366 1 130 130 403 130 130 101 290
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-786-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-786-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-830-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-695-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-234-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-820-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-787-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-787-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-831-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-696-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-235-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-821-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-785-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-785-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97384-829-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-694-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-694-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-694-1 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-233-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-233-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98098-819-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98098-819-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-780-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-780-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-827-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-692-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-231-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-817-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-781-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-781-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-828-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-693-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-232-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-818-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-779-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-779-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97384-826-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-691-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-691-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-691-1 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98053-230-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98053-230-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98098-816-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98098-816-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-774-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-824-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-689-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-228-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-814-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-775-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-825-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-690-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-229-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-815-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-773-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97384-823-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-688-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-227-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98098-813-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-768-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-821-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-687-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-226-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-812-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-769-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-822-0 01 1 0511-0609 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-767-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97384-820-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-686-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98053-225-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98098-811-0 01 1 0711- ● ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-97250-352-1 01 1 0306-0410 ● ● ● ● ●
101 02.483 BRACKET; HARNESS CONNECTOR 8-97250-352-1 01 1 0411-0609 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0306-0410 ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
(B) M10X16 FLANGE 		0-28081-016-0 01 1 0411-0601 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
02.483 (B) M10X16 FLANGE 		0-28051-016-0 01 1 0602-0609 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (B) M6X20 W/WASHER 		8-94112-987-1 02 1 0610-0611 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (C) M6X20 W/WASHER 		8-98056-282-0 01 1 0612- ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0306-0410 ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 03 1 0411-0609 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
08.015 (A) M6X20 W/WASHER 		8-94112-987-1 01 1 0610-0611 ● ● ● ● ● ●
130 02.559 BOLT; HARNESS EARTH
09.744 (C) M6X20 W/WASHER 		8-98056-282-0 02 1 0612- ● ● ● ● ● ●
290 02.483 NUT; BRKT
04.594 M6 FLANGE 		0-91150-106-0 01 1 0306-0410 ● ● ● ● ●
290 02.483 NUT; BRKT
04.594 M6 FLANGE 		0-91150-106-0 01 1 0411-0603 ● ● ● ● ● ●
290 02.483 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 01 1 0604-0609 ● ● ● ● ● ●

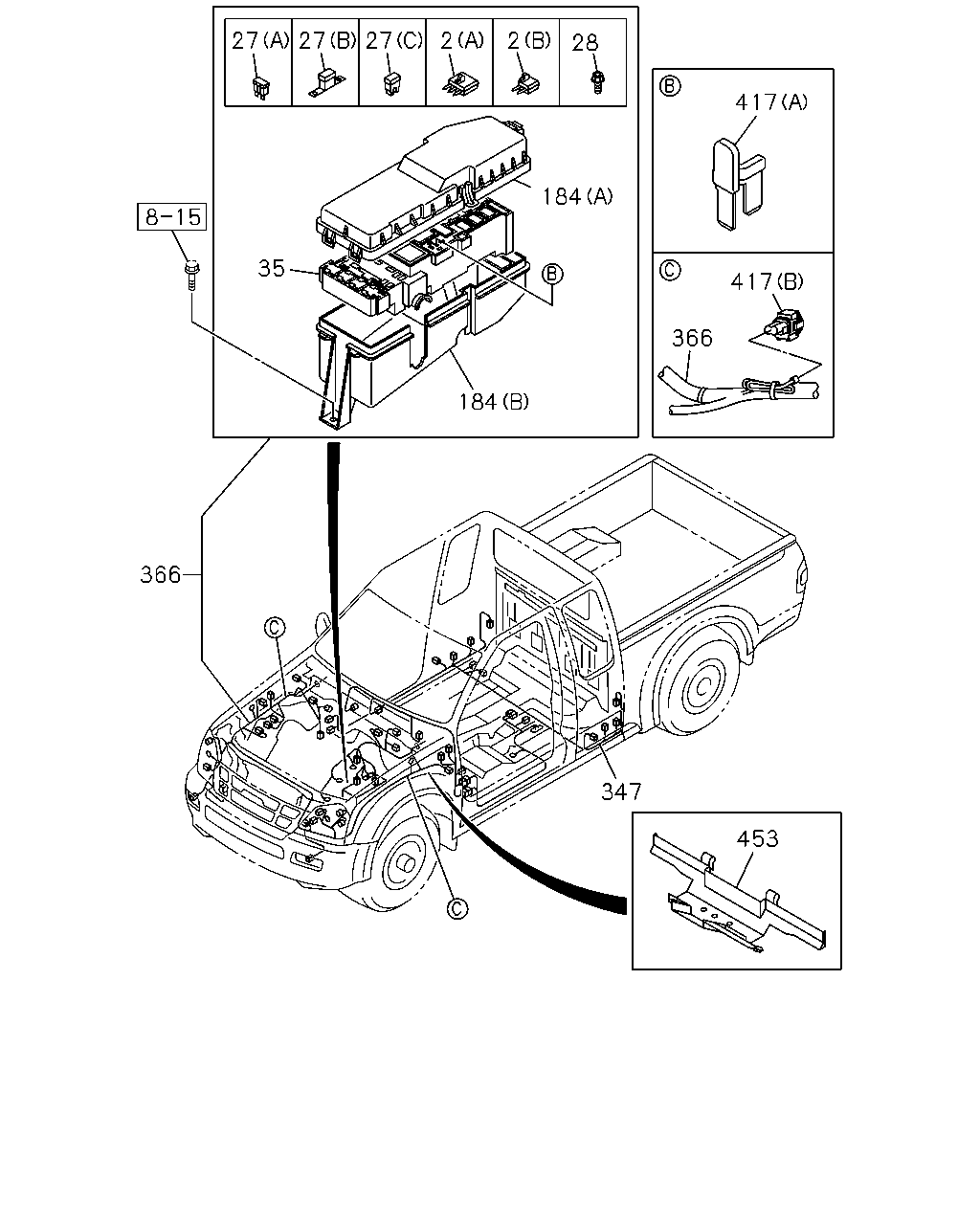

366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-003-0 01 1 0306-0405 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-477-0 01 1 0406-0508 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-151-0 01 1 0509-0609 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-544-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-756-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-885-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-885-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-885-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-787-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-327-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-004-0 01 1 0306-0405 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-478-0 01 1 0406-0508 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-152-0 01 1 0509-0609 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-545-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-886-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-886-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-886-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-788-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-328-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-538-0 01 1 0610-0611 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-753-0 01 1 0612-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-873-4 01 1 0710-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-873-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-873-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-775-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-315-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-539-0 01 1 0610-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-874-4 01 1 0710-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-874-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-874-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-776-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-316-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-005-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0406-0410 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0411-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0411-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-153-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-153-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-541-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-755-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-878-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-878-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-878-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-780-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-320-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-006-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0406-0410 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0411-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0411-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-154-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-154-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-543-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-881-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-881-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-881-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-783-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-323-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-009-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-483-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-157-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-540-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-754-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0710-0710 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0711-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-779-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-319-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-010-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-484-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-158-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-542-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0710-0710 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0711-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-782-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-322-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-811-1 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-896-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-896-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-896-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-798-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-334-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-798-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-746-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-883-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-883-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-883-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-785-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-325-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-810-1 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-749-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-895-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-895-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-895-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-797-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-333-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-799-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-884-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-884-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-884-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-786-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-326-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-809-1 01 1 0610-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-894-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-894-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-894-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-796-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-332-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-806-0 01 1 0610-0611 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-747-0 01 1 0612-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-891-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-891-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-891-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-891-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-891-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-891-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-781-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-781-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-321-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-321-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-807-1 01 1 0610-0611 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-748-0 01 1 0612-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-892-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-892-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-892-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-795-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-331-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-808-0 01 1 0610-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-893-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-893-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-893-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-893-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-893-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-893-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-784-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-784-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-324-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-324-0 01 1 1102- ●
403 02.483 BRACKET; CONNECTOR,HARNESS
(B) 		8-97245-593-0 01 1 0306-0410 ● ● ● ● ●
403 02.483 BRACKET; CONNECTOR,HARNESS
(B) 		8-97245-593-0 01 1 0411- ● ● ● ● ● ●
403 02.483 BRACKET; CONNECTOR,HARNESS
(A) 		8-97323-847-0 01 1 0306-0410 ● ● ● ● ●
403 02.483 BRACKET; CONNECTOR,HARNESS
(A) 		8-97323-847-0 01 1 0411- ● ● ● ● ● ●

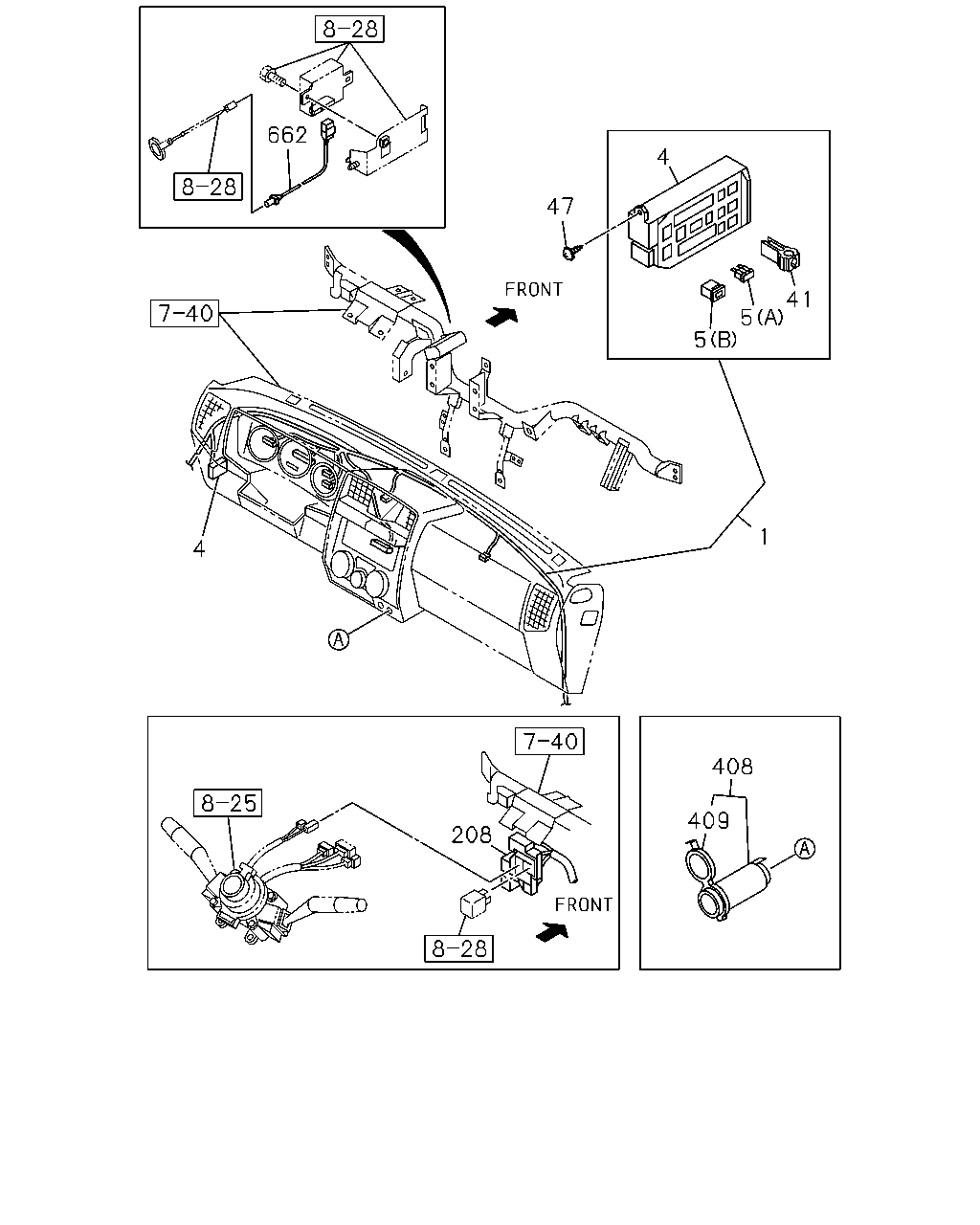

çizim 153275
662 4 47 41 5 5 1 4 408 409 208
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-786-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-786-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-830-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-695-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-234-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-820-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-787-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-787-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-831-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-696-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-235-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-821-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-785-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-785-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97384-829-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-694-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-694-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-694-1 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-233-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-233-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98098-819-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98098-819-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-780-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-780-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-827-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-692-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-231-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-817-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-781-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-781-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-828-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-693-1 01 1 0610-0709 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-232-1 01 1 0710-0710 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-818-0 01 1 0711- ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-779-0 01 1 0306-0410 ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-779-0 01 1 0411-0508 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5G(RSP) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97384-826-0 01 1 0509-0609 ● ● ● ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-691-1 01 1 0610-0709 ● ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-691-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-691-1 01 1 0610-0709 ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98053-230-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98053-230-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98098-816-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98098-816-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-774-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-824-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-689-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-228-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-814-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-775-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-825-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98048-690-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98053-229-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-98098-815-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97368-773-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-97384-823-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98048-688-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98053-227-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER & PASSENGER(AK5) REMOTE CONT DOOR LOCK<AP5> 		8-98098-813-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97368-768-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-97384-821-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98048-687-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98053-226-1 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) POWER WINDOW FRT&REAR DOOR<A31> EXC. REMOTE CONT DOOR LOCK<AP5> 		8-98098-812-0 01 1 0711- ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97368-769-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97384-822-0 01 1 0511-0609 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97368-767-0 01 1 0306-0508 ● ●
1 02.480 HARNESS; CAB
A/T 4 SPEED-JATCO(RMK) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-97384-820-0 01 1 0509-0609 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98048-686-1 01 1 0610-0709 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98053-225-2 01 1 0710-0710 ● ●
1 02.480 HARNESS; CAB
A/T AISIN(RMD) AIR BAG DRIVER(AJ3) REMOTE CONT DOOR LOCK<AP5> 		8-98098-811-0 01 1 0711- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97245-602-0 01 1 0306-0410 ● ● ● ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97245-602-0 01 1 0411- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 10A MINI RED 		8-97062-022-0 AR 1 0306-0410 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 10A MINI RED 		8-97062-022-0 AR 1 0411- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 15A MINI BLUE 		8-97062-023-0 AR 1 0306-0410 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 15A MINI BLUE 		8-97062-023-0 AR 1 0411- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0306-0410 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0411- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0306-0410 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
(B) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0411- ● ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (B) 30A PINK 		8-97183-643-0 AR 1 0306-0410 ● ● ● ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 (B) 30A PINK 		8-97183-643-0 AR 1 0411- ● ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0306-0410 ● ● ● ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 0411- ● ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 0306-0410 ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
16.085 M5X16 TAPPING 		9-09829-323-1 01 1 0411-0612 ● ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98061-685-0 01 1 0701-1004 ● ● ● ● ● ●
47 02.559 BOLT; JUNCTION BLOCK
08.083 M5X16 TAPPING 		8-98167-449-0 01 1 1005- ● ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97245-597-0 01 1 0306-0410 ● ● ● ● ●
208 02.483 HOLDER; CONNECTOR 8-97245-597-0 01 1 0411- ● ● ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0306-0410 ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0411-0609 ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0610-0709 ● ● ● ● ●
408 02.575 SOCKET ASM; ACCESSORY
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97288-746-0 01 1 0710- ● ● ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0306-0410 ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0411-0609 ● ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0610-0709 ● ● ● ● ●
409 02.530 CAP; ACCESSORY SOCKET
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-97327-326-0 01 1 0710- ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
01.150 		8-97303-923-0 01 1 0306-0410 ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
01.150 		8-97303-923-0 01 1 0411-0508 ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 01.150 		8-97303-923-0 01 1 0509-0609 ● ● ● ● ● ●
662 02.525 HARNESS; IMMOBILIZER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 		8-98008-414-0 01 1 0610- ● ● ● ● ● ●
çizim 153284
27 2 2 28 417 184 35 417 366 184 366 347 453 27 27
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0306-0410 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0411- ● ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0403-0405 ● ● ● ● ●
2 02.483 DIODE; CABLE HARNESS
A/T 4 SPEED-JATCO(RMK) (A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0306-0508 ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0509- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 80A BLACK 		8-94388-305-1 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 80A BLACK 		8-94388-305-1 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 10A MINI RED 		8-97062-022-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 15A MINI BLUE 		8-97062-023-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
02.485 (C) 20A LIGHT BLUE 		8-97183-642-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 30A PINK 		8-97183-643-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 40A GREEN 		8-97183-644-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 50A RED 		8-97183-645-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 AR 1 0306-0410 ● ● ● ● ●
27 08.965 FUSE UNIT
(C) 60A YELLOW 		8-97219-407-0 AR 1 0411- ● ● ● ● ● ●
27 08.965 FUSE UNIT
(B) 120A WHITE 		1-82516-028-1 AR 1 0610- ● ● ● ● ●
27 08.965 FUSE UNIT
(A) 20A MINI YELLOW 		8-97062-024-0 AR 1 0610- ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0306-0410 ● ● ● ● ●
28 02.483 SCREW; FUSE BOX 8-97249-192-0 02 1 0411- ● ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97251-395-0 01 1 0306-0410 ● ● ● ● ●
35 02.530 BOX; RELAY & FUSE 8-97251-395-0 01 1 0411- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 0306-0410 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(A) 		8-97251-393-0 01 1 0411- ● ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 0306-0410 ● ● ● ● ●
184 02.559 COVER; RELAY & FUSE BOX
(B) 		8-97251-394-0 01 1 0411- ● ● ● ● ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE DX(RBA) 		8-97317-510-3 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-510-3 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE DX(RBA) 		8-98007-581-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-98007-581-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE DX(RBA) 		8-98053-419-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY 8-98053-419-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> 		8-97355-916-1 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE LT(RBD) 		8-98007-582-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE LT(RBD) 		8-98053-420-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97317-513-3 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98044-564-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
AUTO DOOR LOCK<AU4> 		8-98053-422-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE DX(RBA) 		8-97317-514-4 01 1 0306-0410 ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE DX(RBA) 		8-97317-514-4 01 1 0411-0609 ●
347 02.480 HARNESS; CABLE,RR BODY 8-97317-514-4 01 1 0411-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98007-584-0 01 1 0610-0709 ● ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. AUTO DOOR LOCK<AU4> 		8-98053-421-1 01 1 0710- ● ●
347 02.480 HARNESS; CABLE,RR BODY
GRADE LT(RBD) 		8-97317-515-4 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
POWER WINDOW FRT&REAR DOOR<A31> 		8-97355-917-1 01 1 0306-0609 ●
347 02.480 HARNESS; CABLE,RR BODY
EXC. POWER WINDOW FRT&REAR DOOR<A31> 		8-97317-517-4 01 1 0306-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-003-0 01 1 0306-0405 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-477-0 01 1 0406-0508 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-151-0 01 1 0509-0609 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-544-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-756-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-885-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-885-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-885-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-787-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-327-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-004-0 01 1 0306-0405 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-478-0 01 1 0406-0508 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-152-0 01 1 0509-0609 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-545-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-886-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-886-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-886-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-788-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-328-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-538-0 01 1 0610-0611 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-753-0 01 1 0612-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-873-4 01 1 0710-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-873-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-873-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-775-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-315-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-539-0 01 1 0610-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-874-4 01 1 0710-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-874-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-874-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-776-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-316-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-005-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0406-0410 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0411-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-479-0 01 1 0411-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-153-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-153-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-541-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-755-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-878-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-878-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-878-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-780-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-320-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-006-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0406-0410 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0411-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-480-0 01 1 0411-0508 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-154-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-154-0 01 1 0509-0609 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98059-543-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-881-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-881-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-881-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-783-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-323-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-009-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-483-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-157-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-540-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-754-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0710-0710 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0711-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-877-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-779-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-319-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97368-010-0 01 1 0306-0405 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97377-484-0 01 1 0406-0508 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97385-158-0 01 1 0509-0609 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98059-542-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0710-0710 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0711-0712 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0801-0802 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-880-4 01 1 0803-0809 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-782-0 01 1 0810-1101 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-322-0 01 1 1102- ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-811-1 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-896-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-896-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-896-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-798-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-334-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-798-0 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-746-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-883-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-883-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-883-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-785-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-325-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-810-1 01 1 0610-0611 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-749-0 01 1 0612-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-895-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-895-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-895-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-797-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-333-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-799-0 01 1 0610-0709 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-884-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-884-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-884-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-786-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-326-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98050-809-1 01 1 0610-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-894-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-894-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-894-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-796-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) HEADLAMPS PROJECTOR BEAM<8LH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-332-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-806-0 01 1 0610-0611 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-747-0 01 1 0612-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-891-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-891-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-891-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> 		8-98066-891-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-891-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-891-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-781-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-781-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-321-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-321-0 01 1 1102- ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-807-1 01 1 0610-0611 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98061-748-0 01 1 0612-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-892-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC CONTROL<K20> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-892-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-892-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-795-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-331-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98050-808-0 01 1 0610-0709 ● ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-893-4 01 1 0710-0712 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-893-4 01 1 0710-0712 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-893-4 01 1 0801-0802 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC CONTROL<K20> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-893-4 01 1 0801-0802 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98066-893-4 01 1 0803-0809 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98066-893-4 01 1 0803-0809 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98108-784-0 01 1 0810-1101 ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98108-784-0 01 1 0810-1101 ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HEADLAMPS PROJECTOR BEAM<8LH> 		8-98180-324-0 01 1 1102- ● ●
366 02.525 HARNESS; CABLE,ENG ROOM
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98180-324-0 01 1 1102- ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JA1-TC ENG(L4Z) (A) 		8-97135-728-0 01 1 0509-0609 ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (A) 		8-97135-728-0 01 1 0509-0609 ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JH1-TC ENG(RDM) (A) 		8-97135-728-0 01 1 0509-0609 ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0610-0709 ● ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. INTERMITTENT WIPER<C13> (A) 		8-97327-713-0 01 1 0710- ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) 		8-97385-263-0 02 1 0509-0609 ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> (B) 		8-97385-263-0 02 1 0610-0709 ● ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> (B) 		8-97385-263-0 02 1 0710-0809 ● ● ● ●
417 02.530 CONNECTOR ASM; ENG HARNESS
DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> (B) 		8-97385-263-0 02 1 0810- ● ● ● ●
453 02.483 PROTECTOR; HARNESS 8-97327-532-0 01 1 0306-0410 ● ● ● ● ●
453 02.483 PROTECTOR; HARNESS 8-97327-532-0 01 1 0411-0609 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
