8-01 — LAMP; FRONT AND FRONT SIDE (#74235) — 455 parça

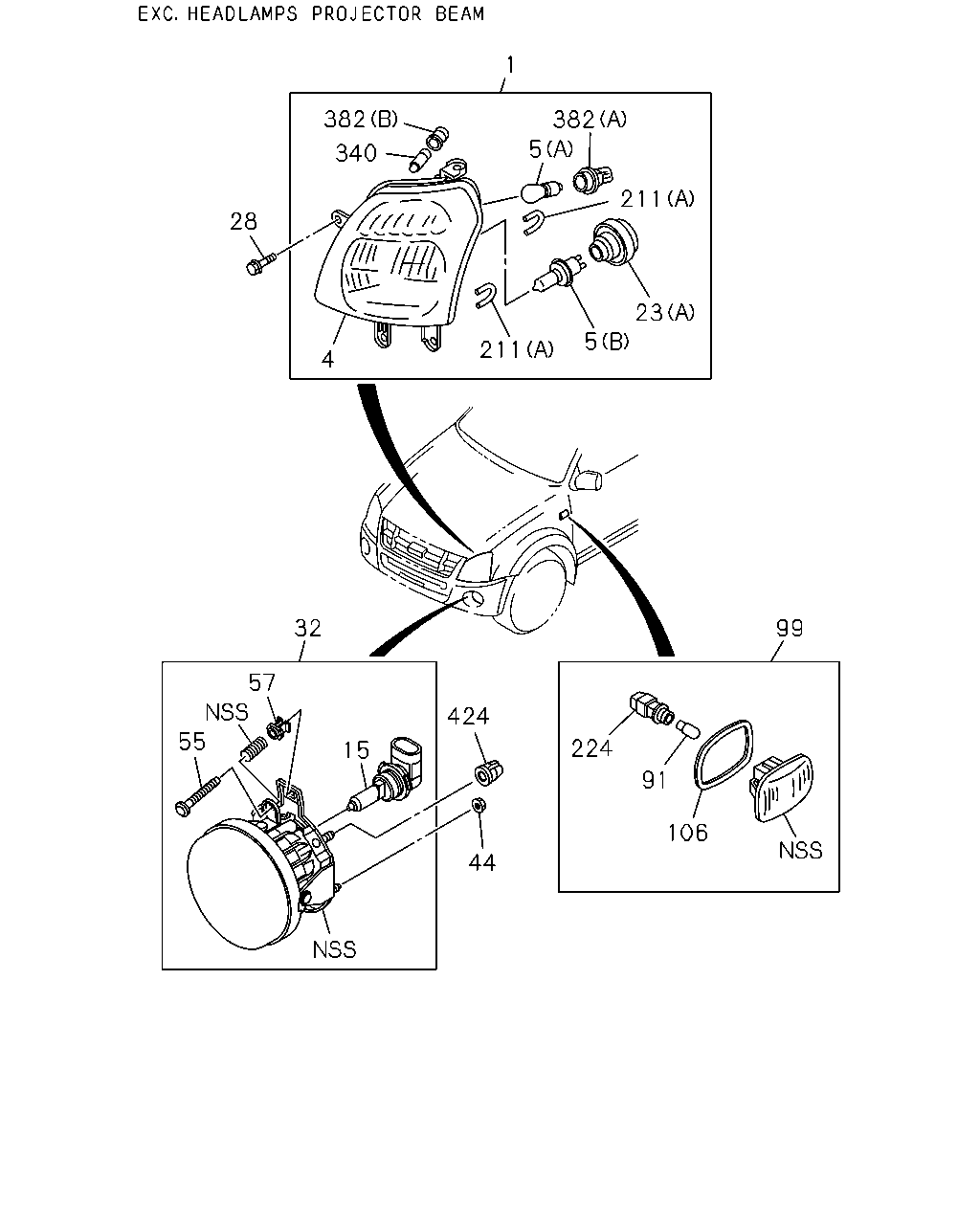

çizim 153253
1 382 382 5 340 211 28 23 5 211 4 32 99 57 424 55 224 15 91 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-97357-326-0 01 1 0306-0307 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-730-0 01 1 0308-0312 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0401-0410 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0411-0411 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-314-0 01 1 0412-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-836-0 01 1 0507-0609 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-669-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-010-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-010-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-501-3 01 1 0306-0307 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-729-0 01 1 0308-0312 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0401-0410 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0411-0411 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-313-0 01 1 0412-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-835-0 01 1 0507-0609 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-668-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-009-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-009-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-651-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-651-2 01 1 0610-0704 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-000-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0705-0709 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-000-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0710- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-650-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-650-2 01 1 0610-0704 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-999-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0705-0709 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-999-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0710- ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0306-0410 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0411-0411 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-811-0 01 1 0412-0609 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-850-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-850-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0306-0410 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0411-0411 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-810-0 01 1 0412-0609 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-849-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-849-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-764-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0610-0709 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-764-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0710- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-763-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0610-0709 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-763-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0710- ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0306-0410 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0411-0609 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610-0709 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0710- ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0306-0410 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0411-0609 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0610-0709 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0710- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0306-0410 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0411-0508 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0509-0609 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0306-0410 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0411-0609 ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0610-0709 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0710- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0710- ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0710- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0710- ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0306-0410 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0411-0611 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0306-0410 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0411-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0306-0410 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0411-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0306-0410 ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0411-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0610- ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0610- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0306-0410 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0411-0508 ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0509-0609 ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 12V 5W 		8-97310-952-0 02 1 0509-0609 ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 12V 5W 		8-97310-952-0 02 1 0610-0709 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0610-0709 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 12V 5W 		8-97310-952-0 02 1 0710-0809 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0710-0809 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 12V 5W 		8-97310-952-0 02 1 0810- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0810- ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0306-0410 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0411-0508 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0509-0609 ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97237-378-1 02 1 0509-0609 ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97237-378-1 02 1 0610-0709 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0610-0709 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-97237-378-1 02 1 0710-0809 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0710-0809 ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-97237-378-1 02 1 0810- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0810- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0306-0410 ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0411-0508 ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0509-0609 ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97333-420-0 02 1 0509-0609 ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97333-420-0 02 1 0610-0709 ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0610-0709 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-97333-420-0 02 1 0710-0809 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0710-0809 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-97333-420-0 02 1 0810- ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0810- ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0306-0410 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0411-0411 ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 02 1 0412-0506 ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0507-0609 ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97333-983-0 04 1 0610-0709 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0610-0709 ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97333-983-0 04 1 0710- ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0710- ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0306-0410 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0411-0609 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0306-0410 ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0411-0508 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0509-0609 ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97310-953-0 02 1 0509-0609 ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97310-953-0 02 1 0610-0709 ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0610-0709 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-97310-953-0 02 1 0710-0809 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0710-0809 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-97310-953-0 02 1 0810- ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0810- ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0306-0410 ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0411- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0306-0410 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0411-0609 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0610-0709 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0306-0410 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0411-0609 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0610-0709 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0710- ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0610- ● ● ● ● ● ●

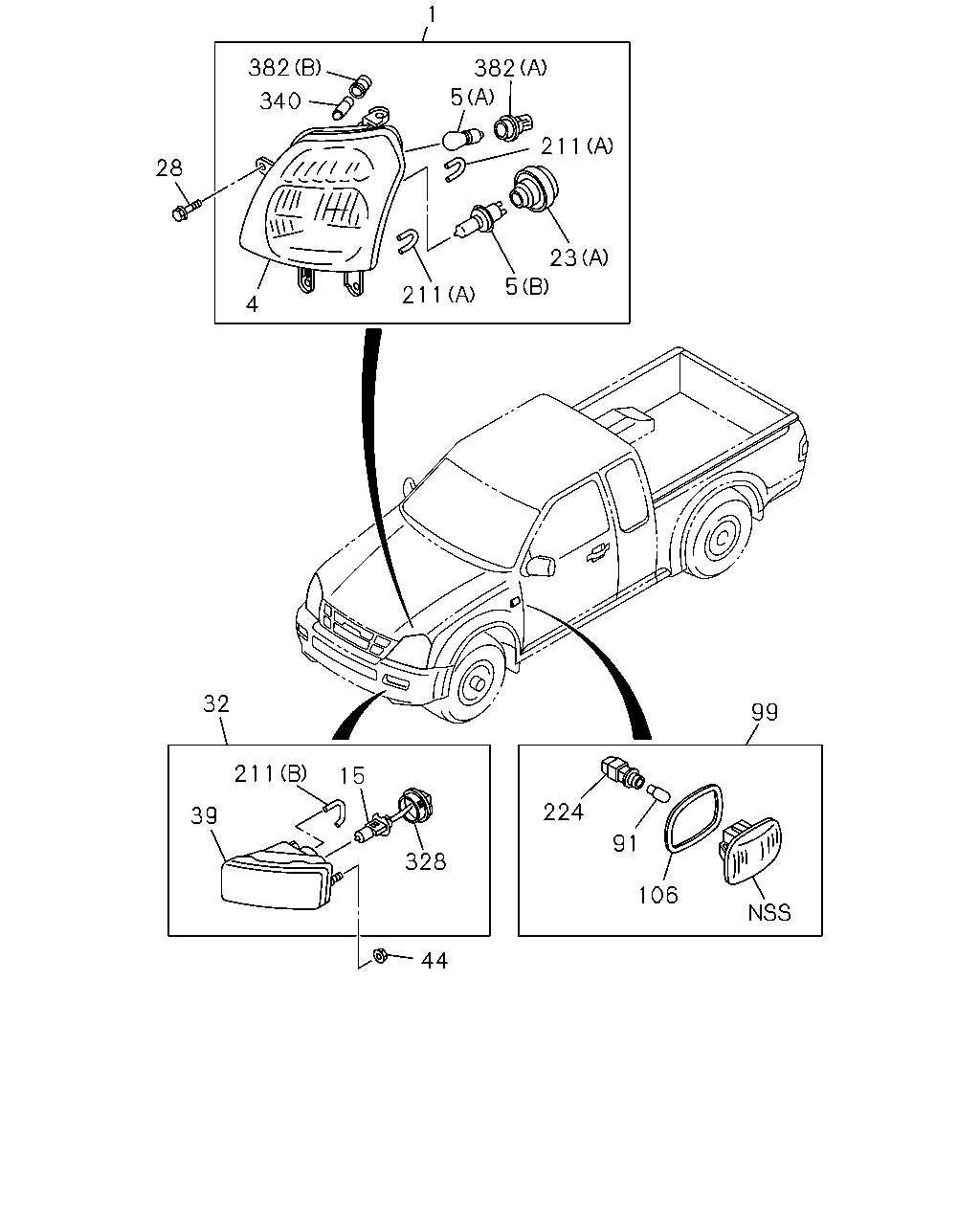

çizim 153304
1 382 382 5 340 211 28 23 5 211 4 32 99 211 15 224 39 91 328 106 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-97357-326-0 01 1 0306-0307 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-730-0 01 1 0308-0312 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0401-0410 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0411-0411 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-314-0 01 1 0412-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-836-0 01 1 0507-0609 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-669-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-010-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-010-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-501-3 01 1 0306-0307 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-729-0 01 1 0308-0312 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0401-0410 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0411-0411 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-313-0 01 1 0412-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-835-0 01 1 0507-0609 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-668-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-009-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-009-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-651-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-651-2 01 1 0610-0704 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-000-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0705-0709 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-000-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0710- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-650-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-650-2 01 1 0610-0704 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-999-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0705-0709 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-999-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0710- ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0306-0410 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0411-0411 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-811-0 01 1 0412-0609 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-850-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-850-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0306-0410 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0411-0411 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-810-0 01 1 0412-0609 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-849-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-849-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-764-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0610-0709 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-764-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0710- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-763-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0610-0709 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-763-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0710- ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0306-0410 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0411-0609 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610-0709 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0710- ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0306-0410 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0411-0609 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0610-0709 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0710- ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0306-0410 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0411-0508 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0509-0609 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0306-0410 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0411-0609 ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0610-0709 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0710- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0710- ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0710- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0710- ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0306-0410 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0411-0611 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0306-0410 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0411-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0306-0410 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0411-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-415-0 01 1 0306-0410 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-415-0 01 1 0411-0609 ● ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-414-0 01 1 0306-0410 ● ● ● ● ●
39 02.727 UNIT; FOG LAMP
FOG LAMP<T96> 		8-97333-414-0 01 1 0411-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0306-0410 ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0411-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0306-0410 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0411-0508 ● ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0509-0609 ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 12V 5W 		8-97310-952-0 02 1 0509-0609 ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 12V 5W 		8-97310-952-0 02 1 0610-0709 ● ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0610-0709 ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 12V 5W 		8-97310-952-0 02 1 0710-0809 ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0710-0809 ● ●
91 08.991 BULB; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 12V 5W 		8-97310-952-0 02 1 0810- ● ● ● ●
91 08.991 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 0810- ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0306-0410 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0411-0508 ● ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0509-0609 ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97237-378-1 02 1 0509-0609 ● ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97237-378-1 02 1 0610-0709 ● ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0610-0709 ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-97237-378-1 02 1 0710-0809 ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0710-0809 ● ●
99 02.585 LAMP; SIDE FLASHER
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-97237-378-1 02 1 0810- ● ● ● ●
99 02.585 LAMP; SIDE FLASHER 8-97237-378-1 02 1 0810- ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0306-0410 ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0411-0508 ● ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0509-0609 ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97333-420-0 02 1 0509-0609 ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97333-420-0 02 1 0610-0709 ● ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0610-0709 ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-97333-420-0 02 1 0710-0809 ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0710-0809 ● ●
106 02.590 GASKET; SIDE TURN SIGNAL
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-97333-420-0 02 1 0810- ● ● ● ●
106 02.590 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 0810- ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0306-0410 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0411-0411 ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 02 1 0412-0506 ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0507-0609 ● ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97333-983-0 04 1 0610-0709 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0610-0709 ●
211 02.728 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97333-983-0 04 1 0710- ● ● ● ●
211 02.728 TUBE; HEADLAMP
(A) 		8-97333-983-0 04 1 0710- ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0306-0410 ● ● ● ● ●
211 02.728 TUBE; HEADLAMP
FOG LAMP<T96> 02.722 (B) 		8-94451-175-0 02 1 0411-0609 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0306-0410 ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0411-0508 ● ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0509-0609 ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97310-953-0 02 1 0509-0609 ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC DUAL FOLDING COLOR TURN SIGNAL<DF9> 		8-97310-953-0 02 1 0610-0709 ● ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0610-0709 ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DL2> 		8-97310-953-0 02 1 0710-0809 ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0710-0809 ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP
EXC. DOOR MIR ELEC HEATED PWR FOLDING TURN SIGNAL<DNQ> 		8-97310-953-0 02 1 0810- ● ● ● ●
224 02.575 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 0810- ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> 		8-97333-417-0 02 1 0306-0410 ● ● ● ● ●
328 02.725 COVER; LAMP
FOG LAMP<T96> 		8-97333-417-0 02 1 0411-0609 ● ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0306-0410 ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0411- ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0306-0410 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0411-0609 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0610-0709 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0306-0410 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0411-0609 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0610-0709 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0710- ● ● ● ●

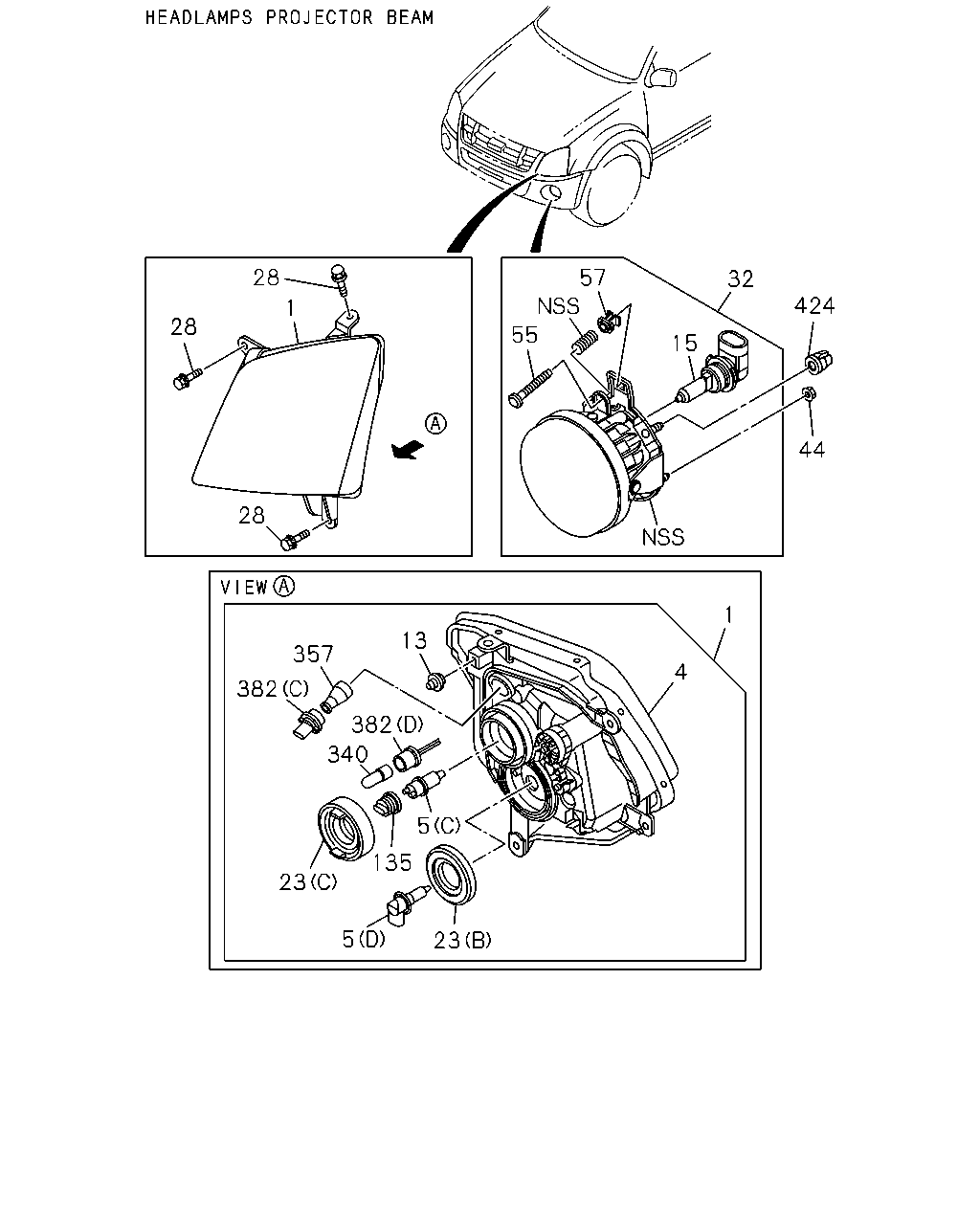

çizim 153502
28 57 32 424 1 28 55 15 44 28 1 13 357 4 382 382 340 5 135 23 5 23
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 02.725 LAMP ASM; HEAD 8-97357-326-0 01 1 0306-0307 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-730-0 01 1 0308-0312 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0401-0410 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-216-0 01 1 0411-0411 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-314-0 01 1 0412-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-836-0 01 1 0507-0609 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-669-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-010-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-010-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97237-501-3 01 1 0306-0307 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97367-729-0 01 1 0308-0312 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0401-0410 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-215-0 01 1 0411-0411 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98004-313-0 01 1 0412-0506 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98023-835-0 01 1 0507-0609 ● ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97388-668-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-009-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-009-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-651-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-651-2 01 1 0610-0704 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-000-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0705-0709 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98080-000-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98080-000-0 01 1 0710- ● ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97374-650-2 01 1 0610-0704 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-97374-650-2 01 1 0610-0704 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-999-0 01 1 0705-0709 ● ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0705-0709 ●
1 02.725 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98079-999-0 01 1 0710- ● ● ● ●
1 02.725 LAMP ASM; HEAD 8-98079-999-0 01 1 0710- ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0306-0410 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-441-0 01 1 0411-0411 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-811-0 01 1 0412-0609 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-850-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-850-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0306-0410 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97332-440-0 01 1 0411-0411 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-97379-810-0 01 1 0412-0609 ● ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-849-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-849-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-764-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0610-0709 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-764-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-764-0 01 1 0710- ● ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-763-0 01 1 0610-0709 ● ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0610-0709 ●
4 02.727 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-763-0 01 1 0710- ● ● ● ●
4 02.727 HEADLAMP UNIT 8-98011-763-0 01 1 0710- ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0306-0410 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0411-0609 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0610-0709 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 08.991 (A) 12V 21W 		8-97179-967-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
08.991 (A) 12V 21W 		8-97179-967-0 02 1 0710- ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0306-0410 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-97914-323-0 02 1 0411-0609 ● ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98011-475-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 12V 60W 		8-97289-997-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0610-0709 ● ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0610-0709 ●
5 02.727 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60/55W 		8-98032-732-0 02 1 0710- ● ● ● ●
5 02.727 BULB; HEADLAMP
(B) 12V 60/55W 		8-98032-732-0 02 1 0710- ● ●
13 02.736 CLIP; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97378-145-0 02 1 0610-0709 ● ● ● ● ●
13 02.736 CLIP; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97378-145-0 02 1 0710- ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0306-0410 ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-97333-416-0 02 1 0411-0508 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 12V 55W 		8-98024-386-0 02 1 0509-0609 ● ● ● ● ● ●
15 08.991 BULB; FOG LAMP
FOG LAMP<T96> 02.727 12V 51W 		8-97286-998-0 02 1 0610- ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0306-0410 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0411-0609 ● ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0610-0709 ●
23 02.727 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-448-0 02 1 0710- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
(A) 		8-97332-448-0 02 1 0710- ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97675-961-0 02 1 0710- ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0610-0709 ● ● ● ● ●
23 02.727 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98011-477-0 02 1 0710- ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0306-0410 ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
02.726 M6X18 TAPPING W/LK&PL WASHER 		8-94372-359-0 08 1 0411-0611 ● ● ● ● ● ●
28 02.762 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 0612- ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0306-0410 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-012-0 01 1 0411-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-125-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0306-0410 ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97363-011-0 01 1 0411-0509 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98030-124-0 01 1 0510-0609 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-97374-661-1 02 1 0610-0904 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98144-229-0 02 1 0905-1101 ● ● ● ● ● ●
32 02.725 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1102- ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0306-0410 ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 01.062 M6 FLANGE 		0-91180-106-0 04 1 0411-0609 ● ● ● ● ● ●
44 02.737 NUT; FOG LAMP
FOG LAMP<T96> 08.915 M6 FLANGE 		8-98055-704-0 04 1 0610- ● ● ● ● ● ●
55 02.737 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 0610- ● ● ● ● ● ●
57 02.726 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 0610- ● ● ● ● ● ●
135 02.725 ADAPTER; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-476-0 02 1 0610-0709 ● ● ● ● ●
135 02.725 ADAPTER; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98011-476-0 02 1 0710- ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0306-0410 ● ● ● ● ●
340 08.991 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 0411- ● ● ● ● ● ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-94124-074-0 02 1 0610-0709 ● ● ● ● ●
357 08.991 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-94124-074-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0306-0410 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0411-0609 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0610-0709 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-97332-446-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(A) 		8-97332-446-0 02 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0306-0410 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0411-0609 ● ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0610-0709 ●
382 02.575 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-97332-447-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
(B) 		8-97332-447-0 02 1 0710- ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98012-762-0 02 1 0710- ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0610-0709 ● ● ● ● ●
382 02.575 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-98012-788-0 02 1 0710- ● ● ● ●
424 02.727 RETAINER; FOG LAMP
FOG LAMP<T96> 16.494 		8-97372-854-0 02 1 0610- ● ● ● ● ● ●

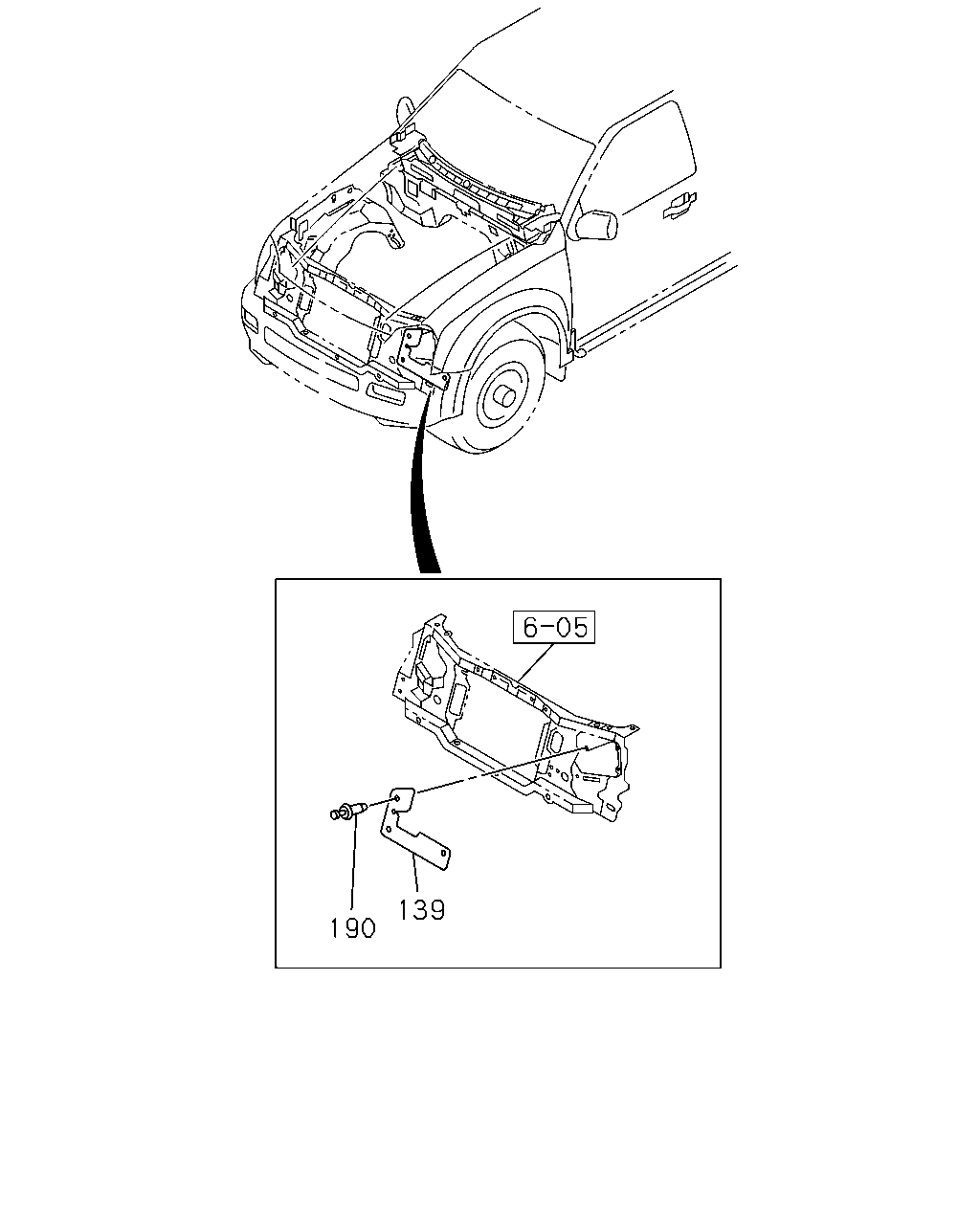

çizim 153503
139 190
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-394-0 02 1 0306-0410 ● ● ● ● ●
139 02.726 COVER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 		8-97333-394-0 02 1 0411-0609 ● ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 16.150 		8-94279-954-0 06 1 0306-0410 ● ● ● ● ●
190 02.727 RETAINER; HEADLAMP
AIR CONDITIONER MANUAL CONT(C60) 16.150 		8-94279-954-0 06 1 0411-0609 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
