7-60 — SEAT BELT (#74234) — 279 parça

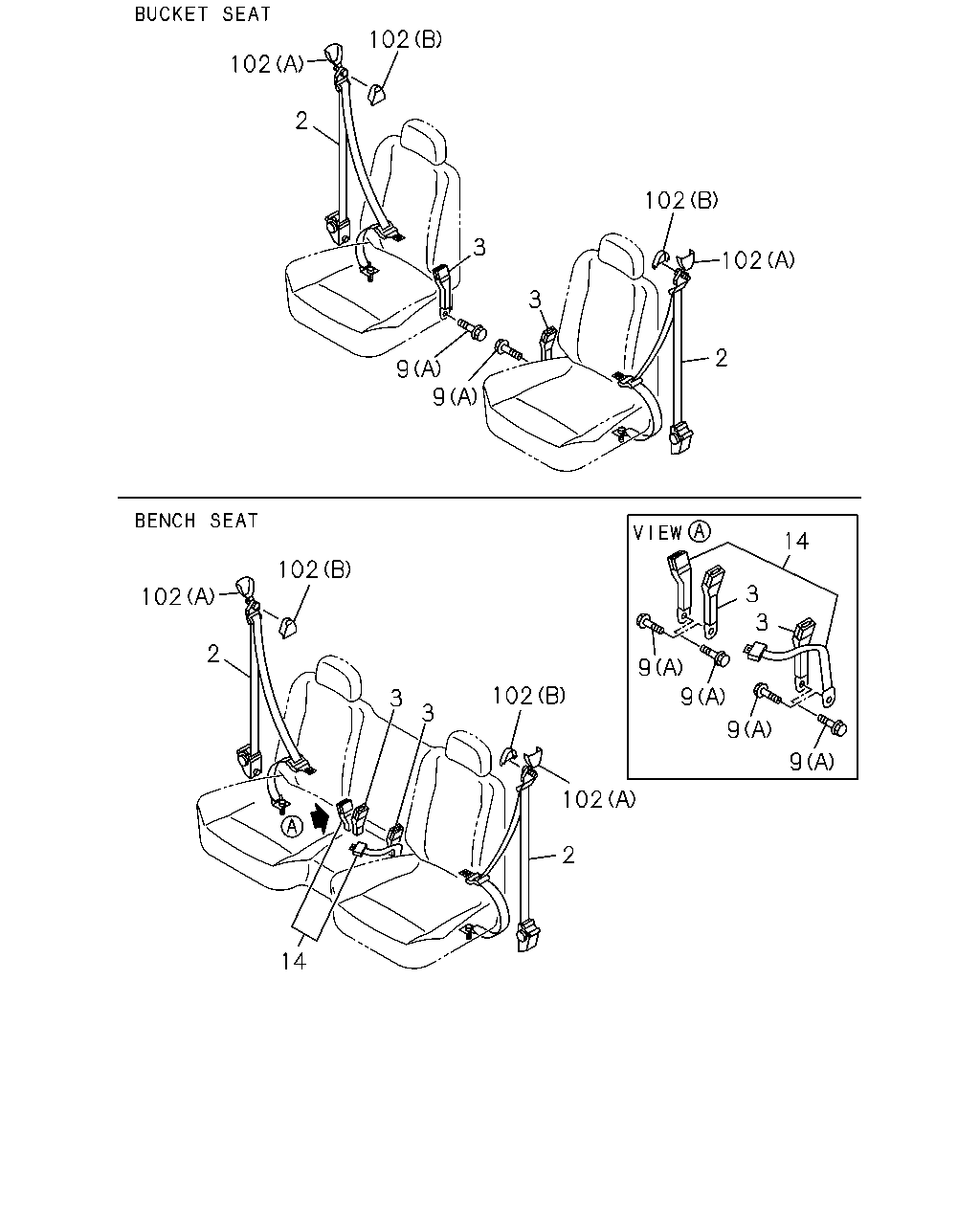

çizim 153244
102 102 2 102 3 102 3 2 9 9 14 102 3 3 102 2 9 9 102 3 3 9 9 102 2 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) DRIVER SIDE DARK GRAY 		8-97418-425-0 01 1 1004-1303 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) DRIVER SIDE DARK GRAY 		8-97424-043-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) PASSENGER SIDE DARK GRAY 		8-97418-428-0 01 1 1004-1303 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR BLACK(101) PASSENGER SIDE DARK GRAY 		8-97424-045-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97294-002-5 01 1 0306-0402 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97294-002-5 01 1 0306-0402 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97399-422-0 01 1 0403-0410 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97399-422-0 01 1 0403-0410 ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97399-422-1 01 1 0411-0609 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DARK GRAY 		8-97399-422-1 01 1 0411-0609 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY 		8-97403-336-1 01 1 0610-0809 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY 		8-97413-190-0 01 1 0810-0811 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 0812-1003 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 1004-1303 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY 		8-97417-025-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) PASSENGER SIDE DARK GRAY 		8-97424-020-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
PASSENGER SIDE DARK GRAY 		8-97424-020-0 01 1 1304- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY 		8-97407-845-0 01 1 0610-0809 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY 		8-97413-176-0 01 1 0810-0811 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY 		8-97417-018-0 01 1 0812-1003 ● ● ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DRIVER SIDE DARK GRAY 		8-97417-018-0 01 1 1004-1303 ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY 		8-97417-018-0 01 1 1004-1303 ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) DRIVER SIDE DARK GRAY 		8-97424-019-0 01 1 1304- ● ● ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
DRIVER SIDE DARK GRAY 		8-97424-019-0 01 1 1304- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97396-201-0 01 1 0306-0307 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97398-499-0 01 1 0308-0410 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97398-499-0 01 1 0411-0609 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-868-0 01 1 0610-0709 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0709 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-868-0 01 1 0610-0709 ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809-0910 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97416-330-1 01 1 0809-0910 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809-0910 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97416-330-1 01 1 0809-0910 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0911-1003 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0911-1003 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0911-1003 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0911-1003 ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 1004- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97416-330-1 01 1 1004- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 1004- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97416-330-1 01 1 1004- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97396-200-0 01 1 0307-0307 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97398-498-0 01 1 0308-0410 ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
DARK GRAY 		8-97398-498-0 01 1 0411-0609 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97408-869-0 01 1 0610-0808 ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> FRONT SEAT BUCKET TYPE<A50> DARK GRAY 		8-97416-329-1 01 1 0809- ● ● ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97408-867-0 01 1 0610-0808 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 0809-1003 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 1004- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-318-1 01 1 1004- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97408-866-0 01 1 0610-0808 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 0809-1003 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 1004- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97416-317-1 01 1 1004- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0610-0709 ● ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97408-868-0 01 1 0710-0808 ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
CLOTH TRIM STANDARD, VAR 1<8LK> FRONT SEAT BUCKET TYPE<A50> EXC. FRONT SEAT BACK POCKET(E91) DARK GRAY 		8-97416-330-1 01 1 0809- ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 02 1 0306- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0306-0609 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0306-0409 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0410-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (C) M12X35 FLANGE 		0-28691-235-0 02 1 0306-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97298-689-1 01 1 0306-0609 ● ● ●
14 16.714 BELT; SEAT,CENTER
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 0610-1003 ● ● ●
14 16.714 BELT; SEAT,CENTER
BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1004- ●
14 16.714 BELT; SEAT,CENTER
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> DARK GRAY 		8-97405-239-1 01 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0306-0402 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0306-0402 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97395-750-0 02 1 0306-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0306-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●

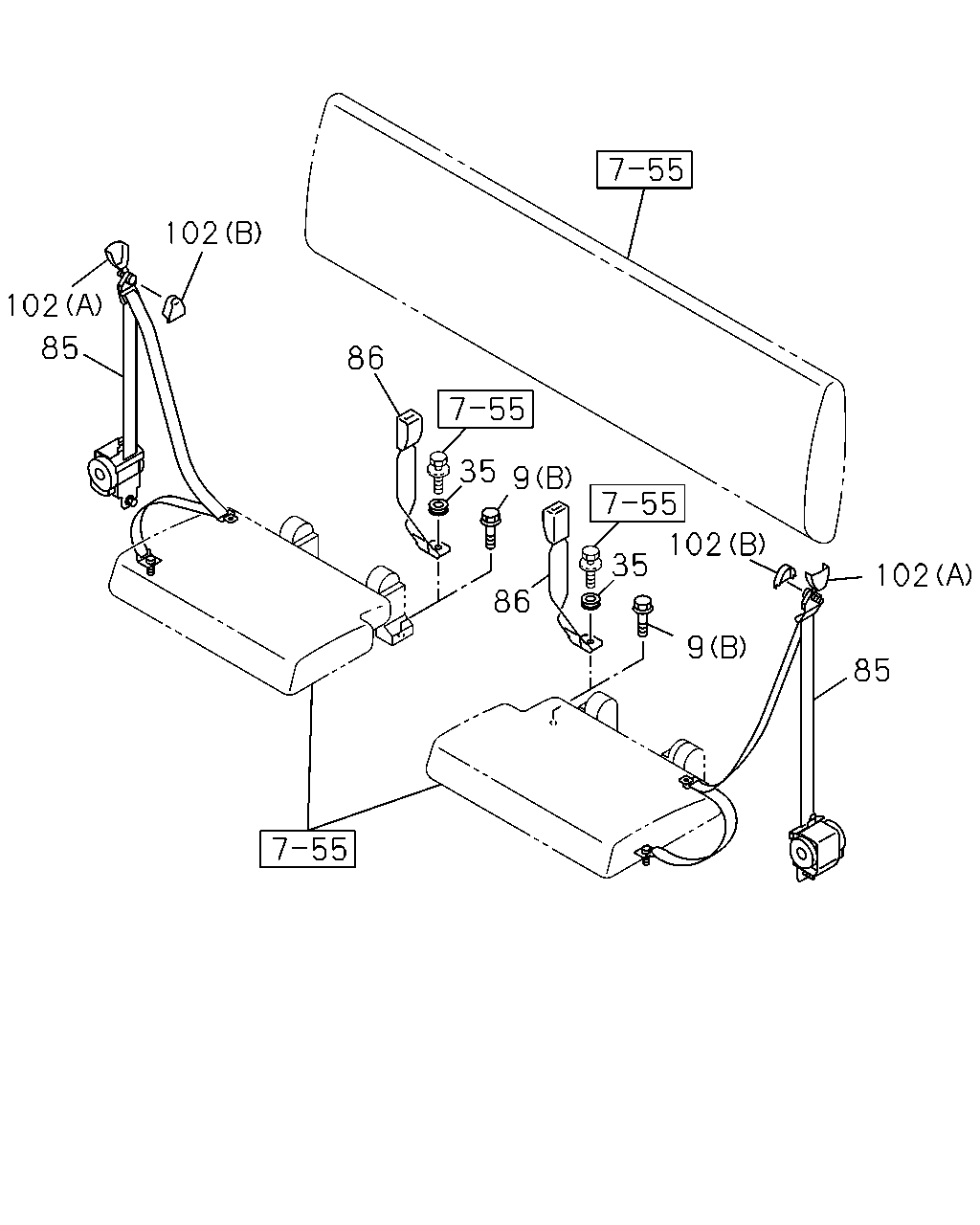

çizim 153248
102 102 85 86 35 9 102 35 102 86 9 85
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 02 1 0306- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0306-0609 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0306-0409 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0410-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (C) M12X35 FLANGE 		0-28691-235-0 02 1 0306-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
JUMP SEAT<AJ2> 		8-97370-311-0 02 1 0306-0409 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR 8-97370-311-0 02 1 0410-0609 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97370-311-0 02 1 0410-0609 ●
35 16.714 GROMMET; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> 		8-97370-311-0 02 1 0610-1003 ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> 		8-97370-311-0 02 1 1004- ● ●
35 16.714 GROMMET; SEAT BELT ANCHOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> 		8-97370-311-0 02 1 1004- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97421-865-0 02 1 1005-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97424-049-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97424-025-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97395-944-0 02 1 0306-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97399-426-0 02 1 0403-0409 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97399-426-1 02 1 0410-0609 ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97399-426-1 02 1 0410-0609 ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97405-873-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-185-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-036-0 02 1 0812-1003 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-036-0 02 1 1004-1004 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-036-0 02 1 1005-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-027-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97294-003-4 02 1 0306-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97399-424-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97403-348-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-180-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-031-0 02 1 0812-1003 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-024-0 02 1 1304- ● ●
86 16.714 BELT; SEAT,RR INNER
JUMP SEAT<AJ2> DARK GRAY 		8-97391-106-0 02 1 0306-0409 ● ●
86 16.714 BELT; SEAT,RR INNER
DARK GRAY 		8-97391-106-0 02 1 0410-0609 ●
86 16.714 BELT; SEAT,RR INNER
JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97391-106-0 02 1 0410-0609 ●
86 16.714 BELT; SEAT,RR INNER
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-957-0 02 1 0610-1003 ● ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97404-957-0 02 1 1004- ● ●
86 16.714 BELT; SEAT,RR INNER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97404-957-0 02 1 1004- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0306-0402 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0306-0402 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97395-750-0 02 1 0306-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0306-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●

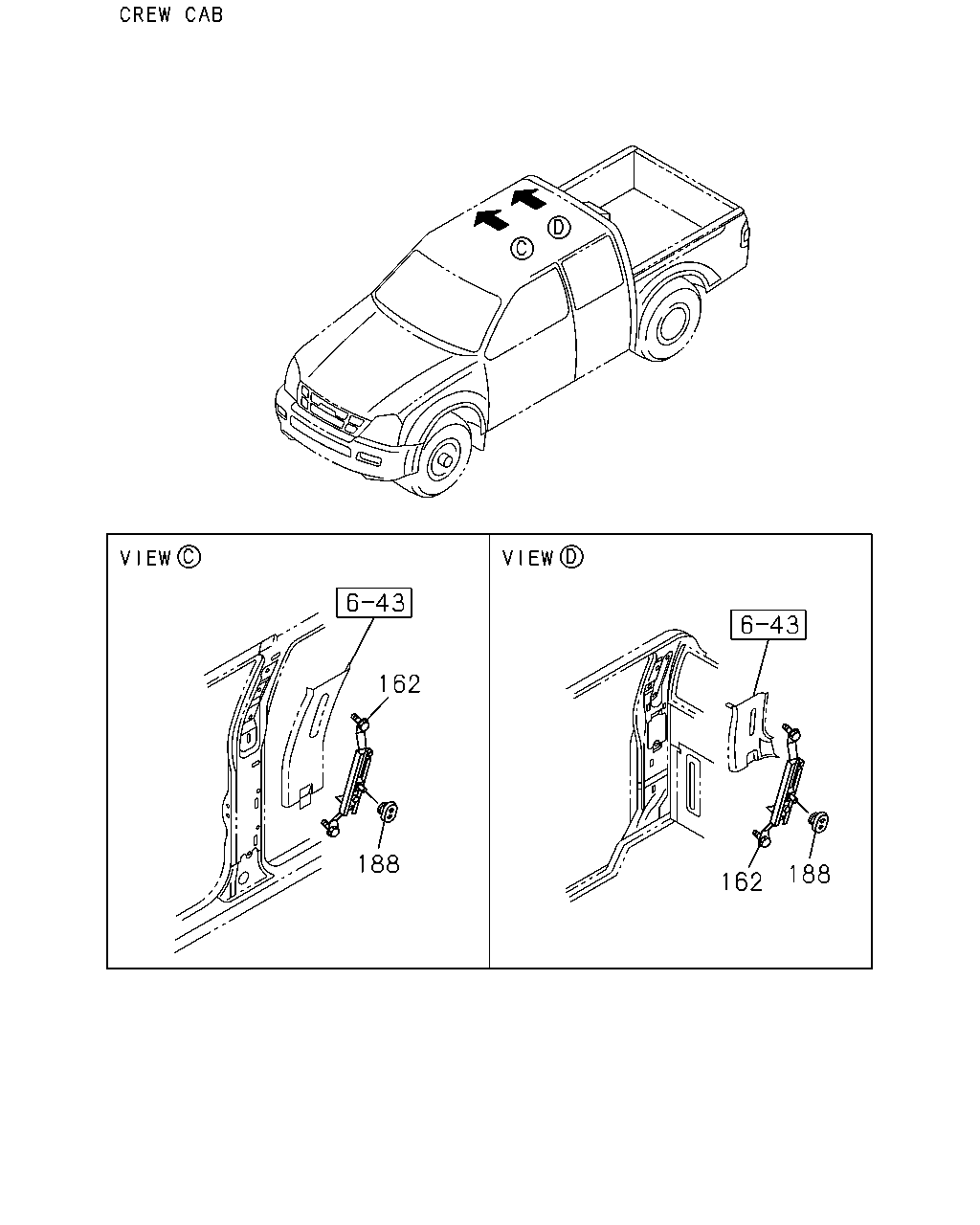

çizim 153250
162 188 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0306-0410 ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0306-0410 ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0411- ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0411- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0306-0410 ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0306-0410 ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0411-0609 ● ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0411-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●

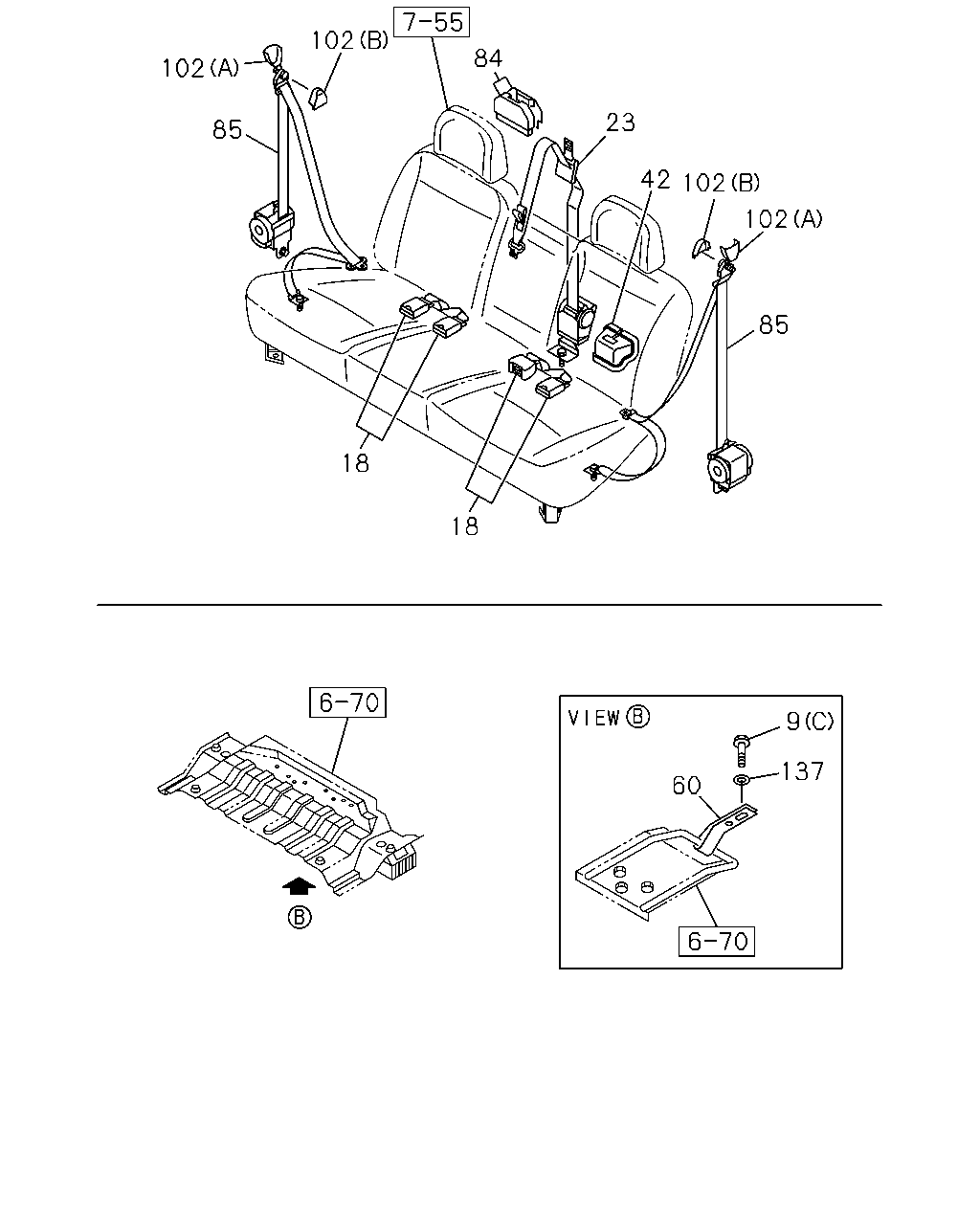

çizim 153252
102 84 102 23 85 42 102 102 85 18 18 9 137 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.714 BOLT; SEAT BELT ANCHOR
FRONT SEAT BUCKET TYPE<A50> (A) 		8-97332-665-0 02 1 0306- ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0306-0609 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 0610-1003 ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ●
9 16.714 BOLT; SEAT BELT ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> BENCH SEAT<A52> (A) 		8-97332-665-0 02 1 1004- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0306-0409 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> (B) 		8-97248-987-0 02 1 0410-0609 ●
9 16.714 BOLT; SEAT BELT ANCHOR
07.039 (C) M12X35 FLANGE 		0-28691-235-0 02 1 0306-0601 ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
00.004 (C) M12X35 FLANGE 		0-28661-235-0 02 1 0602- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97396-204-0 01 1 0306-0609 ● ●
18 16.714 BELT; SEAT,RR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 0610-1003 ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-564-0 01 1 1004- ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-564-0 01 1 1004- ● ●
18 16.714 BELT; SEAT,RR
DARK GRAY 		8-97298-691-0 01 1 0306-0609 ● ●
18 16.714 BELT; SEAT,RR
CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 0610-1003 ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY 		8-97407-563-0 01 1 1004- ● ●
18 16.714 BELT; SEAT,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY 		8-97407-563-0 01 1 1004- ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97396-202-1 01 1 0306-0609 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97406-885-1 01 1 0610-0809 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97413-171-0 01 1 0810-0811 ● ●
23 16.714 BELT; SEAT,CENTER
DARK GRAY 		8-97417-021-0 01 1 0812-1003 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-021-0 01 1 1004-1303 ● ●
23 16.714 BELT; SEAT,CENTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-022-0 01 1 1304- ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97293-970-1 01 1 0306-0609 ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) DARK GRAY 		8-97403-352-1 01 1 0610-1003 ● ●
42 16.578 COVER; SEAT BELT
GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-352-1 01 1 1004- ● ●
60 16.714 BRACKET; SHOULDER RETRACTOR 8-97324-174-1 01 1 0306- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97396-474-0 01 1 0306-0609 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
DARK GRAY 		8-97403-355-0 01 1 0610-1003 ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-355-0 01 1 1004- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97421-865-0 02 1 1005-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97424-049-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97418-429-0 02 1 1004-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101) DARK GRAY 		8-97424-025-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97395-944-0 02 1 0306-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97399-426-0 02 1 0403-0409 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97399-426-1 02 1 0410-0609 ●
85 16.714 BELT; SEAT,RR OUTER
JUMP SEAT<AJ2> DARK GRAY 		8-97399-426-1 02 1 0410-0609 ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97405-873-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-185-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-036-0 02 1 0812-1003 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-036-0 02 1 1004-1004 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-036-0 02 1 1005-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-027-0 02 1 1304- ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97294-003-4 02 1 0306-0402 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97399-424-1 02 1 0403-0609 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97403-348-1 02 1 0610-0809 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97413-180-0 02 1 0810-0811 ● ●
85 16.714 BELT; SEAT,RR OUTER
DARK GRAY 		8-97417-031-0 02 1 0812-1003 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97417-031-0 02 1 1004-1303 ● ●
85 16.714 BELT; SEAT,RR OUTER
INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97424-024-0 02 1 1304- ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR BLACK(101) (B) BLACK 		8-97418-427-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0306-0402 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 01 1 0306-0402 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (A) DARK GRAY 		8-97395-750-0 02 1 0306-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(A) DARK GRAY 		8-97395-750-0 02 1 0306-0402 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0403-0409 ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0410-0410 ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
JUMP SEAT<AJ2> (B) DARK GRAY 		8-97399-431-0 02 1 0411-0609 ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 0610-1003 ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
INTERIOR COLOR IN VERY DARK GRAY(116) (B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ● ● ●
102 16.714 COVER; SHOULDER ANCHOR
(B) LIGHT GRAY 		8-97403-340-0 02 1 1004- ● ●
137 16.714 WASHER; PL,SEAT BELT
09.011 ID=12.5 OD=26 		9-09164-612-0 02 1 0306-0701 ● ●
137 16.714 WASHER; PL,SEAT BELT
02.812 ID=12.5 OD=26 		0-91610-612-0 02 1 0702- ● ●

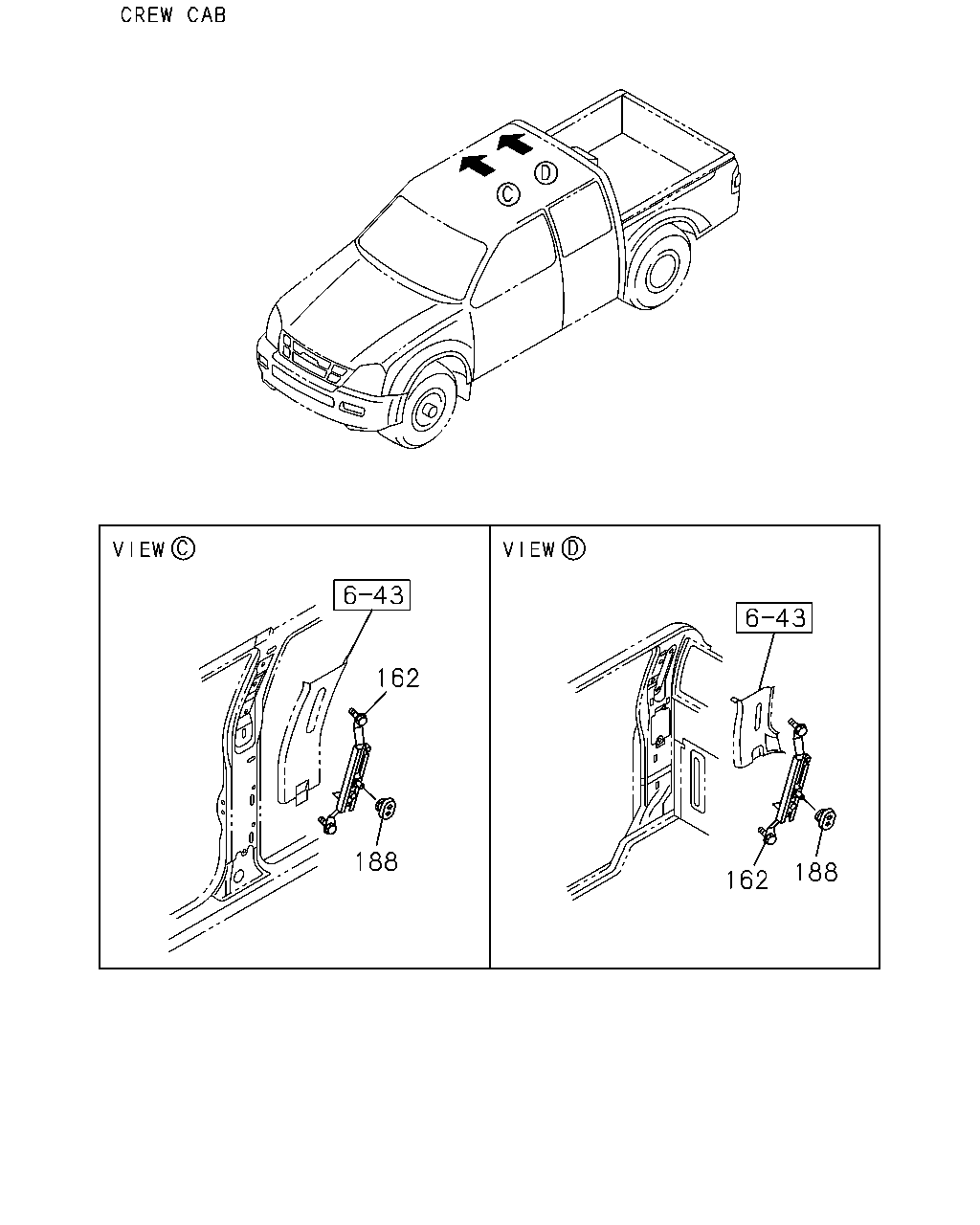

çizim 153262
162 188 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0306-0410 ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0306-0410 ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0411- ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0411- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0306-0410 ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0306-0410 ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0411-0609 ● ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0411-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●

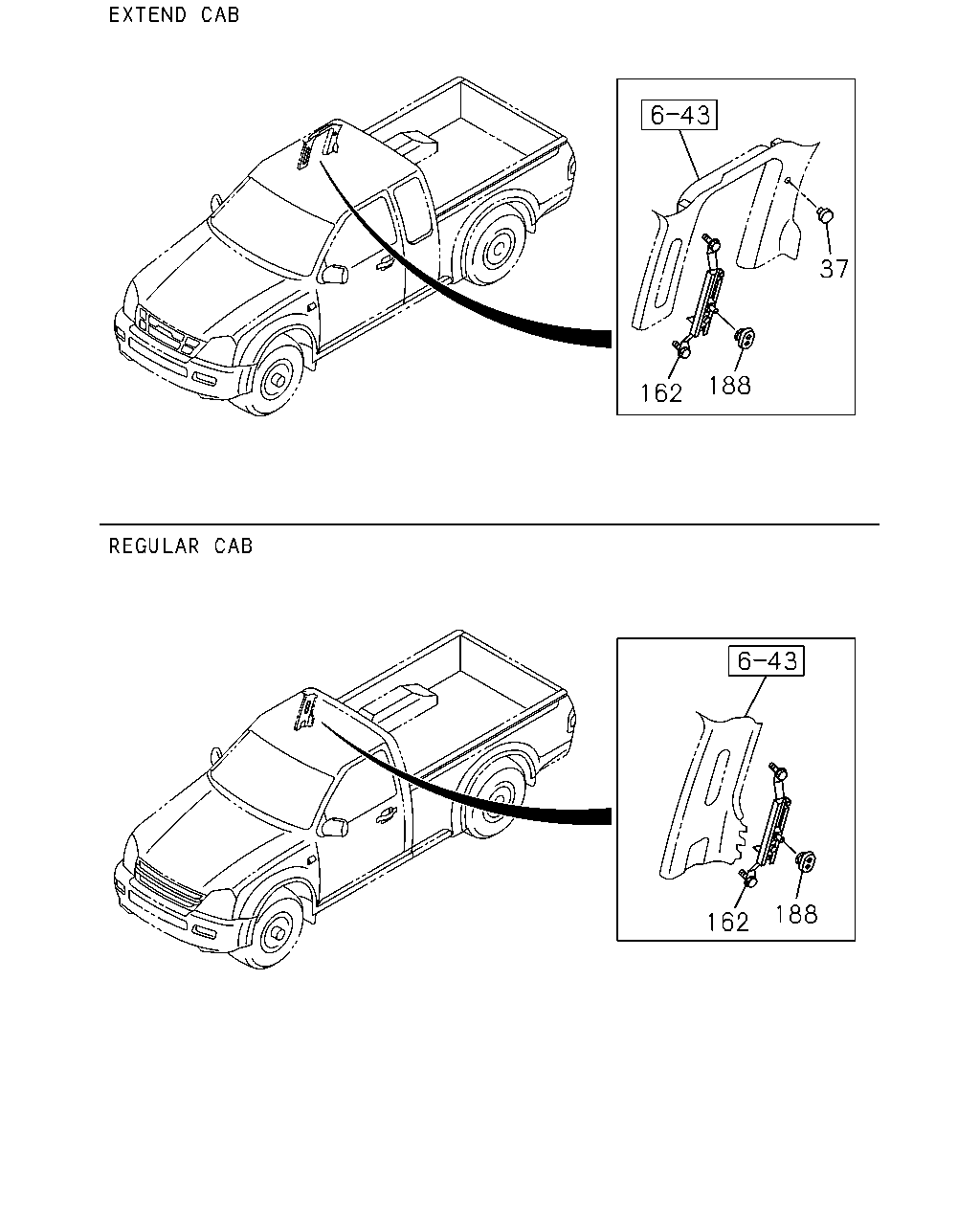

çizim 153289
37 188 162 188 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97360-231-0 02 1 0306-0312 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97399-694-0 02 1 0401-0409 ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97399-694-0 02 1 0410-0609 ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0306-0410 ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0306-0410 ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0411- ● ● ● ● ● ●
162 16.714 ADJUSTER; SEAT BELT 8-97232-956-0 02 1 0411- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ● ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR BLACK(101) BLACK 		8-97418-426-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0306-0410 ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0306-0410 ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0411-0609 ● ● ● ● ● ●
188 16.714 KNOB; LEVER
DARK GRAY 		8-97392-647-0 02 1 0411-0609 ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ● ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 0610-1003 ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ● ● ●
188 16.714 KNOB; LEVER
LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
188 16.714 KNOB; LEVER
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97403-338-0 02 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
