Sayfa 7-55 - Isuzu EPC

7-55 — REAR SEAT (#74233) — 290 parça

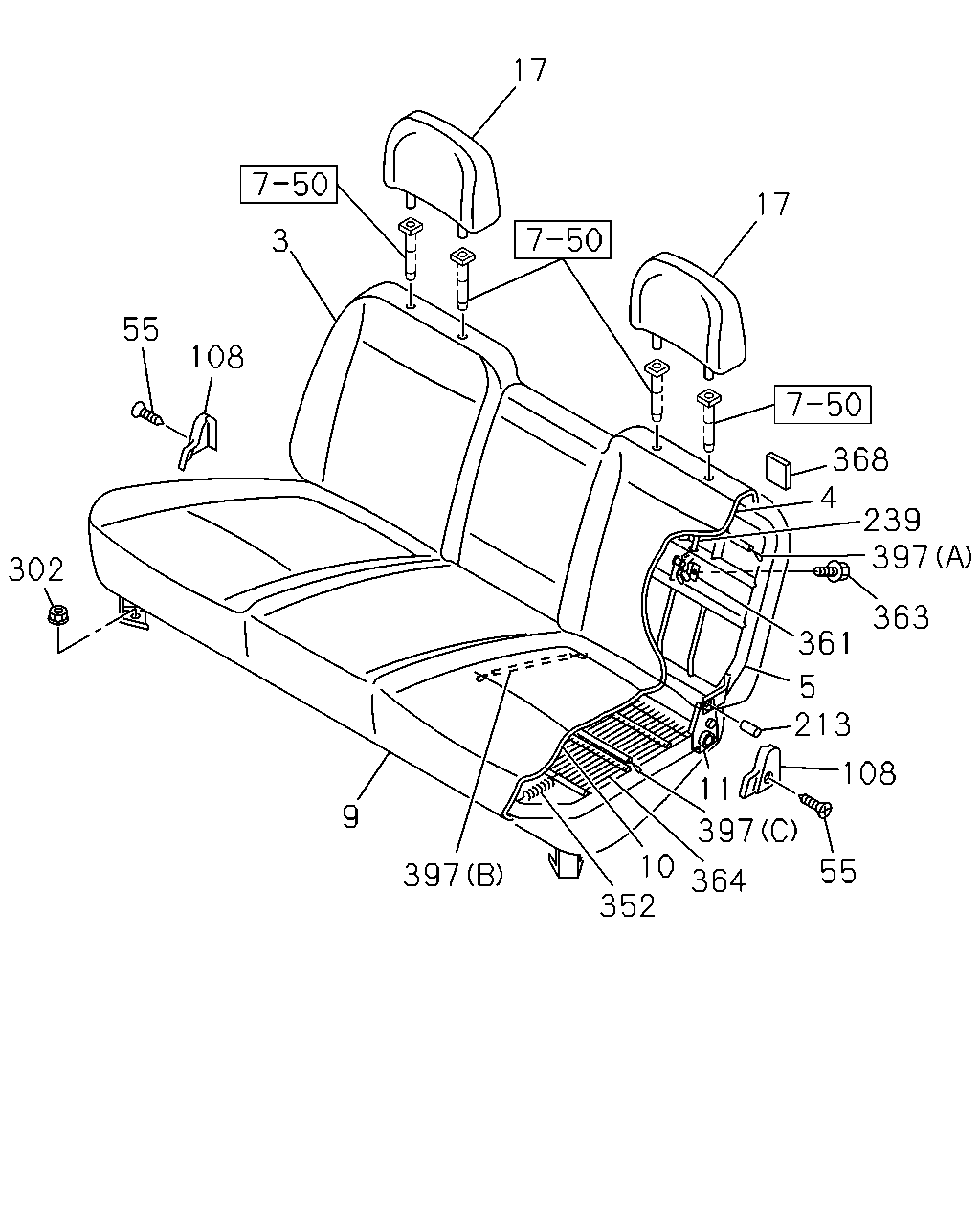

17 17 3 55 108 368 4 239 397 302 363 361 5 213 108 11 9 397 10 352 55 397 364

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	16.714 COVER; TRIM,RR SEAT BACK	8-97332-782-0	01	1	0306-0508	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97332-782-0	01	1	0306-0508		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY	8-97402-760-0	01	1	0509-0609	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-760-0	01	1	0509-0609		●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-954-0	01	1	0610-1003	●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-954-0	01	1	1004-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK	8-97355-213-0	01	1	0306-0508			●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97355-213-0	01	1	0306-0508				●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY	8-97402-768-0	01	1	0509-0609			●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-768-0	01	1	0509-0609				●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-973-0	01	1	0610-1003			●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-973-0	01	1	1004-			●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97332-783-0	01	1	0306-0508		●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-761-0	01	1	0509-0609		●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-079-0	01	1	0610-1003	●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-079-0	01	1	1004-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97355-214-0	01	1	0306-0508				●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-769-0	01	1	0509-0609				●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-969-0	01	1	0610-1003			●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-969-0	01	1	1004-			●	●
4	16.720 PAD; RR,SEAT BACK	8-97353-258-0	01	1	0306-0609			●	●
4	16.720 PAD; RR,SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-98028-774-0	01	1	0610-1003			●	●
4	16.720 PAD; RR,SEAT BACK INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-98028-774-0	01	1	1004-			●	●
4	16.720 PAD; RR,SEAT BACK INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-98028-774-0	01	1	1004-			●	●
5	16.720 FRAME ASM; RR SEAT BACK	8-97332-834-1	01	1	0306-0609			●	●
5	16.720 FRAME ASM; RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-98028-772-0	01	1	0610-1003			●	●
5	16.720 FRAME ASM; RR SEAT BACK INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-98028-772-0	01	1	1004-			●	●
5	16.720 FRAME ASM; RR SEAT BACK INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-98028-772-0	01	1	1004-			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2>	8-97353-253-0	01	1	0306-0409	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-253-0	01	1	0306-0409		●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97353-253-0	01	1	0410-0508	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-253-0	01	1	0410-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY	8-97402-752-0	01	1	0509-0609	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-752-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-952-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-952-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2>	8-97353-250-0	01	1	0306-0409	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-250-0	01	1	0306-0409		●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97353-250-0	01	1	0410-0508	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-250-0	01	1	0410-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY	8-97402-750-0	01	1	0509-0609	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-750-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-948-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-948-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97353-259-0	01	1	0306-0508			●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL>	8-97353-259-0	01	1	0306-0508				●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97402-748-0	01	1	0509-0609			●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL>	8-97402-748-0	01	1	0509-0609				●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-561-0	01	1	0610-1003			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-561-0	01	1	1004-			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-254-0	01	1	0306-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-753-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-953-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-953-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-251-0	01	1	0306-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-751-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-949-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-949-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP>	8-97353-260-0	01	1	0306-0508				●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-749-0	01	1	0509-0609				●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-562-0	01	1	0610-1003			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-562-0	01	1	1004-			●	●
10	16.716 PAD; CUSHION,RR SEAT	8-97332-862-0	01	1	0306-0609			●	●
10	16.716 PAD; CUSHION,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-98028-694-0	01	1	0610-1003			●	●
10	16.716 PAD; CUSHION,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-98028-694-0	01	1	1004-			●	●
10	16.716 PAD; CUSHION,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-98028-694-0	01	1	1004-			●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT	8-97352-430-0	01	1	0306-0609			●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-98056-371-0	01	1	0610-1003			●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-98056-371-0	01	1	1004-			●	●
11	16.716 FRAME ASM; CUSHION,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-98056-371-0	01	1	1004-			●	●
17	16.718 REST; HD,RR SEAT DARK GRAY	8-97398-415-0	02	1	0306-0508			●
17	16.718 REST; HD,RR SEAT SEAT CLOTH<7FL> DARK GRAY	8-97398-415-0	02	1	0306-0508				●
17	16.718 REST; HD,RR SEAT GRAY	8-97402-757-0	02	1	0509-0609			●
17	16.718 REST; HD,RR SEAT SEAT CLOTH<7FL> GRAY	8-97402-757-0	02	1	0509-0609				●
17	16.718 REST; HD,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-974-0	02	1	0610-1003			●	●
17	16.718 REST; HD,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-974-0	02	1	1004-			●	●
17	16.718 REST; HD,RR SEAT CLOTH SEAT MOQUETTE<8EP> DARK GRAY	8-97398-416-0	02	1	0306-0508				●
17	16.718 REST; HD,RR SEAT CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-758-0	02	1	0509-0609				●
17	16.718 REST; HD,RR SEAT CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-971-0	02	1	0610-1003			●	●
17	16.718 REST; HD,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-971-0	02	1	1004-			●	●
55	16.716 BOLT; HINGE,RR SEAT JUMP SEAT<AJ2>	8-97353-257-0	04	1	0306-0409	●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97353-257-0	04	1	0410-0609	●
55	16.716 BOLT; HINGE,RR SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-257-0	04	1	0410-0609		●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97353-257-0	04	1	0610-1003	●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97353-257-0	04	1	1004-	●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97353-257-0	04	1	1004-	●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97332-881-0	02	1	0306-0609			●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> 16.682	8-97332-815-0	02	1	0610-1003			●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> 16.682	8-97332-815-0	02	1	1004-			●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> 16.682	8-97332-815-0	02	1	1004-			●	●
108	16.714 COVER; HINGE BRKT DARK GRAY	8-97394-208-0	01	1	0306-0609			●	●
108	16.714 COVER; HINGE BRKT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-577-0	01	1	0610-1003			●	●
108	16.714 COVER; HINGE BRKT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY	8-97407-577-0	01	1	1004-			●	●
108	16.714 COVER; HINGE BRKT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-577-0	01	1	1004-			●	●
108	16.714 COVER; HINGE BRKT DARK GRAY	8-97394-207-0	01	1	0306-0609			●	●
108	16.714 COVER; HINGE BRKT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-576-0	01	1	0610-1003			●	●
108	16.714 COVER; HINGE BRKT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY	8-97407-576-0	01	1	1004-			●	●
108	16.714 COVER; HINGE BRKT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-576-0	01	1	1004-			●	●
213	16.716 BUSHING; RR SEAT HINGE	8-97354-675-0	02	1	0306-0609			●	●
213	16.716 BUSHING; RR SEAT HINGE CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97354-675-0	02	1	0610-1003			●	●
213	16.716 BUSHING; RR SEAT HINGE INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97354-675-0	02	1	1004-			●	●
213	16.716 BUSHING; RR SEAT HINGE INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97354-675-0	02	1	1004-			●	●
239	16.682 CABLE; CONT,LEVER	8-97332-828-0	01	1	0306-0609			●	●
239	16.682 CABLE; CONT,LEVER CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97332-828-0	01	1	0610-1003			●	●
239	16.682 CABLE; CONT,LEVER INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97332-828-0	01	1	1004-			●	●
239	16.682 CABLE; CONT,LEVER INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97332-828-0	01	1	1004-			●	●
302	16.715 NUT; RR SEAT 07.243 M12 FLANGE	0-91150-212-0	04	1	0306-0603			●	●
302	16.715 NUT; RR SEAT 05.816 M12 FLANGE	0-91180-212-0	04	1	0604-			●	●
352	16.717 SPRING; RR CUSHION	8-97332-877-0	11	1	0306-0609			●	●
361	16.682 LATCH; REAR SEAT	8-97332-811-0	02	1	0306-0609			●	●
361	16.682 LATCH; REAR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-98004-027-0	02	1	0610-1003			●	●
361	16.682 LATCH; REAR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-98004-027-0	02	1	1004-			●	●
361	16.682 LATCH; REAR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-98004-027-0	02	1	1004-			●	●
363	16.682 BOLT; REAR SEAT LATCH	8-97332-815-0	04	1	0306-0609			●	●
363	16.682 BOLT; REAR SEAT LATCH CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97332-815-0	08	1	0610-1003			●	●
363	16.682 BOLT; REAR SEAT LATCH INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97332-815-0	08	1	1004-			●	●
363	16.682 BOLT; REAR SEAT LATCH INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97332-815-0	08	1	1004-			●	●
364	16.682 MAT; SUSPENSION,REAR SEAT	8-97332-874-0	01	1	0306-0609			●	●
368	16.720 PAD; BACK FORM	8-97369-254-0	02	1	0306-0609			●	●
368	16.720 PAD; BACK FORM CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-98028-775-0	02	1	0610-1003			●	●
368	16.720 PAD; BACK FORM INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-98028-775-0	02	1	1004-			●	●
368	16.720 PAD; BACK FORM INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-98028-775-0	02	1	1004-			●	●
397	16.686 CABLE; SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> (B)	8-98028-780-0	04	1	0610-1003			●	●
397	16.686 CABLE; SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> (B)	8-98028-780-0	04	1	1004-			●	●
397	16.686 CABLE; SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> (B)	8-98028-780-0	04	1	1004-			●	●
397	16.686 CABLE; SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> (C)	8-98028-781-0	02	1	0610-1003			●	●
397	16.686 CABLE; SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> (C)	8-98028-781-0	02	1	1004-			●	●
397	16.686 CABLE; SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> (C)	8-98028-781-0	02	1	1004-			●	●
397	16.686 CABLE; SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> (A)	8-98028-782-0	02	1	0610-1003			●	●
397	16.686 CABLE; SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> (A)	8-98028-782-0	02	1	1004-			●	●
397	16.686 CABLE; SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> (A)	8-98028-782-0	02	1	1004-			●	●

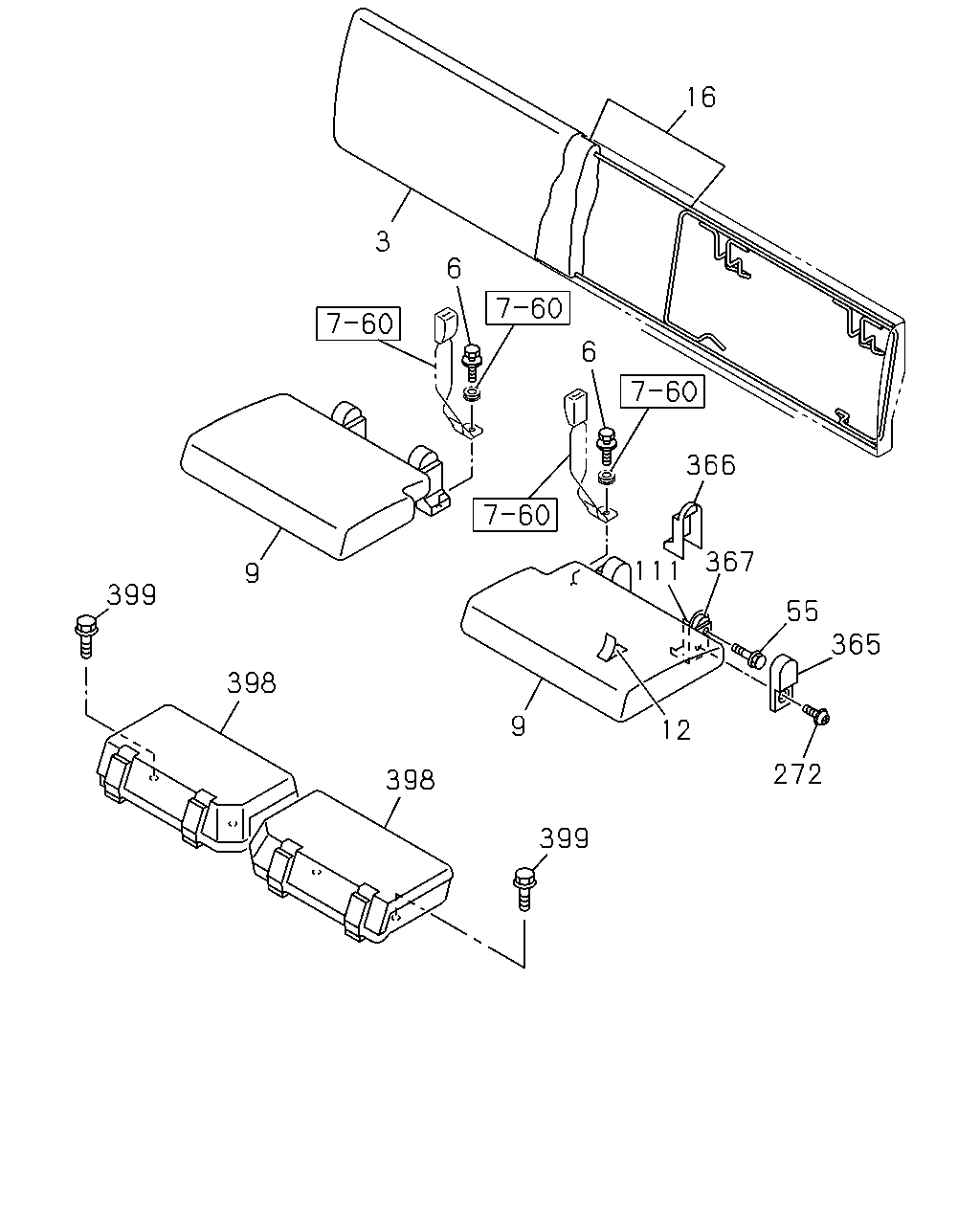

16 3 6 6 366 367 111 9 399 55 365 398 9 12 272 398 399

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
3	16.714 COVER; TRIM,RR SEAT BACK	8-97332-782-0	01	1	0306-0508	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97332-782-0	01	1	0306-0508		●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY	8-97402-760-0	01	1	0509-0609	●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-760-0	01	1	0509-0609		●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-954-0	01	1	0610-1003	●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-954-0	01	1	1004-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK	8-97355-213-0	01	1	0306-0508			●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL>	8-97355-213-0	01	1	0306-0508				●
3	16.714 COVER; TRIM,RR SEAT BACK GRAY	8-97402-768-0	01	1	0509-0609			●
3	16.714 COVER; TRIM,RR SEAT BACK SEAT CLOTH<7FL> GRAY	8-97402-768-0	01	1	0509-0609				●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-973-0	01	1	0610-1003			●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97406-973-0	01	1	1004-			●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97332-783-0	01	1	0306-0508		●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-761-0	01	1	0509-0609		●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-079-0	01	1	0610-1003	●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-079-0	01	1	1004-	●	●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP>	8-97355-214-0	01	1	0306-0508				●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-769-0	01	1	0509-0609				●
3	16.714 COVER; TRIM,RR SEAT BACK CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-969-0	01	1	0610-1003			●	●
3	16.714 COVER; TRIM,RR SEAT BACK INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97406-969-0	01	1	1004-			●	●
6	16.679 BOLT; RR SEAT 16.714	8-97248-987-0	04	1	0306-0609	●	●
6	16.679 BOLT; RR SEAT 16.682 M12X27.5 W/PL WASHER	8-98050-319-0	04	1	0610-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2>	8-97353-253-0	01	1	0306-0409	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-253-0	01	1	0306-0409		●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97353-253-0	01	1	0410-0508	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-253-0	01	1	0410-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY	8-97402-752-0	01	1	0509-0609	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-752-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-952-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-952-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2>	8-97353-250-0	01	1	0306-0409	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-250-0	01	1	0306-0409		●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97353-250-0	01	1	0410-0508	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>	8-97353-250-0	01	1	0410-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION GRAY	8-97402-750-0	01	1	0509-0609	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL> GRAY	8-97402-750-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-948-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97404-948-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97353-259-0	01	1	0306-0508			●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL>	8-97353-259-0	01	1	0306-0508				●
9	16.717 COVER ASM; TRIM,RR,CUSHION	8-97402-748-0	01	1	0509-0609			●
9	16.717 COVER ASM; TRIM,RR,CUSHION SEAT CLOTH<7FL>	8-97402-748-0	01	1	0509-0609				●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-561-0	01	1	0610-1003			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> GRAY	8-97407-561-0	01	1	1004-			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-254-0	01	1	0306-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-753-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-953-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-953-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP>	8-97353-251-0	01	1	0306-0508		●
9	16.717 COVER ASM; TRIM,RR,CUSHION JUMP SEAT<AJ2> CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-751-0	01	1	0509-0609		●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-949-0	01	1	0610-1003	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-949-0	01	1	1004-	●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP>	8-97353-260-0	01	1	0306-0508				●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH SEAT MOQUETTE<8EP> GRAY	8-97402-749-0	01	1	0509-0609				●
9	16.717 COVER ASM; TRIM,RR,CUSHION CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-562-0	01	1	0610-1003			●	●
9	16.717 COVER ASM; TRIM,RR,CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97407-562-0	01	1	1004-			●	●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2>	8-97353-256-0	01	1	0306-0409	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION	8-97353-256-0	01	1	0410-0609	●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-256-0	01	1	0410-0609		●
12	16.717 PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97353-256-0	01	1	0610-1003	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97353-256-0	01	1	1004-	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97353-256-0	01	1	1004-	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2>	8-97353-255-0	01	1	0306-0409	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION	8-97353-255-0	01	1	0410-0609	●
12	16.717 PAD & FRAME ASM; RR CUSHION JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-255-0	01	1	0410-0609		●
12	16.717 PAD & FRAME ASM; RR CUSHION CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97353-255-0	01	1	0610-1003	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97353-255-0	01	1	1004-	●	●
12	16.717 PAD & FRAME ASM; RR CUSHION INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97353-255-0	01	1	1004-	●	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE	8-97332-775-0	01	1	0306-0609	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97332-775-0	01	1	0306-0609		●
16	16.720 PAD & FRAME ASM; RR BACK SIDE CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97332-775-0	01	1	0610-1003	●	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97332-775-0	01	1	1004-	●	●
16	16.720 PAD & FRAME ASM; RR BACK SIDE INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97332-775-0	01	1	1004-	●	●
55	16.716 BOLT; HINGE,RR SEAT JUMP SEAT<AJ2>	8-97353-257-0	04	1	0306-0409	●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97353-257-0	04	1	0410-0609	●
55	16.716 BOLT; HINGE,RR SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97353-257-0	04	1	0410-0609		●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97353-257-0	04	1	0610-1003	●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97353-257-0	04	1	1004-	●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97353-257-0	04	1	1004-	●	●
55	16.716 BOLT; HINGE,RR SEAT	8-97332-881-0	02	1	0306-0609			●	●
55	16.716 BOLT; HINGE,RR SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> 16.682	8-97332-815-0	02	1	0610-1003			●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> 16.682	8-97332-815-0	02	1	1004-			●	●
55	16.716 BOLT; HINGE,RR SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> 16.682	8-97332-815-0	02	1	1004-			●	●
111	16.716 BRACKET; HINGE,JUMP SEAT JUMP SEAT<AJ2>	8-97355-211-0	02	1	0306-0409	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT	8-97355-211-0	02	1	0410-0609	●
111	16.716 BRACKET; HINGE,JUMP SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-211-0	02	1	0410-0609		●
111	16.716 BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97355-211-0	02	1	0610-1003	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97355-211-0	02	1	1004-	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97355-211-0	02	1	1004-	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT JUMP SEAT<AJ2>	8-97355-210-0	02	1	0306-0409	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT	8-97355-210-0	02	1	0410-0609	●
111	16.716 BRACKET; HINGE,JUMP SEAT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-210-0	02	1	0410-0609		●
111	16.716 BRACKET; HINGE,JUMP SEAT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97355-210-0	02	1	0610-1003	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97355-210-0	02	1	1004-	●	●
111	16.716 BRACKET; HINGE,JUMP SEAT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97355-210-0	02	1	1004-	●	●
272	16.720 SCREW; COVER JUMP SEAT<AJ2>	8-97354-993-0	04	1	0306-0409	●	●
272	16.720 SCREW; COVER	8-97354-993-0	04	1	0410-0609	●
272	16.720 SCREW; COVER JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97354-993-0	04	1	0410-0609		●
272	16.720 SCREW; COVER CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97354-993-0	04	1	0610-1003	●	●
272	16.720 SCREW; COVER INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97354-993-0	04	1	1004-	●	●
272	16.720 SCREW; COVER INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97354-993-0	04	1	1004-	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> INNER DARK GRAY	8-97395-353-0	01	1	0306-0409	●	●
365	16.717 COVER; PIVOT INNER DARK GRAY	8-97395-353-0	01	1	0410-0609	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> INNER DARK GRAY	8-97395-353-0	01	1	0410-0609		●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> OUTER DARK GRAY	8-97404-947-0	01	1	0610-1003	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> OUTER DARK GRAY	8-97404-947-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> OUTER DARK GRAY	8-97404-947-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> OUTER DARK GRAY	8-97395-355-0	01	1	0306-0409	●	●
365	16.717 COVER; PIVOT OUTER DARK GRAY	8-97395-355-0	01	1	0410-0609	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> OUTER DARK GRAY	8-97395-355-0	01	1	0410-0609		●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> OUTER DARK GRAY	8-97404-951-0	01	1	0610-1003	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> OUTER DARK GRAY	8-97404-951-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> OUTER DARK GRAY	8-97404-951-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> INNER DARK GRAY	8-97395-352-0	01	1	0306-0409	●	●
365	16.717 COVER; PIVOT INNER DARK GRAY	8-97395-352-0	01	1	0410-0609	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> INNER DARK GRAY	8-97395-352-0	01	1	0410-0609		●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> INNER DARK GRAY	8-97404-946-0	01	1	0610-1003	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> INNER DARK GRAY	8-97404-946-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> INNER DARK GRAY	8-97404-946-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> OUTER DARK GRAY	8-97395-354-0	01	1	0306-0409	●	●
365	16.717 COVER; PIVOT OUTER DARK GRAY	8-97395-354-0	01	1	0410-0609	●
365	16.717 COVER; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> OUTER DARK GRAY	8-97395-354-0	01	1	0410-0609		●
365	16.717 COVER; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> INNER DARK GRAY	8-97404-950-0	01	1	0610-1003	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> INNER DARK GRAY	8-97404-950-0	01	1	1004-	●	●
365	16.717 COVER; PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> INNER DARK GRAY	8-97404-950-0	01	1	1004-	●	●
366	16.717 LID; PIVOT JUMP SEAT<AJ2> DARK GRAY	8-97395-356-0	04	1	0306-0409	●	●
366	16.717 LID; PIVOT DARK GRAY	8-97395-356-0	04	1	0410-0609	●
366	16.717 LID; PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY	8-97395-356-0	04	1	0410-0609		●
366	16.717 LID; PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-955-0	04	1	0610-1003	●	●
366	16.717 LID; PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK> DARK GRAY	8-97404-955-0	04	1	1004-	●	●
366	16.717 LID; PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM> DARK GRAY	8-97404-955-0	04	1	1004-	●	●
367	16.717 DETENT; RR JUMP PIVOT JUMP SEAT<AJ2>	8-97355-209-0	02	1	0306-0409	●	●
367	16.717 DETENT; RR JUMP PIVOT	8-97355-209-0	02	1	0410-0609	●
367	16.717 DETENT; RR JUMP PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-209-0	02	1	0410-0609		●
367	16.717 DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97355-209-0	02	1	0610-1003	●	●
367	16.717 DETENT; RR JUMP PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97355-209-0	02	1	1004-	●	●
367	16.717 DETENT; RR JUMP PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97355-209-0	02	1	1004-	●	●
367	16.717 DETENT; RR JUMP PIVOT JUMP SEAT<AJ2>	8-97355-208-0	02	1	0306-0409	●	●
367	16.717 DETENT; RR JUMP PIVOT	8-97355-208-0	02	1	0410-0609	●
367	16.717 DETENT; RR JUMP PIVOT JUMP SEAT<AJ2> SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP>	8-97355-208-0	02	1	0410-0609		●
367	16.717 DETENT; RR JUMP PIVOT CLOTH TRIM STANDARD, VAR 1<8LK>, CLOTHTRIM SUPER DELUXE, VAR 1<8LM>	8-97355-208-0	02	1	0610-1003	●	●
367	16.717 DETENT; RR JUMP PIVOT INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM STANDARD, VAR 1<8LK>	8-97355-208-0	02	1	1004-	●	●
367	16.717 DETENT; RR JUMP PIVOT INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) CLOTH TRIM SUPER DELUXE, VAR 1<8LM>	8-97355-208-0	02	1	1004-	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-813-0	01	1	0306-0402	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-814-0	01	1	0306-0402	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-813-0	01	1	0403-0409	●	●
398	16.650 COMPARTMENT; FLOOR 16.545	8-97360-813-0	01	1	0410-0609	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-813-0	01	1	0410-0609		●
398	16.650 COMPARTMENT; FLOOR 16.545	8-97360-813-0	01	1	0610-	●	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-814-0	01	1	0403-0409	●	●
398	16.650 COMPARTMENT; FLOOR 16.545	8-97360-814-0	01	1	0410-0609	●
398	16.650 COMPARTMENT; FLOOR JUMP SEAT<AJ2> 16.545	8-97360-814-0	01	1	0410-0609		●
398	16.650 COMPARTMENT; FLOOR 16.545	8-97360-814-0	01	1	0610-	●	●
399	16.650 BOLT; COMPARTMENT JUMP SEAT<AJ2> 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0306-0402	●	●
399	16.650 BOLT; COMPARTMENT JUMP SEAT<AJ2> 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0403-0409	●	●
399	16.650 BOLT; COMPARTMENT 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0410-0609	●
399	16.650 BOLT; COMPARTMENT JUMP SEAT<AJ2> 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0410-0609		●
399	16.650 BOLT; COMPARTMENT 02.762 M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0610-0701	●	●
399	16.650 BOLT; COMPARTMENT M6X18 W/LK&PL WASHER	8-98061-682-0	04	1	0702-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
