3-80 — BRAKE PIPING; TRAILER (#7423) — 63 parça

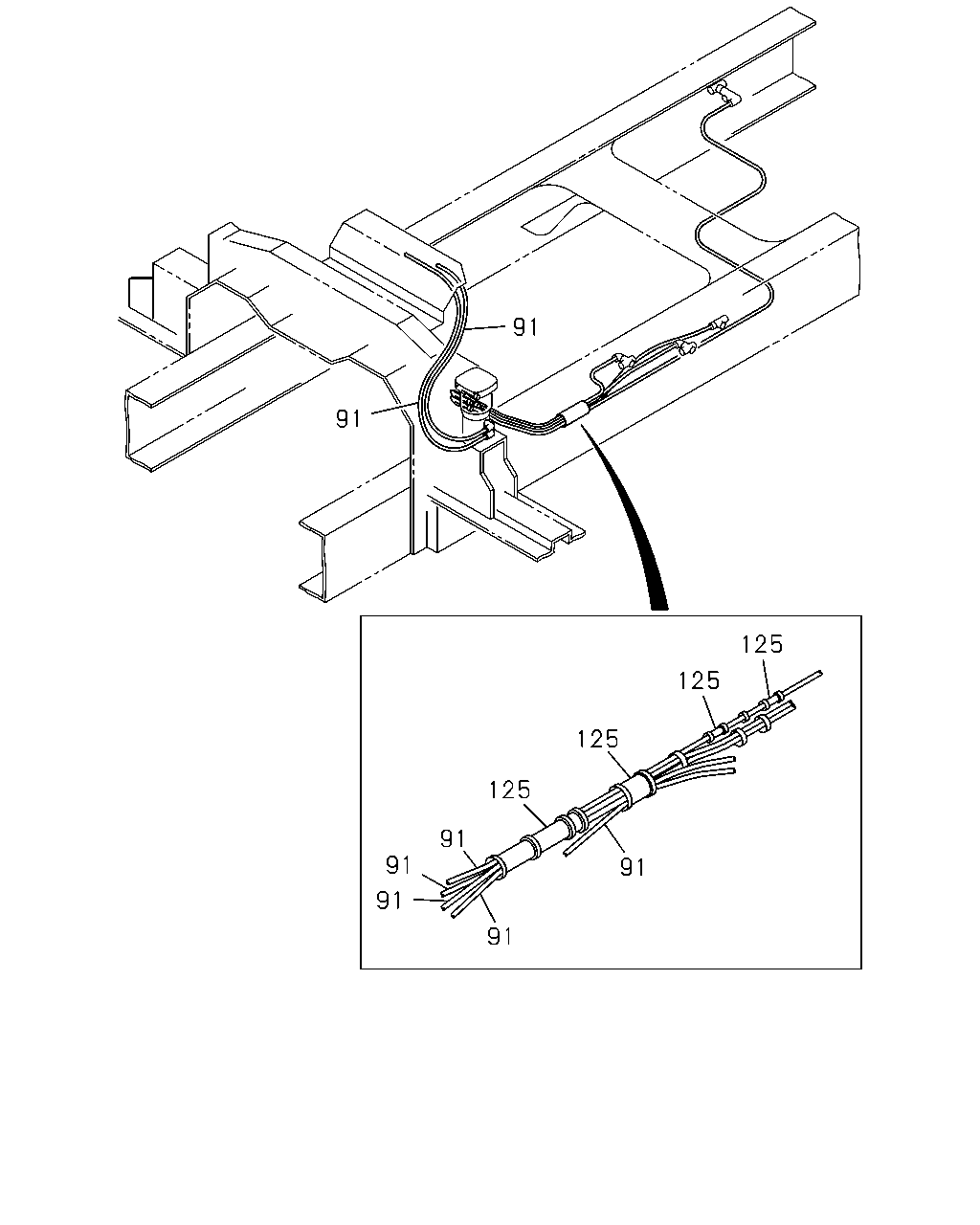

çizim 41422
91 91 125 125 125 125 91 91 91 91 91
BalonParca AdiParca NoAdetTipApplied Date
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9812-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9902-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9902-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 9812-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=22 		1-87410-096-0 AR 1 9812-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87410-100-0 AR 1 9812-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 9902-
125 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87410-094-0 AR 1 9902-

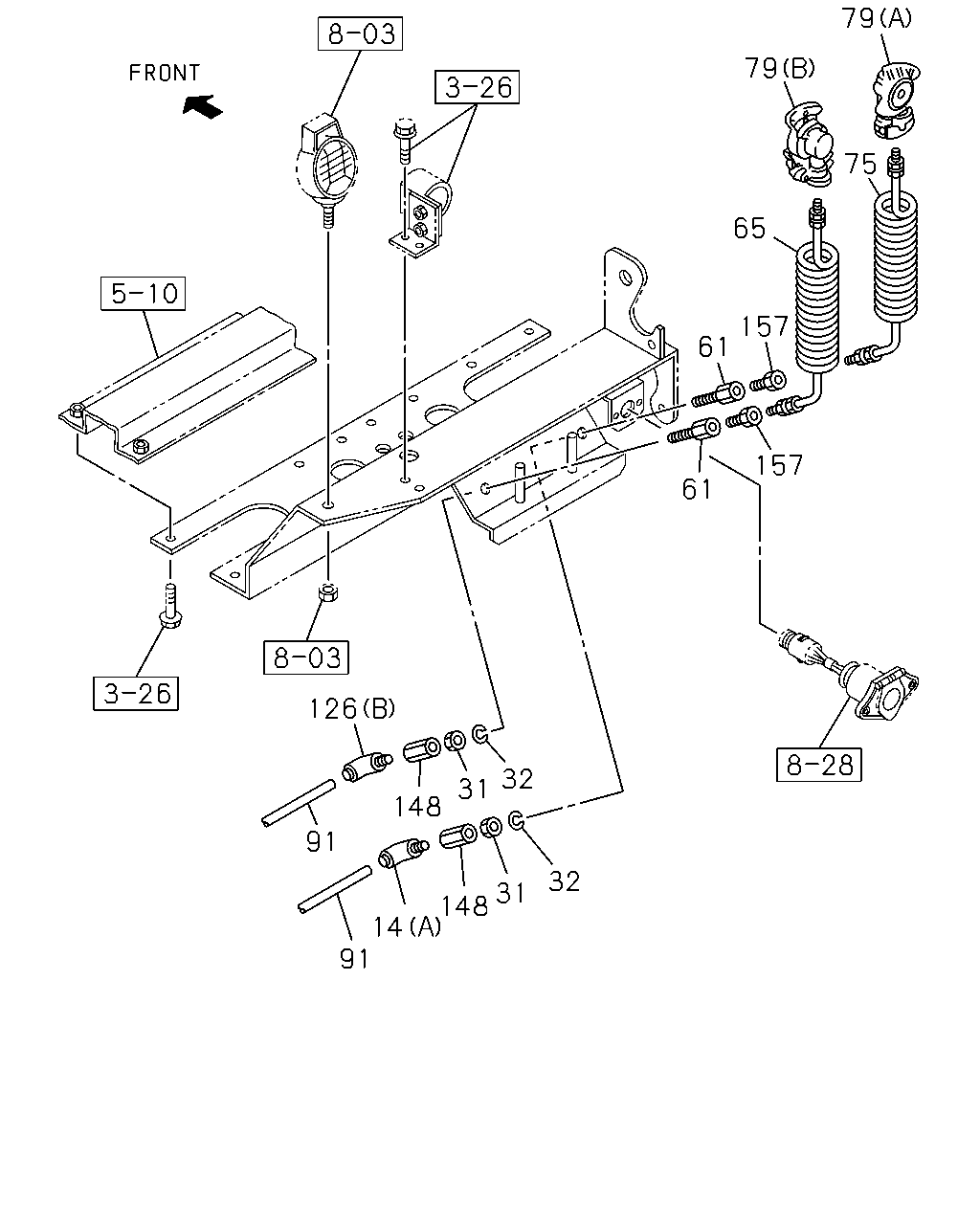

çizim 44264
79 79 75 65 157 61 157 61 126 32 31 148 91 32 31 148 14 91
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
(B) 		1-09650-325-1 01 1 9812-9901
14 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09650-325-1 01 1 9902-
14 CONNECTOR; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9812-
14 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9902-
31 NUT; UNION
M16 		9-99111-416-0 02 1 9812-
32 WASHER; LK,UNION
ID=16.2 		9-09150-516-0 02 1 9812-
61 UNION; NYLON TUBE 1-09650-222-1 02 1 9812-
65 HOSE; AIR 1-49212-518-0 01 1 9812-
75 HOSE; FLEX,TRAILER EMERGENCY 1-49212-518-0 01 1 9812-
79 COUPLING; AIR,TRAILER
(A) 		1-47478-210-0 01 1 9812-
79 COUPLING; AIR,TRAILER
(B) 		1-47478-211-0 01 1 9812-
91 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 9812-
91 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 9812-
91 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87410-070-0 AR 1 9902-
91 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 9902-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9812-9911
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-0003
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9812-
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 01 1 9812-9812
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 03 1 9901-
148 ADAPTER; NYLON TUBE
M16 & RC3/8 STRAIGHT 		1-09660-882-0 02 1 9812-9812
157 ADAPTER 1-09660-078-0 01 1 9812-9812
157 ADAPTER 1-09660-078-0 01 1 9812-9812
157 ADAPTER 1-09660-078-0 02 1 9901-

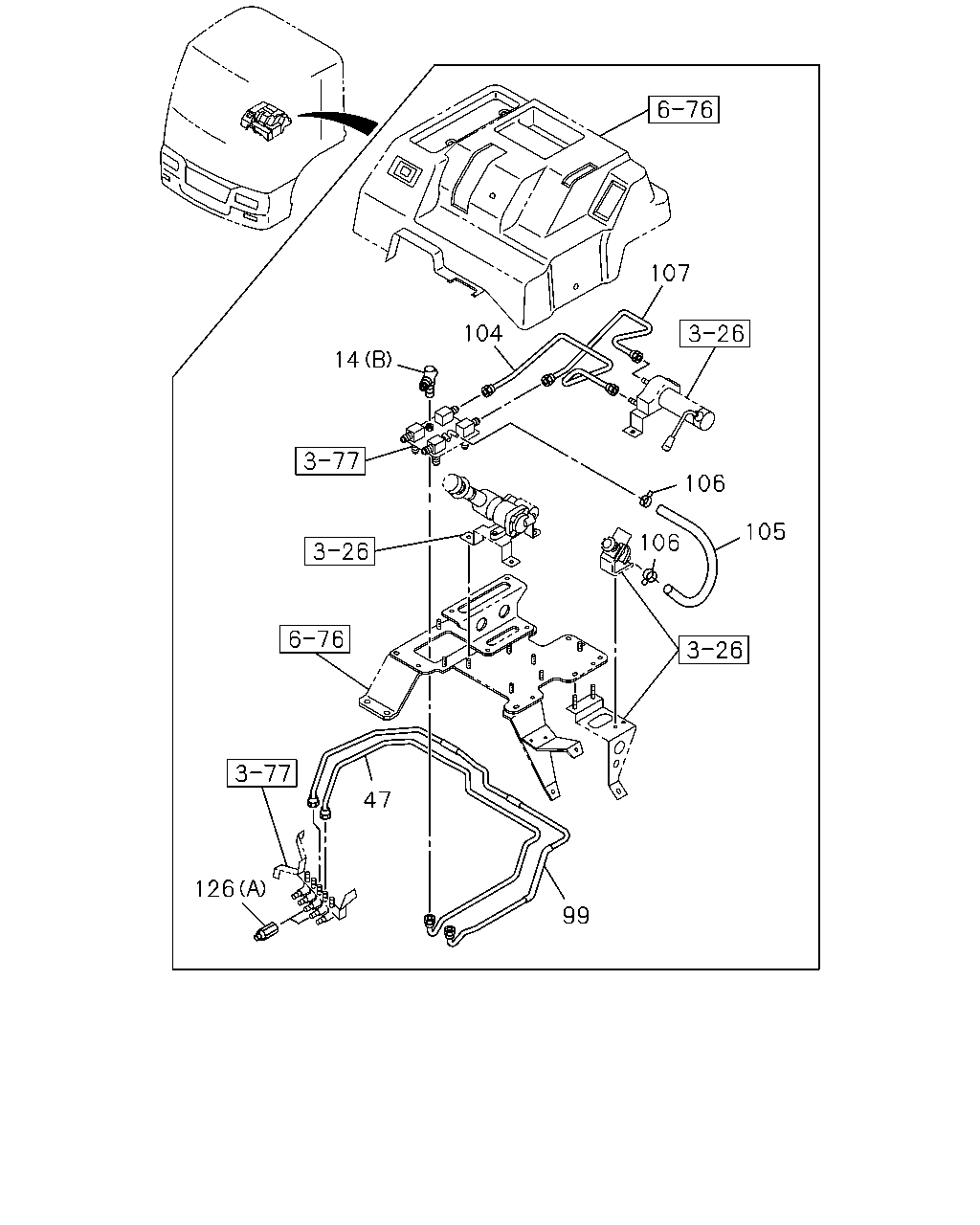

çizim 44668
107 104 14 106 105 106 47 126 99
BalonParca AdiParca NoAdetTipApplied Date
14 CONNECTOR; AIR PIPE
(B) 		1-09650-325-1 01 1 9812-9901
14 CONNECTOR; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> (B) 		1-09650-325-1 01 1 9902-
14 CONNECTOR; AIR PIPE
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9812-
14 CONNECTOR; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) M16 & PT1/4 ELBOW 		1-09650-434-0 01 1 9902-
47 PIPE; AIR,UNION TO UNION
L=1901 SERVICED BY L=1950 		1-47426-393-0 01 1 9812-
99 PIPE; AIR,JOINT TO JOINT 1-49116-183-1 01 1 9812-9901
99 PIPE; AIR,JOINT TO JOINT
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-183-1 01 1 9902-
104 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49116-329-0 01 1 9812-9812
104 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-329-0 01 1 9902-
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. TRAILER BRAKE CONTROL<J91>,PARKING BRAKE VALVELEVER TYPE<W48> 		1-49114-643-1 01 1 9902-0003
104 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-643-1 01 1 0004-
105 PIPE; VINYL,EXH,PARKING BRK VLV
L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9812-9901
105 PIPE; VINYL,EXH,PARKING BRK VLV
PARKING BRAKE VALVE LEVER TYPE<W48> L=400 SERVICED BY L=10000 		9-09914-701-0 01 1 9902-
105 PIPE; VINYL,EXH,PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=650 SERVICED BY L=10000 		9-09914-701-0 01 1 9902-
106 CLIP; PIPE
ID=14 		8-94238-572-0 02 1 9812-0003
106 CLIP; PIPE
TRAILER BRAKE CONTROL<J91> ID=14 		8-94238-572-0 02 1 0004-
107 PIPE; AIR,JOINT TO PARKING BRK VLV 1-49116-328-0 01 1 9812-9812
107 PIPE; AIR,JOINT TO PARKING BRK VLV
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49114-661-1 01 1 9902-
107 PIPE; AIR,JOINT TO PARKING BRK VLV
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> 		1-49116-328-1 01 1 9902-
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 9812-9911
126 CONNECTOR; NYLON TUBE
(A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 9912-0003
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) DIN8 & M14 STRAIGHT 		1-09661-094-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) DIN8 & M14 STRAIGHT 		1-09660-874-0 01 1 0008-
126 CONNECTOR; NYLON TUBE
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 9812-
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & M16 STRAIGHT 		1-09661-096-0 01 1 0004-0007
126 CONNECTOR; NYLON TUBE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0008-
