7-42 — ASH TRAY (#74229) — 102 parça

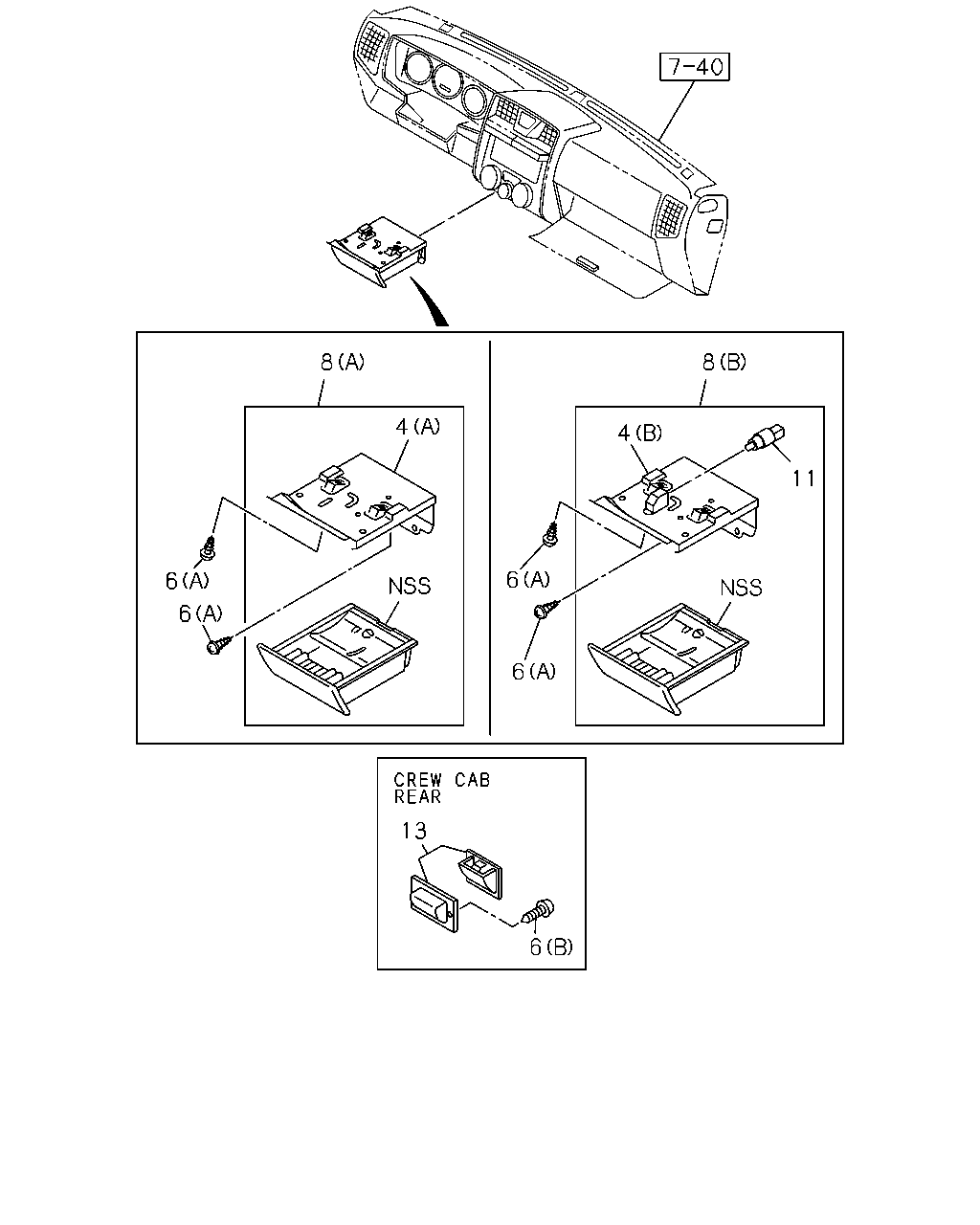

8 8 4 4 11 6 6 6 6 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0306-0408	●	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0409-0410	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A)	8-97308-648-0	01	1	0409-0410				●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0411-0609	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A)	8-97308-648-0	01	1	0411-0609				●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) (B)	8-97308-647-0	01	1	0306-0410				●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) (B)	8-97308-647-0	01	1	0411-0609				●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C)	8-98044-027-0	01	1	0610-1003	●	●	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C)	8-98044-027-0	01	1	1004-	●		●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C)	8-98044-027-0	01	1	1004-	●		●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C)	8-98044-027-0	01	1	1004-		●				●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0306-0410	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0411-0609	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98061-685-0	02	1	0701-1003	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0306-0609			●		●
6	16.120 SCREW; ASH TRAY 16.742 (B) M4X16 TAPPING OVAL-HEAD	0-70540-416-0	04	1	0610-			●		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0306-0408	●	●	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0409-0410	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97293-901-0	01	1	0409-0410				●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0411-0609	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97293-901-0	01	1	0411-0609				●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	0610-0709	●		●	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (C) DARK GRAY	8-97403-296-0	01	1	0610-0709		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	0710-0809	●		●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (C) DARK GRAY	8-97403-296-0	01	1	0710-0809		●				●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	0810-1003	●		●	●	●
8	16.120 TRAY ASM; ASH (C) DARK GRAY	8-97403-296-0	01	1	0810-1003		●				●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	1004-	●		●	●	●
8	16.120 TRAY ASM; ASH (C) DARK GRAY	8-97403-296-0	01	1	1004-		●				●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) (B) DARK GRAY	8-97392-978-0	01	1	0306-0408				●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97392-978-0	01	1	0409-0410				●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97392-978-0	01	1	0411-0609				●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-297-0	01	1	0610-0709	●		●	●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-297-0	01	1	0710-1003	●		●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-297-0	01	1	1004-	●		●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY	8-97392-979-0	01	1	0409-0410				●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY	8-97392-979-0	01	1	0411-0609				●	●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY	8-97403-299-0	01	1	0610-1003	●		●	●	●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (C) BLACK	8-97418-182-0	01	1	1004-	●		●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0306-0410				●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0411-0609				●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0610-0709	●		●	●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0710-1003	●		●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-97308-651-0	01	1	1004-	●		●	●	●
13	16.120 TRAY ASM; ASH,RR DARK GRAY	8-97393-945-1	02	1	0306-0609			●		●
13	16.120 TRAY ASM; ASH,RR DARK GRAY	8-97409-355-0	02	1	0610-			●		●

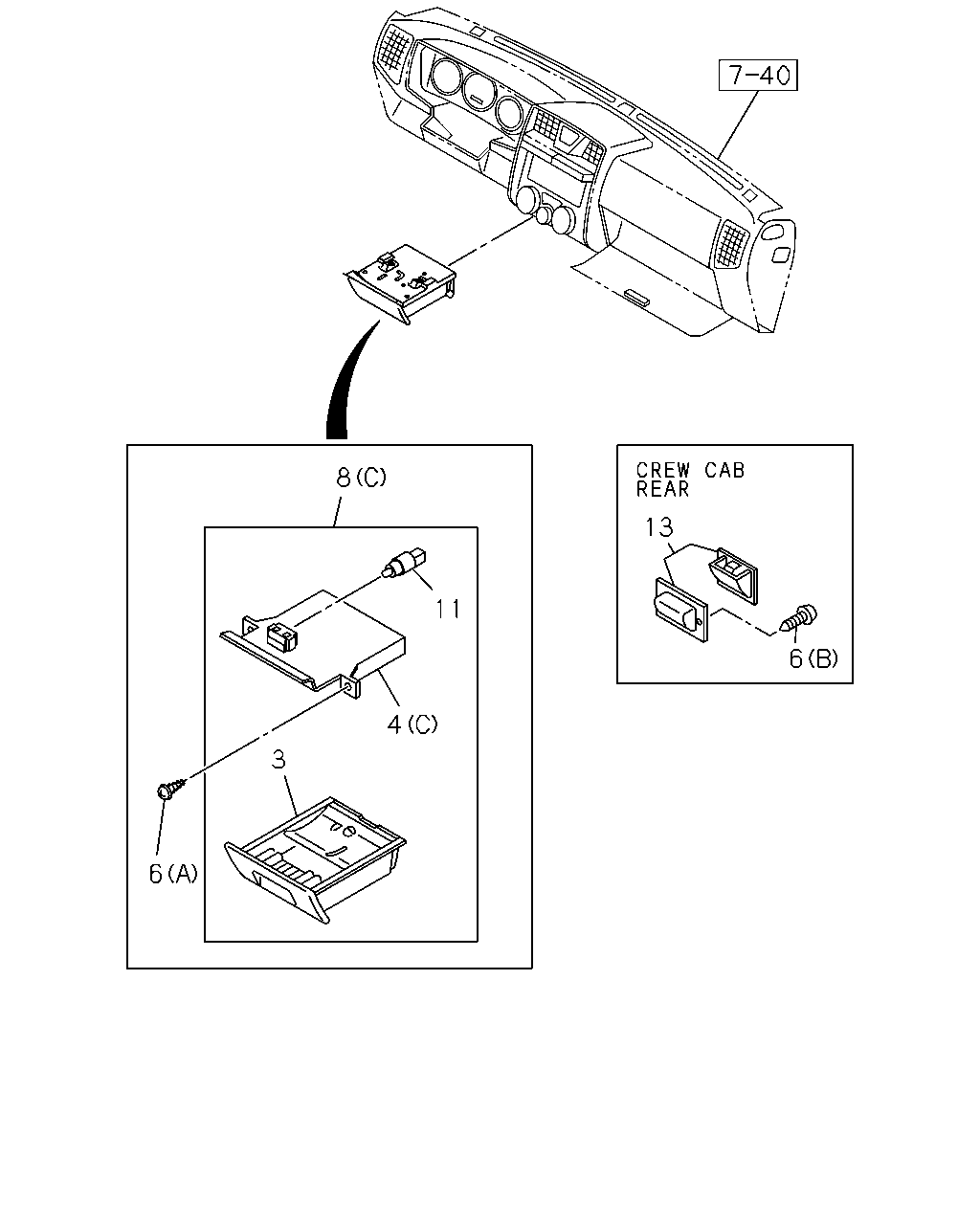

8 13 11 6 4 3 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR SILVER BEZEL<BY9> LIGHT GRAY	8-97407-837-0	01	1	0610-1003	●		●	●	●	●
3	16.120 CASE ASM; ASH TRAY INNER INTERIOR SILVER BEZEL<BY9> BLACK	8-97418-203-0	01	1	1004-	●		●	●	●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-836-0	01	1	0610-0709	●		●	●	●	●
3	16.120 CASE ASM; ASH TRAY INNER DARK GRAY	8-97407-836-0	01	1	0610-0709		●
3	16.120 CASE ASM; ASH TRAY INNER EXC. INTERIOR SILVER BEZEL<BY9> DARK GRAY	8-97407-836-0	01	1	0710-	●		●	●	●
3	16.120 CASE ASM; ASH TRAY INNER DARK GRAY	8-97407-836-0	01	1	0710-		●				●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0306-0408	●	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0409-0410	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A)	8-97308-648-0	01	1	0409-0410				●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) (A)	8-97308-648-0	01	1	0411-0609	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A)	8-97308-648-0	01	1	0411-0609				●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) (B)	8-97308-647-0	01	1	0306-0410				●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) (B)	8-97308-647-0	01	1	0411-0609				●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C)	8-98044-027-0	01	1	0610-1003	●	●	●	●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C)	8-98044-027-0	01	1	1004-	●		●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C)	8-98044-027-0	01	1	1004-	●		●	●	●
4	16.120 CASE ASM; ASH TRAY OUTER (C)	8-98044-027-0	01	1	1004-		●				●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0306-0410	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	03	1	0411-0609	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	0610-0612	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98061-685-0	02	1	0701-1003	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 08.083 (A) M5X16 TAPPING	8-98167-449-0	02	1	1004-	●	●	●	●	●	●
6	16.120 SCREW; ASH TRAY 16.850 (B) M4X16 TAPPING OVAL-HEAD	9-07037-416-0	04	1	0306-0609			●		●
6	16.120 SCREW; ASH TRAY 16.742 (B) M4X16 TAPPING OVAL-HEAD	0-70540-416-0	04	1	0610-			●		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0306-0408	●	●	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0409-0410	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97293-901-0	01	1	0409-0410				●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (A) DARK GRAY	8-97293-901-0	01	1	0411-0609	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (A) DARK GRAY	8-97293-901-0	01	1	0411-0609				●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	0610-0709	●		●	●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (C) DARK GRAY	8-97403-296-0	01	1	0610-0709		●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	0710-0809	●		●	●	●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) (C) DARK GRAY	8-97403-296-0	01	1	0710-0809		●				●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	0810-1003	●		●	●	●
8	16.120 TRAY ASM; ASH (C) DARK GRAY	8-97403-296-0	01	1	0810-1003		●				●
8	16.120 TRAY ASM; ASH GRADE DX(RBA) INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-296-0	01	1	1004-	●		●	●	●
8	16.120 TRAY ASM; ASH (C) DARK GRAY	8-97403-296-0	01	1	1004-		●				●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) (B) DARK GRAY	8-97392-978-0	01	1	0306-0408				●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97392-978-0	01	1	0409-0410				●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (B) DARK GRAY	8-97392-978-0	01	1	0411-0609				●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-297-0	01	1	0610-0709	●		●	●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-297-0	01	1	0710-1003	●		●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) EXC. INTERIOR SILVER BEZEL<BY9> (C) DARK GRAY	8-97403-297-0	01	1	1004-	●		●	●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY	8-97392-979-0	01	1	0409-0410				●	●
8	16.120 TRAY ASM; ASH GRADE LT(RBD) INTERIOR SILVER BEZEL<BY9> (B) LIGHT GRAY	8-97392-979-0	01	1	0411-0609				●	●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (C) LIGHT GRAY	8-97403-299-0	01	1	0610-1003	●		●	●	●	●
8	16.120 TRAY ASM; ASH INTERIOR SILVER BEZEL<BY9> (C) BLACK	8-97418-182-0	01	1	1004-	●		●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0306-0410				●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0411-0609				●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0610-0709	●		●	●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD)	8-97308-651-0	01	1	0710-1003	●		●	●	●
11	08.991 BULB; ASH TRAY GRADE LT(RBD) INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116)	8-97308-651-0	01	1	1004-	●		●	●	●
13	16.120 TRAY ASM; ASH,RR DARK GRAY	8-97393-945-1	02	1	0306-0609			●		●
13	16.120 TRAY ASM; ASH,RR DARK GRAY	8-97409-355-0	02	1	0610-			●		●
