1 |

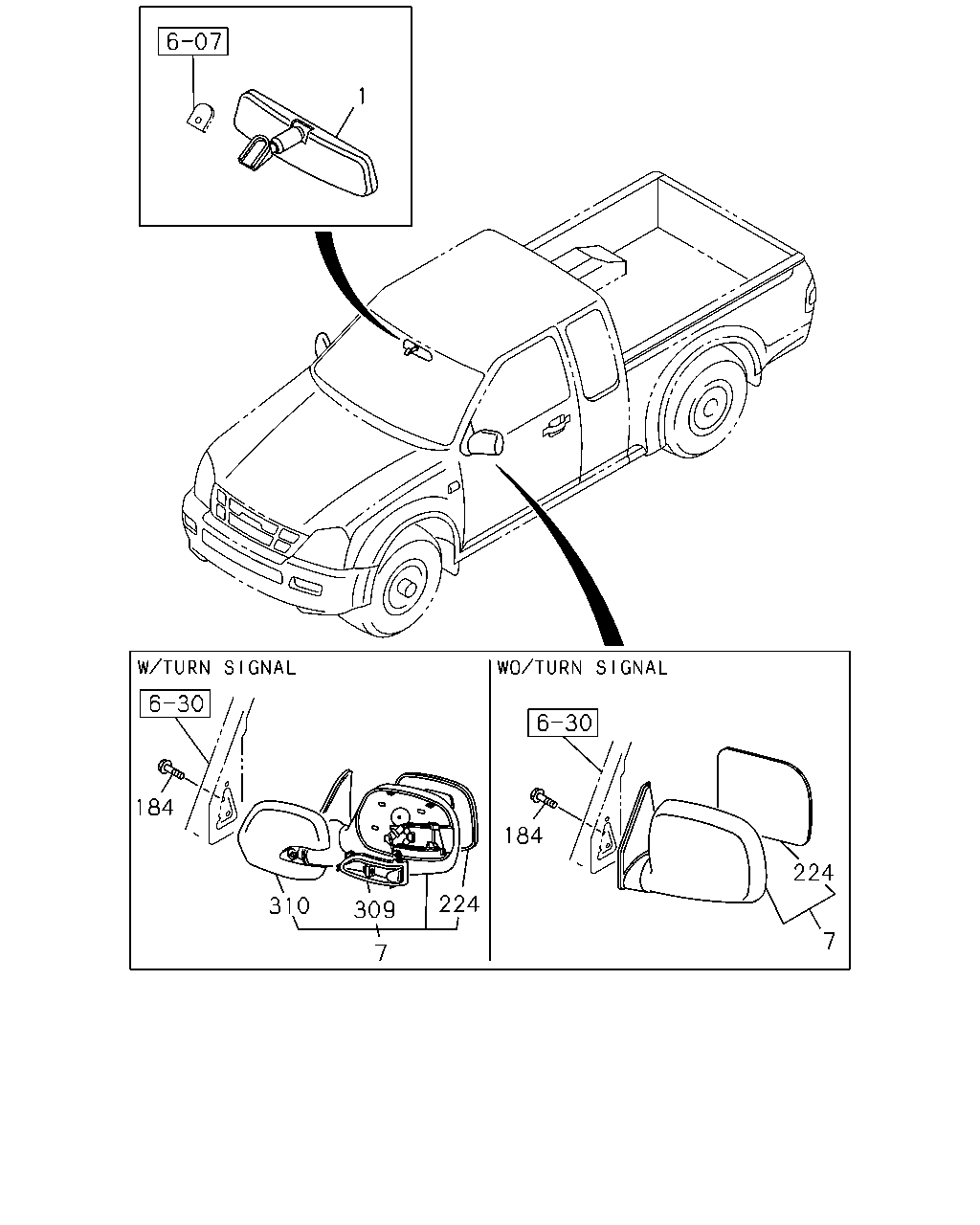

16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
1 |
16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0411-0609 |
● |
● |
● |
● |
● |
● |
| |
1 |
16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D31>
|
8-97237-560-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
1 |
16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0610-0709 |
|
● |
|
|
|
|
| |
1 |
16.068 MIRROR; ROOM
RR VIEW MIRROR DAY & NIGHT<D31>
|
8-97237-560-0 |
01 |
1 |
0710- |
● |
|
● |
● |
● |
|
| |
1 |
16.068 MIRROR; ROOM
|
8-97237-560-0 |
01 |
1 |
0710- |
|
● |
|
|
|
● |
| |
1 |
16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D31>
|
8-98053-645-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
1 |
16.068 MIRROR; ROOM
EXC. RR VIEW MIRROR DAY & NIGHT<D31>
|
8-98053-645-0 |
01 |
1 |
0710- |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY>
|
8-97357-895-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY>
|
8-97357-895-0 |
01 |
1 |
0411-0709 |
● |
● |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GRAY
|
8-97408-326-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GRAY
|
8-97415-902-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY>
|
8-97357-879-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BRIGHT MIRROR<6LY>
|
8-97357-879-0 |
01 |
1 |
0411-0709 |
● |
● |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLACK
|
8-97408-365-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLACK
|
8-97415-890-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-891-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-891-0 |
01 |
1 |
0411-0709 |
● |
● |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-891-1 |
01 |
1 |
0710- |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-97357-891-1 |
01 |
1 |
0710- |
|
● |
|
|
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-875-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-875-0 |
01 |
1 |
0411-0709 |
● |
● |
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR<RT9>
|
8-97357-875-1 |
01 |
1 |
0710- |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
|
8-97357-875-1 |
01 |
1 |
0710- |
|
● |
|
|
|
● |
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2>
|
8-97357-893-0 |
01 |
1 |
0306-0410 |
|
|
|
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2>
|
8-97357-893-0 |
01 |
1 |
0411-0508 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97401-461-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97401-461-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
GOLD
|
8-97408-321-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
GOLD
|
8-97415-898-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2>
|
8-97357-877-0 |
01 |
1 |
0306-0410 |
|
|
|
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELEC CONT<DG2>
|
8-97357-877-0 |
01 |
1 |
0411-0508 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97400-510-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97400-510-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
SILVER
|
8-97409-855-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
SILVER
|
8-97415-893-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-897-0 |
01 |
1 |
0306-0410 |
|
|
|
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-897-0 |
01 |
1 |
0411-0508 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97401-451-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97401-451-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
SILVER
|
8-97408-320-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
SILVER
|
8-97415-897-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-881-0 |
01 |
1 |
0306-0410 |
|
|
|
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-881-0 |
01 |
1 |
0411-0508 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97401-319-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97401-319-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97401-462-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97401-462-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
WHITE
|
8-97408-274-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
WHITE
|
8-97415-895-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97400-515-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97400-515-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97401-460-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97401-460-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLACK
|
8-97408-319-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLACK
|
8-97415-896-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97402-774-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97402-774-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
WHITE
|
8-97408-367-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
WHITE
|
8-97415-892-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GREEN
|
8-97401-457-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
DARK GREEN
|
8-97402-920-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GRAY
|
8-97408-363-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GRAY
|
8-97415-888-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GREEN
|
8-97402-771-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
DARK GREEN
|
8-97402-916-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
RED
|
8-97408-362-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
RED
|
8-97415-887-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97401-459-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97402-921-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
RED
|
8-97408-324-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
RED
|
8-97415-901-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97402-773-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97402-917-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLUE
|
8-97408-364-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLUE
|
8-97415-889-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97401-458-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97401-458-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLUE
|
8-97408-322-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLUE
|
8-97415-899-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97402-772-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97402-772-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
GOLD
|
8-97408-366-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
GOLD
|
8-97415-891-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR RAL5005 SIGNAL BLUE(507)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97407-057-0 |
01 |
1 |
0601-0609 |
|
|
|
|
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-897-0 |
01 |
1 |
0610-0709 |
● |
|
● |
|
|
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GREEN
|
8-97414-304-4 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GREEN
|
8-97415-894-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98111-725-0 |
01 |
1 |
0810-0912 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98157-128-0 |
01 |
1 |
1001- |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR RAL5005 SIGNAL BLUE(507)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97407-056-0 |
01 |
1 |
0601-0609 |
|
|
|
|
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIRROR ELECTRIC CONT BRIGHT<7HX>
|
8-97357-881-0 |
01 |
1 |
0610-0709 |
● |
|
● |
|
|
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GREEN
|
8-97408-323-5 |
01 |
1 |
0710-0803 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GREEN
|
8-97415-900-0 |
01 |
1 |
0804-0809 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98111-726-0 |
01 |
1 |
0810-0912 |
● |
|
● |
● |
● |
|
| |
7 |
16.068 MIRROR ASM; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98157-129-0 |
01 |
1 |
1001- |
● |
|
● |
● |
● |
|
| |
184 |
16.069 BOLT; MIRROR
16.585
M6X14 FLANGE
|
8-94327-380-0 |
06 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
184 |
16.069 BOLT; MIRROR
16.585
M6X14 FLANGE
|
8-94327-380-0 |
06 |
1 |
0411-0609 |
● |
● |
● |
● |
● |
● |
| |
184 |
16.069 BOLT; MIRROR
17.455
M6X14 FLANGE
|
8-97247-698-0 |
06 |
1 |
0610- |
● |
● |
● |
● |
● |
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
|
8-98092-587-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98092-587-0 |
01 |
1 |
0810- |
● |
|
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
|
8-98092-590-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98092-590-0 |
01 |
1 |
0810- |
● |
|
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
|
8-97351-628-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
|
8-97351-628-0 |
01 |
1 |
0411-0709 |
● |
● |
● |
● |
● |
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIRROR<RT9>
|
8-97351-628-0 |
01 |
1 |
0710- |
● |
|
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
|
8-97351-628-0 |
01 |
1 |
0710- |
|
● |
|
|
|
● |
| |
224 |
16.068 MIRROR; DOOR
|
8-97349-982-0 |
01 |
1 |
0306-0410 |
● |
● |
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
|
8-97349-982-0 |
01 |
1 |
0411-0709 |
● |
● |
● |
● |
● |
● |
| |
224 |
16.068 MIRROR; DOOR
DOOR MIRROR<RT9>
|
8-97349-982-0 |
01 |
1 |
0710- |
● |
|
● |
● |
● |
|
| |
224 |
16.068 MIRROR; DOOR
|
8-97349-982-0 |
01 |
1 |
0710- |
|
● |
|
|
|
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
|
8-97387-940-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
|
8-97387-940-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
|
8-98092-088-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98092-088-0 |
01 |
1 |
0810- |
● |
|
● |
● |
● |
|
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
|
8-97387-939-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
|
8-97387-939-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
|
8-98092-087-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
309 |
16.069 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
|
8-98092-087-0 |
01 |
1 |
0810- |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLACK
|
8-97414-410-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
GOLD
|
8-97414-413-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97401-547-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97401-547-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
WHITE
|
8-97414-396-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97401-541-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
WHITE
|
8-97401-541-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ALPINE WHITE(877)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
WHITE
|
8-97414-407-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97403-659-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97403-659-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLACK
|
8-97414-399-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97402-780-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR BLACK SAPPHIRE MICA(685)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLACK
|
8-97402-780-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GRAY
|
8-97414-411-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GREEN
|
8-97403-660-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
DARK GREEN
|
8-97403-667-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GREEN
|
8-97414-398-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
PLATED
|
8-98092-083-0 |
01 |
1 |
0810- |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR CHAMONIX GREEN MET(644)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GREEN
|
8-97402-777-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
DARK GREEN
|
8-97403-671-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR HIGHLAND GREEN MET(502)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GREEN
|
8-97414-409-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DNQ>
PLATED
|
8-98092-084-0 |
01 |
1 |
0810- |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97403-658-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97403-670-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
RED
|
8-97414-441-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR FOXFIRE RED MICA(658)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97402-779-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
RED
|
8-97403-664-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR TORNADE RED MICA(504)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
RED
|
8-97414-412-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97401-542-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97401-542-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
GOLD
|
8-97414-442-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97401-536-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR IMPERIAL BLOND MET(688)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
GOLD
|
8-97401-536-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLUE
|
8-97414-408-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97402-521-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97402-521-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
SILVER
|
8-97414-391-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97402-518-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
SILVER
|
8-97402-518-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR STERLING SILVER MET(936)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
SILVER
|
8-97414-402-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97405-665-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97405-665-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
BLUE
|
8-97414-397-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97402-778-0 |
01 |
1 |
0509-0609 |
|
|
|
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ZENITH BLUE MICA(646)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97402-778-0 |
01 |
1 |
0610-0709 |
● |
|
● |
● |
● |
● |
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR ROYAL GRAY MET.(505)
DOOR MIR ELEC HEATED PWR FOLDING TURN
SIGNAL<DL2>
DARK GRAY
|
8-97414-400-0 |
01 |
1 |
0710-0809 |
● |
|
● |
● |
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR RAL5005 SIGNAL BLUE(507)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97407-861-0 |
01 |
1 |
0601-0609 |
|
|
|
|
● |
|
| |
310 |
16.069 COVER; DOOR MIRROR
BODY COLOR RAL5005 SIGNAL BLUE(507)
DOOR MIR ELEC DUAL FOLDING COLOR TURN
SIGNAL<DF9>
BLUE
|
8-97407-070-0 |
01 |
1 |
0601-0609 |
|
|
|
|
● |
|
