◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#74225) — 72 parça

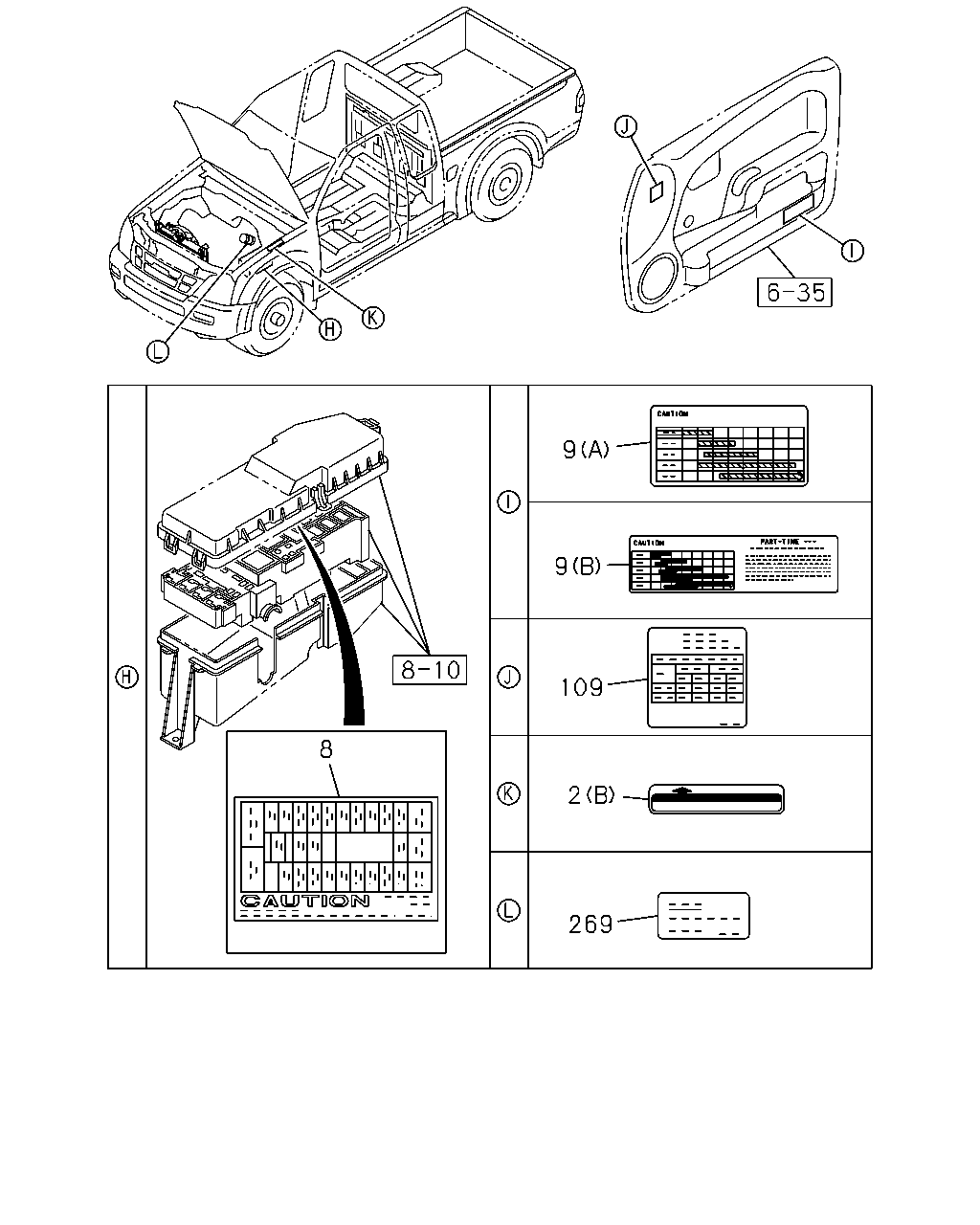

çizim 153435
9 9 109 8 2 269
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0306-0410 ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0411- ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0610-0709 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97945-778-0 01 1 0710-0710 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0711- ● ● ● ● ● ●
8 03.680 LABEL; FUSE 8-97317-664-0 01 1 0306-0410 ● ● ● ● ●
8 03.680 LABEL; FUSE 8-97317-664-0 01 1 0411-0508 ● ● ● ● ● ●
8 03.680 LABEL; FUSE 8-98014-690-0 01 1 0509-0609 ● ● ● ● ● ●
8 03.680 LABEL; FUSE 8-98042-530-0 01 1 0610- ● ● ● ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
(A) 		8-94423-384-0 01 1 0306-0609 ● ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JA1-TC ENG(L4Z) M/T MUA 5 SPEED 5G(RSP) (A) 		8-97013-728-0 01 1 0306-0609 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B) 		8-94331-888-0 01 1 0306-0410 ● ●
9 08.808 PLATE; NAME,SPD RANGE
4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) (B) 		8-94331-888-0 01 1 0411-0609 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-965-0 01 1 0306-0609 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-97332-965-0 01 1 0610-0809 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-965-0 01 1 0610-0809 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98107-867-0 01 1 0810-1007 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-98107-867-0 01 1 0810-1007 ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98107-867-0 01 1 1008- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-646-0 01 1 0306-0410 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-646-0 01 1 0411-0609 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) 		8-97332-646-0 01 1 0610-1007 ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-646-0 01 1 0610-1007 ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC) 		8-97332-646-0 01 1 1008- ● ● ●
109 08.808 PLATE; CAUTION,TIRE PLACARD 8-97332-646-0 01 1 1008- ● ● ●
269 08.808 LABEL; CAUTION,EGR 8-97383-056-0 01 1 0610- ● ● ● ● ● ●

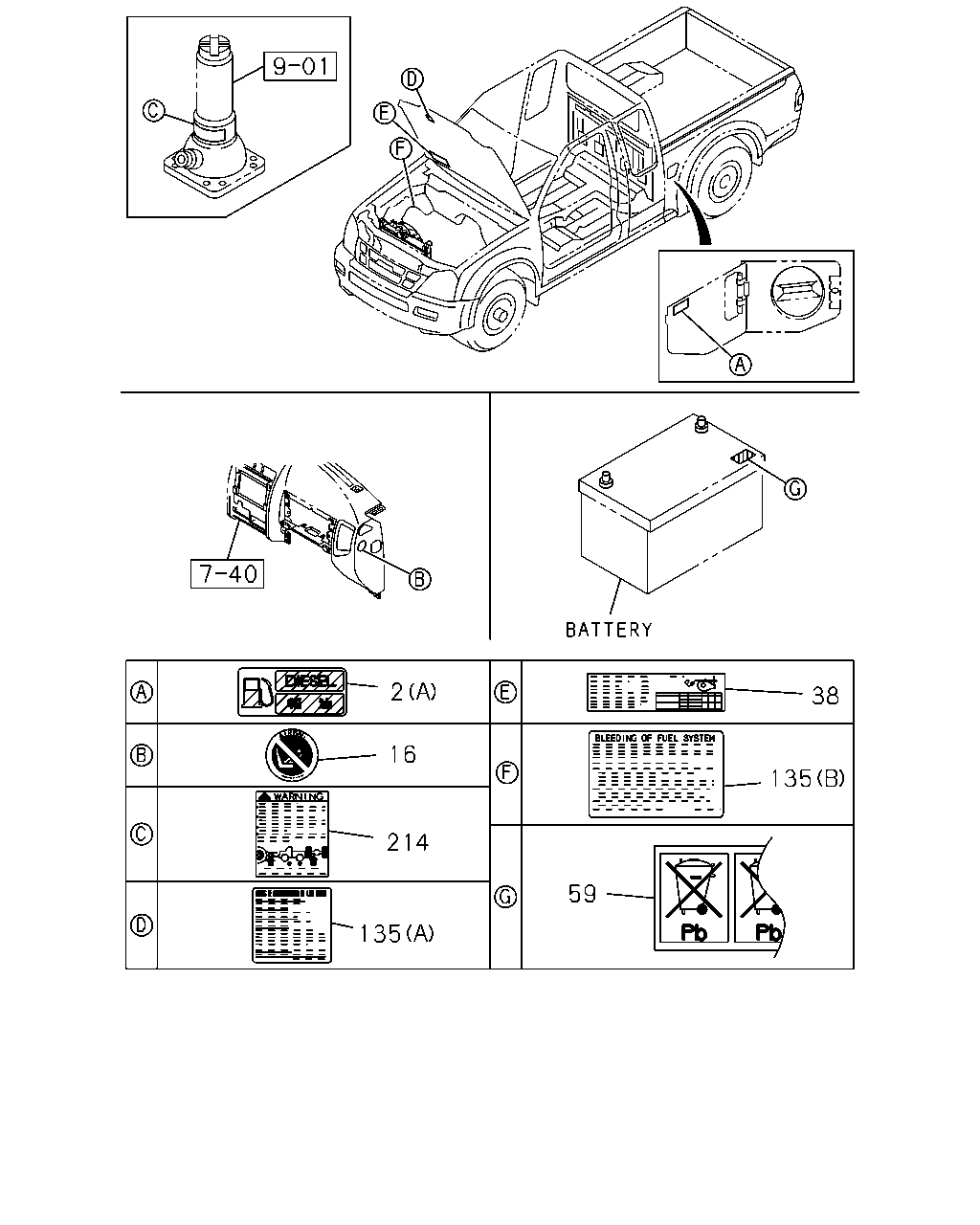

çizim 153452
2 38 16 135 214 59 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0306-0410 ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-97203-837-0 01 1 0411- ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0610-0709 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97945-778-0 01 1 0710-0710 ● ● ● ● ● ●
2 03.680 LABEL; FUEL CAUTION
(B) 		8-97945-778-0 01 1 0711- ● ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97357-163-0 01 1 0306-0402 ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 0403-0410 ● ● ● ● ●
16 08.808 PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-97378-569-0 01 1 0411- ● ● ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97357-784-0 01 1 0306-0410 ● ● ● ● ●
38 08.808 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<JR9> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97357-784-0 01 1 0411- ● ● ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY 8-97368-917-0 01 1 0306-0308 ● ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY 8-97368-917-0 01 1 0309-0410 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 		8-97368-917-0 01 1 0309-0410 ● ●
59 08.808 PLATE; CAUTION,BATTERY 8-97368-917-0 01 1 0411-0609 ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 		8-97368-917-0 01 1 0411-0609 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9) 		8-97368-917-0 01 1 0411-0609 ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9) 		8-97368-917-0 01 1 0610-0905 ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 		8-97368-917-0 01 1 0610-0905 ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9) 		8-98140-947-0 01 1 0906- ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 		8-98140-947-0 01 1 0906- ● ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97368-917-0 02 1 0309-0410 ● ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97368-917-0 02 1 0411-0609 ● ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9) 		8-97368-917-0 02 1 0411-0609 ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9) 		8-97368-917-0 02 1 0610-0905 ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-97368-917-0 02 1 0610-0905 ● ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9) 		8-98140-947-0 02 1 0906- ● ● ● ●
59 08.808 PLATE; CAUTION,BATTERY
BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 		8-98140-947-0 02 1 0906- ● ●
135 08.808 PLATE; CAUTION,ENGINE
(B) 		8-97943-097-0 01 1 0306-0410 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
(B) 		8-97943-097-0 01 1 0411-0609 ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) (A) 		8-98042-938-0 01 1 0610-0709 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) (A) 		8-98042-938-0 01 1 0710-0710 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> (A) 		8-98042-938-0 01 1 0710-0710 ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) (A) 		8-98042-938-0 01 1 0711-0809 ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) (A) 		8-98042-938-0 01 1 0810- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) ISUZU BRAND<7WL> (A) 		8-98042-938-0 01 1 0810- ●
135 08.808 PLATE; CAUTION,ENGINE
4JA1-TC ENG(L4Z) (A) 		8-97943-122-0 01 1 0306-0609 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) (A) 		8-98042-941-0 01 1 0610-0710 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) (A) 		8-98042-941-0 01 1 0711-0809 ● ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) (A) 		8-98042-941-0 01 1 0810-1007 ● ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) ISUZU BRAND<7WL> (A) 		8-98042-941-0 01 1 0810-1007 ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) (A) 		8-98042-941-0 01 1 1008- ● ● ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) ISUZU BRAND<7WL> (A) 		8-98042-941-0 01 1 1008- ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) (A) 		8-97943-010-0 01 1 0306-0410 ● ●
135 08.808 PLATE; CAUTION,ENGINE
4JH1-TC ENG(RDM) (A) 		8-97943-010-0 01 1 0411-0609 ● ● ●
214 08.808 LABEL; JACK 8-97315-282-1 01 1 0306-0410 ● ● ● ● ●
214 08.808 LABEL; JACK 8-97315-282-1 01 1 0411- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
