6-90 — REAR BUMPER (#74223) — 132 parça

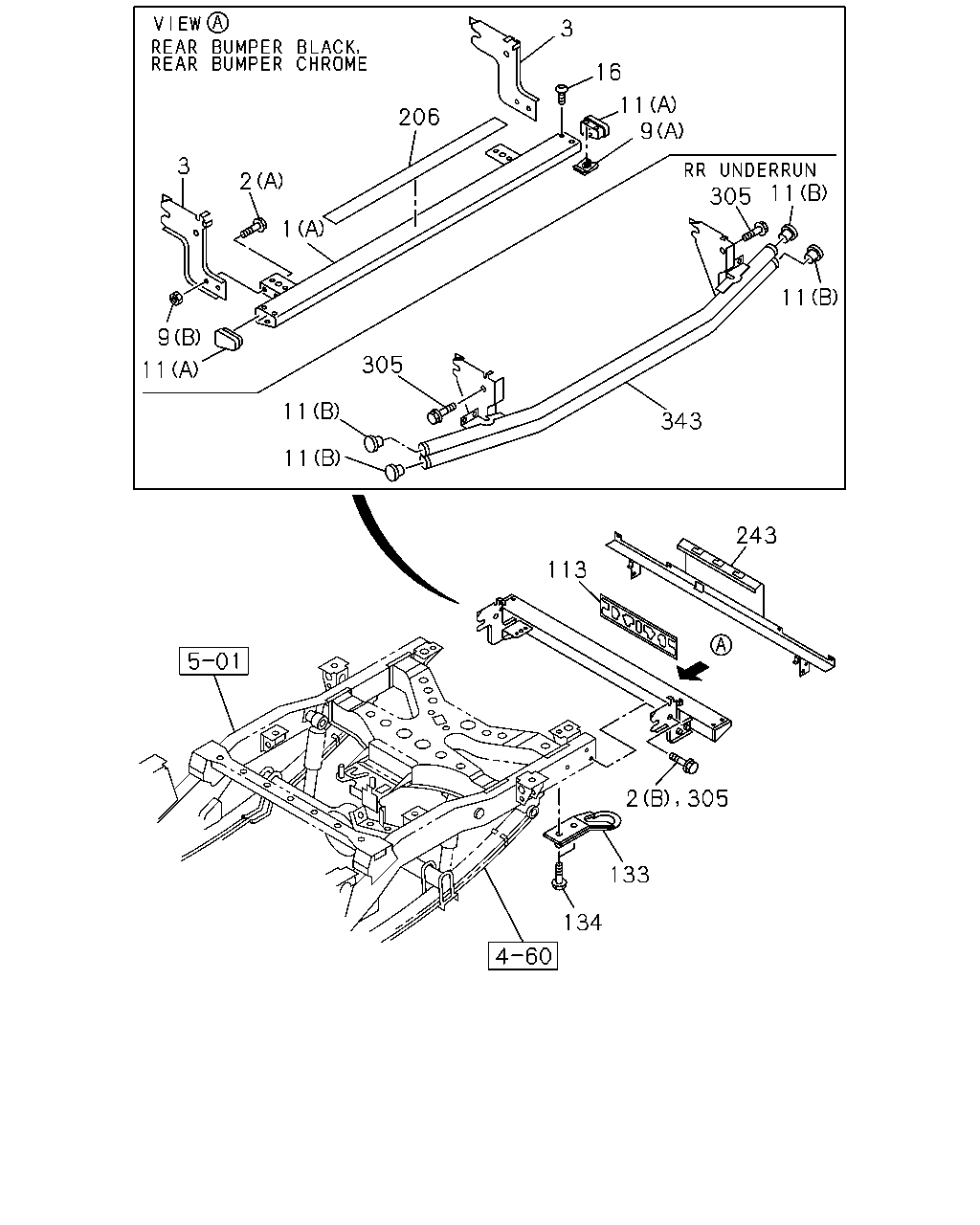

çizim 153431
3 16 11 9 206 3 305 11 2 1 11 9 305 11 11 343 11 243 113 133 134 2 305
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-97351-556-2 01 1 0306-0410 ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-97351-556-2 01 1 0411-0609 ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-97351-556-2 01 1 0610- ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-97351-557-2 01 1 0306-0410 ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-97351-557-2 01 1 0411-0609 ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-97351-557-2 01 1 0610- ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (B) 		8-98030-185-3 01 1 0610- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0306-0410 ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0411-0609 ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0610-0611 ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0306-0410 ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0411-0609 ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0610-0610 ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0610-0611 ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-552-1 01 1 0306-0410 ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-552-1 01 1 0411-0609 ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-552-1 01 1 0610- ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-551-1 01 1 0306-0410 ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-551-1 01 1 0411-0609 ● ● ● ● ● ●
3 07.875 BRACKET; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97351-551-1 01 1 0610- ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0306-0410 ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0411-0609 ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0610-0610 ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-98062-088-0 04 1 0611- ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0306-0410 ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0411-0609 ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0610-0610 ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-089-0 06 1 0611- ● ● ●
9 07.070 NUT; BUMPER
REAR STEP BUMPER(VF6) 01.062 (C) M6 FLANGE 		0-91180-106-0 06 1 0610- ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97351-555-0 01 1 0306-0410 ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97351-555-0 01 1 0411-0609 ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97351-555-0 01 1 0610- ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97351-554-0 01 1 0306-0410 ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97351-554-0 01 1 0411-0609 ● ● ● ● ● ●
11 07.829 CAP; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97351-554-0 01 1 0610- ● ● ●
11 07.829 CAP; RR BUMPER
RR UNDERRUN PROTECTOR<6DY> 07.890 (B) 		8-97351-695-0 04 1 0407-0410 ● ●
11 07.829 CAP; RR BUMPER
RR UNDERRUN PROTECTOR<6DY> 07.890 (B) 		8-97351-695-0 04 1 0411-0609 ● ● ●
11 07.829 CAP; RR BUMPER
RR UNDERRUN PROTECTOR<6DY> 07.890 (B) 		8-97351-695-0 04 1 0610-1007 ● ● ● ● ●
11 07.829 CAP; RR BUMPER
RR UNDERRUN PROTECTOR<6DY> 07.890 (B) 		8-97351-695-0 04 1 1008- ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97368-927-0 06 1 0306-0410 ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97368-927-0 06 1 0411-0609 ● ● ● ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97368-927-0 06 1 0610-0610 ● ● ●
16 07.070 SCREW; RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-98062-091-0 06 1 0611- ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5> 		8-98011-434-0 01 1 0710-0910 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - IS UZU,THAILAND<8KX> 		8-98011-434-0 01 1 0911-1003 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),PLANT - ISUZU,THAILAND<8KX> 		8-98011-434-0 01 1 1004-1007 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - IS UZU,THAILAND<8KX> 		8-98011-434-0 01 1 1008- ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> 		8-97362-574-0 01 1 0306-0410 ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> 		8-97362-574-0 01 1 0411-0503 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> 		8-98011-434-0 01 1 0504-0609 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) EXC. REAR STEP BUMPER(VF6),SHIPPING EQUIPMENT SPECIAL VAR1<VK5> 		8-98011-434-0 01 1 0610-0709 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6) 		8-98011-434-0 01 1 0710-0910 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),PLANT - ISUZU,THAILAND<8KX> 		8-98011-434-0 01 1 0911-1003 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6) 		8-98011-434-0 01 1 0911-1003 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6) 		8-98011-434-0 01 1 1004-1007 ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. REAR STEP BUMPER(VF6),PLANT - ISUZU,THAILAND<8KX> 		8-98011-434-0 01 1 1008- ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
REAR BODY DBL WALL CTR PULL(E63) PLANT - ISUZU,THAILAND<8KX> EXC. REAR STEP BUMPER(VF6) 		8-98011-434-0 01 1 1008- ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0306-0410 ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0411- ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0306-0410 ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0411- ● ● ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97364-097-0 01 1 0306-0410 ● ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97364-097-0 01 1 0411-0609 ● ● ● ● ● ●
206 07.831 SHEET; NON SLIP,RR BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) 		8-97364-097-0 01 1 0610- ● ● ●
243 07.869 BRACKET
REAR BODY DELETE(8HH) 		8-98125-835-0 01 1 0810-1308 ● ● ● ● ● ●
305 02.664 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 FLANGE 		8-97161-815-1 04 1 0306-0410 ● ●
305 02.664 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 FLANGE 		8-97161-815-1 04 1 0411-0609 ● ● ●
305 02.664 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 FLANGE 		8-97161-815-1 04 1 0610-0611 ● ● ● ● ●
305 02.664 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 		8-98062-142-0 04 1 0612-1007 ● ● ● ● ●
305 02.664 BOLT; GUARD
RR UNDERRUN PROTECTOR<6DY> 07.874 M12X30 		8-98062-142-0 04 1 1008- ● ● ● ● ● ●
343 07.070 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-97366-594-0 01 1 0306-0410 ● ●
343 07.070 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-97366-594-0 01 1 0411-0609 ● ● ●
343 07.070 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-97366-594-0 01 1 0610-1001 ● ● ● ● ●
343 07.070 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-98163-803-0 01 1 1002-1007 ● ● ● ● ●
343 07.070 GUARD ASM; RR
RR UNDERRUN PROTECTOR<6DY> 		8-98163-803-0 01 1 1008- ● ● ● ● ● ●
çizim 153460
306 9 21 2 339 346 349 61 4 1 340 341 2 45 235 342 338 349 61 153 306 346 225 225 2 133 134
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-97351-556-2 01 1 0306-0410 ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-97351-556-2 01 1 0411-0609 ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER BLACK(EY1) (A) 		8-97351-556-2 01 1 0610- ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-97351-557-2 01 1 0306-0410 ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-97351-557-2 01 1 0411-0609 ● ● ● ● ● ●
1 07.070 BUMPER; RR
REAR BUMPER CHROME(VF1) (A) 		8-97351-557-2 01 1 0610- ● ● ●
1 07.070 BUMPER; RR
REAR STEP BUMPER(VF6) (B) 		8-98030-185-3 01 1 0610- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0306-0410 ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0411-0609 ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 FLANGE 		8-97161-815-1 04 1 0610-0611 ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) M12X30 		8-98062-142-0 04 1 0612- ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0306-0410 ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0411-0609 ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-956-0 04 1 0610-0610 ● ● ●
2 07.874 BOLT; BACK BAR
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-087-0 04 1 0611- ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) 00.029 (C) M10X20 FLANGE 		0-28051-020-0 04 1 0610- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (B) M12X30 FLANGE 		8-97161-815-1 06 1 0610-0611 ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (B) M12X30 		8-98062-142-0 06 1 0612- ● ● ● ● ● ●
2 07.874 BOLT; BACK BAR
REAR STEP BUMPER(VF6) (A) M10X22 HEX SOCKET 		8-97352-591-0 04 1 0610- ● ● ● ● ● ●
4 07.070 BOLT; BUMPER
REAR STEP BUMPER(VF6) 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0610- ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0306-0410 ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0411-0609 ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-97368-918-0 06 1 0610-0610 ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-98062-088-0 04 1 0611- ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0306-0410 ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0411-0609 ● ● ● ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (B) 		8-97368-955-0 04 1 0610-0610 ● ● ●
9 07.070 NUT; BUMPER
REAR BUMPER BLACK(EY1),REAR BUMPER CHROME(VF1) (A) 		8-98062-089-0 06 1 0611- ● ● ●
9 07.070 NUT; BUMPER
REAR STEP BUMPER(VF6) 01.062 (C) M6 FLANGE 		0-91180-106-0 06 1 0610- ● ● ● ● ● ●
21 07.070 WASHER; LK,BUMPER
REAR STEP BUMPER(VF6) 01.269 		8-97182-223-0 04 1 0610- ● ● ● ● ● ●
45 07.831 REINFORCEMENT; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-170-0 01 1 0610- ● ● ● ● ● ●
61 07.833 CLIP; BUMPER RR
REAR STEP BUMPER(VF6) 08.054 		8-97806-845-2 06 1 0610- ● ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0306-0410 ● ● ● ● ●
133 07.112 HOOK
TOW HOOK RR ONLY<7TK> 		8-97942-766-0 01 1 0411- ● ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0306-0410 ● ● ● ● ●
134 07.068 BOLT; HOOK
TOW HOOK RR ONLY<7TK> M10X30 FLANGE 		0-28661-030-0 02 1 0411- ● ● ● ● ● ●
153 07.800 BOLT; BRKT
REAR STEP BUMPER(VF6) 		8-97352-592-0 04 1 0610- ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-416-0 01 1 0610- ● ● ● ● ● ●
225 07.828 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-415-0 01 1 0610- ● ● ● ● ● ●
235 07.875 PAD; CENTER,BUMPER RR
REAR STEP BUMPER(VF6) 		8-98030-174-1 01 1 0610- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6) 		8-98030-173-1 01 1 0610- ● ● ● ● ● ●
306 07.836 BAR; BACK,RR
REAR STEP BUMPER(VF6) 		8-98030-172-1 01 1 0610- ● ● ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6) 		8-97352-595-0 02 1 0610-1007 ● ● ● ● ● ●
338 07.875 PIN; PUSH
REAR STEP BUMPER(VF6) 		8-97352-595-0 02 1 1008- ● ● ● ● ● ●
339 07.875 BOLT; BRACE
REAR STEP BUMPER(VF6) 		8-97352-593-0 02 1 0610- ● ● ● ● ● ●
340 07.875 RIVET
REAR STEP BUMPER(VF6) 		8-97352-594-0 05 1 0610- ● ● ● ● ● ●
341 07.875 CASE; LOCK CYLINDER
REAR STEP BUMPER(VF6) 		8-97352-584-1 01 1 0610- ● ● ● ● ● ●
342 07.875 CAP; LOCK CYLINDER
REAR STEP BUMPER(VF6) 		8-98030-190-0 01 1 0610- ● ● ● ● ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98030-201-1 01 1 0610- ● ● ● ● ● ●
346 07.800 EXTENSION; RR BUMPER SIDE
REAR STEP BUMPER(VF6) 		8-98030-200-2 01 1 0610- ● ● ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-169-1 01 1 0610- ● ● ● ● ● ●
349 07.070 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98030-183-1 01 1 0610- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
