◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-86 - TRUNK OPENER AND FUEL LID ▶
6-86 — TRUNK OPENER AND FUEL LID (#74222) — 38 parça

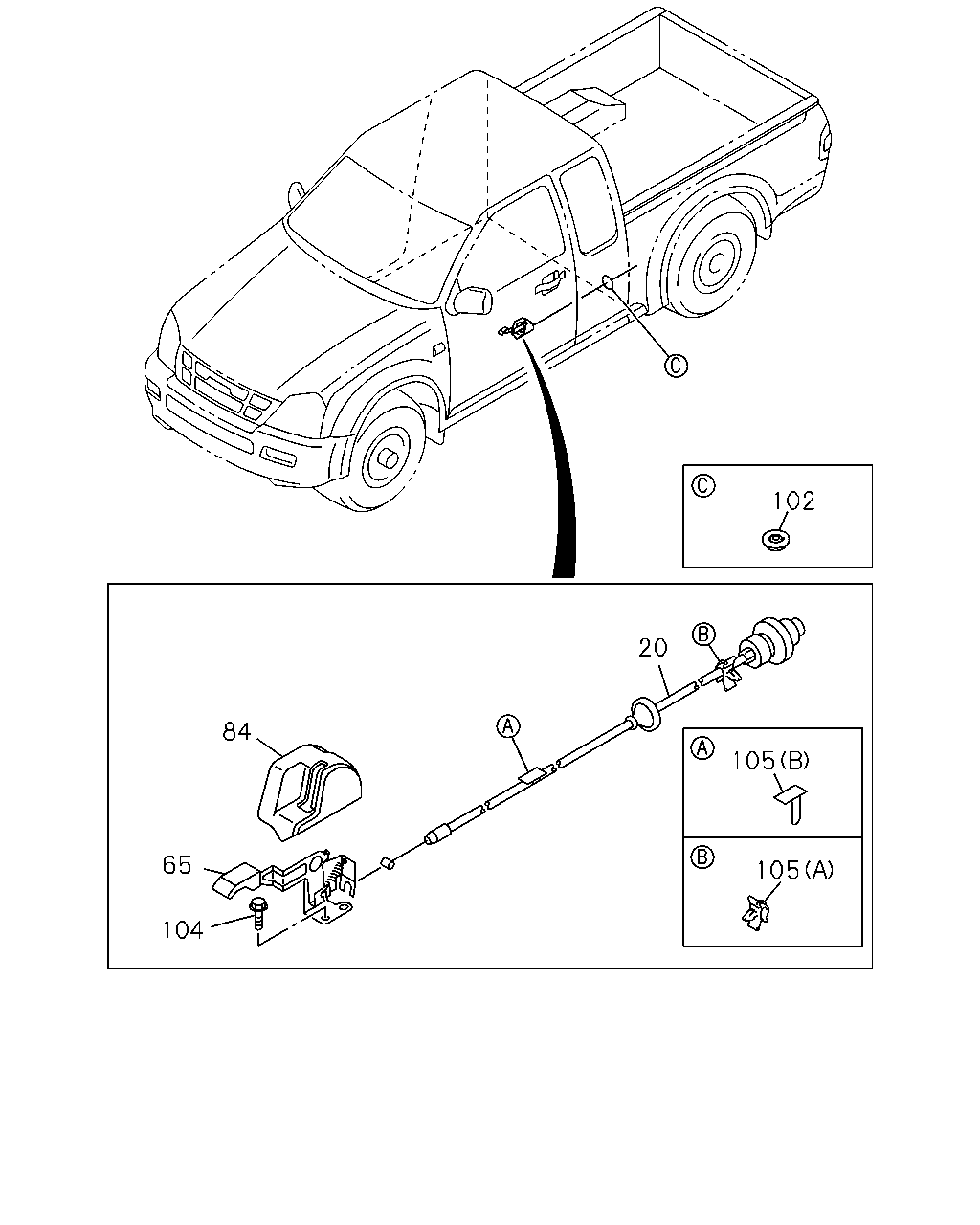

çizim 153425
102 20 84 105 65 105 104
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97315-537-0 01 1 0306-0402 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-97315-537-0 01 1 0403-0612 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-756-0 01 1 0701- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97315-535-0 01 1 0306-0308 ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97368-369-0 01 1 0309-0402 ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-97368-369-0 01 1 0403-0410 ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-97368-369-0 01 1 0411-0612 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-754-0 01 1 0701- ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 		8-97315-536-2 01 1 0306-0402 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-97315-536-2 01 1 0403-0612 ● ●
20 17.505 CABLE; TRUNK LID & FUEL FILLER
FUEL LID OPENER<N08> 		8-98072-758-0 01 1 0701- ● ●
65 17.505 KNOB; FUEL FILLER DOOR
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> DARK GRAY 		8-97394-287-0 01 1 0306-0402 ● ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97394-287-0 01 1 0403-0410 ● ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97394-287-0 01 1 0411-0510 ● ● ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-952-0 01 1 0511-0609 ● ● ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-954-0 01 1 0610-1003 ● ● ● ● ● ●
65 17.505 KNOB; FUEL FILLER DOOR
FUEL LID OPENER<N08> DARK GRAY 		8-97405-954-0 01 1 1004- ● ● ● ● ● ●
84 17.185 COVER; BRKT
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> DARK GRAY 		8-97391-007-0 01 1 0306-0402 ● ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97391-007-0 01 1 0403-0410 ● ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97391-007-0 01 1 0411-0609 ● ● ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97403-683-0 01 1 0610-1003 ● ● ● ● ● ●
84 17.185 COVER; BRKT
FUEL LID OPENER<N08> DARK GRAY 		8-97403-683-0 01 1 1004- ● ● ● ● ● ●
102 17.505 GROMMET
EXC. FUEL LID OPENER<N08> 		8-97321-645-1 01 1 0306-0410 ● ● ● ● ●
102 17.505 GROMMET
EXC. FUEL LID OPENER<N08> 		8-97321-645-1 01 1 0411- ● ● ● ● ● ●
104 17.505 BOLT; KNOB
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 0306-0306 ● ● ● ● ●
104 17.505 BOLT; KNOB
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0307-0402 ● ● ● ● ●
104 17.505 BOLT; KNOB
FUEL LID OPENER<N08> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0403-0410 ● ● ● ● ●
104 17.505 BOLT; KNOB
FUEL LID OPENER<N08> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0411- ● ● ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 01 1 0306-0402 ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 01 1 0403-0410 ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 01 1 0411-1110 ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 		8-98158-303-0 01 1 1111- ● ● ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 02.559 (A) D=5.8 		5-09709-081-0 02 1 0306-0402 ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 02.559 (A) D=5.8 		5-09709-081-0 02 1 0403-0410 ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 02.559 (A) D=5.8 		5-09709-081-0 02 1 0411- ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 02 1 0306-0402 ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> 16.065 (B) ID=7 		1-09987-055-0 02 1 0403-1110 ● ●
105 17.505 CLIP; CABLE,FUEL LID OPENER
FUEL LID OPENER<N08> (B) ID=7 		8-98158-303-0 02 1 1111- ● ●
