◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#7422) — 274 parça

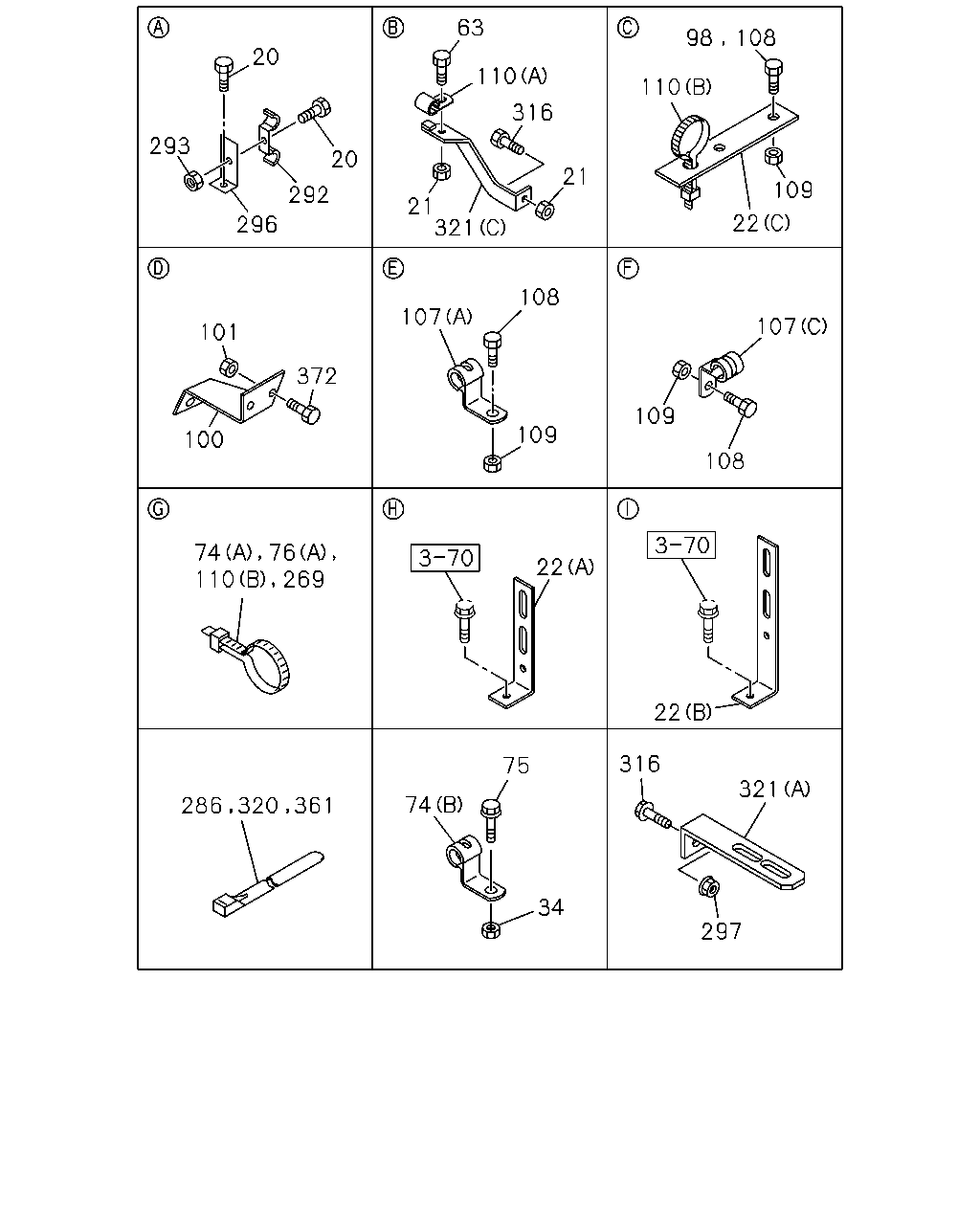

çizim 8555
63 98 108 20 110 110 316 293 20 21 109 292 21 321 22 296 108 107 107 101 372 109 109 100 108 22 22 316 75 321 74 34 297 74 76 110 269 286 320 361
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 01 1 9812-
20 BOLT; CLIP
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 01 1 9812-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9812-
21 NUT; CLIP
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9812-
22 BRACKET; CLIP
(C) L=125 		1-47477-975-0 02 1 9812-
22 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (A) L=150 H=30 		1-47477-629-2 01 1 9912-
22 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (B) L=225 		1-47477-646-3 01 1 9912-
34 NUT; BRKT
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 02 1 9904-
63 BOLT; CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9812-
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=250 		1-09707-126-0 01 1 9812-
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) AIR DRYER<PS7> (B) ID=31 H=30 L=35 		1-09700-994-0 01 1 9812-
74 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) EXC. AIR DRYER<PS7> (B) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 9812-
75 BOLT; CLIP
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 01 1 9812-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 9812-9904
76 CLIP; NYLON TUBE
WHEEL BASE 4700MM(47W) (A) L=250 		1-09707-126-0 07 1 9905-
76 CLIP; NYLON TUBE
(A) L=350 		8-94152-256-0 01 1 9812-9904
76 CLIP; NYLON TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 9812-9901
76 CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3 		8-94426-175-0 01 1 9902-
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 03 1 0004-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 9812-9904
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=250 		1-09707-126-0 06 1 9905-0003
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=250 		1-09707-126-0 03 1 0004-
98 BOLT; PIPE CLIP
M8X30 FLANGE 		0-28680-830-0 01 1 9812-
100 BRACKET; PIPE CLIP 1-47477-770-0 01 1 9812-
100 BRACKET; PIPE CLIP 1-47477-365-0 01 1 9812-
101 NUT; CLIP BRKT
M8 FLANGE 		0-91150-108-0 04 1 9812-
107 CLIP; NYLON TUBE
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 9812-9902
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9903-9904
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9905-0005
107 CLIP; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9905-0005
107 CLIP; NYLON TUBE
ZF M/T<X9E> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9905-0005
107 CLIP; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 0006-
107 CLIP; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 0006-
107 CLIP; NYLON TUBE
ZF M/T<X9E> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 0006-
107 CLIP; NYLON TUBE
BRAKE REGULATION ECE<TDV> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 9902-9902
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE CONTROL<J91> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 9903-
107 CLIP; NYLON TUBE
BRAKE REGULATION HONG KONG<TCZ> (A) ID=39 H=28 L=32 		1-09701-263-0 02 1 9812-9902
107 CLIP; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32 		1-09701-263-0 02 1 9903-
107 CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 9905-0005
107 CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0006-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 9812-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9812-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 05 1 9812-0103
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0104-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9812-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9812-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 15 1 9812-
110 CLIP; BAND,NYLON TUBE
(B) L=250 		1-09707-126-0 17 1 9812-
110 CLIP; BAND,NYLON TUBE
BRAKE REGULATION ECE<TDV> (A) ID=28 L=40 		1-09701-261-0 01 1 9902-9902
110 CLIP; BAND,NYLON TUBE
EXC. TRAILER BRAKE CONTROL<J91> (A) ID=28 L=40 		1-09701-261-0 01 1 9903-
110 CLIP; BAND,NYLON TUBE
BRAKE REGULATION HONG KONG<TCZ> (A) ID=35 L=33 		1-09700-945-0 01 1 9812-9902
110 CLIP; BAND,NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) ID=35 L=33 		1-09700-945-0 01 1 9903-
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 13 1 9812-9903
269 CLIP; BAND,NYLON TUBE
L=250 		1-09707-126-0 14 1 9904-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 4500MM(45W) L=250 		1-09707-126-0 03 1 9905-
286 CLIP; NYLON TUBE
L=250 		1-09707-126-0 05 1 9812-9904
286 CLIP; NYLON TUBE
ZF M/T<X9E> L=250 		1-09707-126-0 05 1 9905-
286 CLIP; NYLON TUBE
FULLER M/T<X9B> L=250 		1-09707-126-0 02 1 9905-
286 CLIP; NYLON TUBE
ISUZU M/T<X9A> L=250 		5-09707-030-1 01 1 9905-
292 CLIP; AIR PIPE
WHEEL BASE 4500MM(45W) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9812-
293 NUT; CLIP
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9812-
296 BRACKET; CLIP
WHEEL BASE 4500MM(45W) L=55 		1-47475-304-0 01 1 9812-
297 NUT; BRKT
EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 9812-9904
297 NUT; BRKT
EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE 		0-91150-108-0 01 1 9905-
297 NUT; BRKT
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9905-
297 NUT; BRKT
ISUZU M/T<X9A> M10 FLANGE 		0-91150-210-0 02 1 9905-
316 BOLT; CLIP
M8X40 FLANGE 		0-28680-840-0 01 1 9812-
316 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X30 FLANGE 		0-28680-830-0 02 1 9904-
320 CLIP; BAND,FLEX FIX
L=100 		5-09707-036-1 01 1 9812-0103
320 CLIP; BAND,FLEX FIX
L=140 		5-09707-031-1 01 1 0104-0104
321 BRACKET; CLIP
(C) 		1-47477-746-0 01 1 9812-
321 BRACKET; CLIP
EXC. AIR DRYER<PS7> (A) L=100 H=30 		1-47477-645-2 01 1 9812-9904
321 BRACKET; CLIP
EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (A) L=100 H=30 		1-47477-645-2 01 1 9905-
321 BRACKET; CLIP
CAB UP +110MM<TGG> (B) 		1-47477-472-1 01 1 9812-
321 BRACKET; CLIP
EXC. CAB UP +110MM<TGG> (B) 		1-47477-899-0 01 1 9903-
321 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (A) L=100 H=30 		1-47477-645-2 02 1 9904-
361 CLIP; FLEX HOSE,AIR PRESS GAGE
L=250 		5-09707-030-1 01 1 9812-9901
361 CLIP; FLEX HOSE,AIR PRESS GAGE
DUAL AIR GAUGE<UG2> L=250 		5-09707-030-1 01 1 9902-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 9812-
372 BOLT; CLIP BRKT
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 9902-

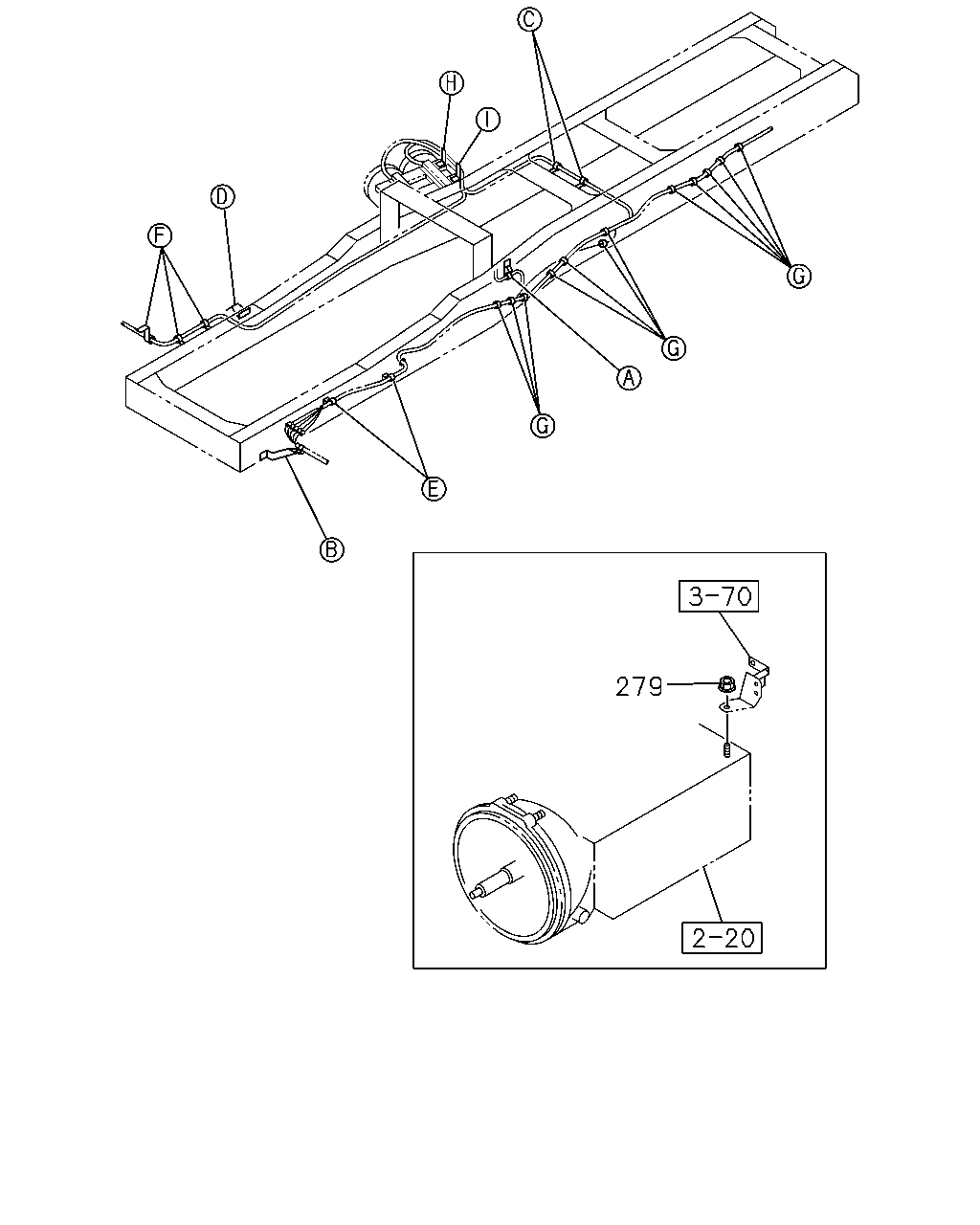

çizim 8556
279
BalonParca AdiParca NoAdetTipApplied Date
279 NUT; BRKT
MJA7 M/T<X9Q> M10 FLANGE 		0-91150-210-0 02 1 9905-

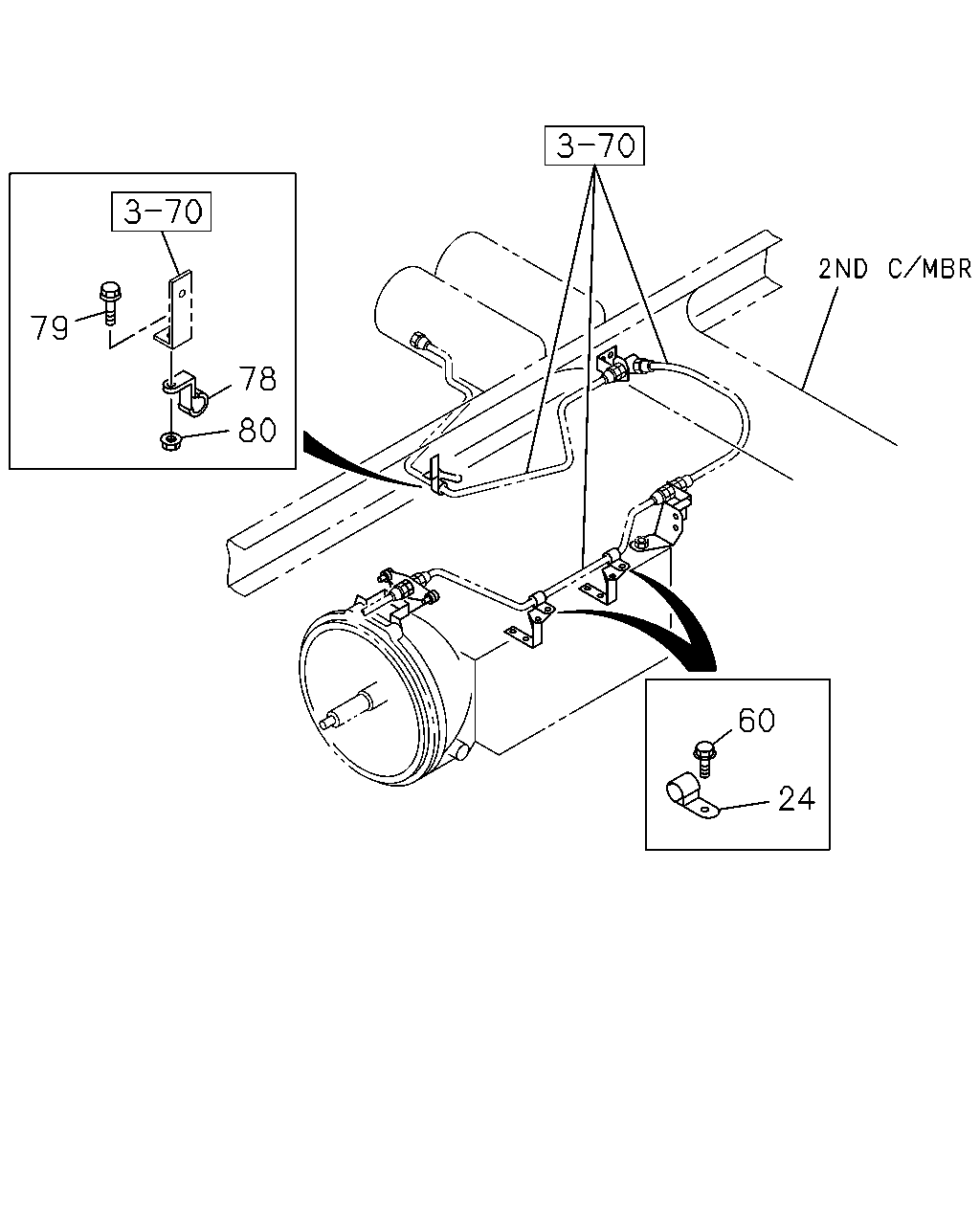

çizim 8909
79 78 80 60 24
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; PIPE
MJA7 M/T<X9Q> ID=16 L=20 		9-09525-535-0 02 1 9905-
24 CLIP; PIPE
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) ID=16 L=20 		9-09525-535-0 01 1 9902-
24 CLIP; PIPE
TRANSMISSION-ZF 16S221 OD(Y1U) ID=18 L=28 		1-09701-067-0 01 1 9812-
60 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 01 1 9812-9901
60 BOLT; CLIP FIX
TRANSMISSION-ZF 16S221 OD(Y1U) M8X25 FLANGE 		0-28680-825-0 01 1 9902-
60 BOLT; CLIP FIX
MJA7 M/T<X9Q> M8X25 FLANGE 		0-28680-825-0 02 1 9905-
60 BOLT; CLIP FIX
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X20 FLANGE 		0-28680-820-0 01 1 9902-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 01 1 9812-9901
78 CLIP; AIR PIPE
WHEEL BASE 4500MM(45W) ID=15 H=24 L=20 		1-09700-606-0 01 1 9902-
78 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) EXC. AIR DRYER<PS7> ID=15 H=24 L=20 		1-09700-606-0 01 1 9902-
79 BOLT; PIPE CLIP
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 01 1 9812-9812
79 BOLT; PIPE CLIP
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 02 1 9901-9901
79 BOLT; PIPE CLIP
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 02 1 9902-
79 BOLT; PIPE CLIP
WHEEL BASE 4700MM(47W) EXC. AIR DRYER<PS7> M8X25 FLANGE 		0-28680-825-0 02 1 9902-
80 NUT; CLIP,AIR PIPE
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9812-9812
80 NUT; CLIP,AIR PIPE
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 02 1 9901-9901
80 NUT; CLIP,AIR PIPE
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 02 1 9902-
80 NUT; CLIP,AIR PIPE
WHEEL BASE 4700MM(47W) EXC. AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 02 1 9902-
çizim 42141
376 367 322 375 357
BalonParca AdiParca NoAdetTipApplied Date
322 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 9812-
357 BOLT; CLIP FIX
M8X16 FLANGE 		0-28080-816-0 01 1 9812-
367 BRACKET ASM 1-42119-080-0 01 1 9812-
375 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 9812-
375 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) (B) ID=7 L=16 		9-09524-625-0 01 1 9902-
375 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (D) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9910-
375 CLIP; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) (C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9903-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 9812-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9812-9812
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9901-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-9812
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812-9901
376 BOLT; BRKT
DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9812-
376 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 9812-9904
376 BOLT; BRKT
EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE 		0-28680-830-0 01 1 9905-

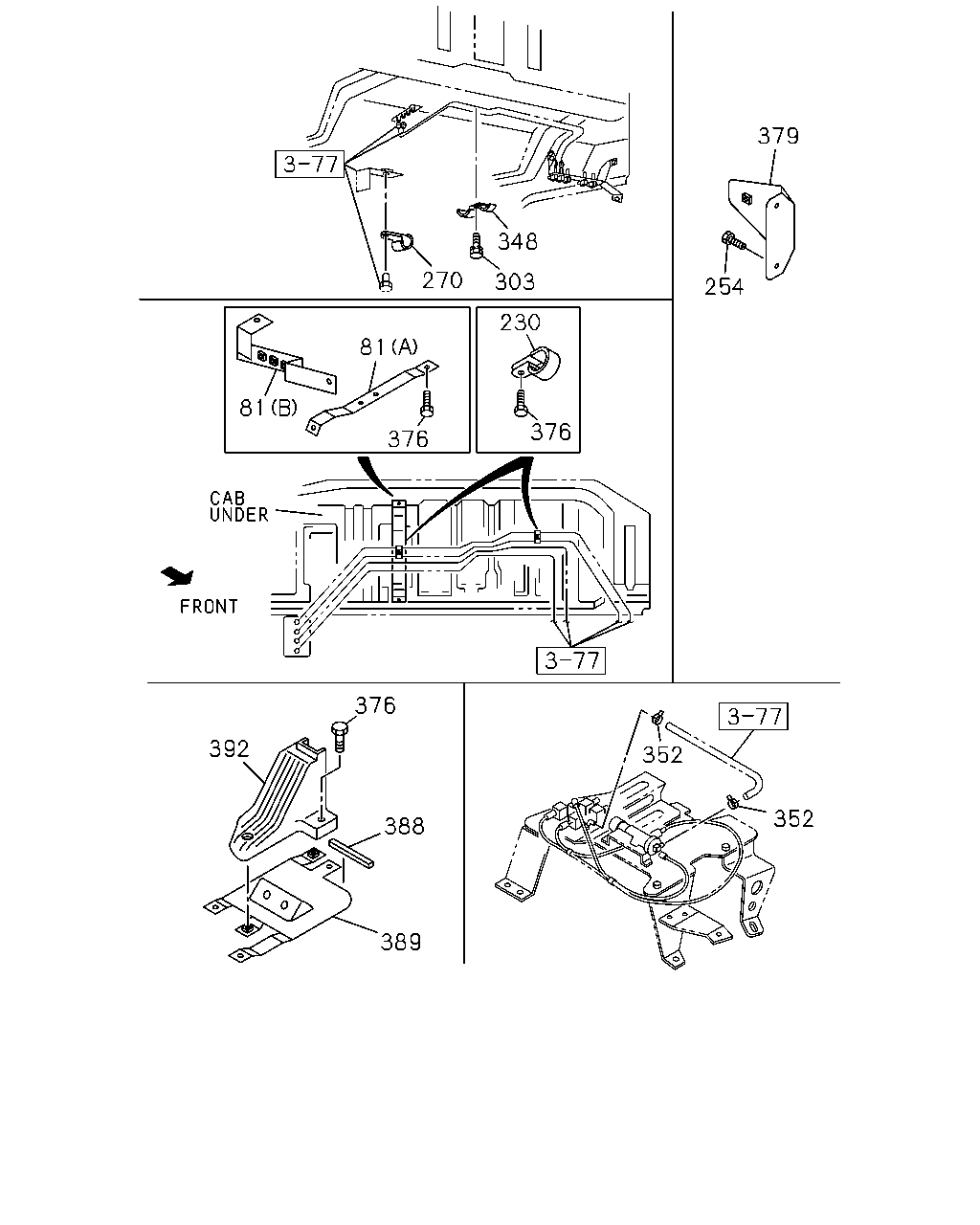

çizim 42426
379 348 270 303 254 230 81 81 376 376 376 392 352 352 388 389
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) 		1-79996-133-2 01 1 9812-
81 BRACKET; CLIP
(A) 		1-79996-127-2 01 1 9812-
230 CLIP; PIPE,AIR
ID=9 L=16 		9-09524-822-0 03 1 9812-9901
230 CLIP; PIPE,AIR
PARKING BRAKE VALVE LEVER TYPE<W48> ID=9 L=16 		9-09524-822-0 03 1 9902-
254 BOLT; PIPE CLIP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 9812-
270 CLIP; NYLON TUBE
ID=35 L=33 		1-09700-945-0 03 1 9812-9901
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=35 L=33 		1-09700-945-0 03 1 9902-
270 CLIP; NYLON TUBE
ID=26 L=26 		1-09701-236-0 01 1 9812-9901
270 CLIP; NYLON TUBE
PARKING BRAKE VALVE LEVER TYPE<W48> ID=26 L=26 		1-09701-236-0 01 1 9902-
270 CLIP; NYLON TUBE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=28 L=32 		1-09701-107-1 04 1 9902-
303 BOLT; PIPE CLIP
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-
348 CLIP; AIR PIPE
ID=13X2 L=16 		9-09535-225-0 03 1 9812-9812
348 CLIP; AIR PIPE
ID=13 L=28 		9-09525-252-0 03 1 9901-9901
348 CLIP; AIR PIPE
PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> ID=13 L=28 		9-09525-252-0 03 1 9902-
348 CLIP; AIR PIPE
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> ID=11 & 9 L=15 & 15 		1-09700-062-0 03 1 9902-
348 CLIP; AIR PIPE
TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> ID=13X2 L=16 		9-09535-225-0 03 1 9902-
352 CLIP; EXH HOSE
ID=14 		8-94238-572-0 02 1 9812-
376 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 9812-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 9812-9812
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9901-
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9812-9812
376 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9812-9901
376 BOLT; BRKT
DUAL AIR GAUGE<UG2> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9902-
376 BOLT; BRKT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 03 1 9812-
376 BOLT; BRKT
EXC. AIR DRYER<PS7> M8X30 FLANGE 		0-28680-830-0 01 1 9812-9904
376 BOLT; BRKT
EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE 		0-28680-830-0 01 1 9905-
379 BRACKET; NYLON TUBE 1-79996-110-2 01 1 9812-
388 SEAL
L=215 		1-79738-794-1 01 1 9812-
389 BRACKET; UNION 1-79738-790-1 01 1 9812-9901
389 BRACKET; UNION
DUAL AIR GAUGE<UG2> 		1-79738-790-1 01 1 9902-
389 BRACKET; UNION
EXC. DUAL AIR GAUGE<UG2> 		1-79738-795-1 01 1 9902-
392 COVER; BRKT 1-73996-264-1 01 1 9812-9901
392 COVER; BRKT
DUAL AIR GAUGE<UG2> 		1-73996-264-1 01 1 9902-
çizim 42878
76 108 27 22 107 109 266 111 133 298 370 266 375 295 299 298 369 369 375 299 308 319 321
BalonParca AdiParca NoAdetTipApplied Date
22 BRACKET; CLIP
(C) L=125 		1-47477-975-0 02 1 9812-
22 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (A) L=150 H=30 		1-47477-629-2 01 1 9912-
22 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (B) L=225 		1-47477-646-3 01 1 9912-
27 CLIP; FLEX HOSE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) ID=10 & 10 		1-09709-277-1 01 1 0105-
76 CLIP; NYLON TUBE
(A) L=250 		1-09707-126-0 09 1 9812-9904
76 CLIP; NYLON TUBE
WHEEL BASE 4700MM(47W) (A) L=250 		1-09707-126-0 07 1 9905-
76 CLIP; NYLON TUBE
(A) L=350 		8-94152-256-0 01 1 9812-9904
76 CLIP; NYLON TUBE
(B) ID=8.3 & 8.3 		8-94426-175-0 01 1 9812-9901
76 CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2> (B) ID=8.3 & 8.3 		8-94426-175-0 01 1 9902-
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=350 		1-09707-183-0 03 1 0004-
76 CLIP; NYLON TUBE
AIR DRYER<PS7> (A) L=250 		1-09707-126-0 02 1 9812-9904
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=250 		1-09707-126-0 06 1 9905-0003
76 CLIP; NYLON TUBE
WHEEL BASE 4500MM(45W) (A) L=250 		1-09707-126-0 03 1 0004-
107 CLIP; NYLON TUBE
(C) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 9812-9902
107 CLIP; NYLON TUBE
(C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9903-9904
107 CLIP; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9905-0005
107 CLIP; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9905-0005
107 CLIP; NYLON TUBE
ZF M/T<X9E> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 9905-0005
107 CLIP; NYLON TUBE
ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ISUZU M/T<X9A>,FULLER M/T<X9B> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 0006-
107 CLIP; NYLON TUBE
ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. DUAL AIR GAUGE<UG2> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 0006-
107 CLIP; NYLON TUBE
ZF M/T<X9E> (C) ID=35 H=45 L=33 		1-09701-047-0 03 1 0006-
107 CLIP; NYLON TUBE
BRAKE REGULATION ECE<TDV> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 9902-9902
107 CLIP; NYLON TUBE
EXC. TRAILER BRAKE CONTROL<J91> (C) ID=27.5 H=23 L=24 		1-09700-863-0 02 1 9903-
107 CLIP; NYLON TUBE
BRAKE REGULATION HONG KONG<TCZ> (A) ID=39 H=28 L=32 		1-09701-263-0 02 1 9812-9902
107 CLIP; NYLON TUBE
TRAILER BRAKE CONTROL<J91> (A) ID=39 H=28 L=32 		1-09701-263-0 02 1 9903-
107 CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 9905-0005
107 CLIP; NYLON TUBE
DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5 		1-09701-027-0 03 1 0006-
107 CLIP; NYLON TUBE
FULL FLOATING CAB(W16) (B) ID=11.8 & 7.5 		1-09709-182-0 01 1 9812-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 02 1 9812-
108 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28680-830-0 05 1 9812-0103
108 BOLT; TUBE CLIP
M8X25 FLANGE 		0-28080-825-0 05 1 0104-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 02 1 9812-
109 NUT; TUBE CLIP
M8 FLANGE 		0-91150-108-0 03 1 9812-
111 CLIP; AIR PIPE
ID=32 L=35 		1-09701-244-0 01 1 9812-9911
111 CLIP; AIR PIPE
ID=35 L=33 		1-09700-945-0 01 1 9912-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9812-9904
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9812-9904
133 BOLT; BRKT
FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 02 1 9905-9905
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-9905
133 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X25 FLANGE 		0-28680-825-0 02 1 9906-9912
133 BOLT; BRKT
FULLER M/T<X9B> M8X25 FLANGE 		0-28680-825-0 02 1 9906-9912
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9906-9912
133 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X25 FLANGE 		0-28680-825-0 02 1 0001-
133 BOLT; BRKT
FULLER M/T<X9B> M8X25 FLANGE 		0-28680-825-0 02 1 0001-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0001-
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28680-830-0 01 1 9905-
266 CLIP; NYLON TUBE
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) ID=14 H=50 L=20 		1-09700-843-0 01 1 9902-9904
266 CLIP; NYLON TUBE
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) ID=18 H=23 L=28 		1-09700-860-0 01 1 9905-
295 NUT; CLIP,AIR PIPE
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> M8 FLANGE 		0-91150-108-0 01 1 9902-
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X20 FLANGE 		0-28680-820-0 01 1 9902-9902
298 BOLT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 01 1 9903-9909
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X20 FLANGE 		0-28680-820-0 01 1 9903-9909
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9910-
298 BOLT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 01 1 9910-
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X20 FLANGE 		0-28680-820-0 01 1 9910-
299 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 01 1 9902-9902
299 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9903-9909
299 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 01 1 9903-9909
299 NUT; CLIP
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9910-
299 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9910-
299 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 01 1 9910-
308 BOLT; CLIP,AIR PIPE
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> M8X35 FLANGE 		0-28680-835-0 01 1 9902-
319 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) L=100 H=30 		1-47477-645-2 01 1 9905-
319 BRACKET; CLIP
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (A) L=50 		1-47475-299-2 01 1 9910-
321 BRACKET; CLIP
(C) 		1-47477-746-0 01 1 9812-
321 BRACKET; CLIP
EXC. AIR DRYER<PS7> (A) L=100 H=30 		1-47477-645-2 01 1 9812-9904
321 BRACKET; CLIP
EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (A) L=100 H=30 		1-47477-645-2 01 1 9905-
321 BRACKET; CLIP
CAB UP +110MM<TGG> (B) 		1-47477-472-1 01 1 9812-
321 BRACKET; CLIP
EXC. CAB UP +110MM<TGG> (B) 		1-47477-899-0 01 1 9903-
321 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (A) L=100 H=30 		1-47477-645-2 02 1 9904-
369 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (A) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9902-
369 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> (B) L=50 		1-47475-299-2 01 1 9902-
370 BRACKET; PIPE CLIP
WHEEL BASE 4700MM(47W) AIR DRYER<PS7> 		1-46147-101-0 01 1 9902-
375 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 9812-
375 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) (B) ID=7 L=16 		9-09524-625-0 01 1 9902-
375 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (D) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9910-
375 CLIP; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) (C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9903-

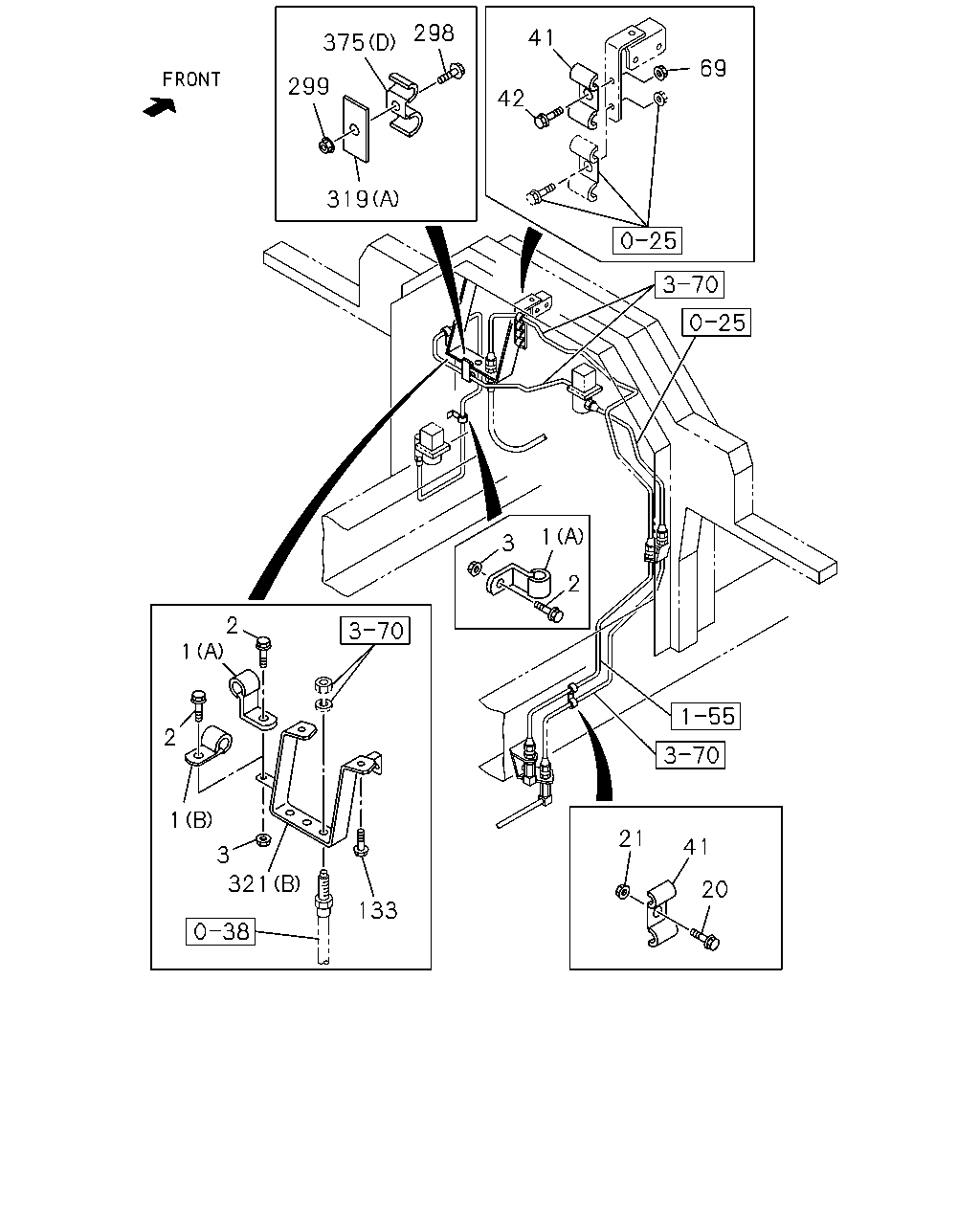

çizim 42880
298 41 375 69 299 42 319 1 3 2 2 1 2 1 21 41 3 321 20 133
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 02 1 9812-9910
1 CLIP; AIR PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 01 1 9911-
1 CLIP; AIR PIPE
(B) ID=7 L=20 		9-09524-635-0 01 1 9911-
2 BOLT; CLIP FIX
M8X25 FLANGE 		0-28680-825-0 02 1 9812-9903
2 BOLT; CLIP FIX
M8X20 FLANGE 		0-28680-820-0 02 1 9904-
3 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 02 1 9812-
20 BOLT; CLIP
WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 01 1 9812-
20 BOLT; CLIP
WHEEL BASE 4500MM(45W) M8X25 FLANGE 		0-28680-825-0 01 1 9812-
21 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 9812-
21 NUT; CLIP
WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9812-
41 CLIP; AIR PIPE
ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9812-
42 BOLT; CLIP,AIR PIPE
M8X25 FLANGE 		0-28680-825-0 01 1 9812-9903
42 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28680-820-0 01 1 9904-
69 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91150-108-0 01 1 9812-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9812-9904
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9812-9904
133 BOLT; BRKT
FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE 		0-28680-825-0 02 1 9905-9905
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9905-9905
133 BOLT; BRKT
TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X25 FLANGE 		0-28680-825-0 02 1 9906-9912
133 BOLT; BRKT
FULLER M/T<X9B> M8X25 FLANGE 		0-28680-825-0 02 1 9906-9912
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9906-9912
133 BOLT; BRKT
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N) M8X25 FLANGE 		0-28680-825-0 02 1 0001-
133 BOLT; BRKT
FULLER M/T<X9B> M8X25 FLANGE 		0-28680-825-0 02 1 0001-
133 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0001-
133 BOLT; BRKT
WHEEL BASE 4500MM(45W) M8X30 FLANGE 		0-28680-830-0 01 1 9905-
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X20 FLANGE 		0-28680-820-0 01 1 9902-9902
298 BOLT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 01 1 9903-9909
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X20 FLANGE 		0-28680-820-0 01 1 9903-9909
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> M8X20 FLANGE 		0-28680-820-0 01 1 9910-
298 BOLT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8X20 FLANGE 		0-28680-820-0 01 1 9910-
298 BOLT; CLIP
WHEEL BASE 4700MM(47W) M8X20 FLANGE 		0-28680-820-0 01 1 9910-
299 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 01 1 9902-9902
299 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9903-9909
299 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 01 1 9903-9909
299 NUT; CLIP
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> M8 FLANGE 		0-91150-108-0 01 1 9910-
299 NUT; CLIP
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) M8 FLANGE 		0-91150-108-0 01 1 9910-
299 NUT; CLIP
WHEEL BASE 4700MM(47W) M8 FLANGE 		0-91150-108-0 01 1 9910-
319 BRACKET; CLIP
WHEEL BASE 4500MM(45W) (B) L=100 H=30 		1-47477-645-2 01 1 9905-
319 BRACKET; CLIP
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (A) L=50 		1-47475-299-2 01 1 9910-
321 BRACKET; CLIP
(C) 		1-47477-746-0 01 1 9812-
321 BRACKET; CLIP
EXC. AIR DRYER<PS7> (A) L=100 H=30 		1-47477-645-2 01 1 9812-9904
321 BRACKET; CLIP
EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (A) L=100 H=30 		1-47477-645-2 01 1 9905-
321 BRACKET; CLIP
CAB UP +110MM<TGG> (B) 		1-47477-472-1 01 1 9812-
321 BRACKET; CLIP
EXC. CAB UP +110MM<TGG> (B) 		1-47477-899-0 01 1 9903-
321 BRACKET; CLIP
WHEEL BASE 4700MM(47W) (A) L=100 H=30 		1-47477-645-2 02 1 9904-
375 CLIP; AIR PIPE
(A) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 9812-
375 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) (B) ID=7 L=16 		9-09524-625-0 01 1 9902-
375 CLIP; AIR PIPE
WHEEL BASE 4700MM(47W) CAB UP +110MM<TGG> (D) ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 9910-
375 CLIP; AIR PIPE
6WA1 TC-C(55L),6WG1 TC-N(71L),6WG1 TC-C(72L) WHEEL BASE 4500MM(45W) (C) ID=6 H=20 L=20 		1-09700-603-0 01 1 9903-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
