◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#74217) — 9 parça

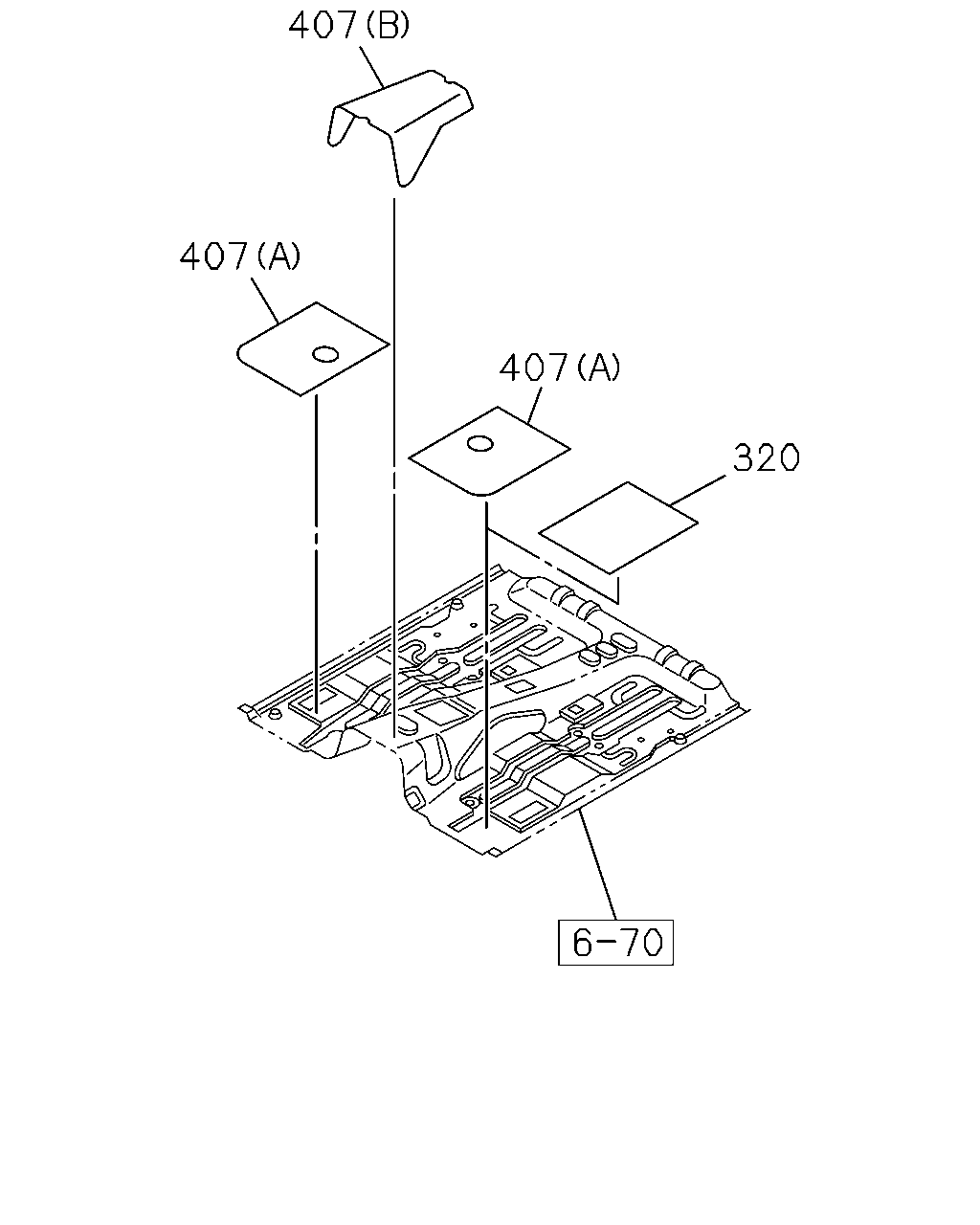

çizim 153416
407 407 407 320
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) 		8-97329-088-1 01 1 0306-0410 ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JH1-TC ENG(RDM) 		8-97329-088-1 01 1 0411-0609 ● ● ●
320 16.549 INSULATOR; FLOOR,FRT
4JJ1-TCX ENG(LS0) 		8-97329-088-1 01 1 0610- ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0306-0410 ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (A) 		8-97349-432-0 02 1 0411-0609 ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(A) 		8-97349-432-0 02 1 0610- ● ● ● ● ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0306-0410 ● ●
407 16.850 DEADENER; FLOOR PANEL
4JH1-TC ENG(RDM) (B) 		8-97349-445-0 01 1 0411-0609 ● ● ●
407 16.850 DEADENER; FLOOR PANEL
(B) 		8-97349-445-0 01 1 0610- ● ● ● ● ● ●
