6-75 — MAT AND CARPET (#74216) — 519 parça

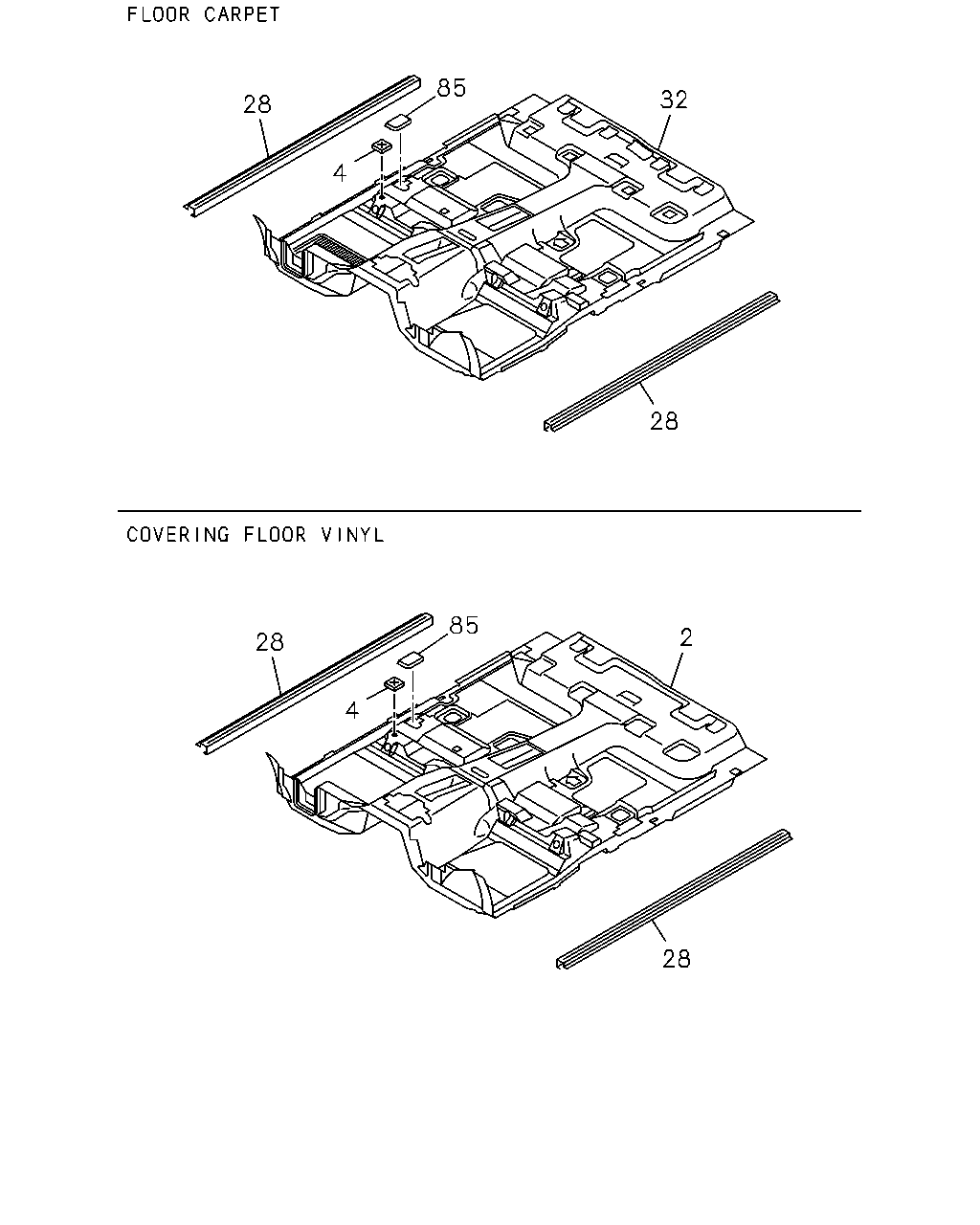

çizim 153409
85 32 28 4 28 85 2 28 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-829-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-829-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> 		8-97419-884-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97405-831-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> 		8-97419-803-0 01 1 1008- ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> 		8-97419-803-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-882-0 01 1 0306-0607 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-826-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-827-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-827-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> 		8-97419-886-0 01 1 1008- ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0306-0410 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0411-0607 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0411-0607 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-824-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-824-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> 		8-97419-914-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> DARK GRAY 		8-97413-400-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> 		8-97419-857-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-888-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-839-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97419-894-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-887-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-837-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> 		8-97419-893-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> 		8-97419-891-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> 		8-97419-888-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-886-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-835-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> 		8-97419-889-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-885-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-833-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> 		8-97419-890-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-793-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-402-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> 		8-97419-918-0 01 1 1008- ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0306-0410 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0306-0410 ● ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0411-0609 ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0411-0609 ● ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0610- ● ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0610- ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0306- ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0306-0410 ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0411-0609 ● ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 0610-1003 ● ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 1004- ● ● ● ● ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97405-744-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-876-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> DARK GRAY 		8-97397-875-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-875-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97397-875-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-875-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97405-742-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-742-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> 		8-97419-896-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DARK GRAY 		8-97405-743-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DARK GRAY 		8-97405-743-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DARK GRAY 		8-97405-743-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> 		8-97419-869-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-378-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-902-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-874-0 01 1 0306-0607 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-738-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-739-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-739-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-874-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-873-0 01 1 0306-0410 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-873-0 01 1 0411-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97397-873-0 01 1 0411-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-736-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97405-736-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-737-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DARK GRAY 		8-97405-737-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-737-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> DARK GRAY 		8-97405-737-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-872-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FLOOR CARPET<B30> FUEL LID OPENER<N08> BLACK 		8-97419-872-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-376-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-900-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-385-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-385-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-908-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-387-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-387-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-906-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-879-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-750-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-881-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-880-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-752-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-882-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97419-879-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> DARK GRAY 		8-97413-383-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> DARK GRAY 		8-97413-383-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> BLACK 		8-97419-910-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-381-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-381-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-912-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-878-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-748-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-877-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-877-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-746-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-878-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-706-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-380-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-380-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> 		8-97419-898-0 01 1 1008- ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-350-0 01 1 0306-0410 ● ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-350-0 01 1 0411-0609 ● ● ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97403-453-0 01 1 0610-0802 ● ● ● ● ● ●

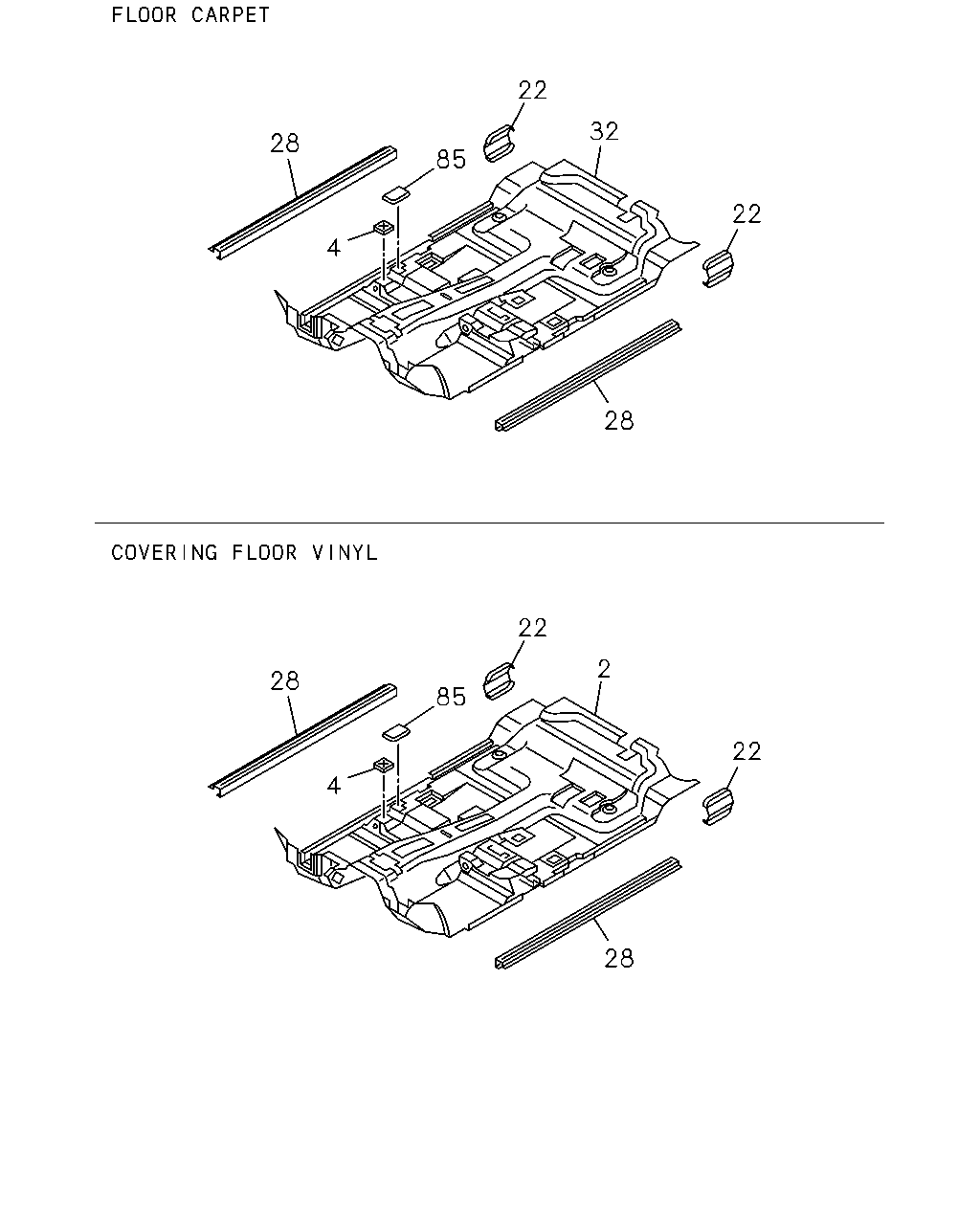

çizim 153423
22 32 28 85 22 4 28 22 2 28 85 22 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-829-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-829-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> 		8-97419-884-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97405-831-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> 		8-97419-803-0 01 1 1008- ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> 		8-97419-803-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-882-0 01 1 0306-0607 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-826-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-827-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-827-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> 		8-97419-886-0 01 1 1008- ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0306-0410 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0411-0607 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0411-0607 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-824-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-824-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> 		8-97419-914-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> DARK GRAY 		8-97413-400-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> 		8-97419-857-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-888-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-839-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97419-894-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-887-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-837-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> 		8-97419-893-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> 		8-97419-891-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> 		8-97419-888-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-886-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-835-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> 		8-97419-889-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-885-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-833-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> 		8-97419-890-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-793-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-402-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> 		8-97419-918-0 01 1 1008- ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0306-0410 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0306-0410 ● ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0411-0609 ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0411-0609 ● ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0610- ● ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0610- ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0306- ● ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97298-424-1 02 1 0306-0609 ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97403-457-1 02 1 0610-1003 ● ●
22 16.870 PLATE; SILL,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-457-1 02 1 1004- ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0306-0410 ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0411-0609 ● ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 0610-1003 ● ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 1004- ● ● ● ● ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97405-744-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-876-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> DARK GRAY 		8-97397-875-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-875-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97397-875-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-875-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97405-742-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-742-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> 		8-97419-896-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DARK GRAY 		8-97405-743-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DARK GRAY 		8-97405-743-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DARK GRAY 		8-97405-743-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> 		8-97419-869-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-378-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-902-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-874-0 01 1 0306-0607 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-738-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-739-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-739-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-874-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-873-0 01 1 0306-0410 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-873-0 01 1 0411-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97397-873-0 01 1 0411-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-736-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97405-736-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-737-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DARK GRAY 		8-97405-737-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-737-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> DARK GRAY 		8-97405-737-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-872-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FLOOR CARPET<B30> FUEL LID OPENER<N08> BLACK 		8-97419-872-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-376-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-900-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-385-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-385-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-908-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-387-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-387-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-906-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-879-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-750-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-881-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-880-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-752-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-882-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97419-879-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> DARK GRAY 		8-97413-383-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> DARK GRAY 		8-97413-383-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> BLACK 		8-97419-910-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-381-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-381-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-912-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-878-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-748-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-877-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-877-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-746-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-878-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-706-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-380-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-380-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> 		8-97419-898-0 01 1 1008- ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-350-0 01 1 0306-0410 ● ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-350-0 01 1 0411-0609 ● ● ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97403-453-0 01 1 0610-0802 ● ● ● ● ● ●

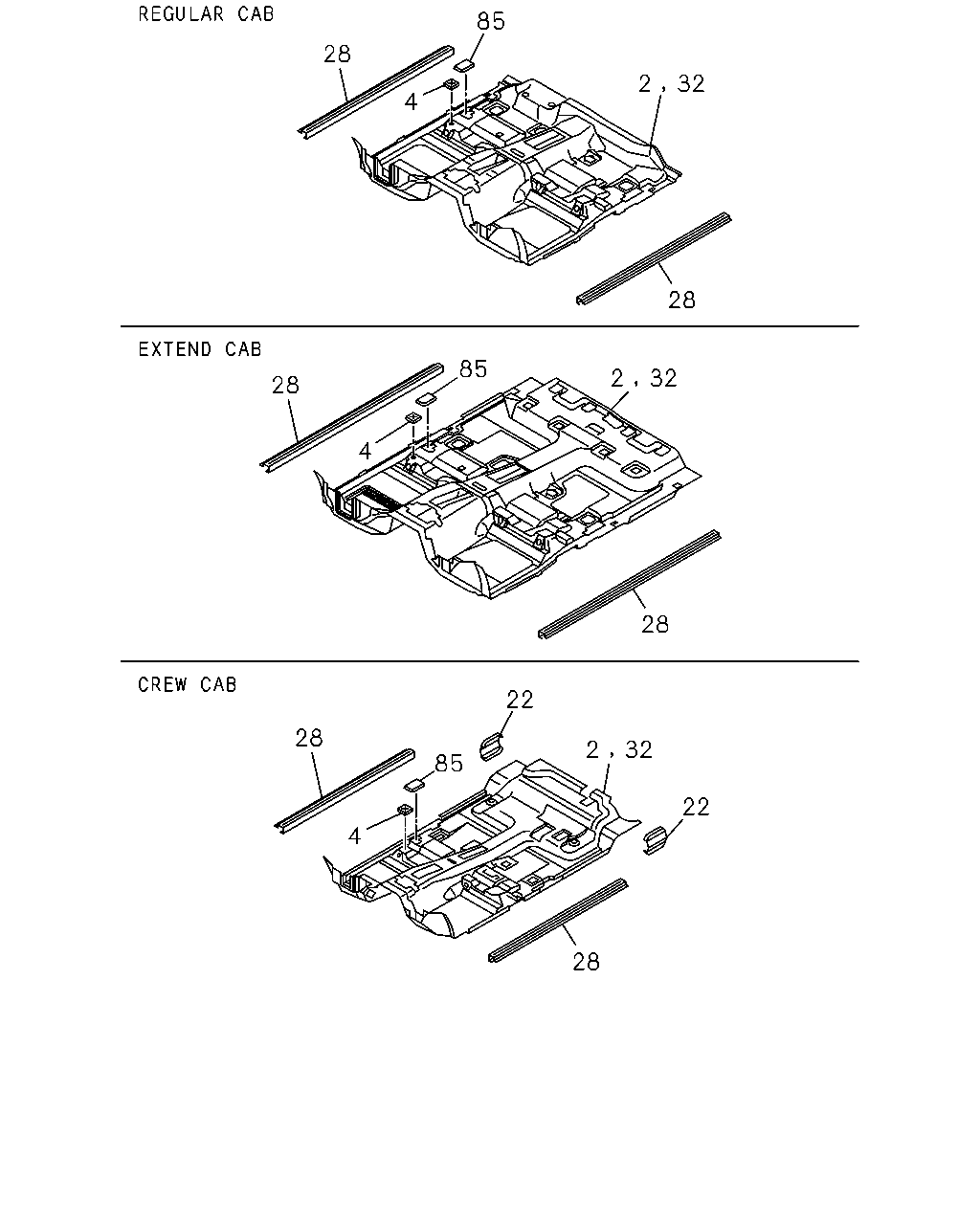

çizim 153427
85 28 2 32 4 28 85 2 32 28 4 28 22 28 2 32 85 22 4 28
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-883-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-829-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
JUMP SEAT<AJ2> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-829-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-830-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> 		8-97419-884-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0306-0409 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97397-884-0 01 1 0410-0607 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY 		8-97405-831-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-825-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> 		8-97419-803-0 01 1 1008- ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30> 		8-97419-803-0 01 1 1008- ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-882-0 01 1 0306-0607 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-826-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-827-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-827-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> 		8-97419-886-0 01 1 1008- ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0306-0410 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0411-0607 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-881-0 01 1 0411-0607 ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-824-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-824-0 01 1 0608-0609 ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-795-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> 		8-97419-914-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> DARK GRAY 		8-97413-400-0 01 1 0710-1007 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08> 		8-97419-857-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-888-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-839-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-842-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> 		8-97419-894-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-887-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-837-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-838-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. FLOOR CARPET<B30>,PARKING BRAKE FLOOR<7XW> 		8-97419-893-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-836-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> 		8-97419-891-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-799-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> 		8-97419-888-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-886-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-835-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> DARK GRAY 		8-97405-801-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FUEL LID OPENER<N08> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BR AKE FLOOR<7XW> 		8-97419-889-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97397-885-0 01 1 0306-0607 ● ●
2 16.800 MAT; FLOOR
REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-833-0 01 1 0608-0609 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 0610-0709 ● ●
2 16.800 MAT; FLOOR
FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 0710-1003 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> DARK GRAY 		8-97405-834-0 01 1 1004-1007 ● ●
2 16.800 MAT; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FLOOR CARPET<B30> 		8-97419-890-0 01 1 1008- ● ●
2 16.800 MAT; FLOOR
EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> DARK GRAY 		8-97405-793-0 01 1 0610-0709 ●
2 16.800 MAT; FLOOR
BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-402-0 01 1 0710-1007 ●
2 16.800 MAT; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> EXC. FLOOR CARPET<B30>,FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> 		8-97419-918-0 01 1 1008- ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0306-0410 ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0306-0410 ● ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0411-0609 ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0411-0609 ● ● ● ●
4 16.547 INSULATOR; FRT 8-97352-085-0 04 1 0610- ● ● ●
4 16.547 INSULATOR; FRT
FRONT SEAT BUCKET TYPE<A50> 		8-97352-085-0 04 1 0610- ● ● ●
4 16.547 INSULATOR; FRT
BENCH SEAT<A52> 		8-97352-085-0 02 1 0306- ● ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97298-424-1 02 1 0306-0609 ● ●
22 16.870 PLATE; SILL,RR
DARK GRAY 		8-97403-457-1 02 1 0610-1003 ● ●
22 16.870 PLATE; SILL,RR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-457-1 02 1 1004- ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0306-0410 ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97298-425-1 02 1 0411-0609 ● ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 0610-1003 ● ● ● ● ● ●
28 16.870 PLATE; SILL,FRT
DARK GRAY 		8-97403-455-1 02 1 1004- ● ● ● ● ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97397-876-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. JUMP SEAT<AJ2> DARK GRAY 		8-97405-744-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-714-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C> BLACK 		8-97419-876-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> DARK GRAY 		8-97397-875-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-875-0 01 1 0306-0409 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97397-875-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-875-0 01 1 0410-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97405-742-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
JUMP SEAT<AJ2> FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-742-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-710-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55> 		8-97419-896-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DARK GRAY 		8-97405-743-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DARK GRAY 		8-97405-743-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> DARK GRAY 		8-97405-743-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> 		8-97419-869-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-378-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-902-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-874-0 01 1 0306-0607 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-738-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-739-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-739-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-874-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-873-0 01 1 0306-0410 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-873-0 01 1 0411-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97397-873-0 01 1 0411-0607 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-736-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> DARK GRAY 		8-97405-736-0 01 1 0608-0609 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-737-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> DARK GRAY 		8-97405-737-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-737-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FUEL LID OPENER<N08> DARK GRAY 		8-97405-737-0 01 1 0710-1007 ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0) FLOOR CARPET<B30> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-872-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FLOOR CARPET<B30> FUEL LID OPENER<N08> BLACK 		8-97419-872-0 01 1 1008- ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-376-0 01 1 0710-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-900-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-385-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-385-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. FUEL LID OPENER<N08>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-908-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-387-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97413-387-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-906-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-879-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-750-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-751-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> EXC. PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-881-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-880-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-752-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-753-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> EXC. REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-882-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-749-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> BLACK 		8-97419-879-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> DARK GRAY 		8-97413-383-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> DARK GRAY 		8-97413-383-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08>,REAR HEATERDUCT<S8C> BLACK 		8-97419-910-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-381-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-381-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> EXC. FUEL LID OPENER<N08> BLACK 		8-97419-912-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97397-878-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> PARKING BRAKE FLOOR<7XW> EXC. REAR HEATER DUCT<S8C> DARK GRAY 		8-97405-748-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-716-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR IN VERY DARK GRAY(116) BENCH SEAT<A52> FLOOR CARPET<B30> FUEL LID OPENER<N08> EXC. FRONT CONSOLE<D55>,REAR HEATER DUCT<S8C>,PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-877-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97397-877-0 01 1 0306-0607 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-746-0 01 1 0608-0609 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 0610-0709 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> DARK GRAY 		8-97405-747-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> FUEL LID OPENER<N08> REAR HEATER DUCT<S8C> PARKING BRAKE FLOOR<7XW> BLACK 		8-97419-878-0 01 1 1008- ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> EXC. FRONT CONSOLE<D55> DARK GRAY 		8-97405-706-0 01 1 0610-0709 ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-380-0 01 1 0710-1003 ● ●
32 16.800 CARPET; FLOOR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97413-380-0 01 1 1004-1007 ● ●
32 16.800 CARPET; FLOOR
FLOOR CARPET<B30> FRONT CONSOLE<D55> EXC. FUEL LID OPENER<N08> 		8-97419-898-0 01 1 1008- ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-350-0 01 1 0306-0410 ● ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97395-350-0 01 1 0411-0609 ● ● ● ● ● ●
85 16.800 COVER; FLOOR MAT
EXC. FUEL LID OPENER<N08> DARK GRAY 		8-97403-453-0 01 1 0610-0802 ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
