Sayfa 6-70 - Isuzu EPC

6-70 — FLOOR PANEL (#74215) — 240 parça

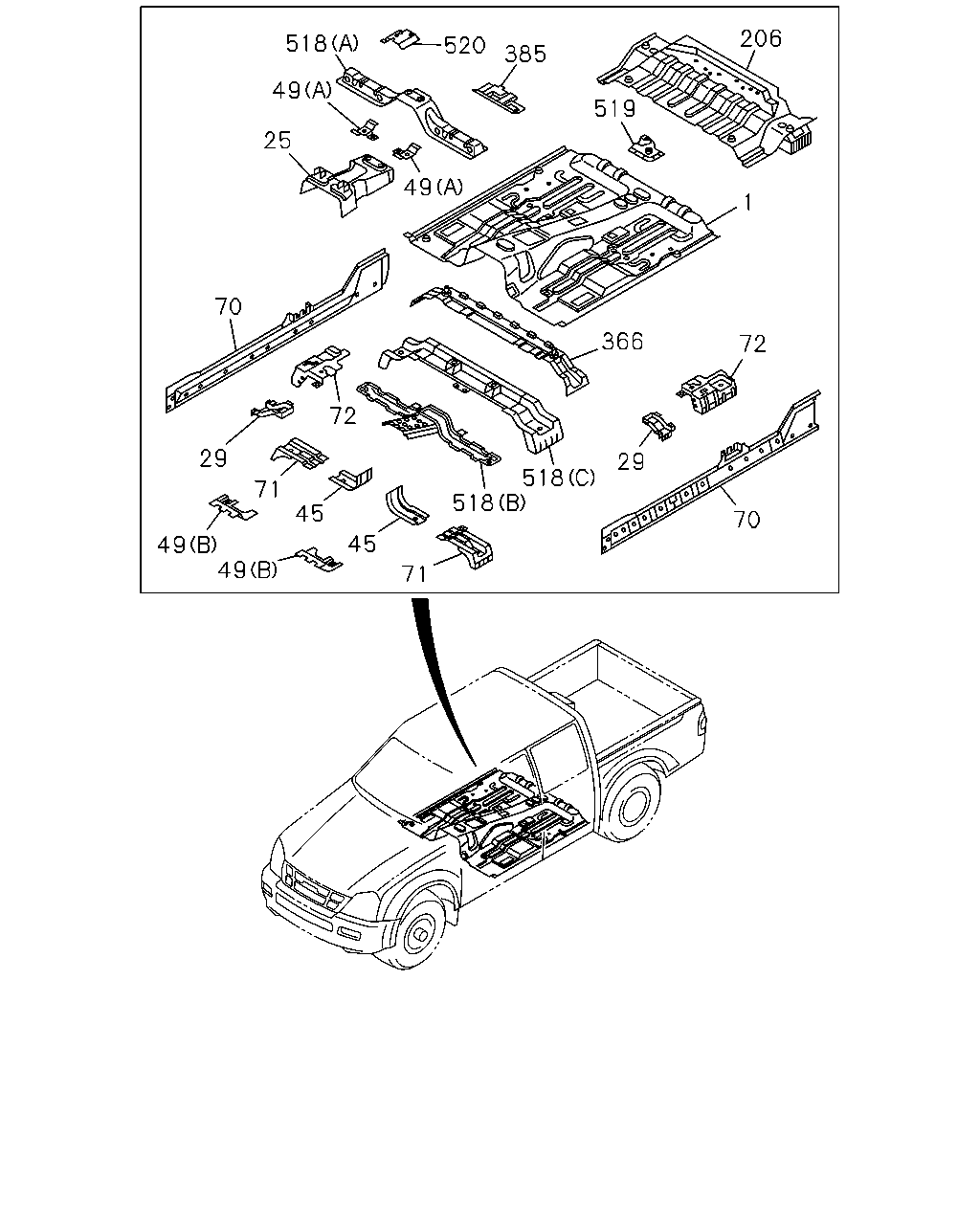

206 518 520 385 49 519 25 49 1 70 366 72 72 29 29 518 518 71 45 70 45 49 49 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0306-	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0306-0410			●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0411-			●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0306-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-4	01	1	0306-0404	●	●	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0405-0410	●	●	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0411-0609	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0610-0709	●	●		●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0610-0709			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0710-	●	●			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0710-			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0610-0709	●	●		●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0710-					●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0306-0410	●	●	●		●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0411-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0306-0410	●	●	●		●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0411-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0306-0410	●	●	●		●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0411-	●	●	●	●	●	●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	1008-1008					●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	1008-1008						●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	01	1	0911-0911					●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	01	1	0911-0911						●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911					●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (A)	8-97333-851-1	02	1	0911-0911						●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911					●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-434-0	01	1	0911-0911						●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911					●
49	08.228 BRACKET; HEAT PROTECTOR,FRT 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX> (B)	8-97334-435-0	01	1	0911-0911						●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0306-0410			●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0411-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0306-0410			●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0411-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0306-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0306-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0306-0410	●	●	●		●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0411-	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0306-0410	●	●	●		●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0411-	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0306-0410			●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0411-			●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0306-0410			●		●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0411-			●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0306-					●	●
206	16.545 PANEL; FLOOR BOARD RR	8-97324-176-5	01	1	0306-0706					●	●
206	16.545 PANEL; FLOOR BOARD RR SHIPPING EQUIPMENT SPECIAL VAR1<VK5>	8-97324-176-5	01	1	0707-0709					●	●
206	16.545 PANEL; FLOOR BOARD RR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5>	8-98090-608-0	01	1	0707-0709					●	●
206	16.545 PANEL; FLOOR BOARD RR	8-98090-608-0	01	1	0710-					●	●
366	16.674 BAR ASM; FRT SEAT MTG	8-93333-631-3	01	1	0306-					●	●
385	16.545 BRACKET 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97326-676-2	01	1	0911-0911					●
385	16.545 BRACKET 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97326-676-2	01	1	0911-0911						●
385	16.545 BRACKET	8-97326-676-2	01	1	0306-0410	●	●	●		●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0411-0709	●	●	●	●	●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0306-0410	●	●	●		●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0411-	●	●	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0306-0609	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●	●			●	●
518	16.576 SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97235-794-3	01	1	0610-0709				●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0306-0910	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0911-0911	●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	0911-0911					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0912-	●	●
518	16.576 SILL; FLOOR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709				●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710				●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0306-0410			●		●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0411-0609			●	●	●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-0710			●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710				●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-			●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0306-0410	●	●	●		●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0411-0609	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0306-0410	●	●	●		●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0411-	●	●	●	●	●	●

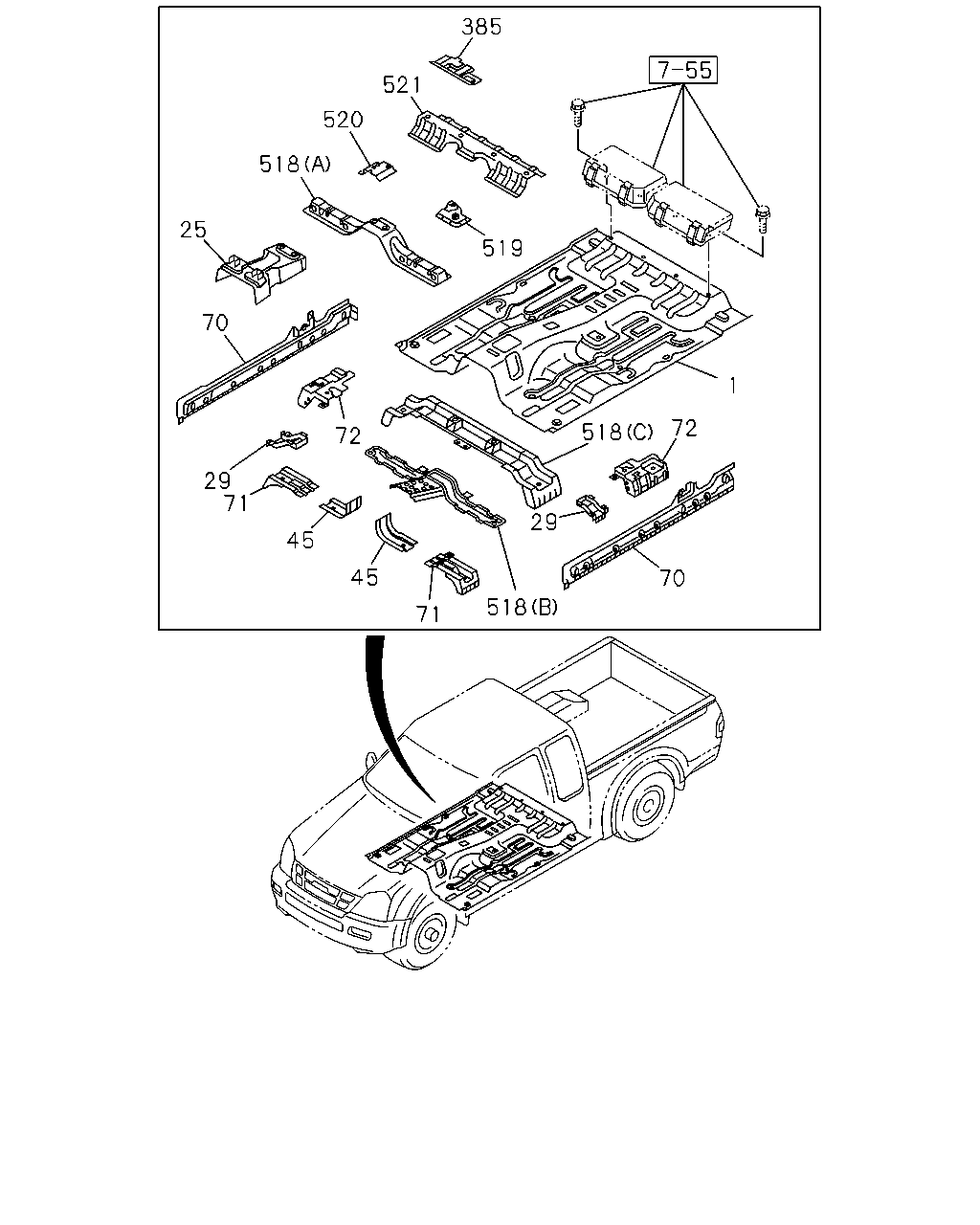

385 521 520 518 25 519 70 1 72 518 72 29 71 29 45 45 70 518 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0306-	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0306-0410			●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0411-			●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0306-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-4	01	1	0306-0404	●	●	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0405-0410	●	●	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0411-0609	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0610-0709	●	●		●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0610-0709			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0710-	●	●			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0710-			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0610-0709	●	●		●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0710-					●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0306-0410	●	●	●		●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0411-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0306-0410	●	●	●		●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0411-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0306-0410	●	●	●		●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0411-	●	●	●	●	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0306-0410			●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0411-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0306-0410			●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0411-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0306-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0306-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0306-0410	●	●	●		●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0411-	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0306-0410	●	●	●		●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0411-	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0306-0410			●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0411-			●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0306-0410			●		●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0411-			●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0306-					●	●
385	16.545 BRACKET 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97326-676-2	01	1	0911-0911					●
385	16.545 BRACKET 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97326-676-2	01	1	0911-0911						●
385	16.545 BRACKET	8-97326-676-2	01	1	0306-0410	●	●	●		●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0411-0709	●	●	●	●	●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0306-0410	●	●	●		●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0411-	●	●	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0306-0609	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●	●			●	●
518	16.576 SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97235-794-3	01	1	0610-0709				●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0306-0910	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0911-0911	●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	0911-0911					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0912-	●	●
518	16.576 SILL; FLOOR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709				●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710				●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0306-0410			●		●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0411-0609			●	●	●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-0710			●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710				●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-			●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0306-0410	●	●	●		●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0411-0609	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0306-0410	●	●	●		●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0411-	●	●	●	●	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0306-0910	●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0911-0911	●	●
521	16.545 BRACKET; RR STORAGE EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX>	8-97259-225-3	01	1	0911-0911					●	●
521	16.545 BRACKET; RR STORAGE	8-97259-225-3	01	1	0912-	●	●

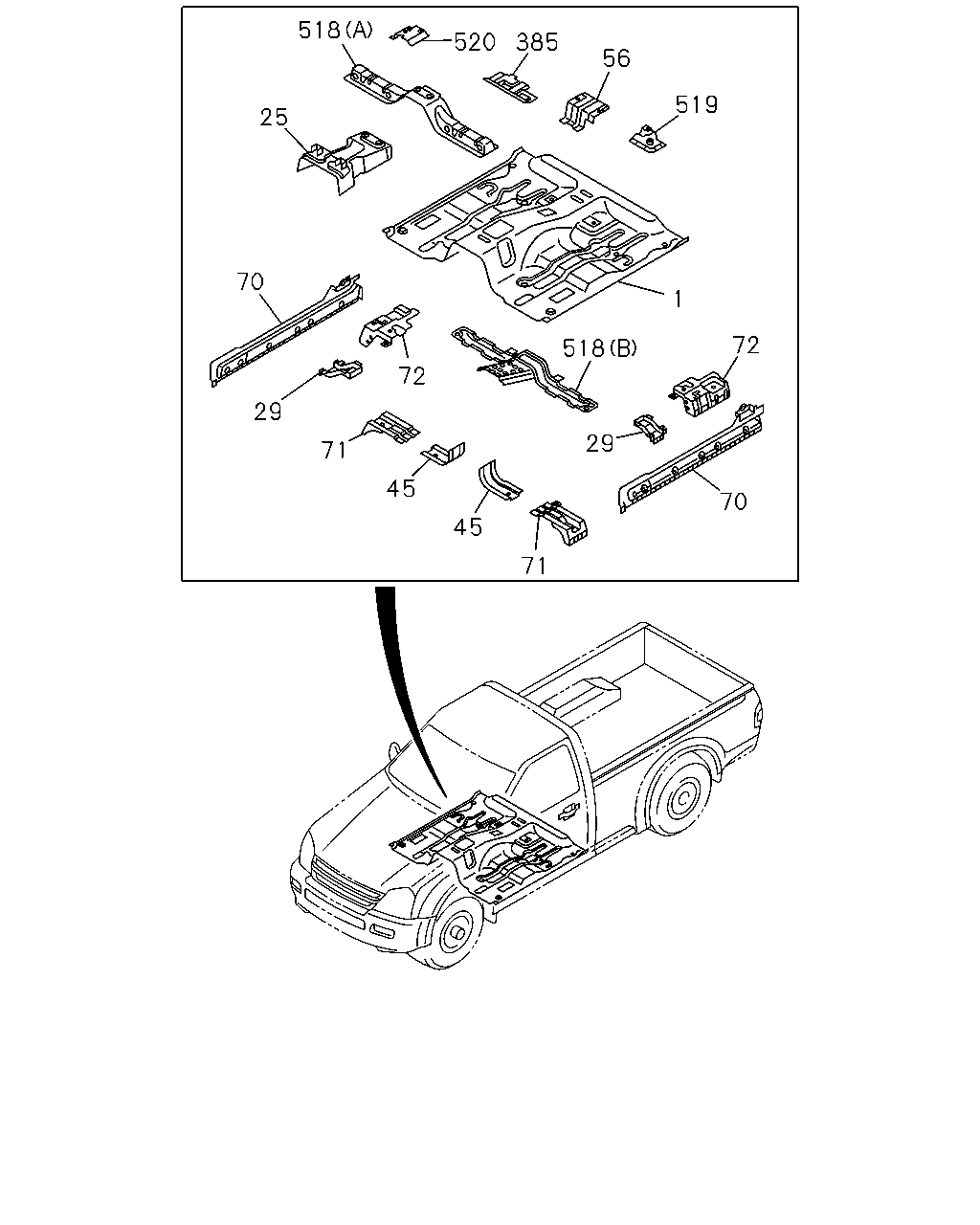

518 520 385 56 519 25 70 1 72 518 72 29 29 71 45 70 45 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	16.545 PANEL; FLOOR	8-97357-508-0	01	1	0306-	●	●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0306-0410			●
1	16.545 PANEL; FLOOR	8-97357-507-0	01	1	0411-			●	●
1	16.545 PANEL; FLOOR	8-97357-509-0	01	1	0306-					●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97235-751-4	01	1	0306-0404	●	●	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0405-0410	●	●	●		●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0411-0609	●	●	●	●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0610-0709	●	●		●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0610-0709			●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT FRONT CONSOLE<D55>	8-97380-608-0	01	1	0710-	●	●			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT	8-97380-608-0	01	1	0710-			●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0610-0709	●	●		●	●	●
25	16.545 REINFORCEMENT; FRAME FLOOR,FRT EXC. FRONT CONSOLE<D55>	8-97380-609-0	01	1	0710-					●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0306-0410	●	●	●		●	●
29	16.545 GUSSET	8-97349-433-0	02	1	0411-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0306-0410	●	●	●		●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-811-1	01	1	0411-	●	●	●	●	●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0306-0410	●	●	●		●	●
45	16.545 REINFORCEMENT; TUNNEL,FRT	8-97235-810-1	01	1	0411-	●	●	●	●	●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0306-0410			●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0411-0910			●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0911-0911			●	●
56	08.820 BRACKET; JACK EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX>	8-97236-363-2	01	1	0911-0911					●	●
56	08.820 BRACKET; JACK	8-97236-363-2	01	1	0912-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-547-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-543-4	01	1	0306-	●	●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0306-0410			●
70	16.545 PANEL; ROCKER INNER	8-97235-546-4	01	1	0411-			●	●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0306-0410			●
70	16.545 PANEL; ROCKER INNER	8-97235-542-4	01	1	0411-			●	●
70	16.545 PANEL; ROCKER INNER	8-93333-636-3	01	1	0306-					●	●
70	16.545 PANEL; ROCKER INNER	8-93333-637-3	01	1	0306-					●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0306-0410	●	●	●		●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-861-3	01	1	0411-	●	●	●	●	●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0306-0410	●	●	●		●	●
71	16.545 BRACKET; CAB MTG,CENTER	8-97235-857-4	01	1	0411-	●	●	●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-883-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-859-3	01	1	0306-	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0306-0410			●
72	16.545 BRACKET; CAB MTG,RR	8-97248-001-4	01	1	0411-			●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0306-0410			●		●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-871-4	01	1	0411-			●	●	●	●
72	16.545 BRACKET; CAB MTG,RR	8-97235-858-4	01	1	0306-					●	●
385	16.545 BRACKET 4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97326-676-2	01	1	0911-0911					●
385	16.545 BRACKET 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ),A/T AISIN(RMD) EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU ,THAILAND<8KX>	8-97326-676-2	01	1	0911-0911						●
385	16.545 BRACKET	8-97326-676-2	01	1	0306-0410	●	●	●		●	●
385	16.545 BRACKET	8-97326-676-2	01	1	0411-0709	●	●	●	●	●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0306-0410	●	●	●		●	●
518	16.576 SILL; FLOOR (B)	8-97235-819-5	01	1	0411-	●	●	●	●	●	●
518	16.576 SILL; FLOOR (A)	8-97235-794-3	01	1	0306-0609	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97235-794-3	01	1	0610-0709	●	●			●	●
518	16.576 SILL; FLOOR SHIPPING EQUIPMENT SPECIAL VAR1<VK5> EXC. FRONT CONSOLE<D55> (A)	8-97235-794-3	01	1	0610-0709				●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0306-0910	●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0911-0911	●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5>,PLANT - ISUZU,THAILAND<8KX> (C)	8-97236-099-4	01	1	0911-0911					●	●
518	16.576 SILL; FLOOR (C)	8-97236-099-4	01	1	0912-	●	●
518	16.576 SILL; FLOOR EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55>,SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-087-0	01	1	0610-0709				●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-0710	●	●
518	16.576 SILL; FLOOR FRONT SEAT BUCKET TYPE<A50> (A)	8-98048-087-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR EXC. FRONT CONSOLE<D55> (A)	8-98048-087-0	01	1	0710-0710				●
518	16.576 SILL; FLOOR (A)	8-98048-087-0	01	1	0710-	●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0306-0410			●		●	●
518	16.576 SILL; FLOOR (A)	8-97327-504-2	01	1	0411-0609			●	●	●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-97327-504-2	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709			●	●
518	16.576 SILL; FLOOR BENCH SEAT<A52> EXC. SHIPPING EQUIPMENT SPECIAL VAR1<VK5> (A)	8-98048-086-0	01	1	0610-0709					●	●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-0710			●
518	16.576 SILL; FLOOR BENCH SEAT<A52> (A)	8-98048-086-0	01	1	0710-0710					●	●
518	16.576 SILL; FLOOR FRONT CONSOLE<D55> (A)	8-98048-086-0	01	1	0710-0710				●
518	16.576 SILL; FLOOR (A)	8-98048-086-0	01	1	0710-			●	●	●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0306-0410	●	●	●		●	●
519	16.545 BRACKET; CONTROLLER 4WD	8-97326-395-2	01	1	0411-0609	●	●	●	●	●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0306-0410	●	●	●		●	●
520	16.545 BRACKET; FUEL LID OPENER	8-97328-721-0	01	1	0411-	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
