Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#7421) — 223 parça

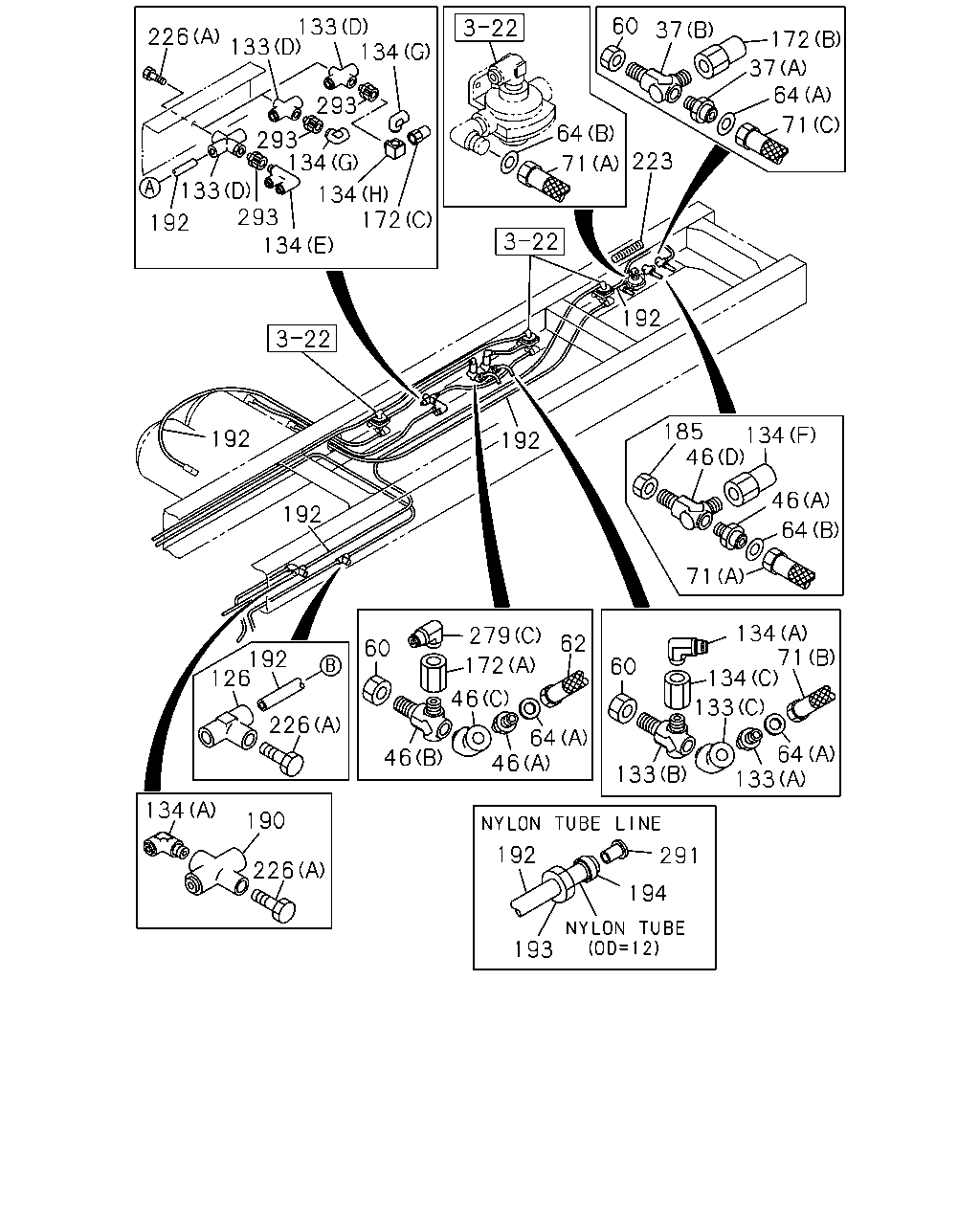

60 133 133 134 37 226 172 37 64 293 64 71 293 134 223 71 133 293 134 134 172 192 192 185 134 46 192 192 46 192 64 71 134 71 134 279 62 60 192 126 172 60 46 133 226 64 46 64 133 46 133 134 190 192 291 226 194 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9812-
37	UNION; AIR PIPE (B)	1-09650-251-1	01	1	9812-
46	NIPPLE; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9812-9901
46	NIPPLE; AIR PIPE WHEEL BASE 4700MM(47W) (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9902-
46	NIPPLE; AIR PIPE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9902-
46	NIPPLE; AIR PIPE (B)	1-09650-251-1	01	1	9812-
46	NIPPLE; AIR PIPE (C)	1-09664-209-0	01	1	9812-
46	NIPPLE; AIR PIPE WHEEL BASE 4700MM(47W) (D) M14X35	1-09650-272-2	01	1	9902-
60	NUT; NIPPLE,AIR PIPE M20	9-99111-420-0	04	1	9812-
62	HOSE; FLEX,FWD RR L=630	0-07909-630-0	01	1	9812-
64	GASKET; FLEX HOSE WHEEL BASE 4500MM(45W) (B) ID=11 OD=18	9-09572-510-0	02	1	9812-
64	GASKET; FLEX HOSE (A) ID=17.5	9-09572-515-0	06	1	9812-
64	GASKET; FLEX HOSE WHEEL BASE 4700MM(47W) (B) ID=17.5	9-09572-515-0	02	1	9902-
71	HOSE; FLEX,RWD RR WHEEL BASE 4500MM(45W) (A) L=580	0-07847-580-1	01	1	9812-
71	HOSE; FLEX,RWD RR (C) L=550	0-07909-550-0	01	1	9812-9901
71	HOSE; FLEX,RWD RR WHEEL BASE 4700MM(47W) (A),(C) L=550	0-07909-550-0	01	1	9902-
71	HOSE; FLEX,RWD RR (A),(C) L=550	0-07909-550-0	01	1	9902-
71	HOSE; FLEX,RWD RR (B) L=630	0-07909-630-0	01	1	9812-
126	UNION; NYLON TUBE	1-09661-133-0	01	1	9812-
133	UNION; NIPPLE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9812-9901
133	UNION; NIPPLE (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9902-
133	UNION; NIPPLE (B)	1-09650-251-1	01	1	9812-9901
133	UNION; NIPPLE (B)	1-09650-251-1	01	1	9902-
133	UNION; NIPPLE (D) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9812-
133	UNION; NIPPLE (C)	1-09664-209-0	01	1	9812-9901
133	UNION; NIPPLE (C)	1-09664-209-0	01	1	9902-
134	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9812-9907
134	CONNECTOR (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9812-9907
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9812-9901
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9902-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9902
134	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9903-9907
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9903-9907
134	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-
134	CONNECTOR (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9812-9902
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9903-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (H)	1-09656-420-2	01	1	9903-
134	CONNECTOR WHEEL BASE 4500MM(45W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-9901
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-9901
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9902-9903
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-9907
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-9907
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR WHEEL BASE 4700MM(47W) (F) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9902-0007
134	CONNECTOR WHEEL BASE 4700MM(47W) (F) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
172	ADAPTER; UNION (A) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9812-
172	ADAPTER; UNION (B) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9812-0007
172	ADAPTER; UNION (B) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9903-0007
172	ADAPTER; UNION BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
185	NUT; NIPPLE WHEEL BASE 4700MM(47W) M20	9-99111-420-0	01	1	9902-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9812-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9902-
192	TUBE; NYLON RR TIRE 12.00-20<98X> SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9812-
193	NUT; SLEEVE M18	1-09660-213-0	01	1	9812-9904
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9905-
194	SLEEVE; TUBE ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9812-9904
194	SLEEVE; TUBE ZF M/T<X9E> ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9905-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9812-9904
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87410-097-0	AR	1	9905-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9901-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9901-
226	BOLT; UNION (A) M8X20 FLANGE	0-28080-820-0	02	1	9812-
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9812-
279	UNION; AIR PIPE (A) M14X35	1-09650-272-2	01	1	9812-
279	UNION; AIR PIPE (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9812-
279	UNION; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9812-
291	INSERT ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9812-9904
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9905-
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>	1-48320-013-0	01	1	9812-9901
293	VALVE; CHECK BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	9902-

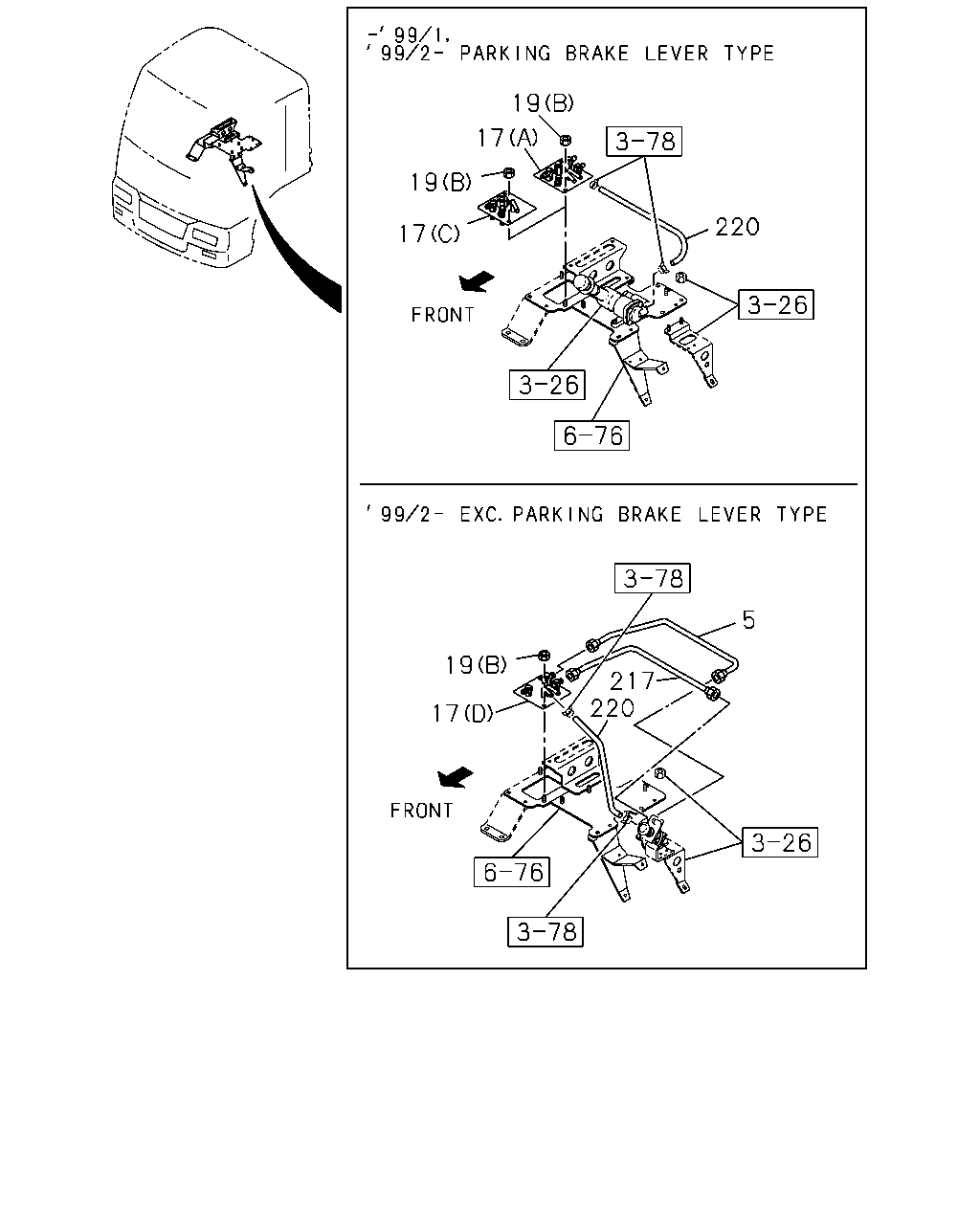

19 17 19 220 17 5 19 217 220 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-638-1	01	1	9902-
17	UNION; AIR PIPE (B)	1-47470-490-2	01	1	9812-9812
17	UNION; AIR PIPE (B)	1-47470-558-0	01	1	9901-9901
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (B)	1-47470-558-0	01	1	9902-
17	UNION; AIR PIPE (A)	1-47470-493-1	01	1	9812-9812
17	UNION; AIR PIPE (C)	1-47470-557-0	01	1	9901-9901
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (C)	1-47470-557-0	01	1	9902-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-47470-443-2	01	1	9902-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9902-
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9902-
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9902-
19	NUT; PIPE UNION (B) M8 FLANGE	0-91150-108-0	02	1	9812-
19	NUT; PIPE UNION (A) M8	9-09110-408-0	01	1	9812-
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-639-0	01	1	9902-
220	HOSE; VINYL,EXH,PARKING BRK VLV L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9812-9812
220	HOSE; VINYL,EXH,PARKING BRK VLV TRAILER BRAKE CONTROL<J91> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9902-

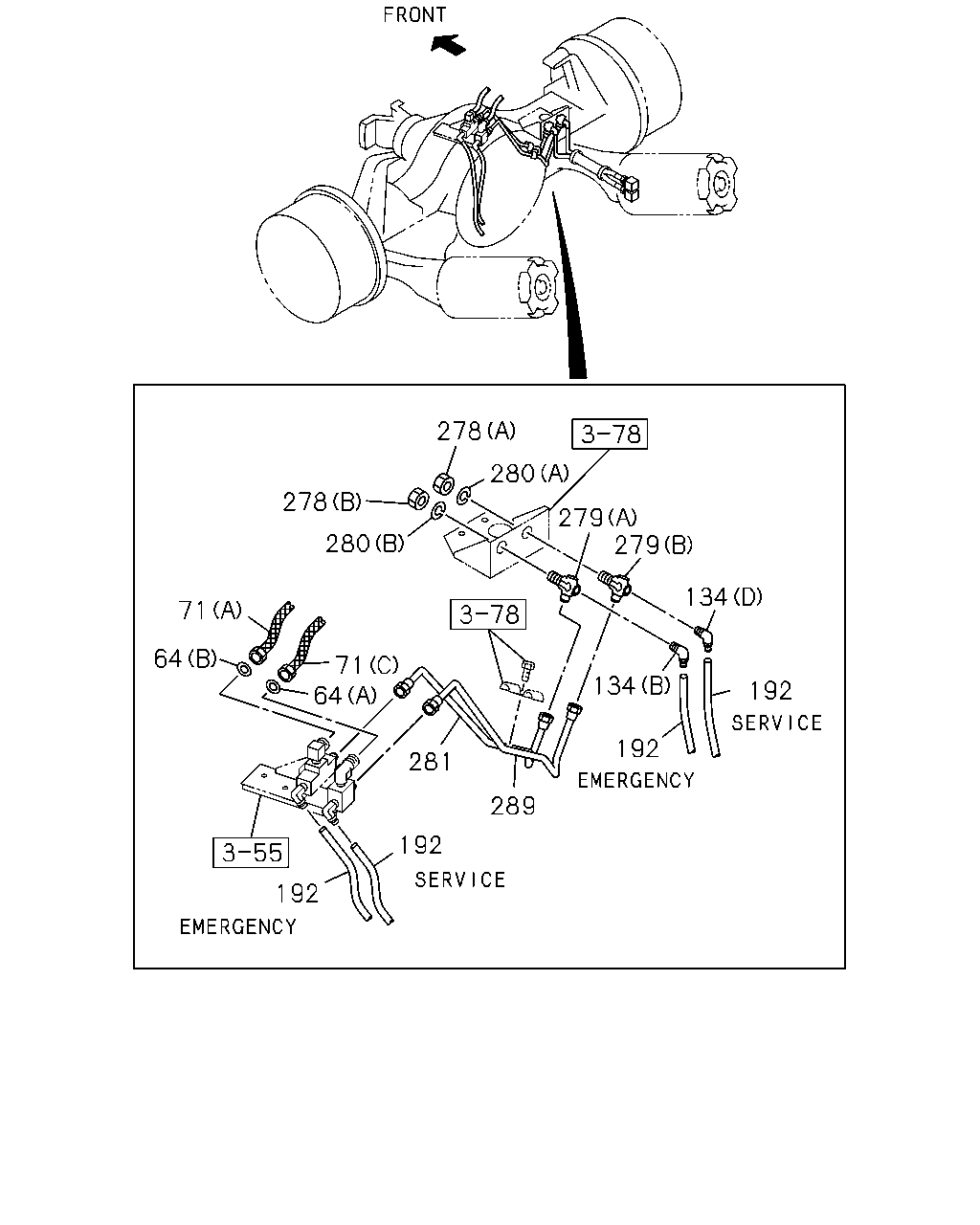

278 280 278 279 279 280 134 71 64 71 64 134 192 192 281 289 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
64	GASKET; FLEX HOSE WHEEL BASE 4500MM(45W) (B) ID=11 OD=18	9-09572-510-0	02	1	9812-
64	GASKET; FLEX HOSE (A) ID=17.5	9-09572-515-0	06	1	9812-
64	GASKET; FLEX HOSE WHEEL BASE 4700MM(47W) (B) ID=17.5	9-09572-515-0	02	1	9902-
71	HOSE; FLEX,RWD RR WHEEL BASE 4500MM(45W) (A) L=580	0-07847-580-1	01	1	9812-
71	HOSE; FLEX,RWD RR (C) L=550	0-07909-550-0	01	1	9812-9901
71	HOSE; FLEX,RWD RR WHEEL BASE 4700MM(47W) (A),(C) L=550	0-07909-550-0	01	1	9902-
71	HOSE; FLEX,RWD RR (A),(C) L=550	0-07909-550-0	01	1	9902-
71	HOSE; FLEX,RWD RR (B) L=630	0-07909-630-0	01	1	9812-
134	CONNECTOR (B) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9812-9907
134	CONNECTOR (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9812-9907
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9812-9901
134	CONNECTOR (C) M20 & RC3/8 STRAIGHT	1-09660-883-0	01	1	9902-
134	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9902-9902
134	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9903-9907
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9903-9907
134	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-
134	CONNECTOR (G) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9908-
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9812-9902
134	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) DIN12X2 & PT3/8 DOUBLE ELBOW	1-09661-026-0	01	1	9903-
134	CONNECTOR BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> BRAKE REGULATION HONG KONG<TCZ> (H)	1-09656-420-2	01	1	9903-
134	CONNECTOR WHEEL BASE 4500MM(45W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-9901
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9812-9901
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9902-9903
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-9907
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9904-9907
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9908-
134	CONNECTOR WHEEL BASE 4700MM(47W) (F) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9902-0007
134	CONNECTOR WHEEL BASE 4700MM(47W) (F) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9902-
192	TUBE; NYLON RR TIRE 12.00-20<98X> SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9812-
278	NUT; UNION (A) M16	9-99111-416-0	01	1	9812-
278	NUT; UNION (B) M20	9-99111-420-0	01	1	9812-
279	UNION; AIR PIPE (A) M14X35	1-09650-272-2	01	1	9812-
279	UNION; AIR PIPE (B) M16 & PT3/8 2WAY	1-09654-239-1	01	1	9812-
279	UNION; AIR PIPE (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9812-
280	WASHER; LK (A) ID=16.2	9-09150-516-0	01	1	9812-
280	WASHER; LK (B) ID=20.2	9-09150-520-0	01	1	9812-
281	PIPE; AIR,EMERGENCY	1-49117-109-0	01	1	9812-
289	PIPE; AIR,MODULATOR TO RELAY VLV	1-49117-108-0	01	1	9812-

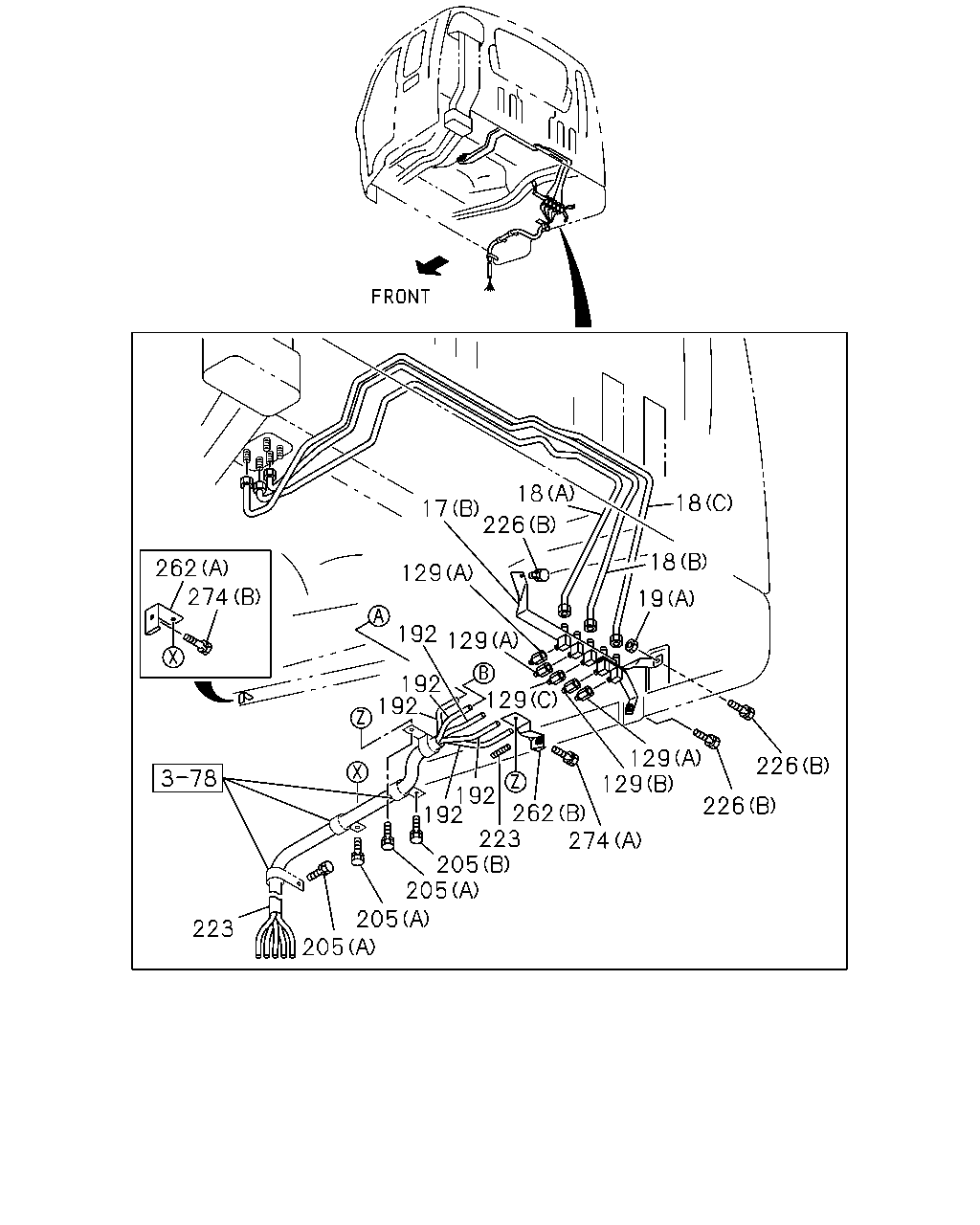

18 18 17 226 18 262 129 274 19 192 129 129 192 192 129 129 226 192 192 226 262 223 274 205 205 205 205 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	UNION; AIR PIPE (B)	1-47470-490-2	01	1	9812-9812
17	UNION; AIR PIPE (B)	1-47470-558-0	01	1	9901-9901
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (B)	1-47470-558-0	01	1	9902-
17	UNION; AIR PIPE (A)	1-47470-493-1	01	1	9812-9812
17	UNION; AIR PIPE (C)	1-47470-557-0	01	1	9901-9901
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. TRAILER BRAKE CONTROL<J91> (C)	1-47470-557-0	01	1	9902-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D)	1-47470-443-2	01	1	9902-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-469-3	01	1	9902-
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-47470-490-2	01	1	9902-
17	UNION; AIR PIPE TRAILER BRAKE CONTROL<J91> PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47470-493-1	01	1	9902-
18	PIPE; AIR,UNION TO UNION (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9812-9812
18	PIPE; AIR,UNION TO UNION (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9812-9901
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=2332 SERVICED BY L=2400	1-47426-395-0	01	1	9902-
18	PIPE; AIR,UNION TO UNION (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9812-9812
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (B) L=1937 SERVICED BY L=1950	1-47426-393-0	01	1	9901-
18	PIPE; AIR,UNION TO UNION TRAILER BRAKE CONTROL<J91> (A) L=2108 SERVICED BY L=2500	1-47426-423-0	01	1	9901-
19	NUT; PIPE UNION (B) M8 FLANGE	0-91150-108-0	02	1	9812-
19	NUT; PIPE UNION (A) M8	9-09110-408-0	01	1	9812-
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9812-9901
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9902-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	08	1	0008-0009
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	0010-
129	CONNECTOR; NYLON TUBE (B),(C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9812-9901
129	CONNECTOR; NYLON TUBE (B),(C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9812-9901
129	CONNECTOR; NYLON TUBE (B),(C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9902-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B),(C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9902-0007
129	CONNECTOR; NYLON TUBE (B),(C) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE (C) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE (B),(C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B),(C) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	04	1	9912-0007
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9902-0007
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9902-
192	TUBE; NYLON RR TIRE 12.00-20<98X> SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9812-
205	BOLT; TUBE CLIP (A) M8X16 FLANGE	0-28080-816-0	04	1	9812-
205	BOLT; TUBE CLIP (B) M6X16 W/LK WASHER	0-50040-616-0	01	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9812-9904
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87410-097-0	AR	1	9905-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9901-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9901-
226	BOLT; UNION (A) M8X20 FLANGE	0-28080-820-0	02	1	9812-
226	BOLT; UNION (B) M8X24.5 W/LK&PL WASHER	8-94279-208-0	03	1	9812-
262	BRACKET (A)	1-79996-143-0	01	1	9812-
262	BRACKET (B)	1-79996-258-1	01	1	9812-
274	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	01	1	9812-
274	BOLT; BRKT (B) M6X16 W/LK WASHER	0-50040-616-0	01	1	9812-0102
274	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-

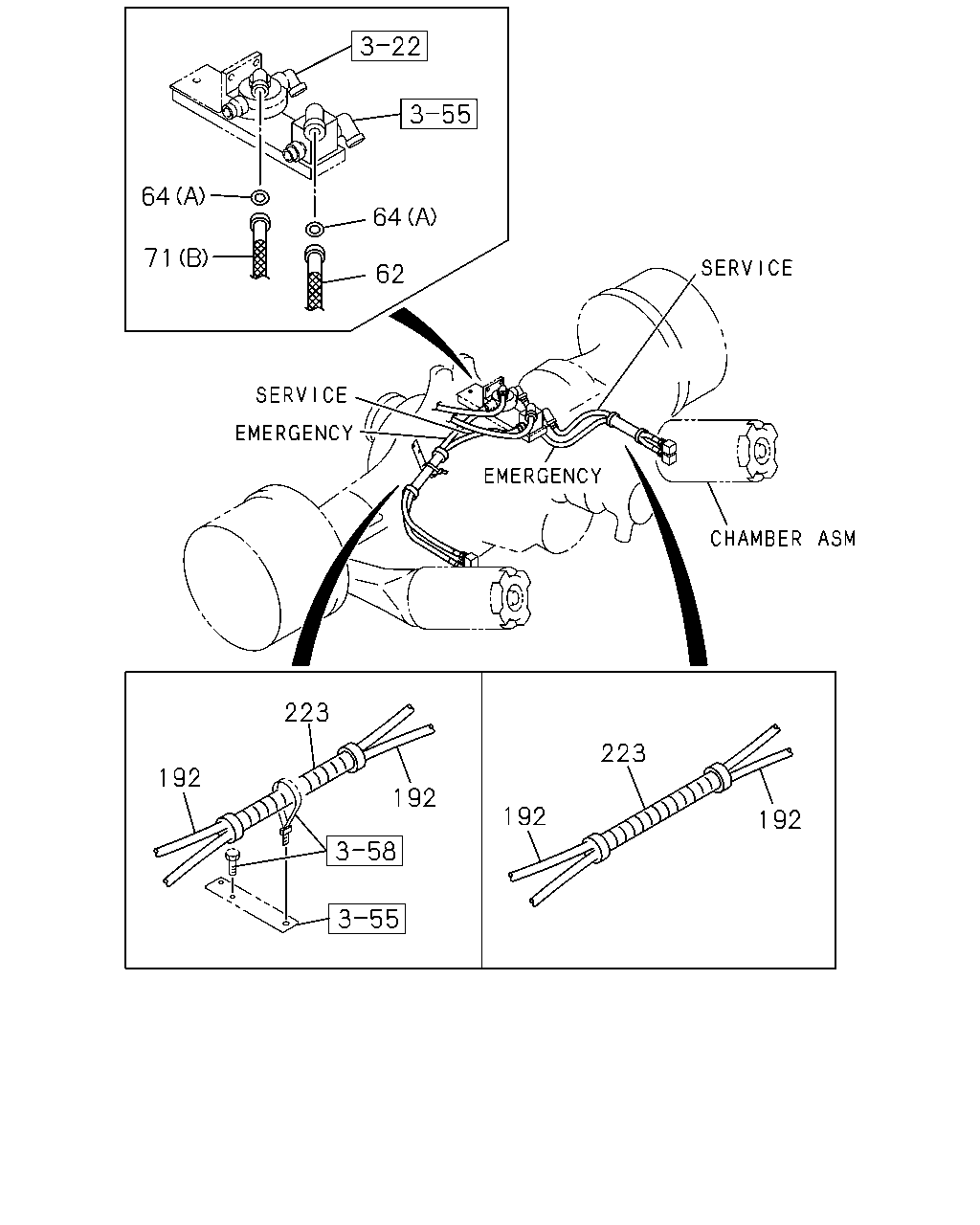

64 64 71 62 223 223 192 192 192 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	HOSE; FLEX,FWD RR L=630	0-07909-630-0	01	1	9812-
64	GASKET; FLEX HOSE WHEEL BASE 4500MM(45W) (B) ID=11 OD=18	9-09572-510-0	02	1	9812-
64	GASKET; FLEX HOSE (A) ID=17.5	9-09572-515-0	06	1	9812-
64	GASKET; FLEX HOSE WHEEL BASE 4700MM(47W) (B) ID=17.5	9-09572-515-0	02	1	9902-
71	HOSE; FLEX,RWD RR WHEEL BASE 4500MM(45W) (A) L=580	0-07847-580-1	01	1	9812-
71	HOSE; FLEX,RWD RR (C) L=550	0-07909-550-0	01	1	9812-9901
71	HOSE; FLEX,RWD RR WHEEL BASE 4700MM(47W) (A),(C) L=550	0-07909-550-0	01	1	9902-
71	HOSE; FLEX,RWD RR (A),(C) L=550	0-07909-550-0	01	1	9902-
71	HOSE; FLEX,RWD RR (B) L=630	0-07909-630-0	01	1	9812-
192	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	9902-
192	TUBE; NYLON RR TIRE 12.00-20<98X> SERVICED BY L=2000 OD=6	1-87410-081-0	AR	1	0001-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9812-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=28	1-87410-099-0	AR	1	9812-9904
223	TUBE; CORRUGATE SERVICED BY L=4000 ID=22	1-87410-097-0	AR	1	9905-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9901-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9812-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9901-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
