6-43 — SIDE TRIM (#74206) — 248 parça

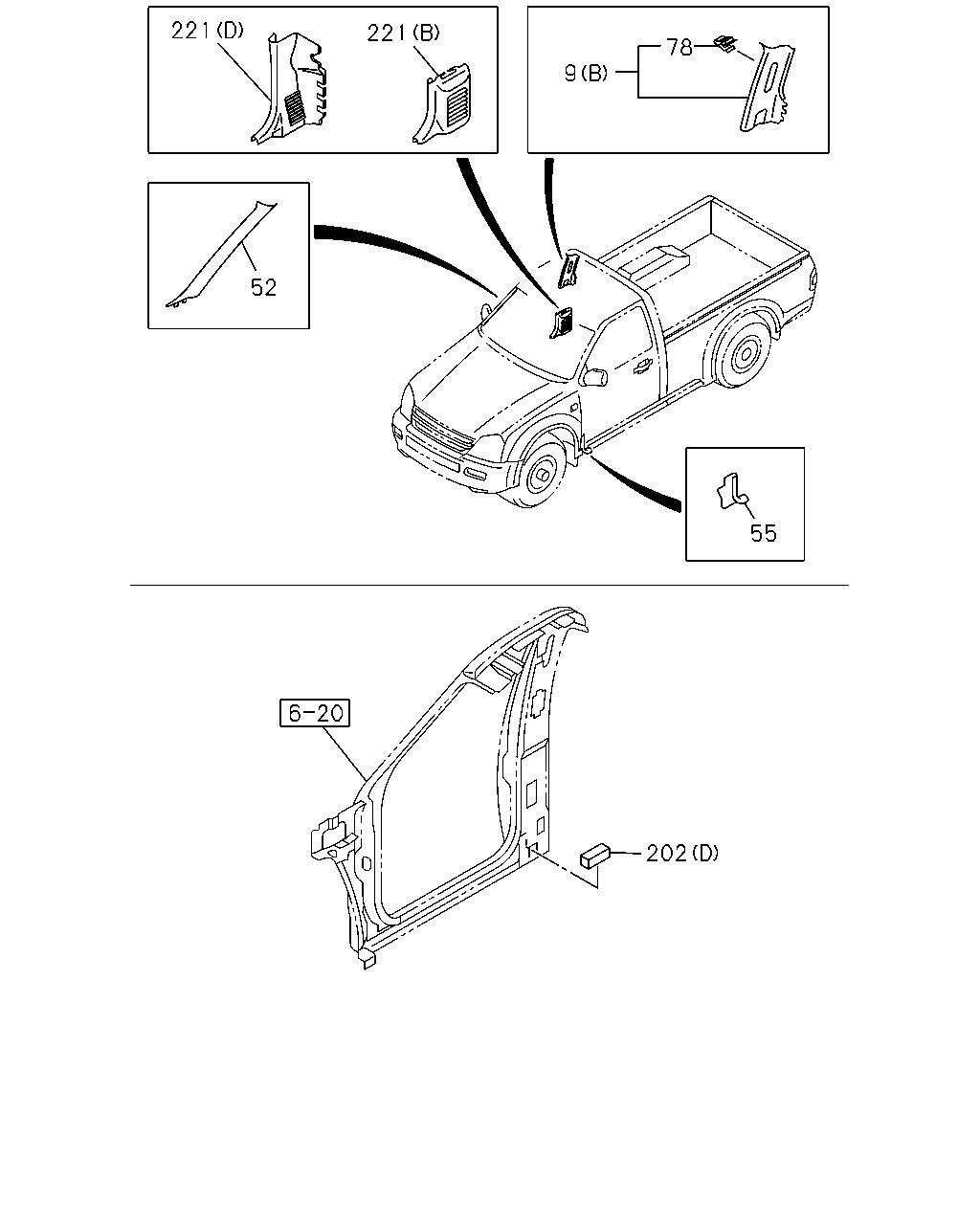

çizim 153233
221 221 78 9 52 55 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97418-449-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97418-450-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (C) BLACK 		8-97418-447-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (C) BLACK 		8-97418-448-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-452-5 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-890-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY 		8-97408-890-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-453-5 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-892-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY 		8-97408-892-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0306-0410 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0411-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-894-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0306-0410 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0411-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-896-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-973-2 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-886-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (C) LIGHT GRAY 		8-97408-886-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-974-2 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-888-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (C) LIGHT GRAY 		8-97408-888-0 01 1 1004- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-431-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-432-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0306-0410 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0411-0609 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 0610-1003 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-871-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 1004- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0306-0410 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0411-0609 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 0610-1003 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-873-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 1004- ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-086-0 01 1 0306-0410 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-086-0 01 1 0411-0609 ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-459-0 01 1 0610- ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-087-0 01 1 0306-0410 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-087-0 01 1 0411-0609 ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-461-0 01 1 0610- ● ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 14 1 0306-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 14 1 0610-1003 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-98057-469-0 14 1 1004- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0306-0410 ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0411-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 06 1 0610- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 12 1 0306-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 12 1 0610-1003 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-98057-469-0 12 1 1004- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0306-0410 ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0411- ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 0306- ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 0306- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 0306- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-981-2 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-552-2 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-552-2 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-982-2 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-554-2 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-554-2 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0306-0410 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0411-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97408-882-0 01 1 0610-0809 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-882-0 01 1 0810- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0306-0410 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0411-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97408-884-0 01 1 0610-0809 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-884-0 01 1 0810- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-548-1 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97403-548-1 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-550-1 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97403-550-1 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97293-985-1 01 1 0411-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97408-876-0 01 1 0610-0709 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97293-986-1 01 1 0411-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97408-877-0 01 1 0610-0709 ●

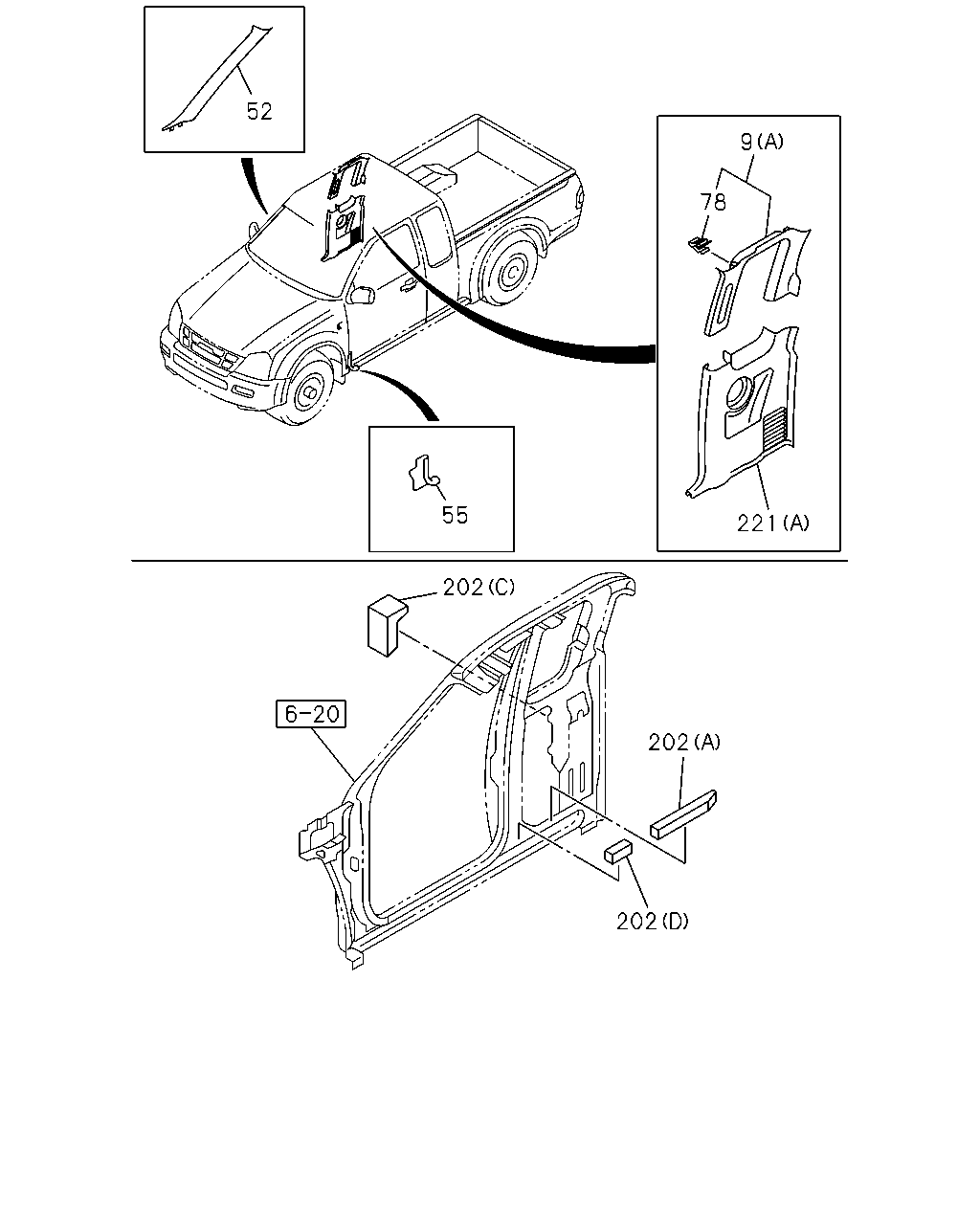

çizim 153438
52 9 78 55 221 202 202 202
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97418-449-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97418-450-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (C) BLACK 		8-97418-447-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (C) BLACK 		8-97418-448-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-452-5 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-890-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY 		8-97408-890-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-453-5 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-892-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY 		8-97408-892-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0306-0410 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0411-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-894-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0306-0410 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0411-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-896-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-973-2 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-886-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (C) LIGHT GRAY 		8-97408-886-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-974-2 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-888-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (C) LIGHT GRAY 		8-97408-888-0 01 1 1004- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-431-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-432-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0306-0410 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0411-0609 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 0610-1003 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-871-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 1004- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0306-0410 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0411-0609 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 0610-1003 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-873-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 1004- ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-086-0 01 1 0306-0410 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-086-0 01 1 0411-0609 ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-459-0 01 1 0610- ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-087-0 01 1 0306-0410 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-087-0 01 1 0411-0609 ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-461-0 01 1 0610- ● ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 14 1 0306-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 14 1 0610-1003 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-98057-469-0 14 1 1004- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0306-0410 ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0411-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 06 1 0610- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 12 1 0306-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 12 1 0610-1003 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-98057-469-0 12 1 1004- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0306-0410 ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0411- ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 0306- ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 0306- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 0306- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-981-2 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-552-2 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-552-2 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-982-2 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-554-2 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-554-2 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0306-0410 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0411-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97408-882-0 01 1 0610-0809 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-882-0 01 1 0810- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0306-0410 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0411-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97408-884-0 01 1 0610-0809 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-884-0 01 1 0810- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-548-1 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97403-548-1 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-550-1 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97403-550-1 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97293-985-1 01 1 0411-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97408-876-0 01 1 0610-0709 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97293-986-1 01 1 0411-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97408-877-0 01 1 0610-0709 ●

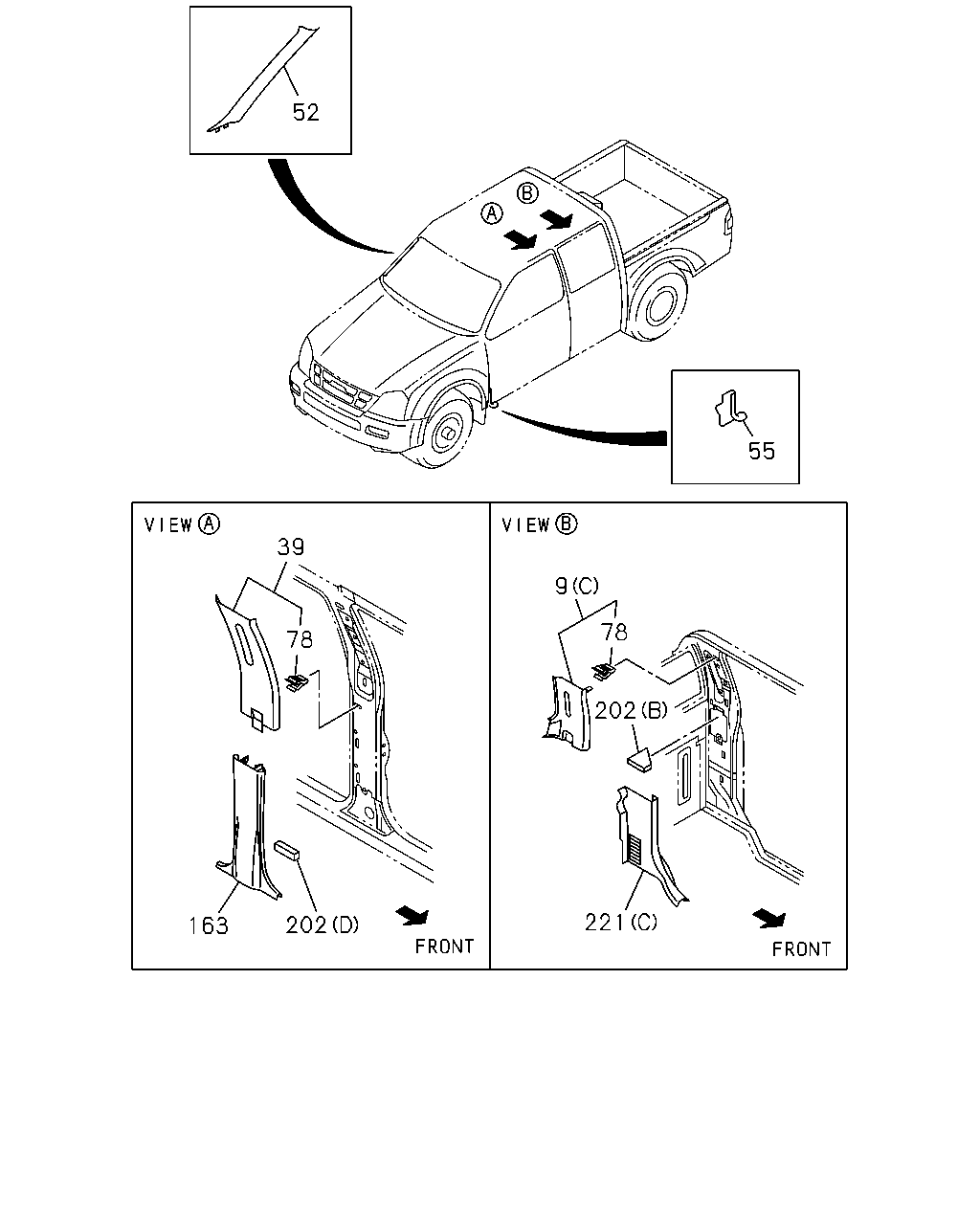

çizim 153445
52 55 39 9 78 78 202 221 202 163
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97418-449-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (A) BLACK 		8-97418-450-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (C) BLACK 		8-97418-447-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR BLACK(101) (C) BLACK 		8-97418-448-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-452-5 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-890-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY 		8-97408-890-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) DARK GRAY 		8-97298-453-5 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(A) LIGHT GRAY 		8-97408-892-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (A) LIGHT GRAY 		8-97408-892-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0306-0410 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-449-5 01 1 0411-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-894-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0306-0410 ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) DARK GRAY 		8-97298-450-5 01 1 0411-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(B) LIGHT GRAY 		8-97408-896-0 01 1 0610- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-973-2 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-886-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (C) LIGHT GRAY 		8-97408-886-0 01 1 1004- ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) DARK GRAY 		8-97293-974-2 01 1 0306-0609 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
(C) LIGHT GRAY 		8-97408-888-0 01 1 0610-1003 ● ●
9 16.575 TRIM; SIDE PANEL,UPR
INTERIOR COLOR IN VERY DARK GRAY(116) (C) LIGHT GRAY 		8-97408-888-0 01 1 1004- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-445-0 01 1 1004- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-446-0 01 1 1004- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
DARK GRAY 		8-97298-447-1 01 1 0306-0609 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97408-878-0 01 1 0610-1003 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-878-0 01 1 1004- ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
DARK GRAY 		8-97298-448-1 01 1 0306-0609 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
LIGHT GRAY 		8-97408-880-0 01 1 0610-1003 ● ●
39 16.575 COVER; TRIM,CENTER PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-880-0 01 1 1004- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-431-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR BLACK(101) BLACK 		8-97418-432-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0306-0410 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-426-5 01 1 0411-0609 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 0610-1003 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-871-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-871-0 01 1 1004- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0306-0410 ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97298-427-5 01 1 0411-0609 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 0610-1003 ● ● ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
INTERIOR COLOR IN VERY DARK GRAY(116) LIGHT GRAY 		8-97408-873-0 01 1 1004- ● ● ● ●
52 16.165 COVER; TRIM,FRT PILLAR
LIGHT GRAY 		8-97408-873-0 01 1 1004- ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-086-0 01 1 0306-0410 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-086-0 01 1 0411-0609 ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-459-0 01 1 0610- ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-087-0 01 1 0306-0410 ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
16.550 DARK GRAY 		8-97396-087-0 01 1 0411-0609 ● ● ● ● ● ●
55 16.166 PAD; TRIM,DASH SIDE
DARK GRAY 		8-97403-461-0 01 1 0610- ● ● ● ● ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 14 1 0306-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 14 1 0610-1003 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-98057-469-0 14 1 1004- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0306-0410 ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 06 1 0411-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 06 1 0610- ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-97319-704-0 12 1 0306-0609 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL 8-98057-469-0 12 1 0610-1003 ● ●
78 16.165 CLIP; TRIM PAD,SIDE PANEL
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) 		8-98057-469-0 12 1 1004- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97298-445-3 01 1 0306-0609 ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97403-544-3 01 1 0610-1003 ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-544-3 01 1 1004- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97298-446-3 01 1 0306-0609 ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
DARK GRAY 		8-97403-546-3 01 1 0610-1003 ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-546-3 01 1 1004- ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0306-0410 ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(D) 		8-97362-561-0 02 1 0411- ● ● ● ● ● ●
202 16.575 SEAL; CENTER PILLAR
(C) 		8-97252-083-1 02 1 0306- ● ●
202 16.575 SEAL; CENTER PILLAR
(A) 		8-97362-560-0 02 1 0306- ● ●
202 16.575 SEAL; CENTER PILLAR
(B) 		8-97362-563-0 04 1 0306- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-981-2 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-552-2 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-552-2 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97293-982-2 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(A) DARK GRAY 		8-97403-554-2 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (A) DARK GRAY 		8-97403-554-2 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0306-0410 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-987-1 01 1 0411-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97408-882-0 01 1 0610-0809 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-882-0 01 1 0810- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0306-0410 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97293-988-1 01 1 0411-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE DX(RBA) (B) DARK GRAY 		8-97408-884-0 01 1 0610-0809 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(B) DARK GRAY 		8-97408-884-0 01 1 0810- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-979-1 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-548-1 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97403-548-1 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97293-980-1 01 1 0306-0609 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
(C) DARK GRAY 		8-97403-550-1 01 1 0610-1003 ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) (C) DARK GRAY 		8-97403-550-1 01 1 1004- ● ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97293-985-1 01 1 0411-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97408-876-0 01 1 0610-0709 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97293-986-1 01 1 0411-0609 ●
221 16.592 TRIM; SIDE PANEL,LOWER
GRADE LT(RBD) (D) DARK GRAY 		8-97408-877-0 01 1 0610-0709 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
