Sayfa 6-01 - Isuzu EPC

6-01 — FRONT BUMPER (#74194) — 238 parça

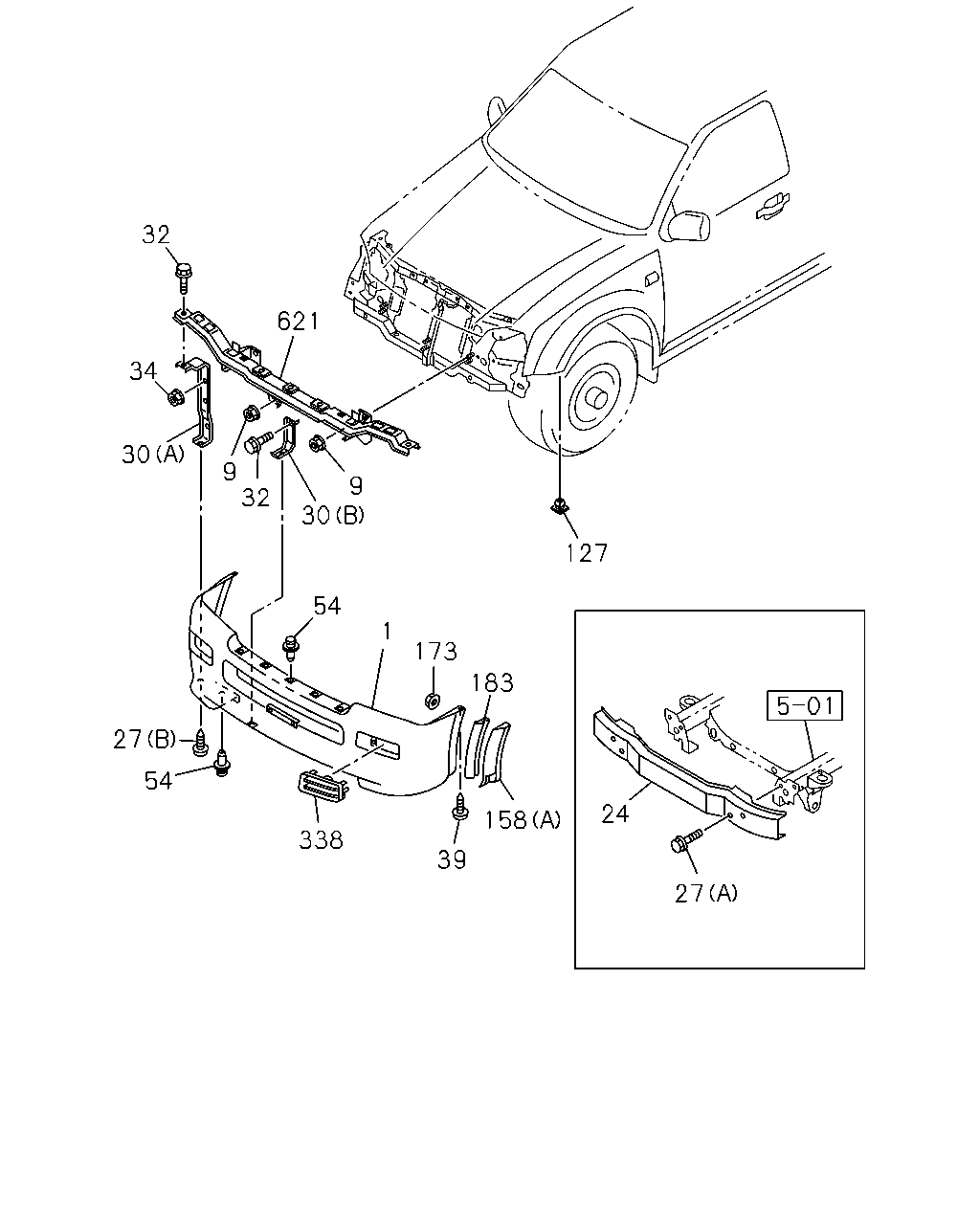

32 621 34 30 9 32 9 30 127 54 1 173 183 27 54 24 158 338 39 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.831 BUMPER ASM; FRT WO/HOLE GRAY	8-97235-962-2	01	1	0306-0609	●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98007-153-2	01	1	0610-1003	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	0610-1003	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	1004-1007	●		●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	1004-1007				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98007-153-2	01	1	1008-1009	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	1008-1009	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98158-615-0	01	1	1010-	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98158-615-0	01	1	1010-	●		●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV> EXC. OVER FENDER<B74>	8-98007-151-4	01	1	0610-1003	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98007-151-4	01	1	0610-1003	●		●
1	07.831 BUMPER ASM; FRT	8-98007-151-4	01	1	0610-1003		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98007-151-4	01	1	1004-1007	●		●
1	07.831 BUMPER ASM; FRT	8-98007-151-4	01	1	1004-1007		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV> EXC. OVER FENDER<B74>	8-98007-151-4	01	1	1008-1009	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98007-151-4	01	1	1008-1009	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>	8-98007-151-4	01	1	1008-1009		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV> EXC. OVER FENDER<B74>	8-98158-611-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98158-611-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>	8-98158-611-0	01	1	1010-		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. OVER FENDER<B74>,KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98049-885-0	01	1	0610-1009	●		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. OVER FENDER<B74>,KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98158-613-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98049-886-0	01	1	0610-1009	●		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98049-886-0	01	1	0610-1009				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98158-617-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98158-617-0	01	1	1010-				●	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0306-0410				●	●
1	07.831 BUMPER ASM; FRT KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0306-0410				●	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0411-0508				●	●	●
1	07.831 BUMPER ASM; FRT KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0411-0508				●	●	●
1	07.831 BUMPER ASM; FRT EXC. FACE LIFT MODEL<TX7>,COLOR KEYEDBUMPER(VT4),KD-PREPARATORY PACK VAR4 <7TV> W/HOLE GRAY	8-97235-966-2	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT KD-PREPARATORY PACK VAR4<7TV> EXC. FACE LIFT MODEL<TX7> W/HOLE GRAY	8-97235-966-2	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97330-923-0	01	1	0306-0410				●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97330-923-0	01	1	0411-0508				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. FACE LIFT MODEL<TX7>, KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97330-923-0	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT FACE LIFT MODEL<TX7> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97370-064-0	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-98049-887-0	01	1	0610-0709						●
1	07.831 BUMPER ASM; FRT FACE LIFT MODEL<TX7> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> GRAY	8-97367-040-4	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT FACE LIFT MODEL<TX7> KD-PREPARATORY PACK VAR4<7TV> GRAY	8-97367-040-4	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98007-155-2	01	1	0610-0709						●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4)	8-98007-155-2	01	1	0610-0709						●
1	07.831 BUMPER ASM; FRT	8-98007-155-2	01	1	0710-1007						●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74>	8-98007-155-2	01	1	1008-1009		●
1	07.831 BUMPER ASM; FRT	8-98007-155-2	01	1	1008-1009						●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74>	8-98158-618-0	01	1	1010-		●
1	07.831 BUMPER ASM; FRT	8-98158-618-0	01	1	1010-						●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE	0-91180-106-0	06	1	0306-0410	●	●	●	●	●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE	0-91180-106-0	06	1	0411-	●	●	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-97362-960-0	01	1	0306-0410	●	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-97362-960-0	01	1	0411-0508	●	●	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-97362-960-0	01	1	0509-0609	●	●	●
24	07.869 BAR; FRT BUMPER EXC. FACE LIFT MODEL<TX7>	8-97362-960-0	01	1	0509-0609				●	●	●
24	07.869 BAR; FRT BUMPER FACE LIFT MODEL<TX7>	8-97367-044-0	01	1	0509-0609				●	●	●
24	07.869 BAR; FRT BUMPER	8-97367-044-0	01	1	0610-	●	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0306-0410	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0411-	●	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 08.155 (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0306-0410	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 08.155 (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0411-0609	●	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0306-0410	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0411-0609	●	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-98007-158-0	02	1	0610-	●	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0306-0410	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0411-	●	●	●	●	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0306-0410	●	●	●	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0411-	●	●	●	●	●	●
34	07.874 NUT; BRKT,BUMPER 01.062 M6 FLANGE	0-91180-106-0	04	1	0306-0410	●	●	●	●	●
34	07.874 NUT; BRKT,BUMPER 01.062 M6 FLANGE	0-91180-106-0	04	1	0411-	●	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0306-0410	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0411-0612	●	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 07.833 M6X20 TAPPING	8-98052-950-0	02	1	0701-1003	●	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER	8-98167-444-0	02	1	1004-	●	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER	8-97301-188-0	09	1	0306-0410	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER	8-97301-188-0	09	1	0411-0609	●	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER	8-97301-188-0	07	1	0610-	●	●	●	●	●	●
127	07.829 NUT; FRT BUMPER 09.190 D=9.7X9.7 L=8	8-94222-314-0	02	1	0306-0410	●	●	●	●	●
127	07.829 NUT; FRT BUMPER 09.190 D=9.7X9.7 L=8	8-94222-314-0	02	1	0411-	●	●	●	●	●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-852-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-852-1	01	1	0411-0609				●	●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-851-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-851-1	01	1	0411-0609				●	●	●
158	07.833 EXTENSION; FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98025-265-2	01	1	0610-1007	●		●
158	07.833 EXTENSION; FRT BUMPER (B)	8-98025-265-2	01	1	0610-1007		●
158	07.833 EXTENSION; FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98025-265-2	01	1	1008-	●	●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-863-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-863-1	01	1	0411-0609				●	●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-862-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-862-1	01	1	0411-0609				●	●	●
173	07.874 NUT; EXT 01.062 M6 FLANGE	0-91180-106-0	06	1	0306-0410				●	●
173	07.874 NUT; EXT 01.062 M6 FLANGE	0-91180-106-0	06	1	0411-0609				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CAPE BLUE MET(612),BODY COLOR CHAMONIX GREEN MET(644),BODY COLOR GLACIER BLUE MET(645),BODY COLOR FO XFIRE RED MICA(658),BODY COLOR MAGMA RED(675),BODY COLOR ASTRAL SILVER(718) COLOR KEYED BUMPER(VT4) DARK GRAY	8-97393-892-0	02	1	0306-0403				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CAPE BLUE MET(612),BODY COLOR CHAMONIX GREEN MET(644),BODY COLOR GLACIER BLUE MET(645),BODY COLOR FO XFIRE RED MICA(658),BODY COLOR MAGMA RED(675) COLOR KEYED BUMPER(VT4) DARK GRAY	8-97393-892-0	02	1	0404-0405				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CAPE BLUE MET(612),BODY COLOR CHAMONIX GREEN MET(644),BODY COLOR GLACIER BLUE MET(645),BODY COLOR ZE NITH BLUE MICA(646),BODY COLOR FOXFIRE RED MICA(658),BODY COLOR MAGMA RED(675),BODY COLOR BLACK SAPPHIRE MICA(685) COLOR KEYED BUMPER(VT4) DARK GRAY	8-97393-892-0	02	1	0406-0410				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR QUARTS GRAY MET(642),BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) LIGHT GRAY	8-97396-033-0	02	1	0306-0403				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR QUARTS GRAY MET(642),BODY COLOR ASTRAL SILVER(718),BODY COLOR ALPINE WHITE(877) COLOR KEYED BUMPER(VT4) LIGHT GRAY	8-97396-033-0	02	1	0404-0410				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR QUARTS GRAY MET(642),BODY COLOR MAGMA RED(675),BODY COLOR ASTRAL SILVER(718),BODY COLOR ALPINE WHITE (877) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT GRAY	8-97396-033-0	02	1	0410-0410				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR QUARTS GRAY MET(642),BODY COLOR MAGMA RED(675),BODY COLOR ASTRAL SILVER(718),BODY COLOR ALPINE WHITE (877) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT GRAY	8-97396-033-0	02	1	0411-0508				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR QUARTS GRAY MET(642),BODY COLOR ALPINE WHITE(877),BODY COLOR STERLING SILVER MET(936) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> LIGHT GRAY	8-97396-033-0	02	1	0509-0609				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR SANDAL WOOD MET(643) COLOR KEYED BUMPER(VT4) BEIGE	8-97393-894-0	02	1	0306-0410				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR SANDAL WOOD MET(643) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> BEIGE	8-97393-894-0	02	1	0410-0410				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR SANDAL WOOD MET(643) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> BEIGE	8-97393-894-0	02	1	0411-0508				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR IMPERIAL BLOND MET(688) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> BEIGE	8-97393-894-0	02	1	0509-0609				●	●	●
183	07.832 FINISHER; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) GRAY	8-97331-850-0	02	1	0306-0410				●	●
183	07.832 FINISHER; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0410-0410				●	●
183	07.832 FINISHER; FRT BUMPER KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0410-0410				●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CAPE BLUE MET(612),BODY COLOR CHAMONIX GREEN MET(644),BODY COLOR GLACIER BLUE MET(645),BODY COLOR ZE NITH BLUE MICA(646),BODY COLOR FOXFIRE RED MICA(658),BODY COLOR BLACK SAPP HIRE MICA(685) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0410-0410				●	●
183	07.832 FINISHER; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0411-0508				●	●	●
183	07.832 FINISHER; FRT BUMPER KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0411-0508				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CAPE BLUE MET(612),BODY COLOR CHAMONIX GREEN MET(644),BODY COLOR GLACIER BLUE MET(645),BODY COLOR ZE NITH BLUE MICA(646),BODY COLOR FOXFIRE RED MICA(658),BODY COLOR BLACK SAPP HIRE MICA(685) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0411-0508				●	●	●
183	07.832 FINISHER; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0509-0512				●	●	●
183	07.832 FINISHER; FRT BUMPER KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0509-0512				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CHAMONIX GREEN MET(644), BODY COLOR GLACIER BLUE MET(645),BODY COLOR ZENITH BLUE MICA(646),BODY COLOR FOXFIRE RED MICA(658),BODY COLOR BLA CK SAPPHIRE MICA(685) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0509-0512				●	●	●
183	07.832 FINISHER; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0601-0609				●	●	●
183	07.832 FINISHER; FRT BUMPER KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0601-0609				●	●	●
183	07.832 FINISHER; FRT BUMPER BODY COLOR CHAMONIX GREEN MET(644), BODY COLOR GLACIER BLUE MET(645),BODY COLOR ZENITH BLUE MICA(646),BODY COLOR FOXFIRE RED MICA(658),BODY COLOR BLA CK SAPPHIRE MICA(685) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0601-0609				●		●
183	07.832 FINISHER; FRT BUMPER BODY COLOR RAL5005 SIGNAL BLUE(507), BODY COLOR CHAMONIX GREEN MET(644), BODY COLOR GLACIER BLUE MET(645),BODY CO LOR ZENITH BLUE MICA(646),BODY COLOR FOXFIRE RED MICA(658),BODY COLOR BLACK SAPPHIRE MICA(685) COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> DARK GRAY	8-97393-892-0	02	1	0601-0609					●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-449-0	01	1	0306-0410	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-449-0	01	1	0411-0609	●	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-448-0	01	1	0306-0410	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-448-0	01	1	0411-0609	●	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-98007-157-1	02	1	0610-	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-97235-872-3	01	1	0306-0410	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-97235-872-3	01	1	0411-0508	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-97235-872-3	01	1	0509-0609	●	●	●
621	07.831 SUPPORT; FRT BUMPER EXC. FACE LIFT MODEL<TX7>	8-97235-872-3	01	1	0509-0609				●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-98007-150-3	01	1	0610-0702	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-98060-773-0	01	1	0703-	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER FACE LIFT MODEL<TX7>	8-97367-043-1	01	1	0509-0609				●	●	●

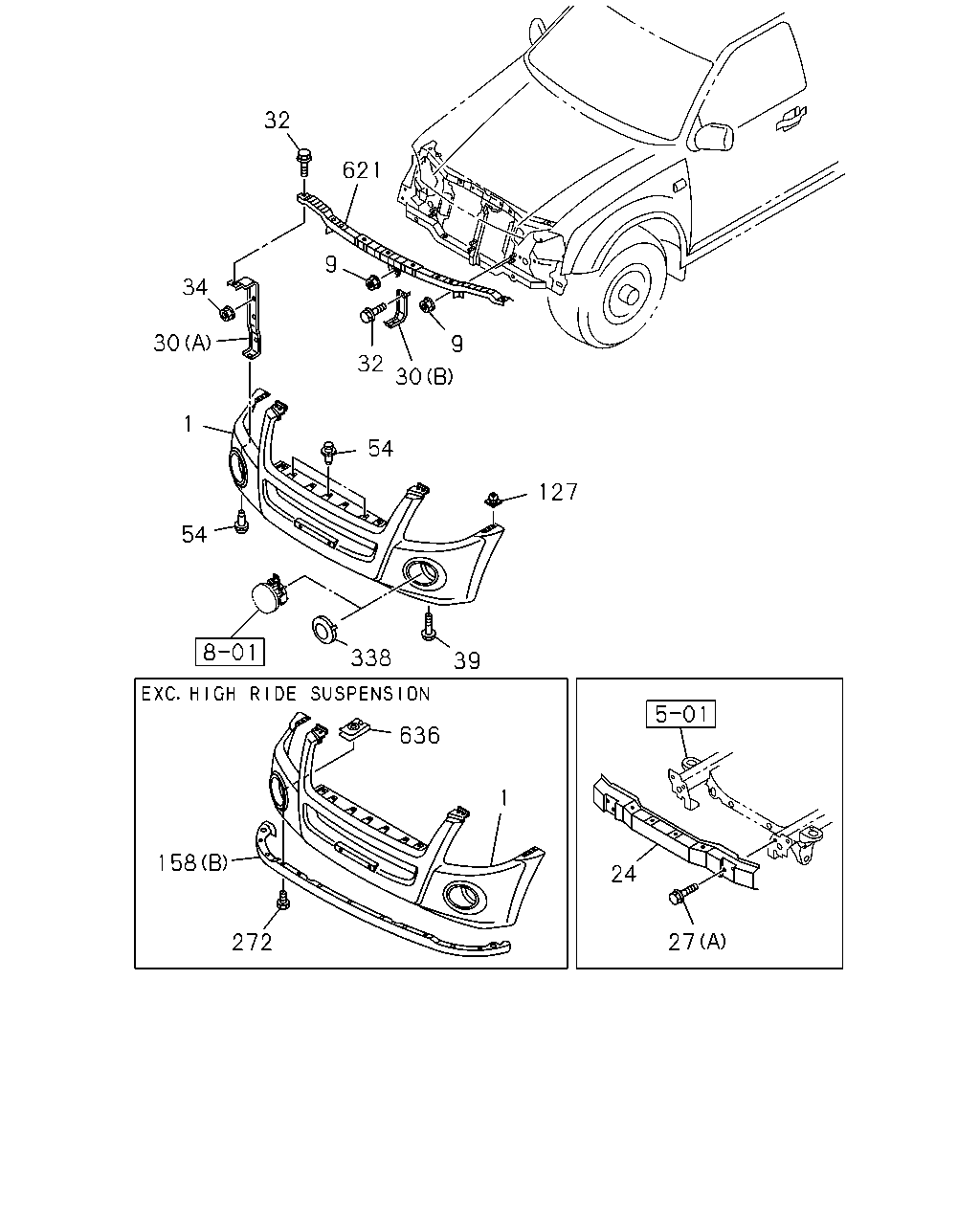

32 621 9 34 30 9 32 30 1 54 127 54 338 39 636 1 158 24 27 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.831 BUMPER ASM; FRT WO/HOLE GRAY	8-97235-962-2	01	1	0306-0609	●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98007-153-2	01	1	0610-1003	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	0610-1003	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	1004-1007	●		●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	1004-1007				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98007-153-2	01	1	1008-1009	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98007-153-2	01	1	1008-1009	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98158-615-0	01	1	1010-	●		●	●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> EXC. COLOR KEYED BUMPER(VT4)	8-98158-615-0	01	1	1010-	●		●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV> EXC. OVER FENDER<B74>	8-98007-151-4	01	1	0610-1003	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98007-151-4	01	1	0610-1003	●		●
1	07.831 BUMPER ASM; FRT	8-98007-151-4	01	1	0610-1003		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98007-151-4	01	1	1004-1007	●		●
1	07.831 BUMPER ASM; FRT	8-98007-151-4	01	1	1004-1007		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV> EXC. OVER FENDER<B74>	8-98007-151-4	01	1	1008-1009	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98007-151-4	01	1	1008-1009	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>	8-98007-151-4	01	1	1008-1009		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV> EXC. OVER FENDER<B74>	8-98158-611-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>,COLOR KEYED BUMPER(VT4)	8-98158-611-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT EXC. OVER FENDER<B74>	8-98158-611-0	01	1	1010-		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. OVER FENDER<B74>,KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98049-885-0	01	1	0610-1009	●		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. OVER FENDER<B74>,KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98158-613-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98049-886-0	01	1	0610-1009	●		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98049-886-0	01	1	0610-1009				●	●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98158-617-0	01	1	1010-	●		●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PRIMER	8-98158-617-0	01	1	1010-				●	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0306-0410				●	●
1	07.831 BUMPER ASM; FRT KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0306-0410				●	●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0411-0508				●	●	●
1	07.831 BUMPER ASM; FRT KD-PREPARATORY PACK VAR4<7TV> W/HOLE GRAY	8-97235-966-2	01	1	0411-0508				●	●	●
1	07.831 BUMPER ASM; FRT EXC. FACE LIFT MODEL<TX7>,COLOR KEYEDBUMPER(VT4),KD-PREPARATORY PACK VAR4 <7TV> W/HOLE GRAY	8-97235-966-2	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT KD-PREPARATORY PACK VAR4<7TV> EXC. FACE LIFT MODEL<TX7> W/HOLE GRAY	8-97235-966-2	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97330-923-0	01	1	0306-0410				●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97330-923-0	01	1	0411-0508				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. FACE LIFT MODEL<TX7>, KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97330-923-0	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT FACE LIFT MODEL<TX7> COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-97370-064-0	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) EXC. KD-PREPARATORY PACK VAR4<7TV> PLEASE PAINT TO MATCH BODY COLOR	8-98049-887-0	01	1	0610-0709						●
1	07.831 BUMPER ASM; FRT FACE LIFT MODEL<TX7> EXC. COLOR KEYED BUMPER(VT4), KD-PREPARATORY PACK VAR4<7TV> GRAY	8-97367-040-4	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT FACE LIFT MODEL<TX7> KD-PREPARATORY PACK VAR4<7TV> GRAY	8-97367-040-4	01	1	0509-0609				●	●	●
1	07.831 BUMPER ASM; FRT COLOR KEYED BUMPER(VT4) KD-PREPARATORY PACK VAR4<7TV>	8-98007-155-2	01	1	0610-0709						●
1	07.831 BUMPER ASM; FRT EXC. COLOR KEYED BUMPER(VT4)	8-98007-155-2	01	1	0610-0709						●
1	07.831 BUMPER ASM; FRT	8-98007-155-2	01	1	0710-1007						●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74>	8-98007-155-2	01	1	1008-1009		●
1	07.831 BUMPER ASM; FRT	8-98007-155-2	01	1	1008-1009						●
1	07.831 BUMPER ASM; FRT OVER FENDER<B74>	8-98158-618-0	01	1	1010-		●
1	07.831 BUMPER ASM; FRT	8-98158-618-0	01	1	1010-						●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE	0-91180-106-0	06	1	0306-0410	●	●	●	●	●
9	07.840 NUT; REINF,FRT BUMPER 01.062 M6 FLANGE	0-91180-106-0	06	1	0411-	●	●	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-97362-960-0	01	1	0306-0410	●	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-97362-960-0	01	1	0411-0508	●	●	●	●	●	●
24	07.869 BAR; FRT BUMPER	8-97362-960-0	01	1	0509-0609	●	●	●
24	07.869 BAR; FRT BUMPER EXC. FACE LIFT MODEL<TX7>	8-97362-960-0	01	1	0509-0609				●	●	●
24	07.869 BAR; FRT BUMPER FACE LIFT MODEL<TX7>	8-97367-044-0	01	1	0509-0609				●	●	●
24	07.869 BAR; FRT BUMPER	8-97367-044-0	01	1	0610-	●	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0306-0410	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR (A) M10X25 FLANGE	0-28661-025-0	04	1	0411-	●	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 08.155 (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0306-0410	●	●	●	●	●
27	07.833 BOLT; BUMPER TO BACK BAR 08.155 (B) M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0411-0609	●	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0306-0410	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-97236-049-0	02	1	0411-0609	●	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (A)	8-98007-158-0	02	1	0610-	●	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0306-0410	●	●	●	●	●
30	07.869 BRACKET; FRT BUMPER (B)	8-97236-050-1	02	1	0411-	●	●	●	●	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0306-0410	●	●	●	●	●
32	07.874 BOLT; BRKT,BUMPER 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0411-	●	●	●	●	●	●
34	07.874 NUT; BRKT,BUMPER 01.062 M6 FLANGE	0-91180-106-0	04	1	0306-0410	●	●	●	●	●
34	07.874 NUT; BRKT,BUMPER 01.062 M6 FLANGE	0-91180-106-0	04	1	0411-	●	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0306-0410	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	02	1	0411-0612	●	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY 07.833 M6X20 TAPPING	8-98052-950-0	02	1	0701-1003	●	●	●	●	●	●
39	07.874 BOLT; BUMPER TO BODY M6X20 TAPPING W/PL WASHER	8-98167-444-0	02	1	1004-	●	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER	8-97301-188-0	09	1	0306-0410	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER	8-97301-188-0	09	1	0411-0609	●	●	●	●	●	●
54	07.832 RETAINER; FRT BUMPER	8-97301-188-0	07	1	0610-	●	●	●	●	●	●
127	07.829 NUT; FRT BUMPER 09.190 D=9.7X9.7 L=8	8-94222-314-0	02	1	0306-0410	●	●	●	●	●
127	07.829 NUT; FRT BUMPER 09.190 D=9.7X9.7 L=8	8-94222-314-0	02	1	0411-	●	●	●	●	●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-852-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-852-1	01	1	0411-0609				●	●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-851-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER COLOR KEYED BUMPER(VT4) (A) PRIMER	8-97331-851-1	01	1	0411-0609				●	●	●
158	07.833 EXTENSION; FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98025-265-2	01	1	0610-1007	●		●
158	07.833 EXTENSION; FRT BUMPER (B)	8-98025-265-2	01	1	0610-1007		●
158	07.833 EXTENSION; FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) (B)	8-98025-265-2	01	1	1008-	●	●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-863-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-863-1	01	1	0411-0609				●	●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-862-1	01	1	0306-0410				●	●
158	07.833 EXTENSION; FRT BUMPER EXC. COLOR KEYED BUMPER(VT4) (A) GRAY	8-97331-862-1	01	1	0411-0609				●	●	●
272	07.874 BOLT; BUMPER TO EXT FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	12	1	0610-0612	●		●
272	07.874 BOLT; BUMPER TO EXT 08.155 M6X20 W/PL WASHER TAPPING	8-94321-767-1	12	1	0610-0612		●
272	07.874 BOLT; BUMPER TO EXT FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) 07.833 M6X20 TAPPING	8-98052-950-0	12	1	0701-1003	●		●
272	07.874 BOLT; BUMPER TO EXT 07.833 M6X20 TAPPING	8-98052-950-0	12	1	0701-1003		●
272	07.874 BOLT; BUMPER TO EXT FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) M6X20 TAPPING W/PL WASHER	8-98167-444-0	12	1	1004-1007	●		●
272	07.874 BOLT; BUMPER TO EXT M6X20 TAPPING W/PL WASHER	8-98167-444-0	12	1	1004-1007		●
272	07.874 BOLT; BUMPER TO EXT FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC) M6X20 TAPPING W/PL WASHER	8-98167-444-0	12	1	1008-	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-449-0	01	1	0306-0410	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-449-0	01	1	0411-0609	●	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-448-0	01	1	0306-0410	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-97363-448-0	01	1	0411-0609	●	●	●	●	●	●
338	07.832 BEZEL; FOG LAMP EXC. FOG LAMP<T96>	8-98007-157-1	02	1	0610-	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-97235-872-3	01	1	0306-0410	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-97235-872-3	01	1	0411-0508	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-97235-872-3	01	1	0509-0609	●	●	●
621	07.831 SUPPORT; FRT BUMPER EXC. FACE LIFT MODEL<TX7>	8-97235-872-3	01	1	0509-0609				●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-98007-150-3	01	1	0610-0702	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER	8-98060-773-0	01	1	0703-	●	●	●	●	●	●
621	07.831 SUPPORT; FRT BUMPER FACE LIFT MODEL<TX7>	8-97367-043-1	01	1	0509-0609				●	●	●
636	07.833 NUT; EXT,FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC)	8-98007-841-0	12	1	0610-0612	●		●
636	07.833 NUT; EXT,FRT BUMPER	8-98007-841-0	12	1	0610-0612		●
636	07.833 NUT; EXT,FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC)	8-98072-786-0	12	1	0701-1007	●		●
636	07.833 NUT; EXT,FRT BUMPER	8-98072-786-0	12	1	0701-1007		●
636	07.833 NUT; EXT,FRT BUMPER FRONT SPOILER<VP1> EXC. HIGH RIDE SUSPENSION(7YC)	8-98072-786-0	12	1	1008-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
