◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 5 - Frame, Cab Mounting ▶ 5-40 - ENGINE ROOM INSULATOR ▶
5-40 — ENGINE ROOM INSULATOR (#74193) — 33 parça

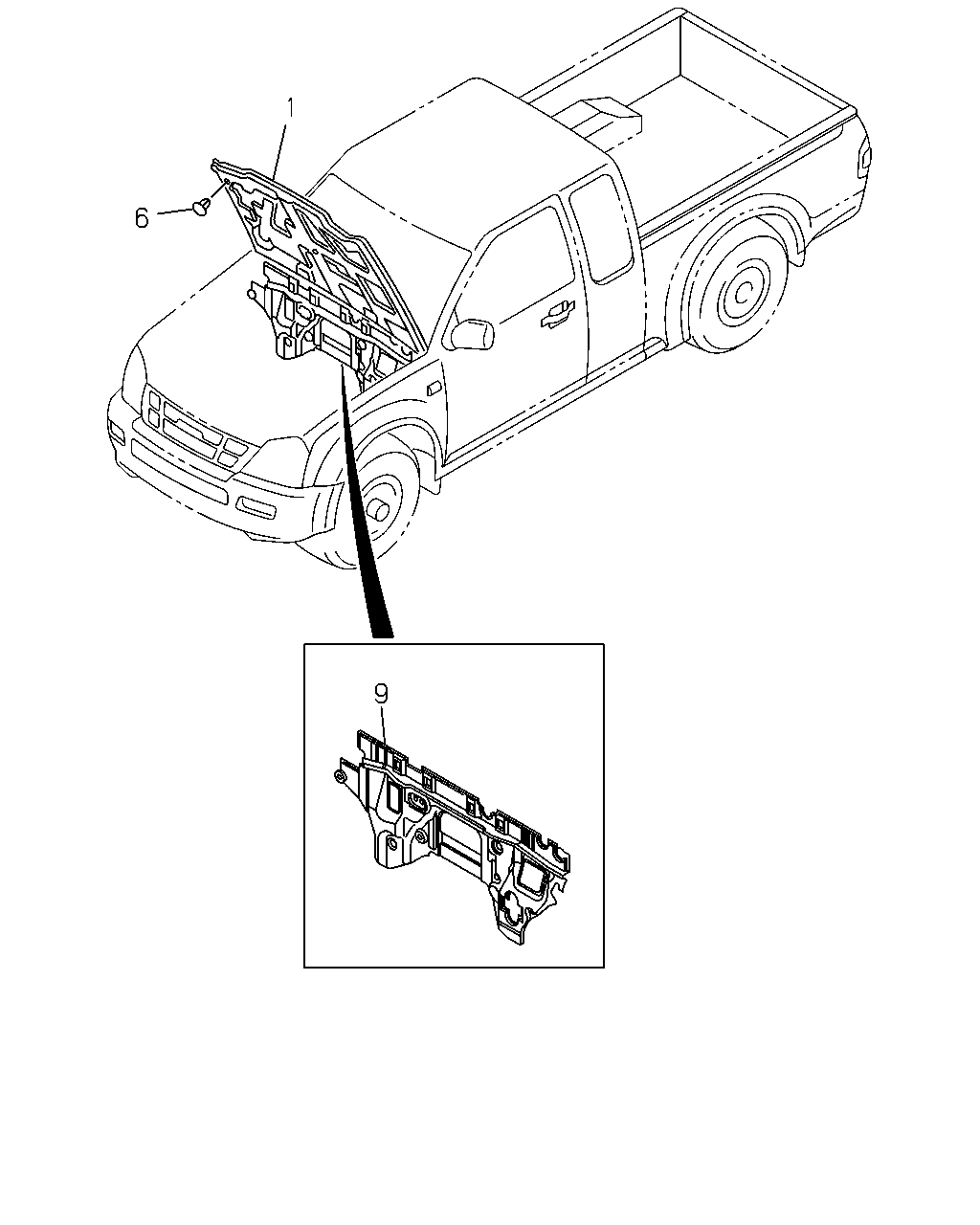

çizim 153443
1 6 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 08.021 INSULATION; ENG HOOD 8-97361-321-0 01 1 0306-0410 ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD 8-97361-321-0 01 1 0411-0609 ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD 8-98007-123-3 01 1 0610- ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 12 1 0306-0410 ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 12 1 0411-0609 ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
ID=6.2 L=11.4 		8-97808-623-0 14 1 0610- ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97368-044-0 01 1 0306-0410 ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM 8-97368-044-0 01 1 0411- ● ● ● ● ● ●

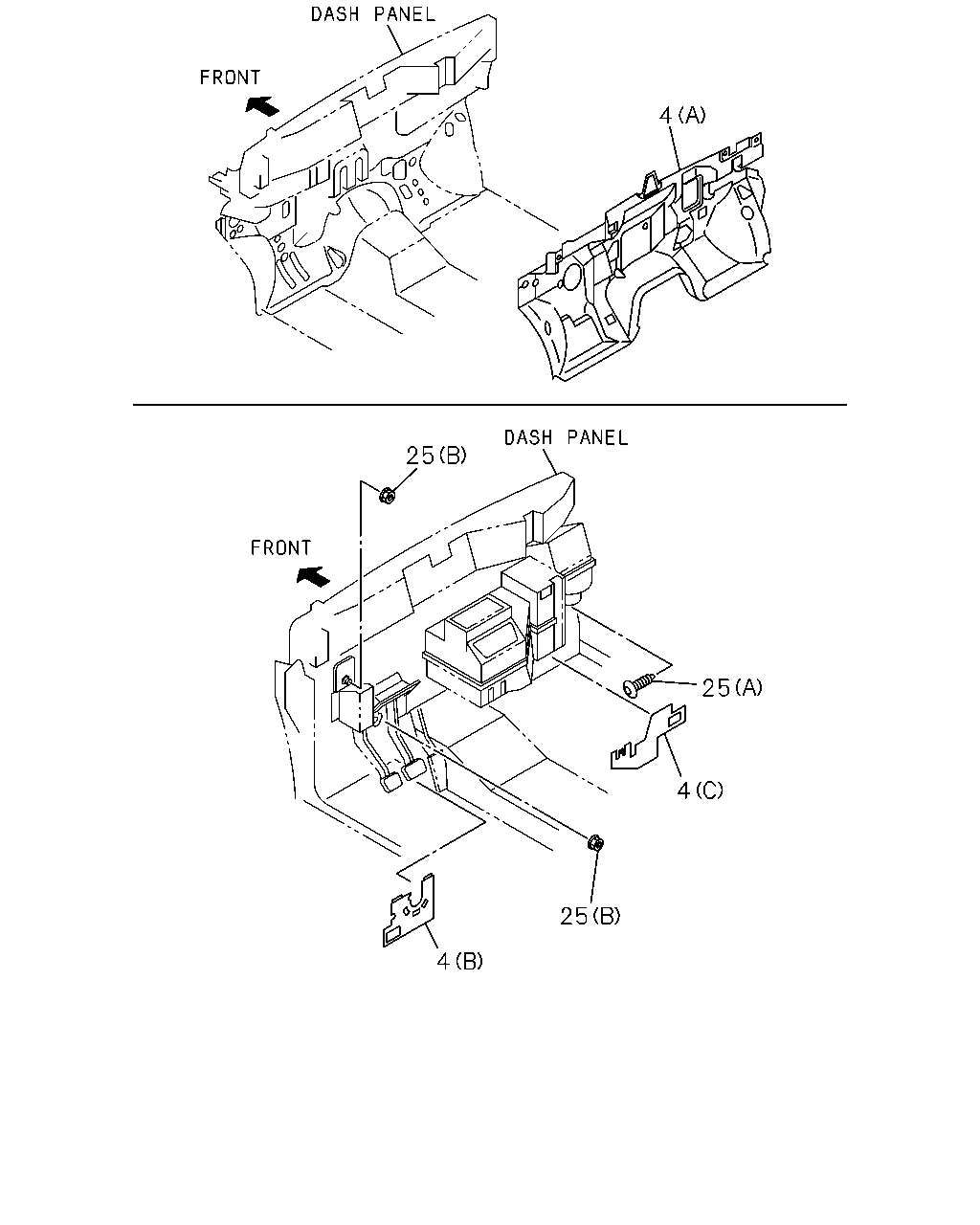

çizim 153512
4 25 25 4 25 4
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
4 08.021 INSULATION; DASH PNL,INNER
(A) 		8-97367-468-0 01 1 0306-0410 ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
(A) 		8-97367-468-0 01 1 0411-0504 ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
(A) 		8-98013-151-0 01 1 0505-0609 ● ● ● ● ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE DX(RBA) (A) 		8-98035-904-0 01 1 0610- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98035-904-0 01 1 0610- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) (B) 		8-98009-422-0 01 1 0610- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-98009-422-0 01 1 0610- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) (A) 		8-98056-378-0 01 1 0610-0709 ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98056-378-0 01 1 0610-0709 ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) (A) 		8-98097-792-0 01 1 0710- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) 		8-98097-792-0 01 1 0710- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) (C) 		8-98065-223-0 01 1 0610- ● ●
4 08.021 INSULATION; DASH PNL,INNER
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C) 		8-98065-223-0 01 1 0610- ● ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0) GRADE LT(RBD) 08.820 (A) OD=25 		8-94279-810-0 01 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0) 08.820 (A) OD=25 		8-94279-810-0 01 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) 08.820 (A) OD=25 		8-94279-810-0 01 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 08.820 (A) OD=25 		8-94279-810-0 01 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) 08.820 (A) OD=25 		8-94279-810-0 01 1 0710- ● ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 08.820 (A) OD=25 		8-94279-810-0 01 1 0710- ● ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0) GRADE LT(RBD) (B) 		8-97379-175-0 03 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0) (B) 		8-97379-175-0 03 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) (B) 		8-97379-175-0 03 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97379-175-0 03 1 0610-0709 ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) GRADE LT(RBD) (B) 		8-97379-175-0 03 1 0710- ● ●
25 16.802 CLIP; DASH INSULATION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) 		8-97379-175-0 03 1 0710- ● ●
