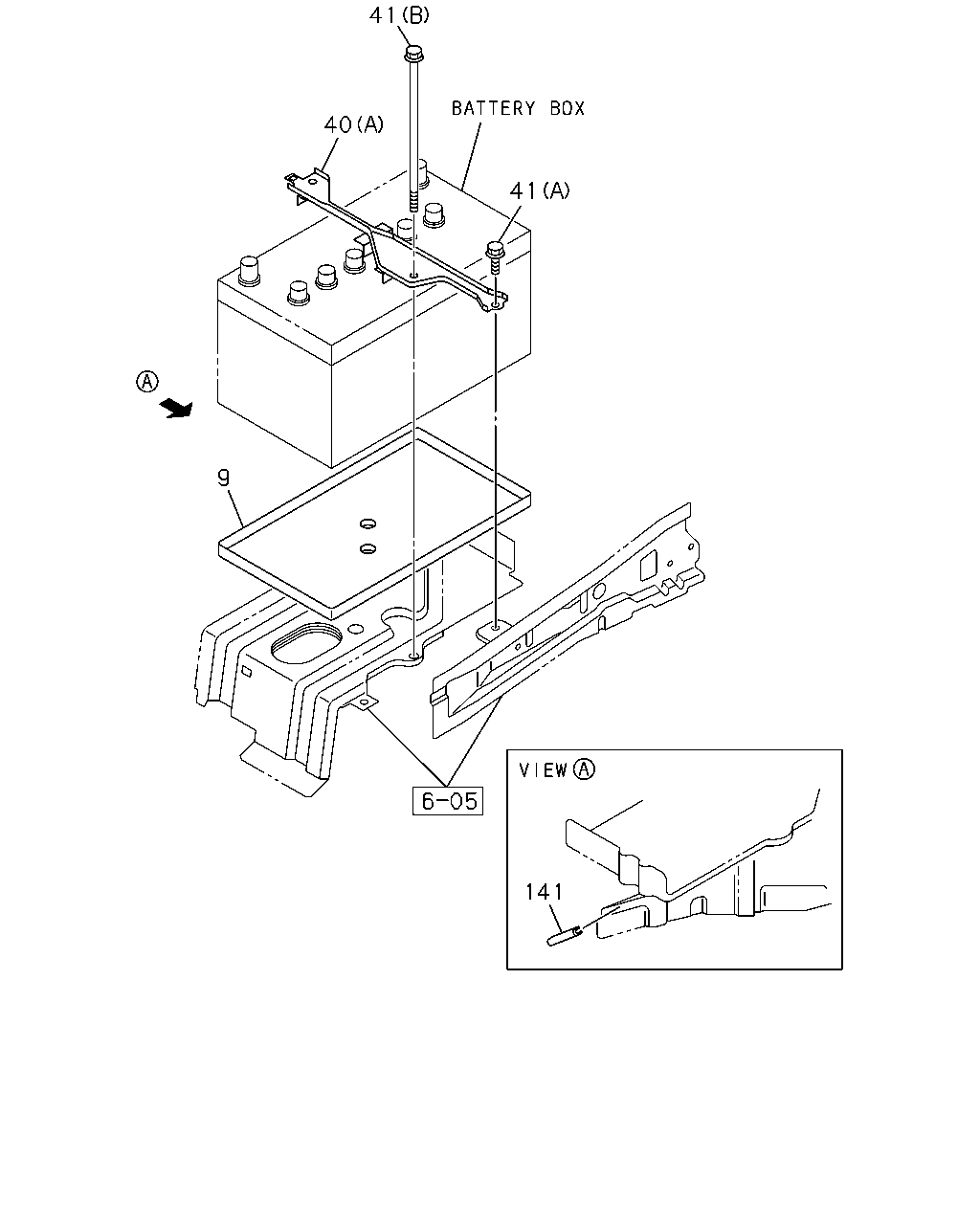

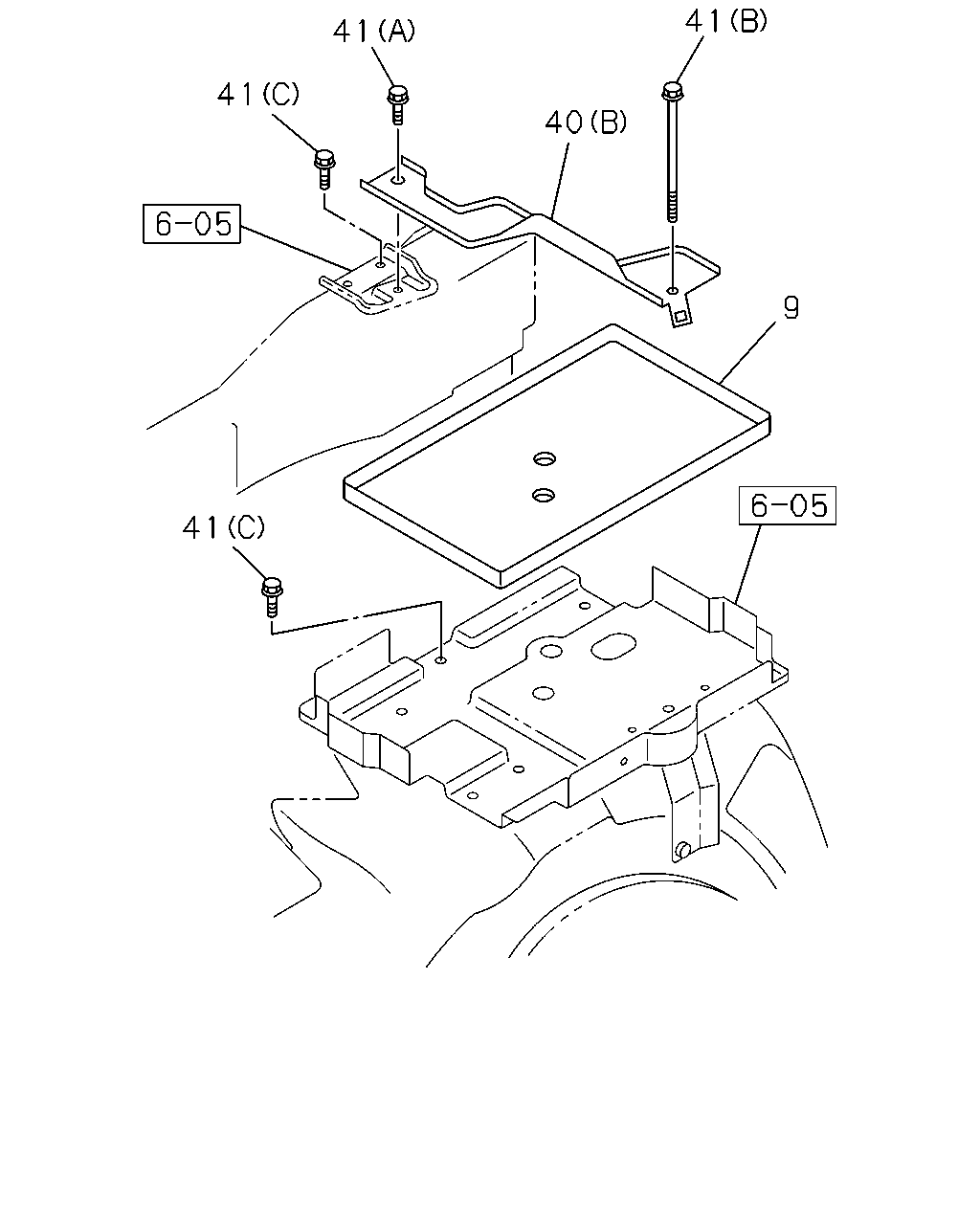

5-20 — BATTERY CARRIER (#74191) — 84 parça

41 41 41 40 9 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	02.333 SEAT; BATTERY BATTERY 80D26L(TM1)	8-97328-060-0	01	1	0306-0410	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 80D26L(TM1)	8-97328-060-0	01	1	0411-	●	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 95D31L(TQ8)	8-97318-865-1	01	1	0306-0410	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 95D31L(TQ8)	8-97318-865-1	01	1	0411-	●	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97328-060-0	02	1	0306-0410				●	●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97328-060-0	02	1	0411-0609				●	●	●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9)	8-97328-060-0	02	1	0610-	●	●	●			●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97328-060-0	02	1	0610-				●	●
40	02.335 CLAMP; BATTERY (A)	8-97357-407-0	01	1	0306-0410	●	●	●	●	●
40	02.335 CLAMP; BATTERY (A)	8-97357-407-0	01	1	0411-0609	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9) (A)	8-97357-407-0	01	1	0610-	●	●	●			●
40	02.335 CLAMP; BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97357-407-0	01	1	0610-				●	●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97317-600-0	01	1	0306-0410				●	●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97317-600-0	01	1	0411-0609				●	●	●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9) (B)	8-97317-600-0	01	1	0610-	●	●	●			●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97317-600-0	01	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0306-0410	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0411-0609	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0411-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97308-979-0	02	1	0306-0410	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97308-979-0	02	1	0411-0411	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97378-041-0	02	1	0412-	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0411-0601				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	02	1	0602-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) 09.171 (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	06	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	06	1	0411-0601				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	06	1	0602-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) 09.171 (C) M6X16 FLANGE	0-28450-616-0	05	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	05	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97308-979-0	01	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97308-979-0	01	1	0411-0411				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97378-041-0	01	1	0412-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) (B) M8X222 FLANGE	8-97378-041-0	01	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97378-041-0	01	1	0610-				●	●

41 40 41 9 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
9	02.333 SEAT; BATTERY BATTERY 80D26L(TM1)	8-97328-060-0	01	1	0306-0410	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 80D26L(TM1)	8-97328-060-0	01	1	0411-	●	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 95D31L(TQ8)	8-97318-865-1	01	1	0306-0410	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 95D31L(TQ8)	8-97318-865-1	01	1	0411-	●	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97328-060-0	02	1	0306-0410				●	●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97328-060-0	02	1	0411-0609				●	●	●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9)	8-97328-060-0	02	1	0610-	●	●	●			●
9	02.333 SEAT; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97328-060-0	02	1	0610-				●	●
40	02.335 CLAMP; BATTERY (A)	8-97357-407-0	01	1	0306-0410	●	●	●	●	●
40	02.335 CLAMP; BATTERY (A)	8-97357-407-0	01	1	0411-0609	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9) (A)	8-97357-407-0	01	1	0610-	●	●	●			●
40	02.335 CLAMP; BATTERY BATTERY 80D26L(TM1),BATTERY 95D31L(TQ8),BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97357-407-0	01	1	0610-				●	●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97317-600-0	01	1	0306-0410				●	●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97317-600-0	01	1	0411-0609				●	●	●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9) (B)	8-97317-600-0	01	1	0610-	●	●	●			●
40	02.335 CLAMP; BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97317-600-0	01	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0306-0410	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0411-0609	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0411-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97308-979-0	02	1	0306-0410	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97308-979-0	02	1	0411-0411	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY (B) M8X222 FLANGE	8-97378-041-0	02	1	0412-	●	●	●	●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	02	1	0411-0601				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	02	1	0602-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) 09.171 (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	02	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	06	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 06.635 (C) M6X16 FLANGE	0-28480-616-0	06	1	0411-0601				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	06	1	0602-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) 09.171 (C) M6X16 FLANGE	0-28450-616-0	05	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 09.171 (C) M6X16 FLANGE	0-28450-616-0	05	1	0610-				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97308-979-0	01	1	0306-0410				●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97308-979-0	01	1	0411-0411				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97378-041-0	01	1	0412-0609				●	●	●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9) (B) M8X222 FLANGE	8-97378-041-0	01	1	0610-	●	●	●			●
41	02.334 BOLT; CLAMP,BATTERY BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B) M8X222 FLANGE	8-97378-041-0	01	1	0610-				●	●
141	02.334 INSULATOR; BAT TRAY BRK WHL LK CONT LSPV<JR9> 02.530	8-94235-856-0	01	1	0306-0410	●	●	●	●	●
141	02.334 INSULATOR; BAT TRAY BRK WHL LK CONT LSPV<JR9> 02.530	8-94235-856-0	01	1	0411-	●	●	●	●	●	●
