◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#74186) — 49 parça

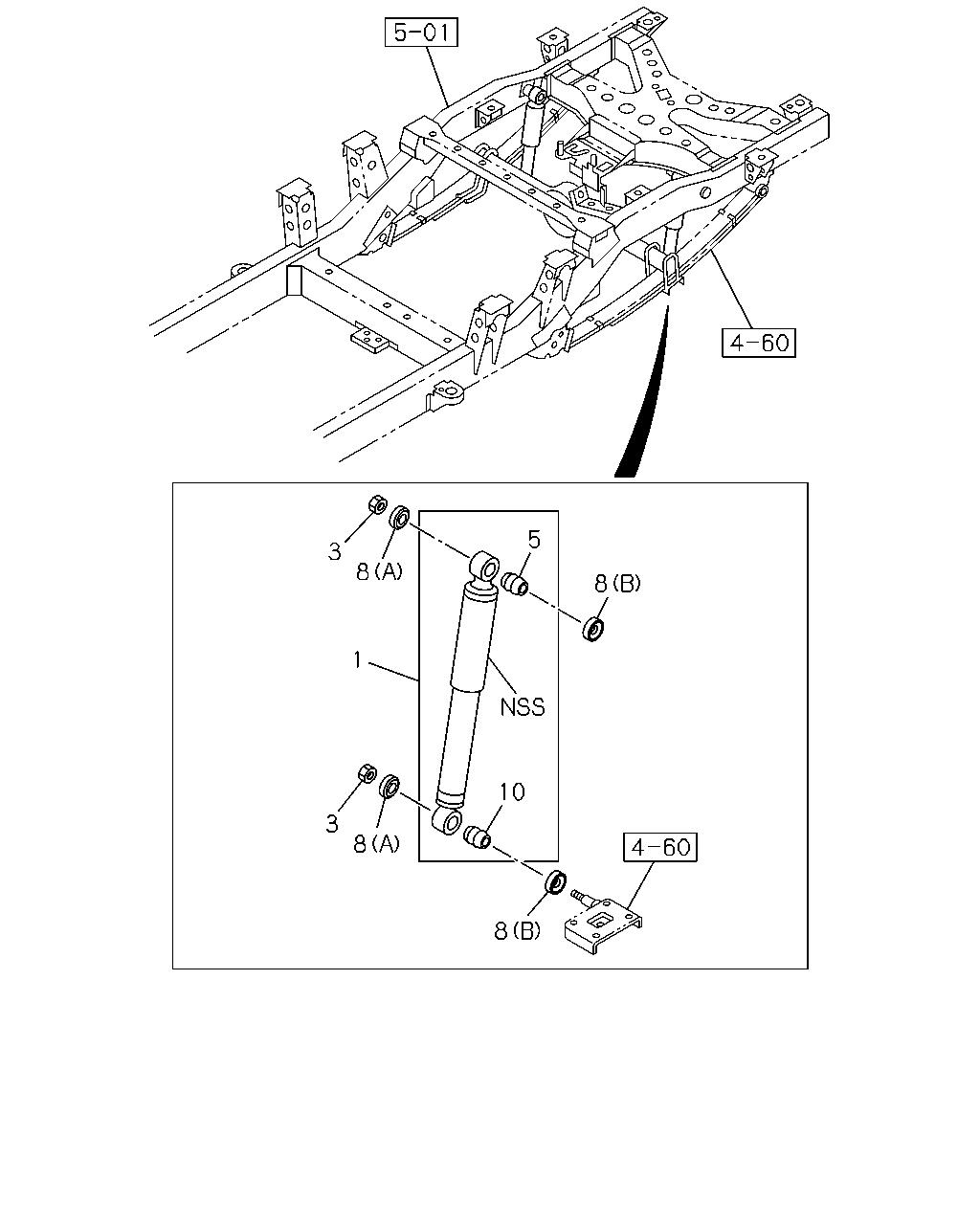

çizim 153436
5 3 8 8 1 10 3 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.395 ABSORBER ASM; SHOCK,RR 8-97368-600-0 02 1 0306-0609 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97368-600-0 02 1 0306-0609 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98056-033-0 02 1 0610-0706 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98056-033-0 02 1 0610-0706 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-97946-668-0 02 1 0707-0910 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97946-668-0 02 1 0707-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-222-0 02 1 0911-1007 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98152-222-0 02 1 0911-1007 ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98152-222-0 02 1 1008- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97368-598-0 02 1 0306-0609 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC) 		8-98056-031-0 02 1 0610-0706 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-98056-031-0 02 1 0610-0706 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC) 		8-97946-649-0 02 1 0707-0910 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-649-0 02 1 0707-0910 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC) 		8-98152-221-0 02 1 0911-1007 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-221-0 02 1 0911-1007 ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50), HIGHRIDE SUSPENSION(7YC) 		8-98152-221-0 02 1 1008- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97368-601-0 02 1 0306-0410 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97368-601-0 02 1 0411-0609 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-98056-034-0 02 1 0610-0706 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98056-034-0 02 1 0610-0706 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-97946-670-0 02 1 0707-0910 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-97946-670-0 02 1 0707-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-98152-228-0 02 1 0911-1007 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98152-228-0 02 1 0911-1007 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) HIGH RIDE SUSPENSION(7YC) 		8-98152-228-0 02 1 1008- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
REAR SPRING HEAVY DUTY(G50) 		8-98152-228-0 02 1 1008- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97368-599-0 02 1 0306-0410 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97368-599-0 02 1 0411-0609 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-98056-032-0 02 1 0610-0706 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-98056-032-0 02 1 0610-0706 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-665-0 02 1 0707-0910 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-97946-665-0 02 1 0707-0910 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-227-0 02 1 0911-1007 ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-227-0 02 1 0911-1007 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
HIGH RIDE SUSPENSION(7YC) EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-227-0 02 1 1008- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. REAR SPRING HEAVY DUTY(G50) 		8-98152-227-0 02 1 1008- ● ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 0306-0410 ● ● ● ● ●
3 07.347 NUT; S/ABS
M12 FLANGE 		8-97256-670-0 04 1 0411- ● ● ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 0306-0410 ● ● ● ● ●
5 07.388 BUSHING; RUBBER,S/ABS,UPR 8-97302-810-0 02 1 0411- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		8-94445-688-0 04 1 0306-0410 ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		8-94445-688-0 04 1 0411-0609 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		8-98005-969-0 04 1 0610- ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 04 1 0306-0410 ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=12.5 		9-51679-022-0 04 1 0411-0609 ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=16.5 		8-98005-970-0 04 1 0610- ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 0306-0410 ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS 8-97302-810-0 02 1 0411- ● ● ● ● ● ●
