4-42 — POWER STEERING OIL PUMP (#74183) — 58 parça

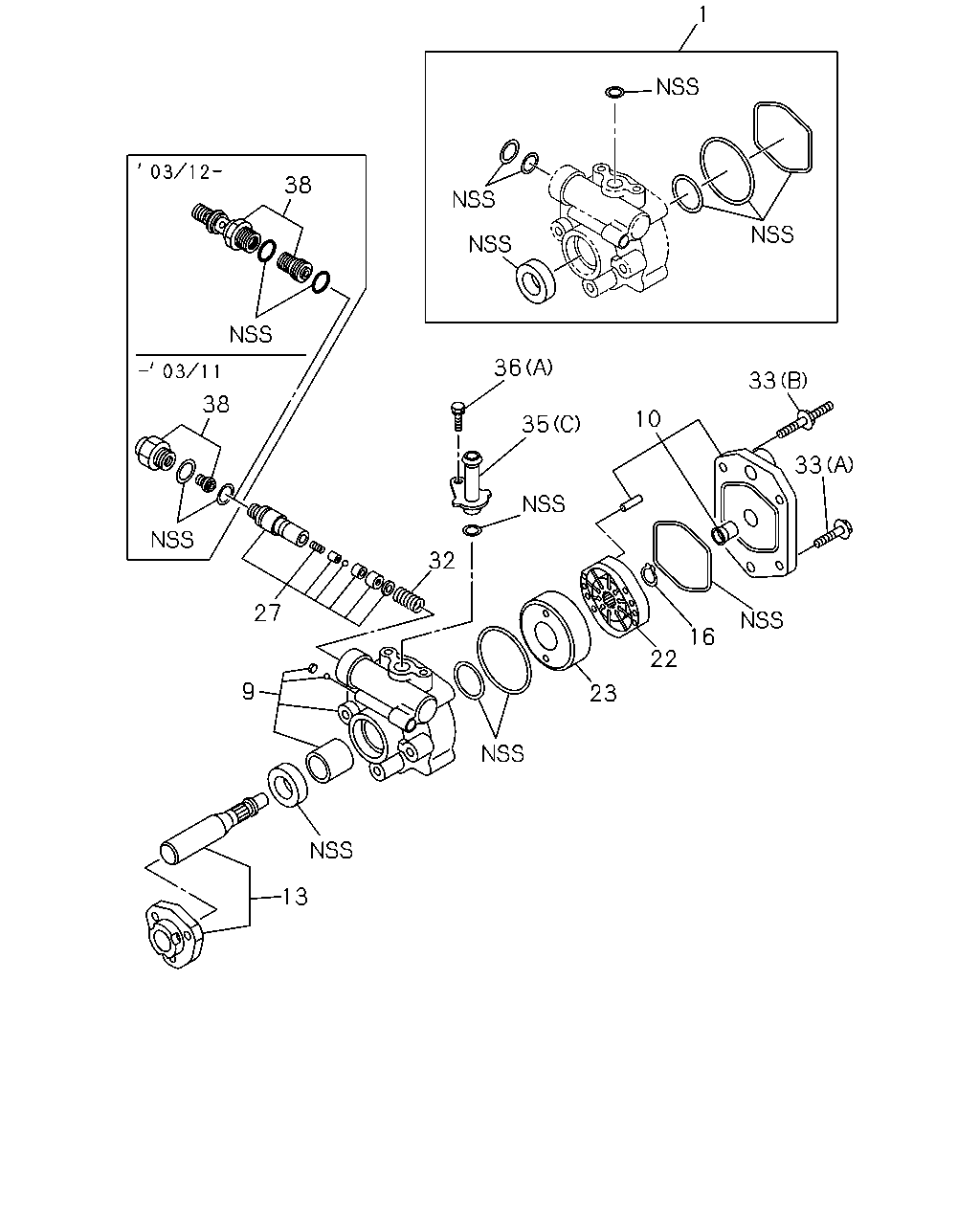

1 38 36 33 38 10 35 33 32 27 16 22 9 23 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97942-188-0, 97942188	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, F = 8-98063-153-0, 98063153	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
13	06.605 SHAFT KIT; RET ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97306-614-0	01	1	-
16	06.616 RING; RET,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-94411-358-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, F = 8-98063-153-0, 98063153	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-762-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98028-773-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97944-829-0, 97944829	8-98034-046-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97942-188-0, 97942188	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995	8-97188-391-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97943-866-0	01	1	-

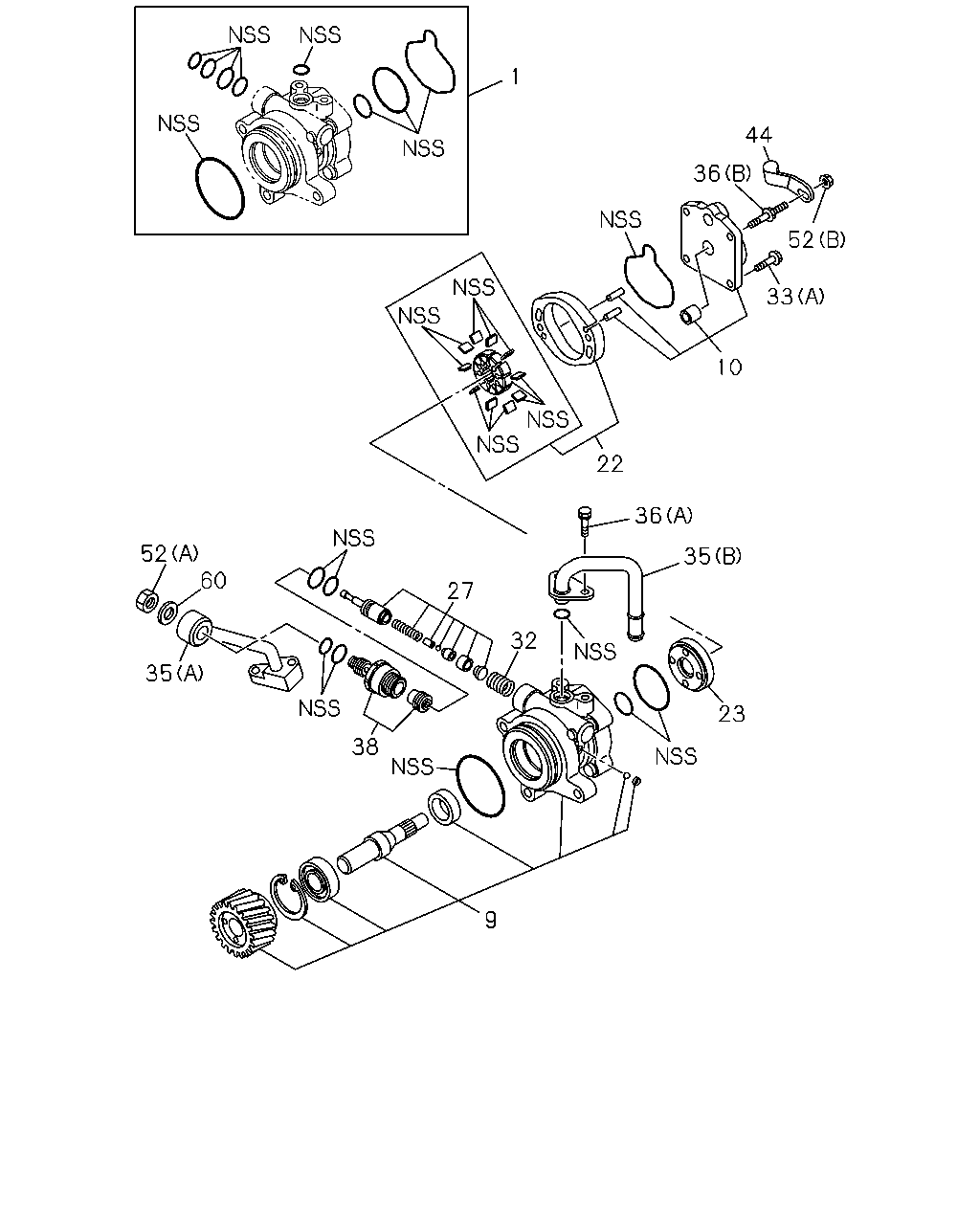

1 44 36 52 33 10 22 36 52 60 35 27 32 35 23 38 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	06.609 REPAIR KIT; OIL PUMP ASM PART: B = 8-97942-188-0, 97942188	8-97184-735-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995	8-97205-626-0	01	1	-
1	06.609 REPAIR KIT; OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98002-698-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-721-0	01	1	-
9	06.608 BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98002-697-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, F = 8-98063-153-0, 98063153	8-97184-730-0	01	1	-
10	06.608 BODY ASM; RR,OIL PUMP ASM PART: E = 8-97946-698-0, 97946698	8-97946-689-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, F = 8-98063-153-0, 98063153	8-97184-729-0	01	1	-
22	06.610 CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698	8-97946-615-0	01	1	-
23	06.609 PLATE; SIDE,OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97184-728-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-731-0	01	1	-
27	06.624 VALVE ASM; OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-043-0	01	1	-
32	06.606 SPRING; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188, C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97184-766-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-761-0	03	1	-
33	06.606 BOLT; COVER (B) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-762-0	01	1	-
33	06.606 BOLT; COVER (A) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98028-773-0	03	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (C) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-733-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97946-174-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98033-924-0	01	1	-
35	06.602 PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97944-829-0, 97944829	8-98034-046-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: A = 8-97214-995-1, 97214995, B = 8-97942-188-0, 97942188	8-97184-763-0	01	1	-
36	06.602 BOLT; CONN,PIPE (A) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98028-783-0	02	1	-
36	06.602 BOLT; CONN,PIPE (B) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-052-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: B = 8-97942-188-0, 97942188	8-97184-732-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: A = 8-97214-995-1, 97214995	8-97188-391-0	01	1	-
38	06.624 CONNECTOR; OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-97943-866-0	01	1	-
44	06.606 BRACKET; OIL PUMP,P/S & EDS ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-047-0	01	1	-
52	06.635 NUT; OIL PUMP (A) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-050-0	01	1	-
52	06.635 NUT; OIL PUMP (B) ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-051-0	01	1	-
60	06.635 WASHER; LK,OIL PUMP ASM PART: C = 8-97944-829-0, 97944829, D = 8-97946-607-0, 97946607, E = 8-97946-698-0, 97946698, F = 8-98063-153-0, 98063153	8-98034-048-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
