4-30 — STEERING WHEEL AND COWL (#74177) — 38 parça

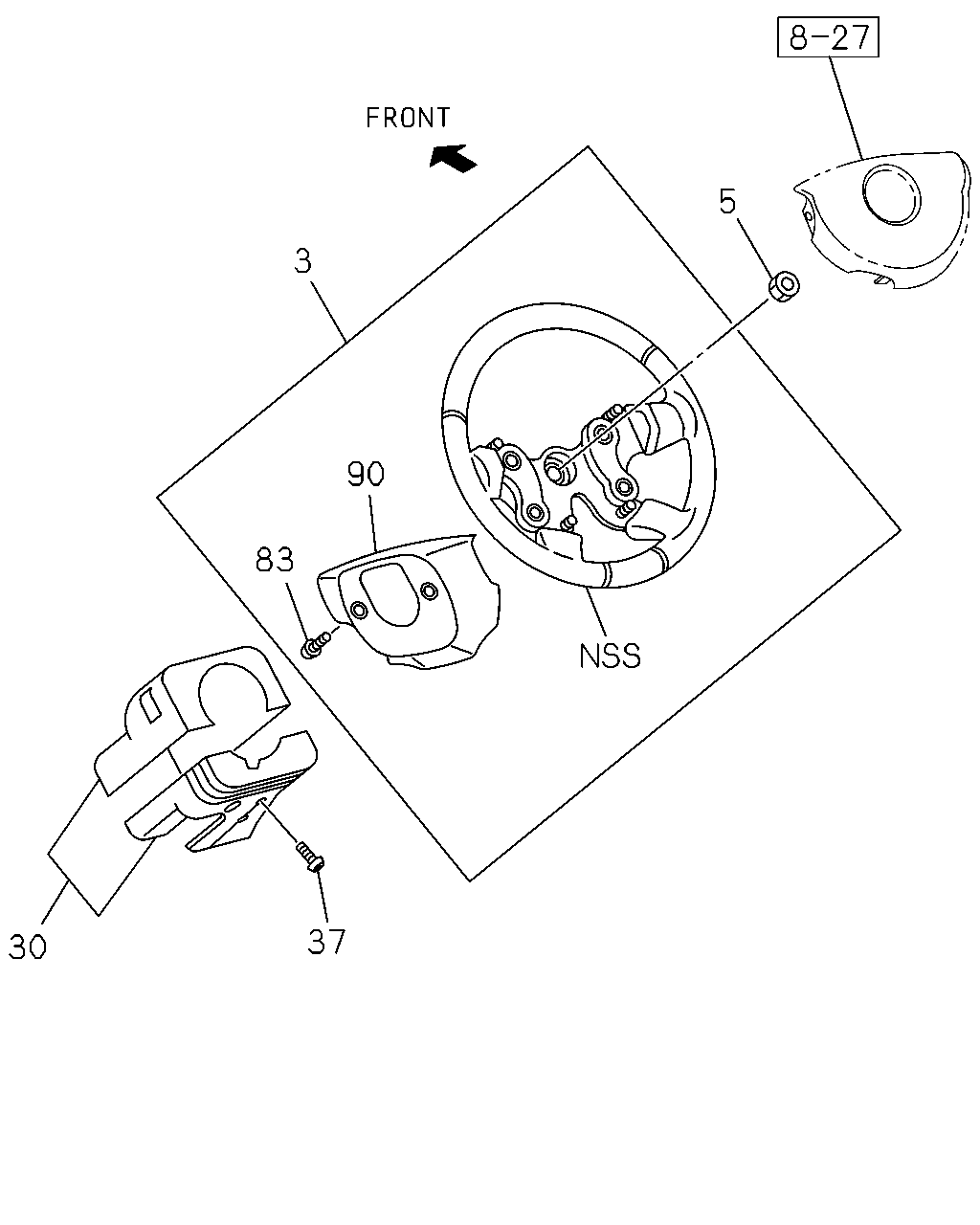

çizim 153214
5 3 90 83 37 30
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
3 06.513 WHEEL; STRG
DARK GRAY 		8-97294-057-1 01 1 0306-0410 ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97294-057-1 01 1 0306-0410 ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97294-057-1 01 1 0411-0508 ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97294-057-1 01 1 0411-0508 ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97396-454-0 01 1 0509-0609 ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97396-454-0 01 1 0509-0609 ● ● ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97403-688-2 01 1 0610-0709 ● ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97403-688-2 01 1 0610-0709 ●
3 06.513 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> DARK GRAY 		8-97403-688-2 01 1 0710- ● ● ● ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97403-688-2 01 1 0710- ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY 		8-97390-772-2 01 1 0306-0410 ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY 		8-97390-772-2 01 1 0411-0508 ● ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY 		8-97396-453-0 01 1 0509-0602 ● ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY 		8-97406-139-0 01 1 0603-0609 ● ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY 		8-97403-900-2 01 1 0610-0709 ● ● ● ● ●
3 06.513 WHEEL; STRG
STEERING WHEEL LEATHER<NP5> DARK GRAY 		8-97403-900-2 01 1 0710- ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0306-0410 ● ● ● ● ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER 		8-94455-487-1 01 1 0411- ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97392-792-1 01 1 0306-0410 ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97392-792-1 01 1 0411-0609 ● ● ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97403-687-1 01 1 0610-1003 ● ● ● ● ● ●
30 06.518 COWL; STEERING
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97403-687-1 01 1 1004-1104 ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97403-687-1 01 1 1004-1104 ● ●
30 06.518 COWL; STEERING
INTERIOR COLOR BLACK(101),INTERIOR COLOR IN VERY DARK GRAY(116) DARK GRAY 		8-97422-710-0 01 1 1105- ● ● ● ●
30 06.518 COWL; STEERING
DARK GRAY 		8-97422-710-0 01 1 1105- ● ●
37 06.518 SCREW; STRG COWL UPR
M4X12 W/PL WASHER 		9-03900-412-0 03 1 0306-0410 ● ● ● ● ●
37 06.518 SCREW; STRG COWL UPR
M4X12 W/PL WASHER 		9-03900-412-0 03 1 0411-0606 ● ● ● ● ● ●
37 06.518 SCREW; STRG COWL UPR
M4X12 W/PL WASHER 		0-36210-412-0 03 1 0607- ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL 8-97350-038-0 02 1 0306-0410 ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL 8-97350-038-0 02 1 0411-0508 ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL 8-97350-038-0 04 1 0509-0602 ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL 8-97350-038-0 04 1 0603-0609 ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
DELUXE STEERING WHEEL URETHANE<N30> 		8-97350-038-0 04 1 0603-0609 ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL 8-97350-038-0 02 1 0610- ● ● ● ● ● ●
83 06.514 SCREW; LWR COVER TO WHEEL
STEERING WHEEL LEATHER<NP5> 		8-97350-038-0 02 1 0603-0609 ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
DARK GRAY 		8-97394-463-0 01 1 0306-0410 ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
DARK GRAY 		8-97394-463-0 01 1 0411-0609 ● ● ● ● ● ●
90 06.578 COVER ASM; STRG WHEEL,LWR
DARK GRAY 		8-97403-937-1 01 1 0610- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
