Sayfa 3-60 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-60 - BRAKE PIPING; VACUUM ▶

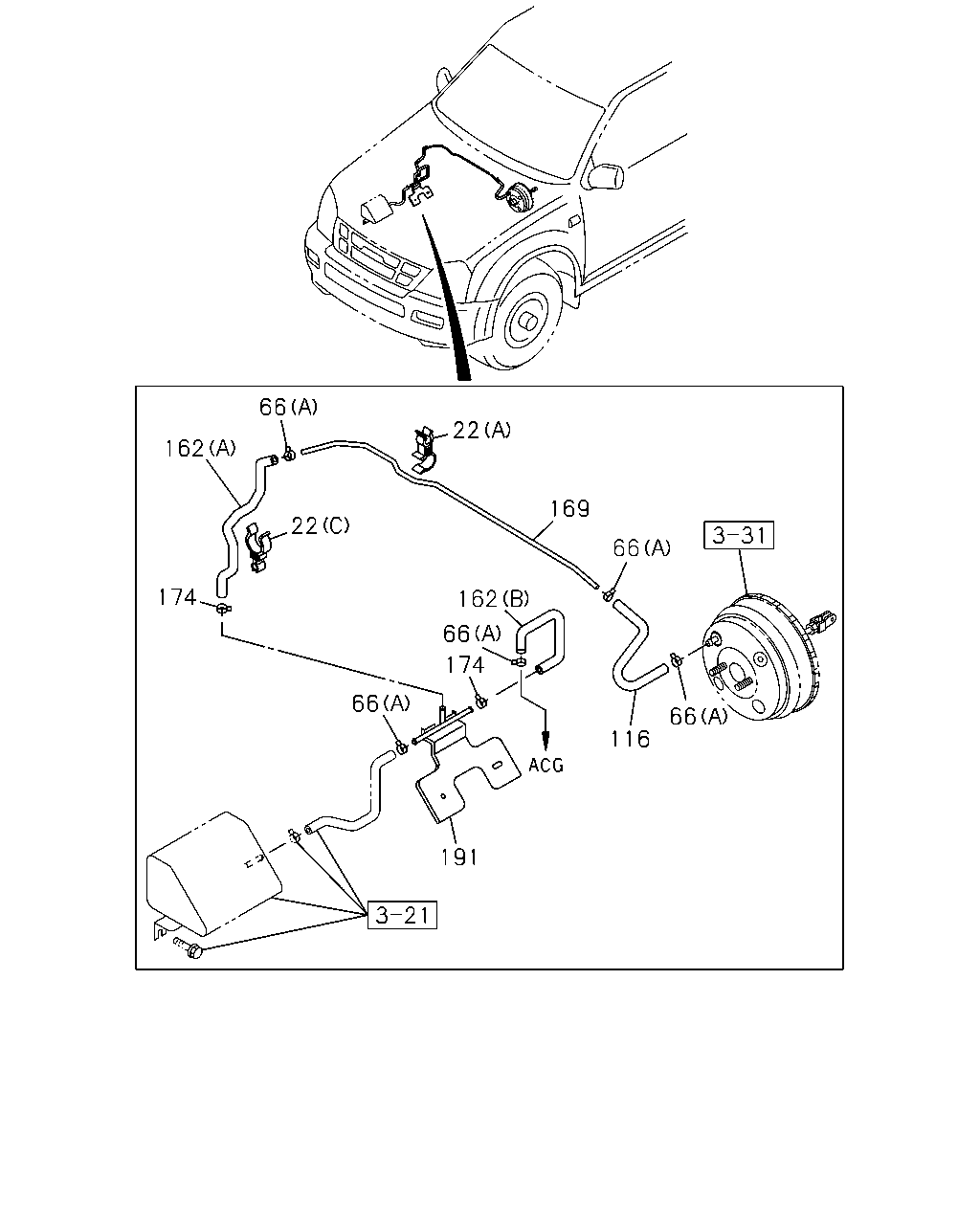

3-60 — BRAKE PIPING; VACUUM (#74168) — 118 parça

66 22 162 169 22 66 174 162 66 174 66 66 116 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.681 CLIP; HOSE,VAC TANK 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0306-0401	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0306-0410	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0306-0410				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0411-0508	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0411-0508				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9) 03.162 (B)	8-97089-536-0	01	1	0411-0508						●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0509-0609	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0509-0609				●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0306-0410				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0411-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0410				●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0411-0604				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97315-630-2	01	1	0306-0410	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97315-630-2	01	1	0411-0609	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	0610-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0306-0410				●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0411-0609				●	●	●
162	04.931 HOSE; VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C)	8-98037-609-0	01	1	0610-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0306-0410				●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0411-0609				●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE	8-97315-612-2	01	1	0306-0410	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE	8-97315-612-2	01	1	0411-0609	●	●	●	●	●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0410				●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0411-0609				●	●	●
174	04.930 CLIP; VAC HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	0610-	●	●	●	●	●	●
191	04.685 PIPE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-948-1	01	1	0306-0410				●	●
191	04.685 PIPE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-948-1	01	1	0411-0609				●	●	●

199 22 169 66 66 66 76 22 66 116 199 66 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
22	04.681 CLIP; HOSE,VAC TANK 02.480 (A) ID=10.5 & 4.8	8-97019-966-0	01	1	0306-0401	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0306-0410	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0306-0410				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0411-0508	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0411-0508				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9) 03.162 (B)	8-97089-536-0	01	1	0411-0508						●
22	04.681 CLIP; HOSE,VAC TANK 4JA1-TC ENG(L4Z) 03.162 (B)	8-97089-536-0	01	1	0509-0609	●	●	●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 03.162 (B)	8-97089-536-0	01	1	0509-0609				●	●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0306-0410				●	●
22	04.681 CLIP; HOSE,VAC TANK 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (C)	8-97362-925-0	01	1	0411-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0410				●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0411-0604				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-	●	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-TC ENG(L4Z)	8-97301-841-2	01	1	0306-0410	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97301-841-2	01	1	0306-0410				●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-TC ENG(L4Z)	8-97301-841-2	01	1	0411-0508	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97301-841-2	01	1	0411-0508				●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9)	8-97301-841-2	01	1	0411-0508						●
76	04.930 BRACKET; VAC HOSE CLIP 4JA1-TC ENG(L4Z)	8-97301-841-2	01	1	0509-0609	●	●	●	●	●
76	04.930 BRACKET; VAC HOSE CLIP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97301-841-2	01	1	0509-0609				●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97315-630-2	01	1	0306-0410	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97315-630-2	01	1	0411-0609	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	0610-	●	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE	8-97315-612-2	01	1	0306-0410	●	●	●	●	●
169	04.930 PIPE; VAC,BOOSTER SIDE	8-97315-612-2	01	1	0411-0609	●	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-TC ENG(L4Z) 04.931 (B)	8-97315-631-1	01	1	0306-0410	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.931 (B)	8-97315-631-1	01	1	0306-0410				●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-TC ENG(L4Z) 04.931 (B)	8-97315-631-1	01	1	0411-0609	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.931 (B)	8-97315-631-1	01	1	0411-0609				●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-TC ENG(L4Z) (A)	8-97365-118-0	01	1	0306-0409	●	●	●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0306-0409				●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0410-0410				●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A)	8-97365-118-0	01	1	0411-0609				●	●	●
199	04.681 HOSE; VAC,VAC TANK TO VAC PUMP 4JA1-TC ENG(L4Z) (A)	8-97385-746-0	01	1	0410-0609	●	●	●	●	●

66 162 174 116 174 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0306-0410				●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	02	1	0411-0604				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC (A) ID=15.5	8-98035-872-0	02	1	0605-0609	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	02	1	0605-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (B) ID=16	8-98036-539-0	01	1	0610-	●	●	●	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0306-0410				●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 (A) ID=15.5	8-94367-944-0	01	1	0411-0604				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A) ID=15.5	8-98035-872-0	01	1	0605-0609				●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (A) ID=15.5	8-98035-872-0	01	1	0610-	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97315-630-2	01	1	0306-0410	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97315-630-2	01	1	0411-0609	●	●	●	●	●	●
116	04.931 HOSE; VAC,M/VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0)	8-97944-842-1	01	1	0610-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0306-0410				●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (A)	8-97316-598-0	01	1	0411-0609				●	●	●
162	04.931 HOSE; VAC 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (C)	8-98037-609-0	01	1	0610-	●	●	●	●	●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0306-0410				●	●
162	04.931 HOSE; VAC 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) (B)	8-97316-599-1	01	1	0411-0609				●	●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0306-0410				●	●
174	04.930 CLIP; VAC HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	02	1	0411-0609				●	●	●
174	04.930 CLIP; VAC HOSE 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) ID=15.5	8-98008-097-0	02	1	0610-	●	●	●	●	●	●
