◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#74167) — 1186 parça

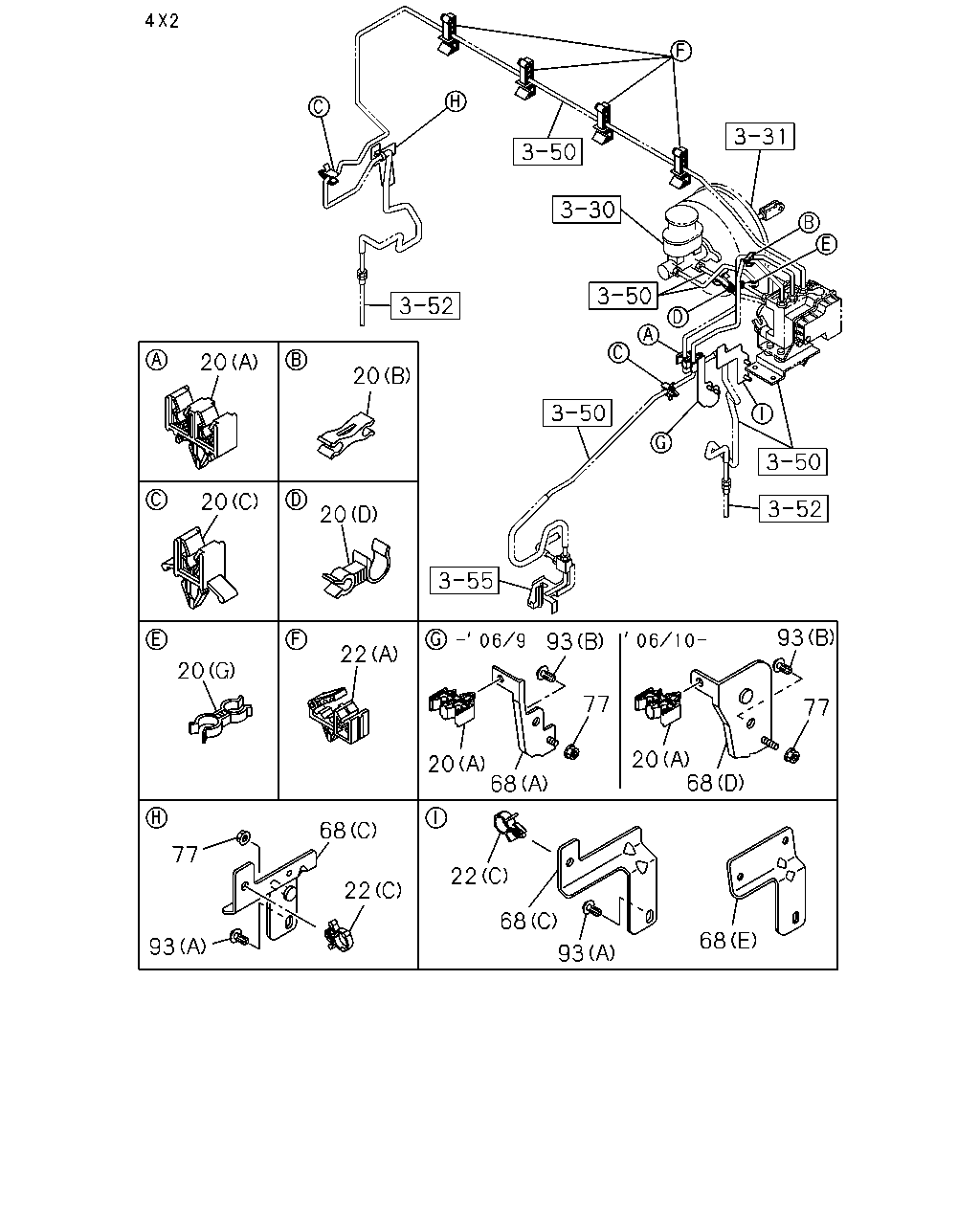

çizim 153176
20 20 20 20 93 93 22 20 77 77 20 68 20 68 68 77 22 22 68 68 93 93
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0411-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (K) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0509-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0610-0703 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0704- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0711- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (D) ID=4.6X2 		8-94241-454-0 01 1 1011- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0411- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0411-1005 ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-97357-947-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 0610-1007 ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) (C) 		8-97944-661-0 01 1 0610-1007 ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<JR9> (C) 		8-97357-948-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98034-935-0 01 1 0610- ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0610- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HEATER & DEFROSTER(C42) (D) 		8-98006-970-0 01 1 0610- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
16.800 (A) OD=18 		8-94269-290-0 01 1 0306-0609 ● ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0306-0410 ● ● ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0411- ● ● ● ● ● ●

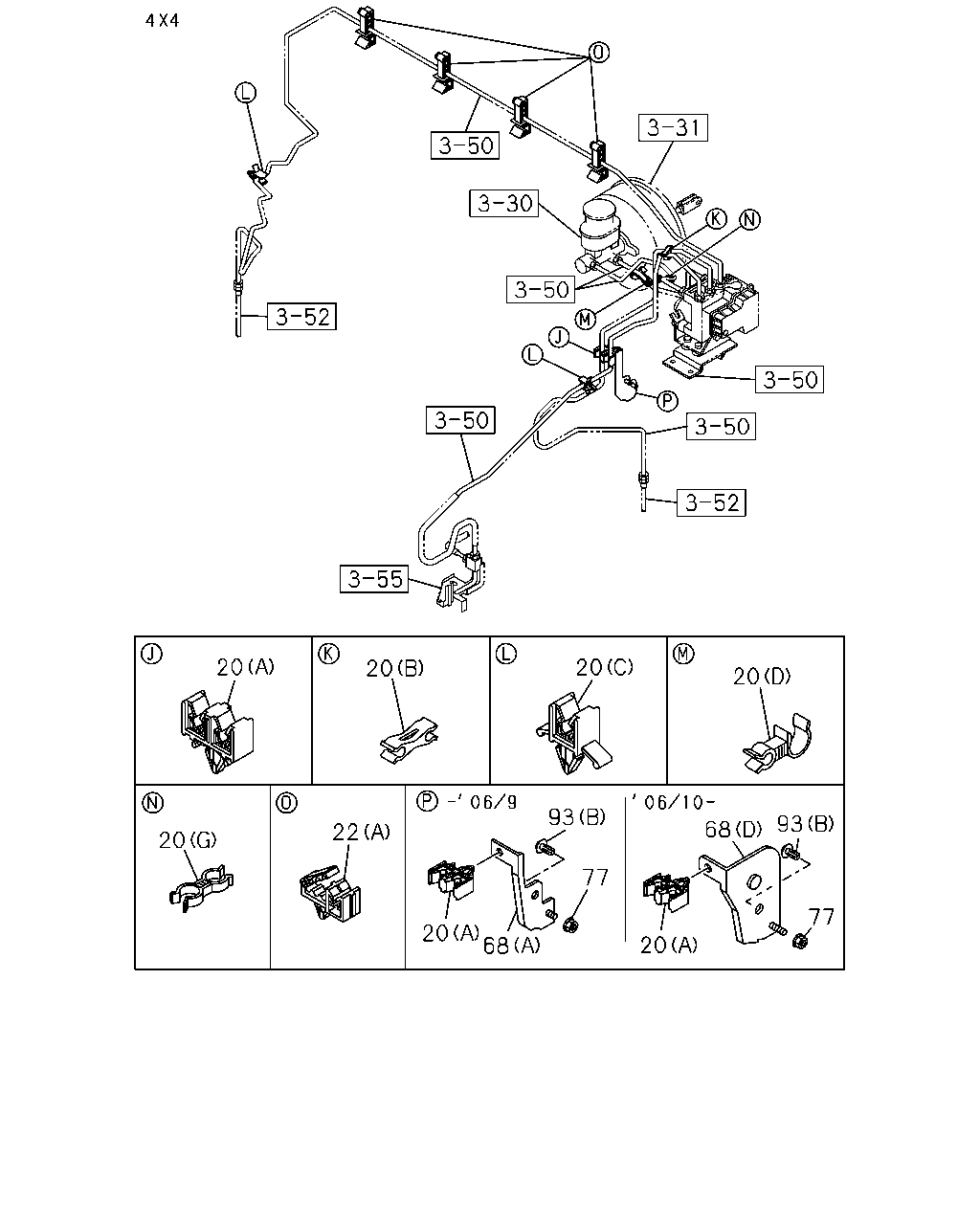

çizim 153180
20 20 20 20 93 93 68 22 20 77 77 20 68 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●

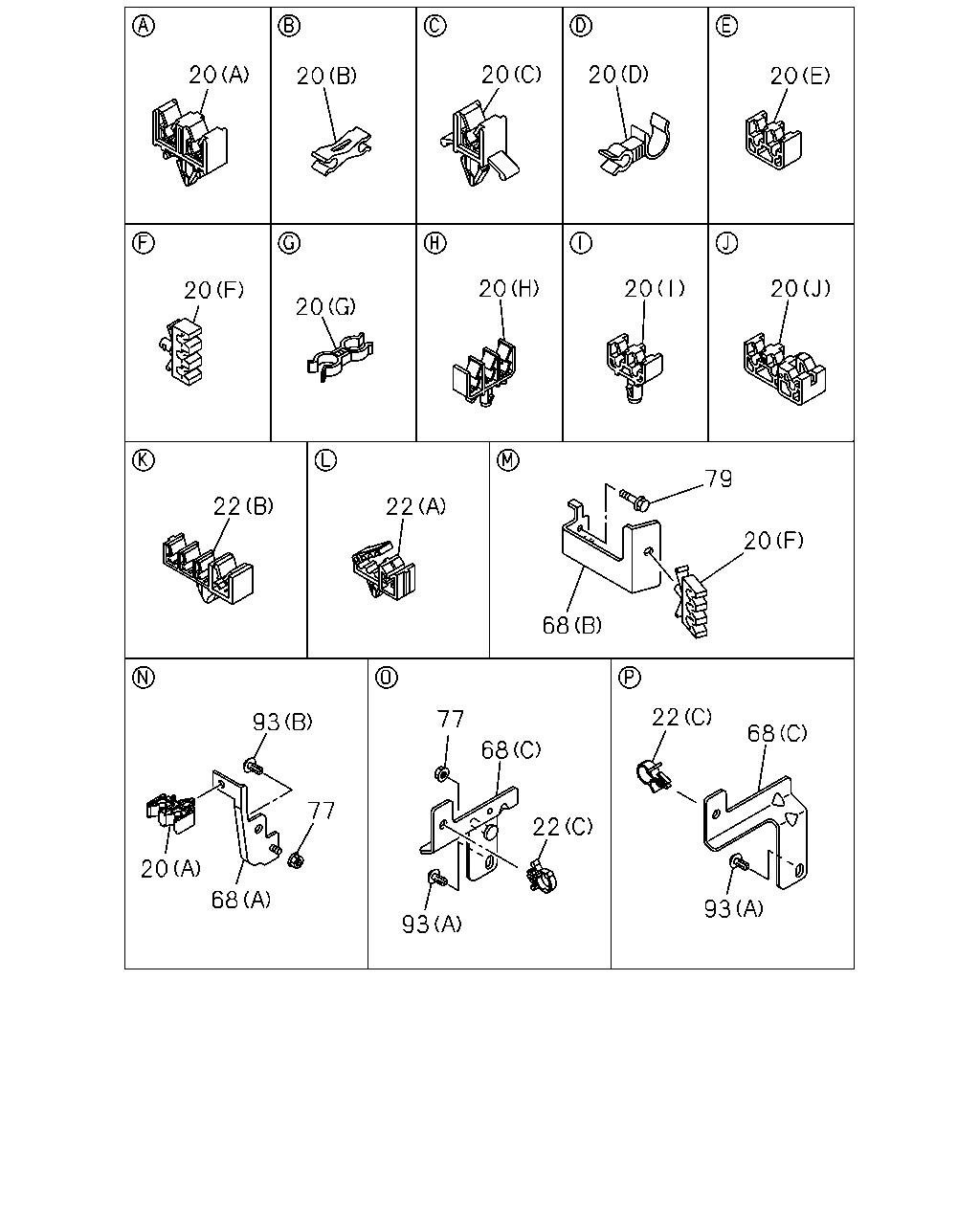

20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0411-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (K) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE

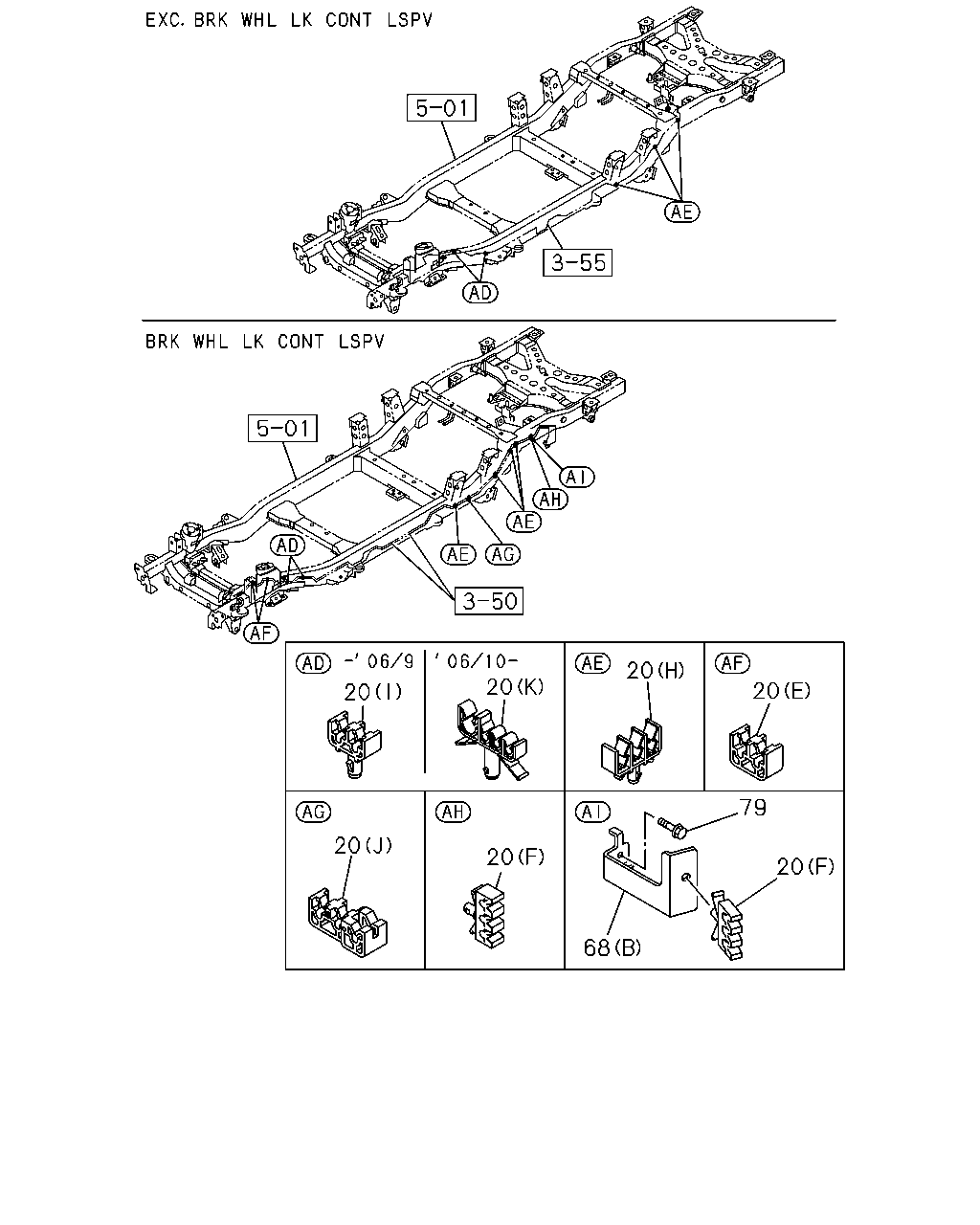

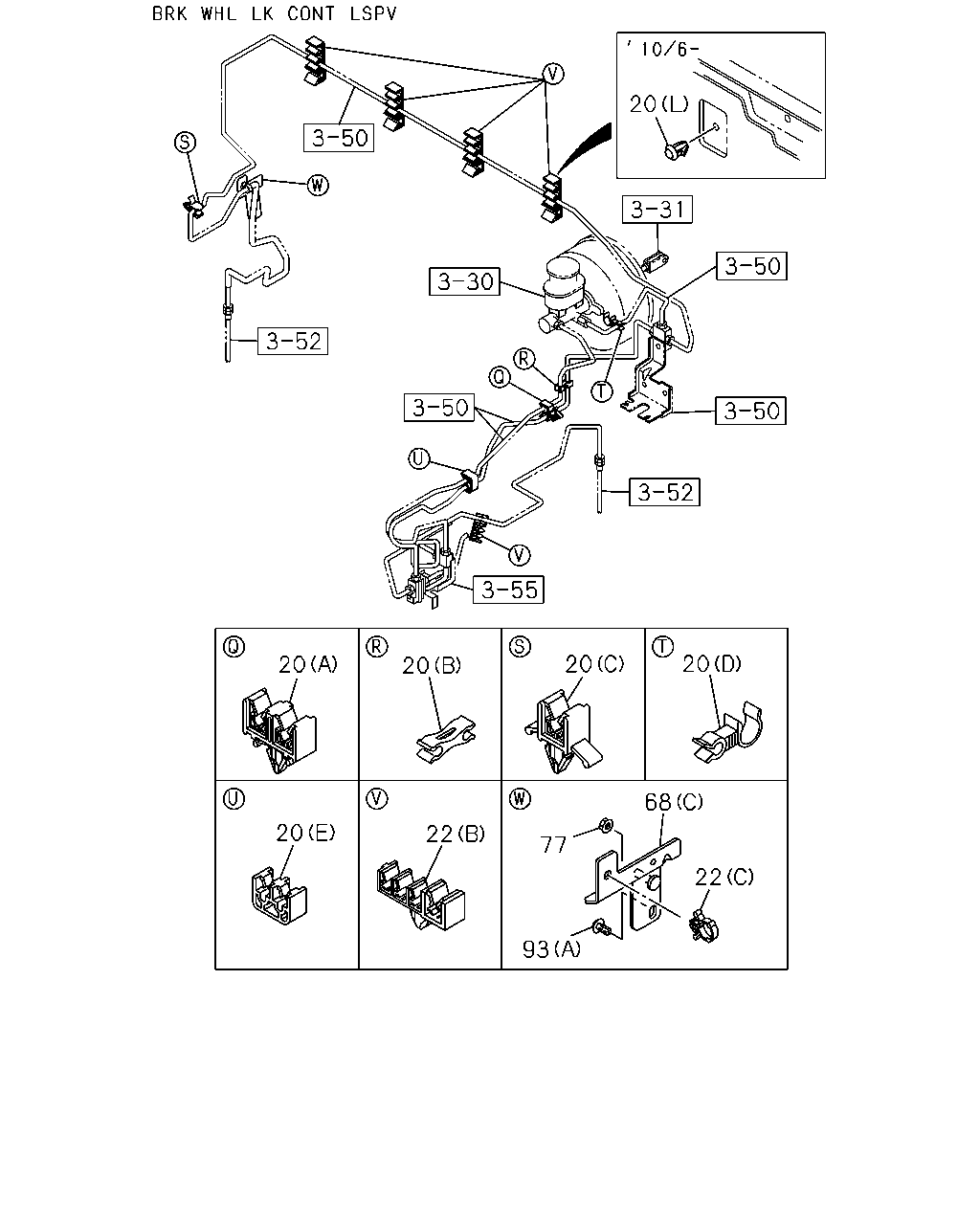

BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0509-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE

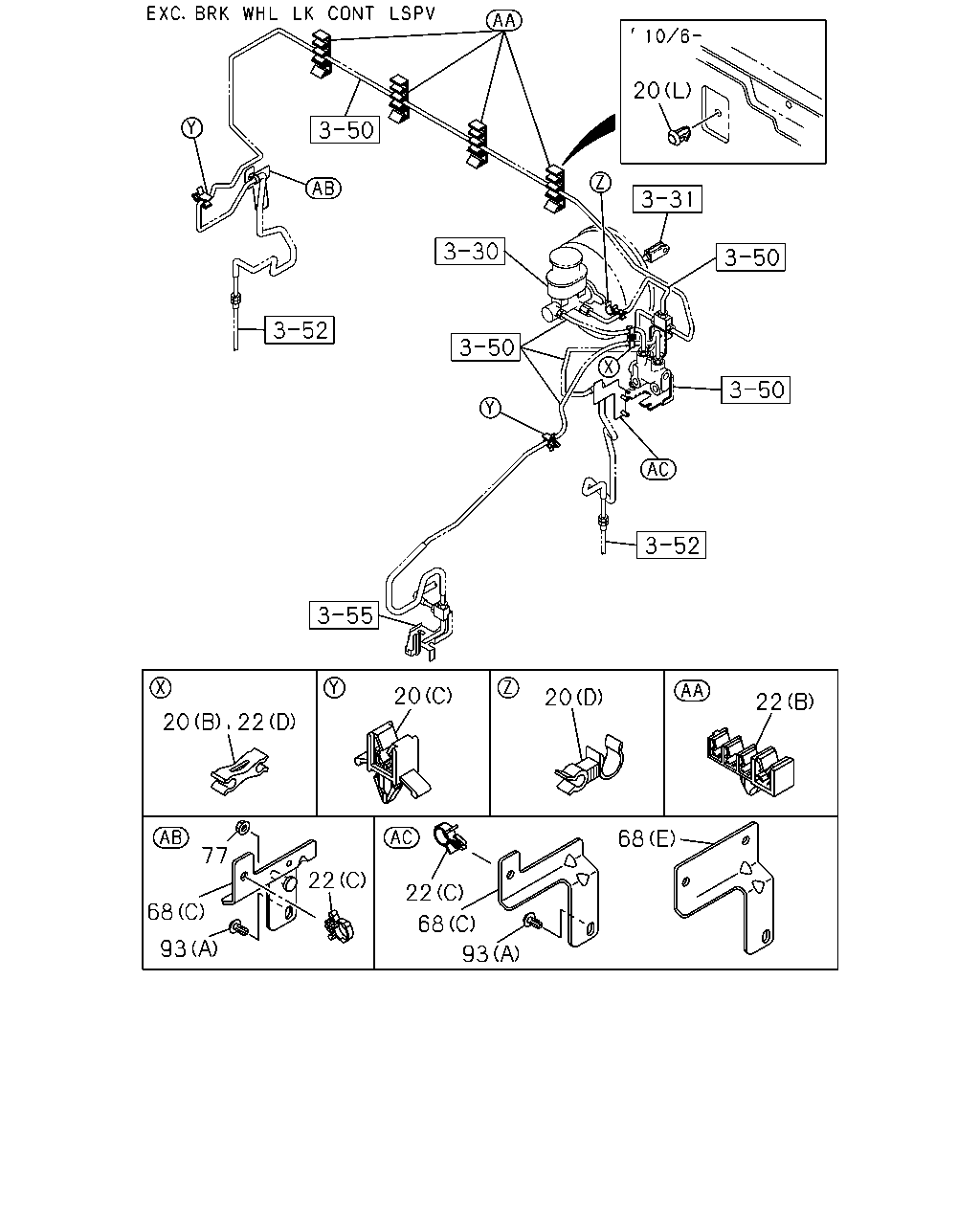

EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0610-0703 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0704- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0711- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (D) ID=4.6X2 		8-94241-454-0 01 1 1011- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0411- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0411-1005 ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-97357-947-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 0610-1007 ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) (C) 		8-97944-661-0 01 1 0610-1007 ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<JR9> (C) 		8-97357-948-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98034-935-0 01 1 0610- ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0610- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HEATER & DEFROSTER(C42) (D) 		8-98006-970-0 01 1 0610- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
16.800 (A) OD=18 		8-94269-290-0 01 1 0306-0609 ● ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0306-0410 ● ● ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0411- ● ● ● ● ● ●
çizim 153181
20 20 20 22 68 77 22 22 68 68 93 93 20 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0411-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (K) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0509-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0610-0703 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0704- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0711- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (D) ID=4.6X2 		8-94241-454-0 01 1 1011- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0411- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0411-1005 ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-97357-947-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 0610-1007 ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) (C) 		8-97944-661-0 01 1 0610-1007 ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<JR9> (C) 		8-97357-948-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98034-935-0 01 1 0610- ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0610- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HEATER & DEFROSTER(C42) (D) 		8-98006-970-0 01 1 0610- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
16.800 (A) OD=18 		8-94269-290-0 01 1 0306-0609 ● ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0306-0410 ● ● ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0411- ● ● ● ● ● ●
çizim 153185
20 20 20 20 20 68 20 22 77 22 93
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0411-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (K) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0509-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0610-0703 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0704- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0711- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (D) ID=4.6X2 		8-94241-454-0 01 1 1011- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0411- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0411-1005 ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-97357-947-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 0610-1007 ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) (C) 		8-97944-661-0 01 1 0610-1007 ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<JR9> (C) 		8-97357-948-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98034-935-0 01 1 0610- ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0610- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HEATER & DEFROSTER(C42) (D) 		8-98006-970-0 01 1 0610- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
16.800 (A) OD=18 		8-94269-290-0 01 1 0306-0609 ● ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0306-0410 ● ● ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0411- ● ● ● ● ● ●
çizim 153207
20 20 20 20 79 20 20 20 68
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0411-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (K) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0509-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0610-0703 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0704- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0711- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-97357-947-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 0610-1007 ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) (C) 		8-97944-661-0 01 1 0610-1007 ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<JR9> (C) 		8-97357-948-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98034-935-0 01 1 0610- ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0610- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HEATER & DEFROSTER(C42) (D) 		8-98006-970-0 01 1 0610- ● ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306-0410 ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0411- ● ● ● ● ● ●
çizim 153387
20 20 20 20 20 20 20 20 20 20 79 22 22 20 68 22 77 93 68 68 77 22 20 68 93 93
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 16.085 (L) 		8-97310-401-0 01 1 1006- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 0610-1007 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.685 (F) ID=4.76X3 		8-97216-721-1 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0306-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0610-0703 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0704-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0411-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
(C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
02.480 (D) ID=10.5 & 4.8 		8-97019-966-0 01 1 0411-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
(I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) (I) ID=6.8X2 		8-97251-124-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) (K) ID=8.7 & 7.1X3 		8-98043-266-0 02 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 04 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0509-0609 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 01 1 0610- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 0610-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 03.162 (J) ID=8.4 & 6.8X2 		8-97251-127-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0610-0710 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. BRK WHL LK CONT LSPV<JR9> 03.162 (H) ID=10 & 6.8X2 OR 8.4X3 		8-97249-906-1 03 1 0711- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
06.008 (A) ID=4.76X2 		8-97249-905-0 01 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0411-0508 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (G) ID=4.8 		8-97300-405-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.76 		8-97300-443-0 02 1 0610-0703 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) ID=4.76 		8-97300-443-0 02 1 0704- ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0411-0412 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0501-0508 ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
04.868 (B) ID=4.6X2 		8-94241-454-0 01 1 0711- ● ● ● ● ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0306-0410 ● ●
20 04.686 CLIP; BRK PIPE
BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0411-0508 ● ● ●
20 04.686 CLIP; BRK PIPE
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ● ●
20 04.686 CLIP; BRK PIPE
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0509-0609 ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0610-0710 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 0711-1007 ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
20 04.686 CLIP; BRK PIPE
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (E) ID=6.8X2 		8-97251-122-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.868 (D) ID=4.6X2 		8-94241-454-0 01 1 1011- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 01 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 01 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0306-0609 ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9> 16.065 (C) ID=9 		5-09707-027-0 02 1 0610-1007 ●
22 04.686 CLIP; PIPE TO FRAME
EXC. BRK WHL LK CONT LSPV<JR9>,HIGH RIDE SUSPENSION(7YC) 16.065 (C) ID=9 		5-09707-027-0 02 1 1008- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=10 & 4.76X3 		8-97249-904-0 04 1 0411- ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0306-0410 ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 04 1 0411-1005 ● ● ● ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
22 04.686 CLIP; PIPE TO FRAME
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3 		8-97201-752-0 03 1 1006- ● ● ●
68 04.686 BRACKET; CLIP
(C) 		8-97357-947-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 0610-1007 ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) (C) 		8-97944-661-0 01 1 0610-1007 ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-661-0 01 1 1008- ● ● ●
68 04.686 BRACKET; CLIP
EXC. BRK WHL LK CONT LSPV<JR9> (C) 		8-97357-948-0 01 1 0306-0609 ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98034-935-0 01 1 0610- ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97259-809-0 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
BRK WHL LK CONT LSPV<JR9> (B) 		8-97944-655-0 01 1 0610- ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0306-0410 ● ● ● ● ●
68 04.686 BRACKET; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97236-433-4 01 1 0411-0609 ● ● ● ● ● ●
68 04.686 BRACKET; CLIP
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> HEATER & DEFROSTER(C42) (D) 		8-98006-970-0 01 1 0610- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0306-0410 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
01.062 M6 FLANGE 		0-91180-106-0 01 1 0411-0609 ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) 01.062 M6 FLANGE 		0-91180-106-0 01 1 0610-1007 ●
77 04.686 NUT; BRKT,OIL PIPE
4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ● ● ● ●
77 04.686 NUT; BRKT,OIL PIPE
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1008- ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0306-0410 ● ● ● ● ●
79 04.686 BOLT; CLIP,OIL PIPE
BRK WHL LK CONT LSPV<JR9> 02.343 M6X16 FLANGE 		0-28650-616-0 01 1 0411- ● ● ● ● ● ●
93 04.686 CLIP; BRKT
16.800 (A) OD=18 		8-94269-290-0 01 1 0306-0609 ● ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ● ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) 16.800 (A) OD=18 		8-94269-290-0 01 1 0610-1007 ●
93 04.686 CLIP; BRKT
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 16.800 (A) OD=18 		8-94269-290-0 01 1 1008- ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0306-0410 ● ● ● ● ●
93 04.686 CLIP; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 08.820 (B) OD=25 		8-94279-810-0 01 1 0411- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
