◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#74165) — 53 parça

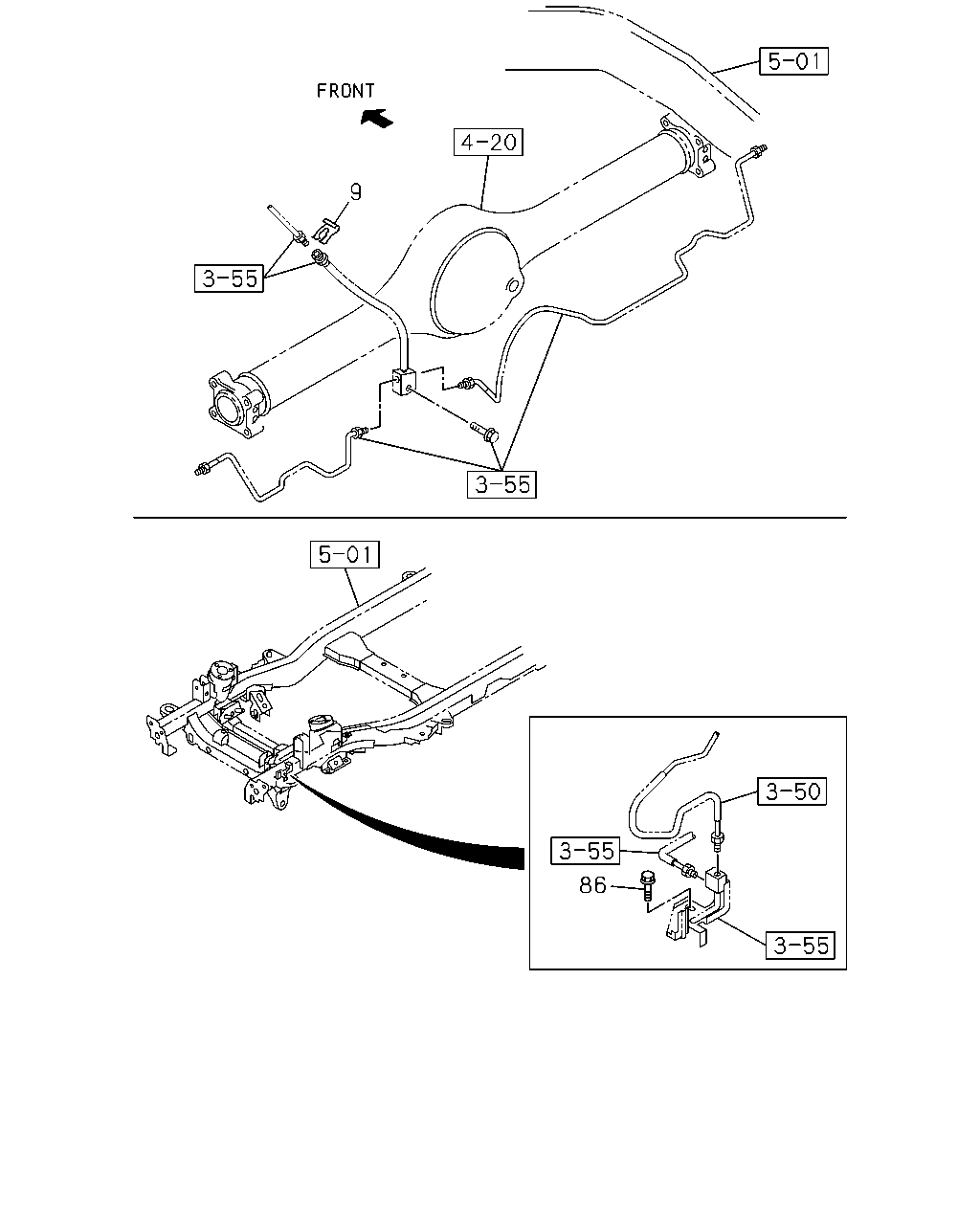

çizim 153165
9 86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 03 1 0306-0410 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 03 1 0411-0609 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0610- ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0306-0410 ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0411-0508 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0509- ● ● ● ● ● ●

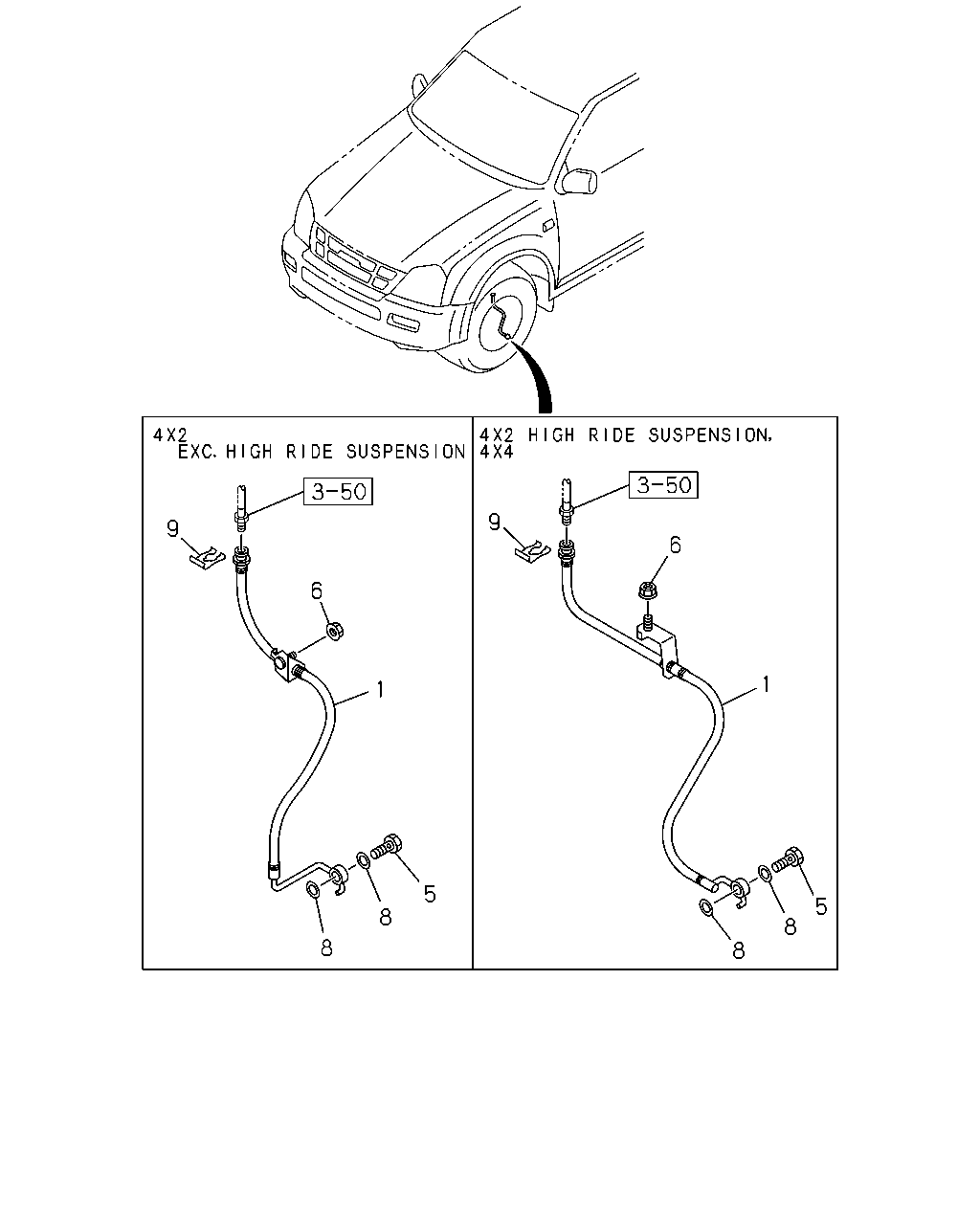

çizim 153171
9 9 6 6 1 1 5 5 8 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.680 HOSE; FLEX,FRT BRK 8-97289-210-2 01 1 0306-0307 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97363-804-0 01 1 0308-0609 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-257-0 01 1 0610-0806 ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JK1-TCX ENG(LR0) 		8-98008-257-0 01 1 0610-0806 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-257-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98008-257-0 01 1 0807-0808 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 0809-1007 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-041-0 01 1 0809-1007 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-041-0 01 1 1008- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97289-209-2 01 1 0306-0609 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JK1-TCX ENG(LR0) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-256-0 01 1 0610-0806 ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JK1-TCX ENG(LR0) 		8-98008-256-0 01 1 0610-0806 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-256-0 01 1 0807-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98008-256-0 01 1 0807-0808 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 0809-1007 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-040-0 01 1 0809-1007 ●
1 04.680 HOSE; FLEX,FRT BRK
EXC. HIGH RIDE SUSPENSION(7YC) 		8-98122-040-0 01 1 1008- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97330-455-0 01 1 0306-0307 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97363-805-0 01 1 0308-0410 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97363-805-0 01 1 0411-0609 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98006-707-0 01 1 0610-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98006-707-0 01 1 0610-0808 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-043-0 01 1 0809-1007 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-043-0 01 1 0809-1007 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-043-0 01 1 1008- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-043-0 01 1 1008- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97330-454-0 01 1 0306-0410 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97330-454-0 01 1 0411-0609 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98006-706-0 01 1 0610-0808 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98006-706-0 01 1 0610-0808 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-042-0 01 1 0809-1007 ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-042-0 01 1 0809-1007 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
HIGH RIDE SUSPENSION(7YC) 		8-98122-042-0 01 1 1008- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-98122-042-0 01 1 1008- ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 0306-0410 ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 0411-0609 ● ● ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97359-818-0 02 1 0610- ● ● ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0306-0410 ● ● ● ● ●
6 04.686 NUT; FLEX HOSE,FRT BRK
01.062 M8 FLANGE 		0-91180-108-0 02 1 0411- ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0306-0410 ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 0411- ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 03 1 0306-0410 ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 03 1 0411-0609 ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 03 1 0610- ● ● ● ● ● ●

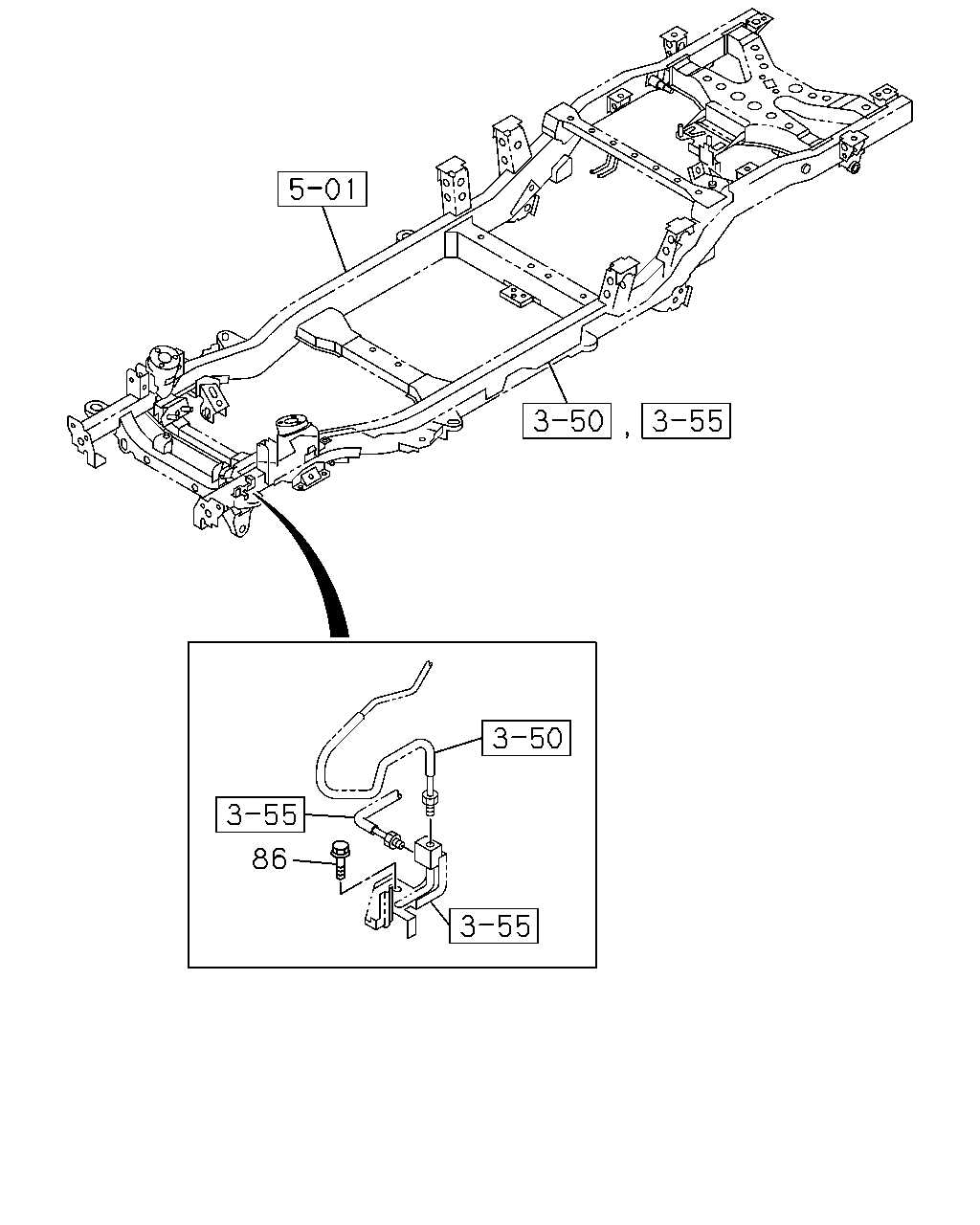

çizim 153202
86
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0306-0410 ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0411-0508 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0509- ● ● ● ● ● ●
