◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#74164) — 740 parça

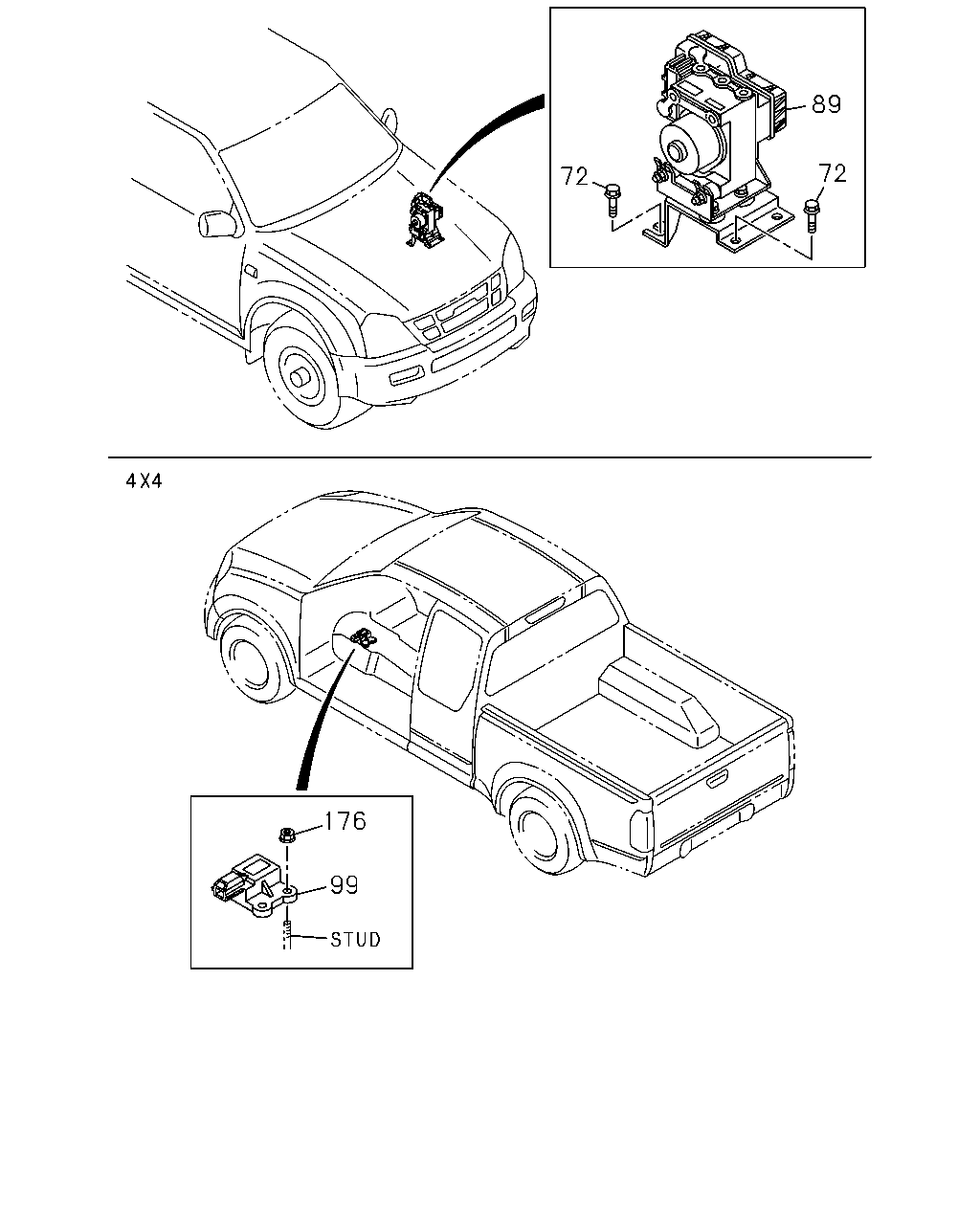

çizim 153156
89 72 72 176 99
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0306-0410 ● ● ● ● ●
72 04.686 BOLT; BRKT TO BODY
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 03 1 0411- ● ● ● ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97329-787-0 01 1 0306-0505 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-194-0 01 1 0506-0609 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-783-0 01 1 0610-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0306-0410 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0411-0502 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97379-144-0 01 1 0503-0508 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-195-0 01 1 0509-0609 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 0610-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 1008- ● ● ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97262-548-0 01 1 0306-0410 ● ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97262-548-0 01 1 0411-0609 ● ● ●
99 04.710 SENSOR; DECELERATION
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98013-796-0 01 1 0610- ● ● ●
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M6 FLANGE 		0-91180-206-0 02 1 0306-0410 ● ●
176 04.730 NUT; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M6 FLANGE 		0-91180-206-0 02 1 0411- ● ● ●

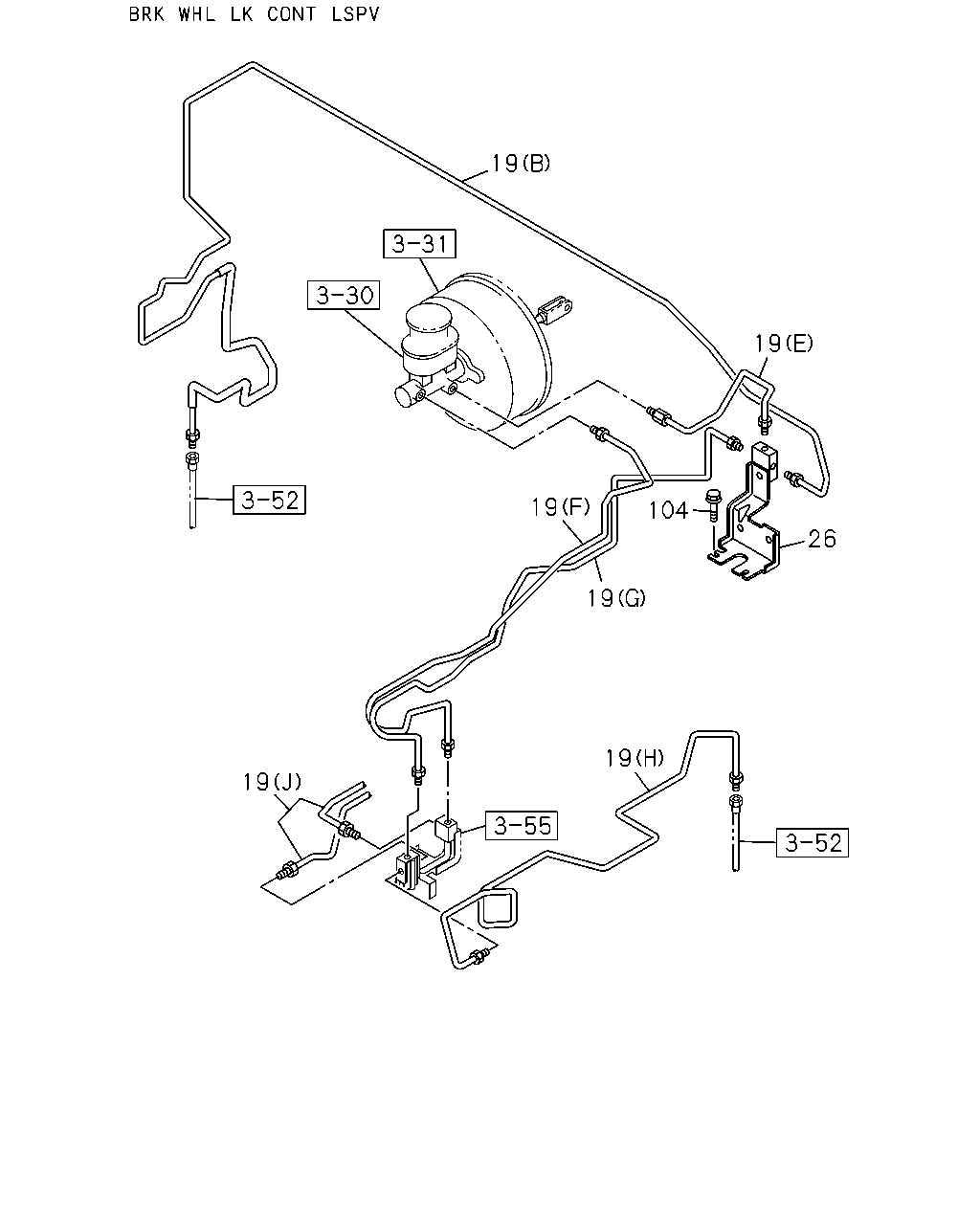

çizim 153161
19 19 19 104 26 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-063-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-604-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-327-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-672-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-531-3 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-765-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-584-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-767-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-582-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-696-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.686 (D) 		8-97315-599-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-687-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-98177-863-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97359-777-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-742-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98177-862-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (F) 		8-97944-776-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-777-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-771-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97944-785-2 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-757-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-665-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97944-782-0 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97324-957-0 01 1 0306-0410 ● ● ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97324-957-0 01 1 0411-0609 ● ● ● ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-123-0 01 1 0610- ● ● ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0306-0410 ● ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0411- ● ● ● ● ● ●

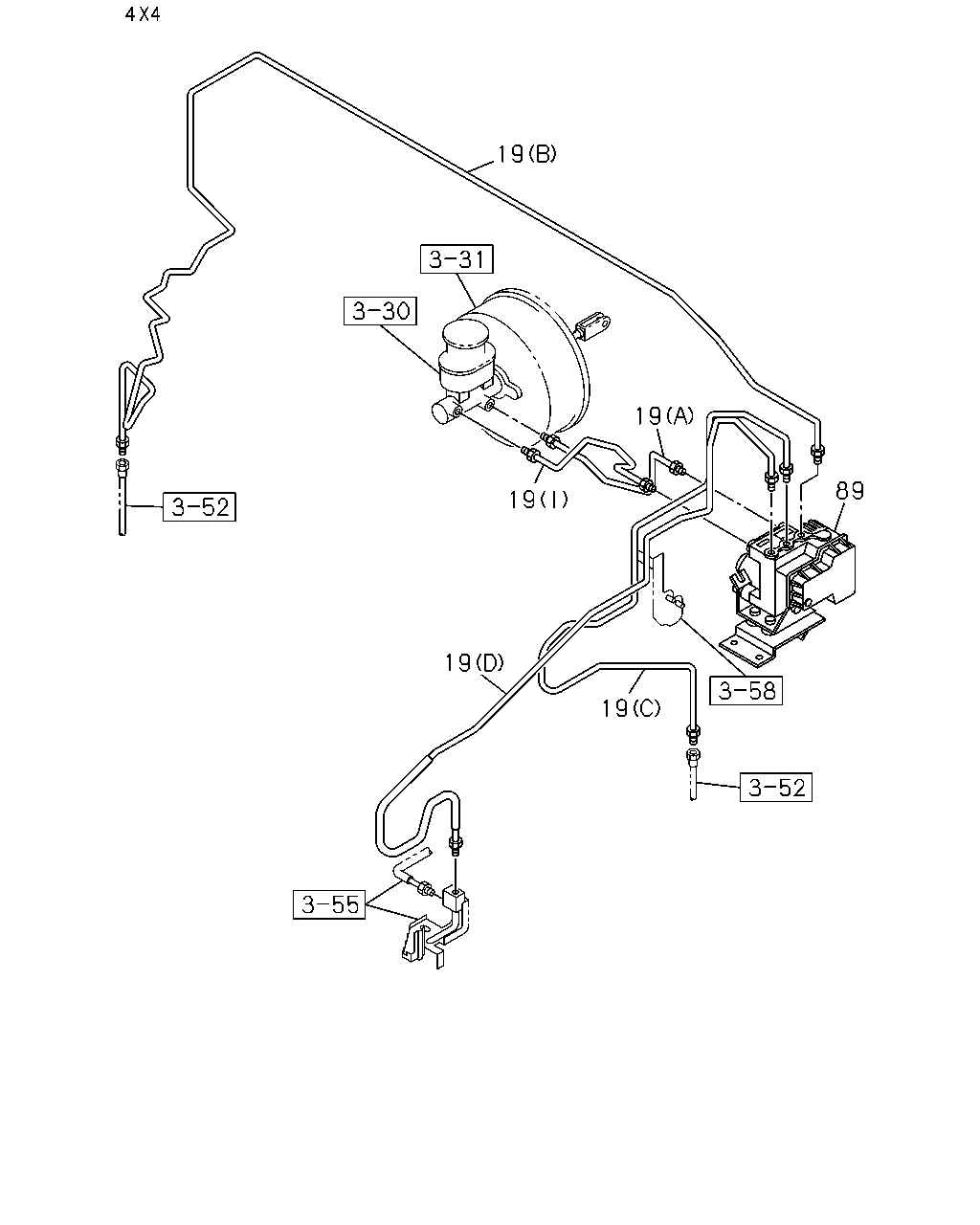

çizim 153163
19 19 89 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-063-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-604-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-327-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-672-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-531-3 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-765-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-584-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-767-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-582-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-696-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.686 (D) 		8-97315-599-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-687-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-98177-863-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97359-777-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-742-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98177-862-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (F) 		8-97944-776-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-777-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-771-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97944-785-2 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-757-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-665-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97944-782-0 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97329-787-0 01 1 0306-0505 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-194-0 01 1 0506-0609 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-783-0 01 1 0610-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0306-0410 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0411-0502 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97379-144-0 01 1 0503-0508 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-195-0 01 1 0509-0609 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 0610-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 1008- ● ● ●

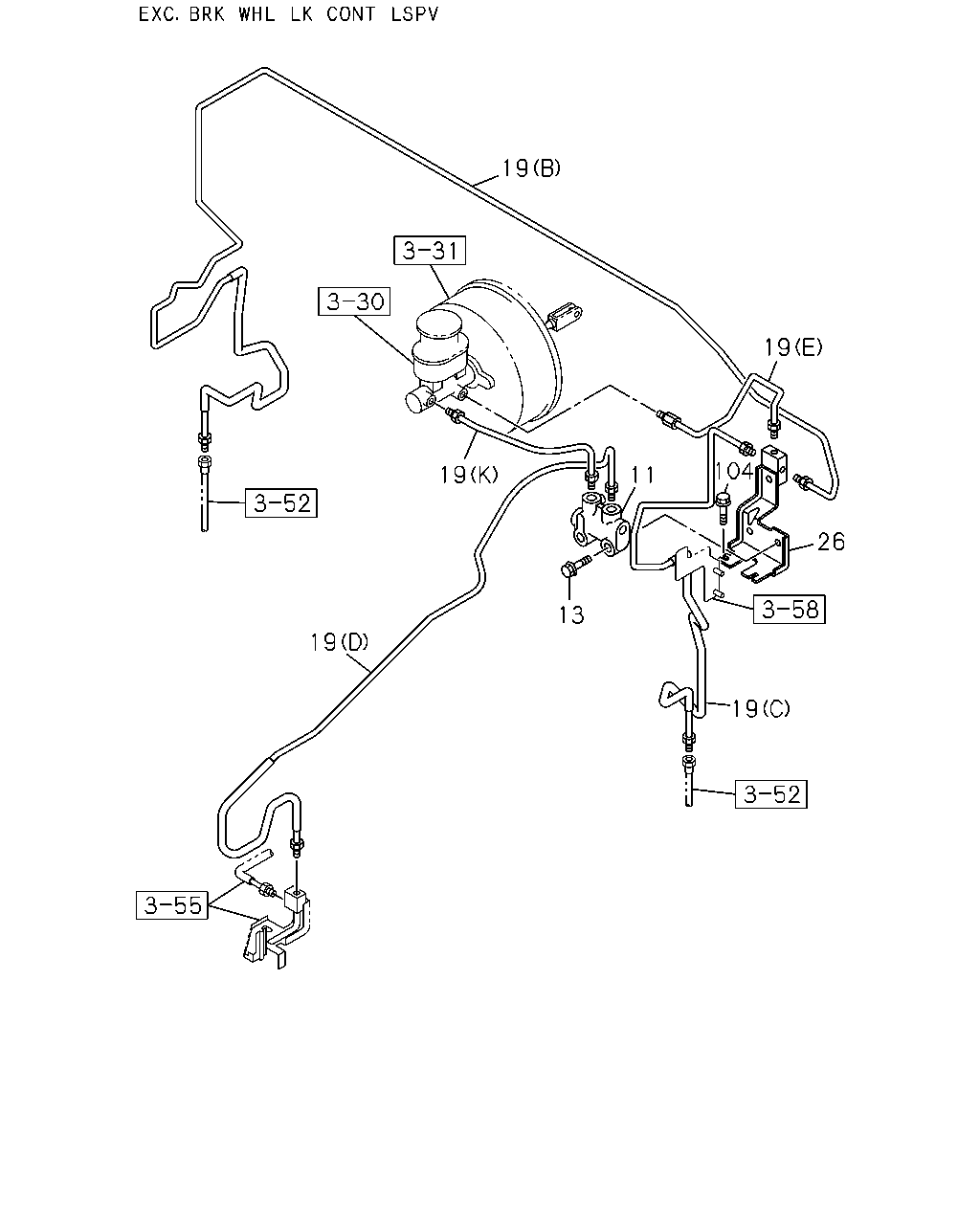

çizim 153169
19 19 104 19 11 26 13 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97235-339-2 01 1 0306-0609 ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0306-0410 ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0411-0609 ● ● ●
11 04.686 VALVE; BRK CONT
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0610-0806 ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0610-0806 ● ● ●
11 04.686 VALVE; BRK CONT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 		8-97333-079-0 01 1 0807- ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 0306-0410 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> M8X45 FLANGE 		0-29260-845-0 02 1 0411- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-063-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-604-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-327-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-672-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-531-3 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-765-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-584-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-767-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-582-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-696-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.686 (D) 		8-97315-599-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-687-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-98177-863-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97359-777-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-742-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98177-862-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (F) 		8-97944-776-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-777-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-771-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97944-785-2 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-757-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-665-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97944-782-0 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97324-957-0 01 1 0306-0410 ● ● ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97324-957-0 01 1 0411-0609 ● ● ● ● ● ●
26 04.730 BRACKET; PROPORTIONING VLV
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-123-0 01 1 0610- ● ● ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0306-0410 ● ● ● ● ●
104 04.730 BOLT; BRKT TO BODY
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0411- ● ● ● ● ● ●

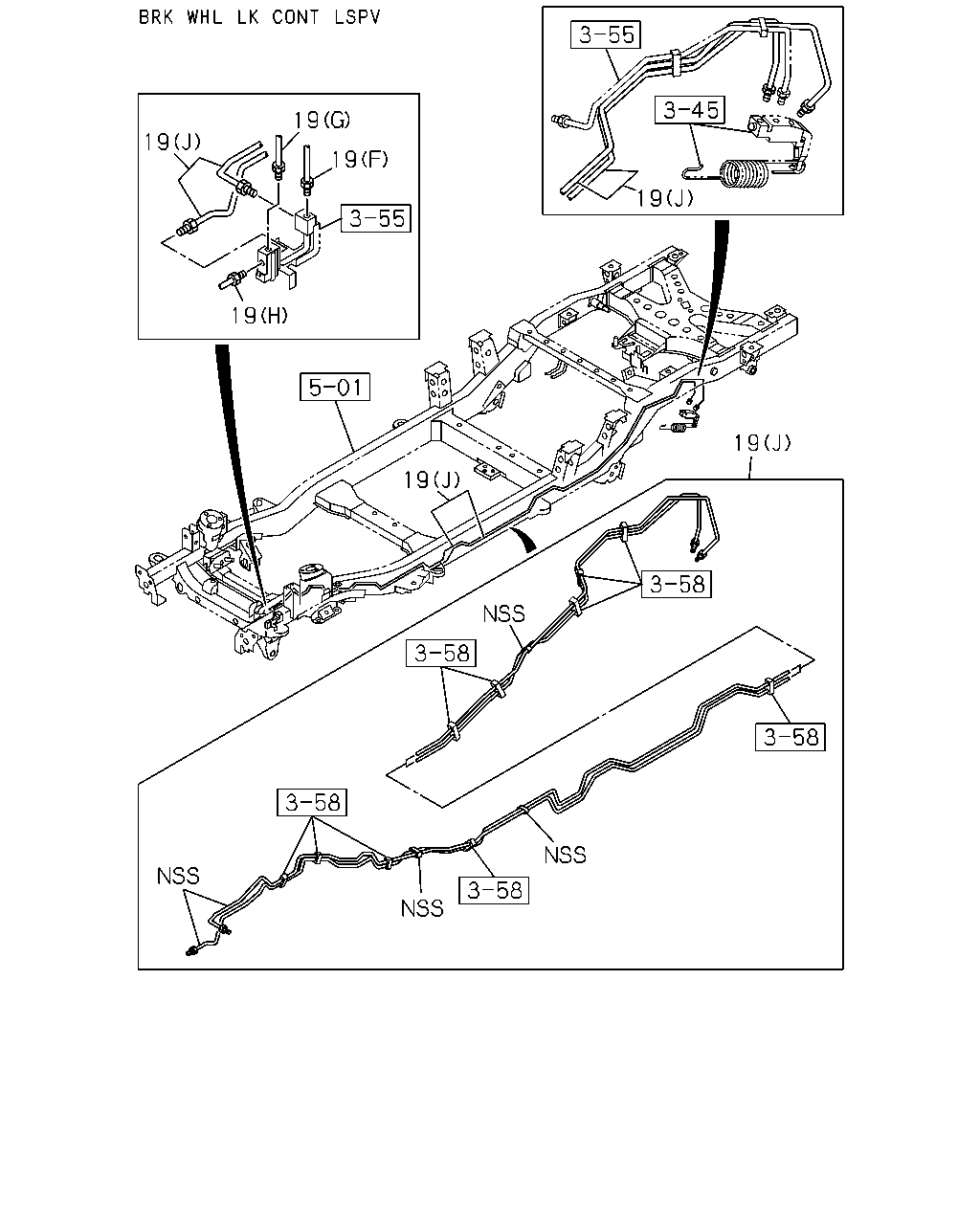

çizim 153197
19 19 19 19 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-063-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-604-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-327-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-672-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-531-3 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-765-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-584-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-767-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-582-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-696-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.686 (D) 		8-97315-599-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-687-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-98177-863-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97359-777-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-742-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98177-862-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (F) 		8-97944-776-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-777-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-771-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97944-785-2 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-757-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-665-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97944-782-0 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
çizim 153201
19 19 89 19 19 19
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-063-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-604-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-604-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-327-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-672-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-672-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97355-531-3 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-765-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-765-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-584-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-767-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-767-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97355-582-4 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-696-1 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-696-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> 04.686 (D) 		8-97315-599-2 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-687-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-97944-687-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (C) 		8-98177-863-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97359-777-0 01 1 0306-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 0610-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-742-0 01 1 0610-1007 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-97944-742-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9>,HIGH RIDE SUSP ENSION(7YC) (D) 		8-98177-862-0 01 1 1011- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (F) 		8-97315-585-1 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (F) 		8-97944-776-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (G) 		8-97363-995-0 01 1 0509-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (G) 		8-97944-777-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97315-587-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97944-771-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97315-588-3 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (I) 		8-97944-785-2 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0411-0508 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97332-910-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (D) 		8-97944-757-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97315-584-1 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) 		8-97944-665-1 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0306-0410 ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97315-596-2 01 1 0411-0609 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (K) 		8-97944-782-0 01 1 0610- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (J) 		8-97250-065-2 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (J) 		8-98043-606-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) BRK WHL LK CONT LSPV<JR9> (H) 		8-97215-335-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) BRK WHL LK CONT LSPV<JR9> (H) 		8-97944-677-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97324-509-0 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-769-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97321-284-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		8-97944-758-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97315-591-3 01 1 0411-0609 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97944-698-1 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97315-593-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97944-631-0 01 1 1008- ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0306-0410 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0411-0508 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (D) 		8-97315-600-1 01 1 0509-0609 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0610-0710 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 0711-1007 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0) HIGH RIDE SUSPENSION(7YC) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, BRKWHL LK CONT LSPV<JR9> (C) 		8-97944-680-0 01 1 1008-1010 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97329-787-0 01 1 0306-0505 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-194-0 01 1 0506-0609 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-783-0 01 1 0610-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-98008-783-0 01 1 1008- ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0306-0410 ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-969-0 01 1 0411-0502 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97379-144-0 01 1 0503-0508 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98004-195-0 01 1 0509-0609 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 0610-1007 ● ● ●
89 04.730 HYDRAULIC UNIT; ANTI LOCK BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98008-784-0 01 1 1008- ● ● ●
çizim 153204
129 129 184 96 184
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97362-459-0 01 1 0306-0609 ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-991-1 01 1 0610-1007 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-991-1 01 1 0610-1007 ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-991-1 01 1 1008- ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97362-460-0 01 1 0306-0410 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97362-460-0 01 1 0411-0609 ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-992-1 01 1 0610-1007 ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-992-1 01 1 0610-1007 ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-992-1 01 1 1008- ● ● ●
96 04.710 SENSOR; SPD,RR WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-992-1 01 1 1008- ● ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0306-0410 ● ● ● ● ●
129 04.710 BOLT; BRKT
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M6X16 FLANGE 		0-28650-616-0 02 1 0411- ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0306-0410 ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0306-0410 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0411-0609 ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0411-0609 ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610-1007 ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610-1007 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610-1007 ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1008- ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1008- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1008- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0410 ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0411- ● ● ● ● ● ●
çizim 153413
95 116 184 107 250 95 184 184 107
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-103-2 01 1 0306-0609 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-987-1 01 1 0610-1007 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-987-1 01 1 0610-1007 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-987-1 01 1 1008- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-255-2 01 1 0306-0609 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-988-1 01 1 0610-1007 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-988-1 01 1 0610-1007 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 		8-97387-988-1 01 1 1008- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-106-2 01 1 0306-0410 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-106-2 01 1 0411-0609 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-990-1 01 1 0610-1007 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-990-1 01 1 0610-1007 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-990-1 01 1 1008- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-990-1 01 1 1008- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-104-2 01 1 0306-0410 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-104-2 01 1 0411-0508 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-104-2 01 1 0509-0609 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97236-104-2 01 1 0509-0609 ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-989-1 01 1 0610-1007 ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-989-1 01 1 0610-1007 ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 		8-97387-989-1 01 1 1008- ● ● ●
95 04.710 SENSOR; SPD,FRT WHEEL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97387-989-1 01 1 1008- ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0306-0410 ● ● ● ● ●
107 04.710 BOLT; WHEEL SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 M6X10 FLANGE 		0-28050-610-0 02 1 0411- ● ● ● ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0306-0609 ● ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ● ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> 01.540 M8 FLANGE 		0-91180-208-0 02 1 0610-1007 ●
116 04.686 NUT
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. HIGH RIDE SUSPENSION(7YC) 01.540 M8 FLANGE 		0-91180-208-0 02 1 1008- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0306-0410 ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0306-0410 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0411-0609 ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0411-0609 ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610-1007 ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610-1007 ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 0610-1007 ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1008- ● ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1008- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 03.671 (B) M6X10 FLANGE 		0-28050-610-0 02 1 1008- ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0306-0410 ● ● ● ● ●
184 04.681 BOLT; CLIP
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 (A) M6X16 FLANGE 		0-28650-616-0 02 1 0411- ● ● ● ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 02 1 0306-0410 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 02 1 0411-0508 ● ● ●
250 04.685 FINISHER; HARNESS
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 02 1 0509-0609 ● ●
250 04.685 FINISHER; HARNESS
4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 02 1 0509-0609 ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80 		5-71997-133-0 01 1 0610-1007 ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 01 1 0610-1007 ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> HIGH RIDE SUSPENSION(7YC) 02.559 L=80 		5-71997-133-0 01 1 1008- ● ● ●
250 04.685 FINISHER; HARNESS
4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 L=80 		5-71997-133-0 01 1 1008- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
