3-21 — VACUUM TANK (#74160) — 40 parça

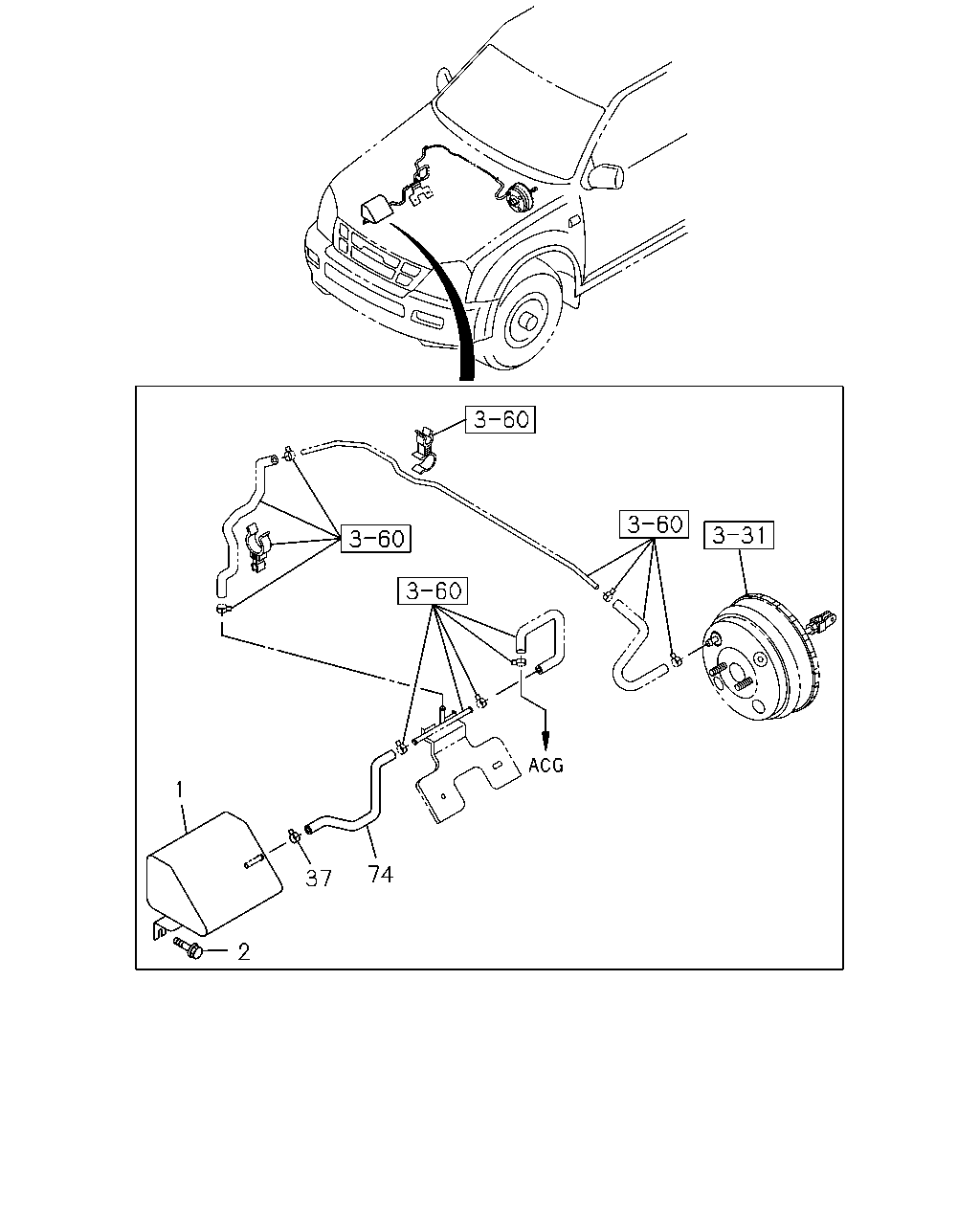

1 74 37 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.902 TANK; VAC,MAIN	8-97326-490-0	01	1	0306-0410	●	●	●
1	04.902 TANK; VAC,MAIN EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97326-490-0	01	1	0306-0410				●	●
1	04.902 TANK; VAC,MAIN	8-97326-490-0	01	1	0411-0508	●	●	●
1	04.902 TANK; VAC,MAIN EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97326-490-0	01	1	0411-0508				●	●	●
1	04.902 TANK; VAC,MAIN 4JA1-TC ENG(L4Z)	8-97326-490-0	01	1	0509-0609	●	●	●
1	04.902 TANK; VAC,MAIN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97326-490-0	01	1	0509-0609				●	●
1	04.902 TANK; VAC,MAIN 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9)	8-97326-490-0	01	1	0509-0609						●
1	04.902 TANK; VAC,MAIN BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97363-796-0	01	1	0306-0410				●	●
1	04.902 TANK; VAC,MAIN BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97363-796-0	01	1	0411-0508				●	●	●
1	04.902 TANK; VAC,MAIN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97363-796-0	01	1	0509-0609				●	●
1	04.902 TANK; VAC,MAIN 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9)	8-97363-796-0	01	1	0509-0609						●
2	04.902 BOLT; VAC TANK 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0306-0410	●	●	●	●	●
2	04.902 BOLT; VAC TANK 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0411-0508	●	●	●	●	●	●
2	04.902 BOLT; VAC TANK 4JA1-TC ENG(L4Z) 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0509-0609	●	●	●
2	04.902 BOLT; VAC TANK 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0509-0609				●	●
2	04.902 BOLT; VAC TANK 4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0509-0609						●
37	04.902 CLIP; RUBBER HOSE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	01	1	0306-0410				●	●
37	04.902 CLIP; RUBBER HOSE BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	01	1	0411-0508				●	●	●
37	04.902 CLIP; RUBBER HOSE 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU) 04.681 ID=15.5	8-94367-944-0	01	1	0509-0609				●	●
37	04.902 CLIP; RUBBER HOSE 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9) 04.681 ID=15.5	8-94367-944-0	01	1	0509-0609						●
74	04.902 HOSE; VACUUM BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-986-0	01	1	0306-0410				●	●
74	04.902 HOSE; VACUUM BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-986-0	01	1	0411-0508				●	●	●
74	04.902 HOSE; VACUUM 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97332-986-0	01	1	0509-0609				●	●
74	04.902 HOSE; VACUUM 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9)	8-97332-986-0	01	1	0509-0609						●

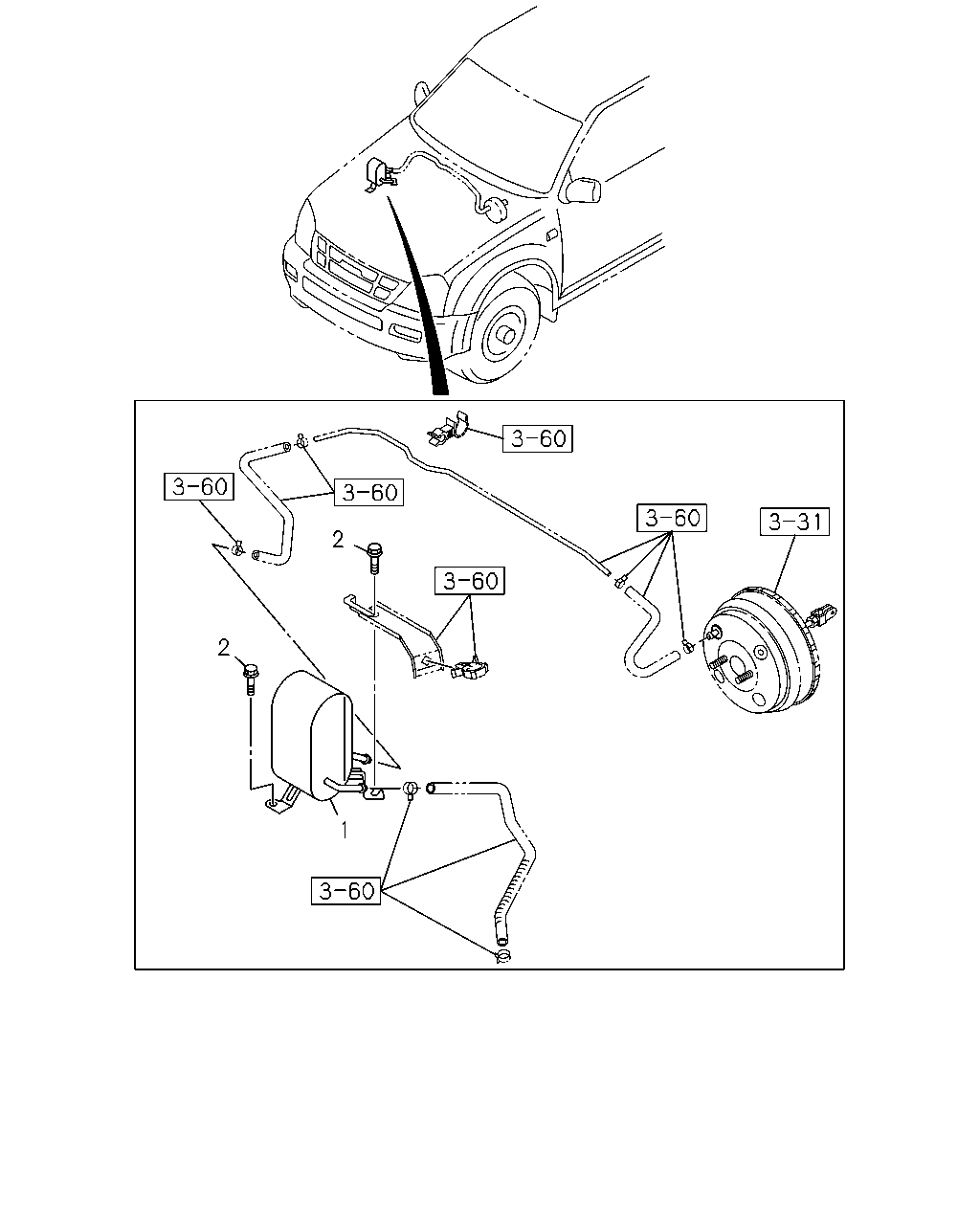

2 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	04.902 TANK; VAC,MAIN	8-97326-490-0	01	1	0306-0410	●	●	●
1	04.902 TANK; VAC,MAIN EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97326-490-0	01	1	0306-0410				●	●
1	04.902 TANK; VAC,MAIN	8-97326-490-0	01	1	0411-0508	●	●	●
1	04.902 TANK; VAC,MAIN EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97326-490-0	01	1	0411-0508				●	●	●
1	04.902 TANK; VAC,MAIN 4JA1-TC ENG(L4Z)	8-97326-490-0	01	1	0509-0609	●	●	●
1	04.902 TANK; VAC,MAIN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9), BATTERY80D26L-DUAL(8HU)	8-97326-490-0	01	1	0509-0609				●	●
1	04.902 TANK; VAC,MAIN 4JH1-TC ENG(RDM) EXC. BATTERY 75D26L-DUAL(TQ9)	8-97326-490-0	01	1	0509-0609						●
1	04.902 TANK; VAC,MAIN BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97363-796-0	01	1	0306-0410				●	●
1	04.902 TANK; VAC,MAIN BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97363-796-0	01	1	0411-0508				●	●	●
1	04.902 TANK; VAC,MAIN 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9),BATTERY 80D26L-DUAL(8HU)	8-97363-796-0	01	1	0509-0609				●	●
1	04.902 TANK; VAC,MAIN 4JH1-TC ENG(RDM) BATTERY 75D26L-DUAL(TQ9)	8-97363-796-0	01	1	0509-0609						●
2	04.902 BOLT; VAC TANK 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0306-0410	●	●	●	●	●
2	04.902 BOLT; VAC TANK 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0411-0508	●	●	●	●	●	●
2	04.902 BOLT; VAC TANK 4JA1-TC ENG(L4Z) 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0509-0609	●	●	●
2	04.902 BOLT; VAC TANK 4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0509-0609				●	●
2	04.902 BOLT; VAC TANK 4JH1-TC ENG(RDM) 02.334 M6X16 W/PL WASHER	8-97803-781-0	03	1	0509-0609						●
