3-10 — BRAKE PEDAL AND CONTROL (#74158) — 59 parça

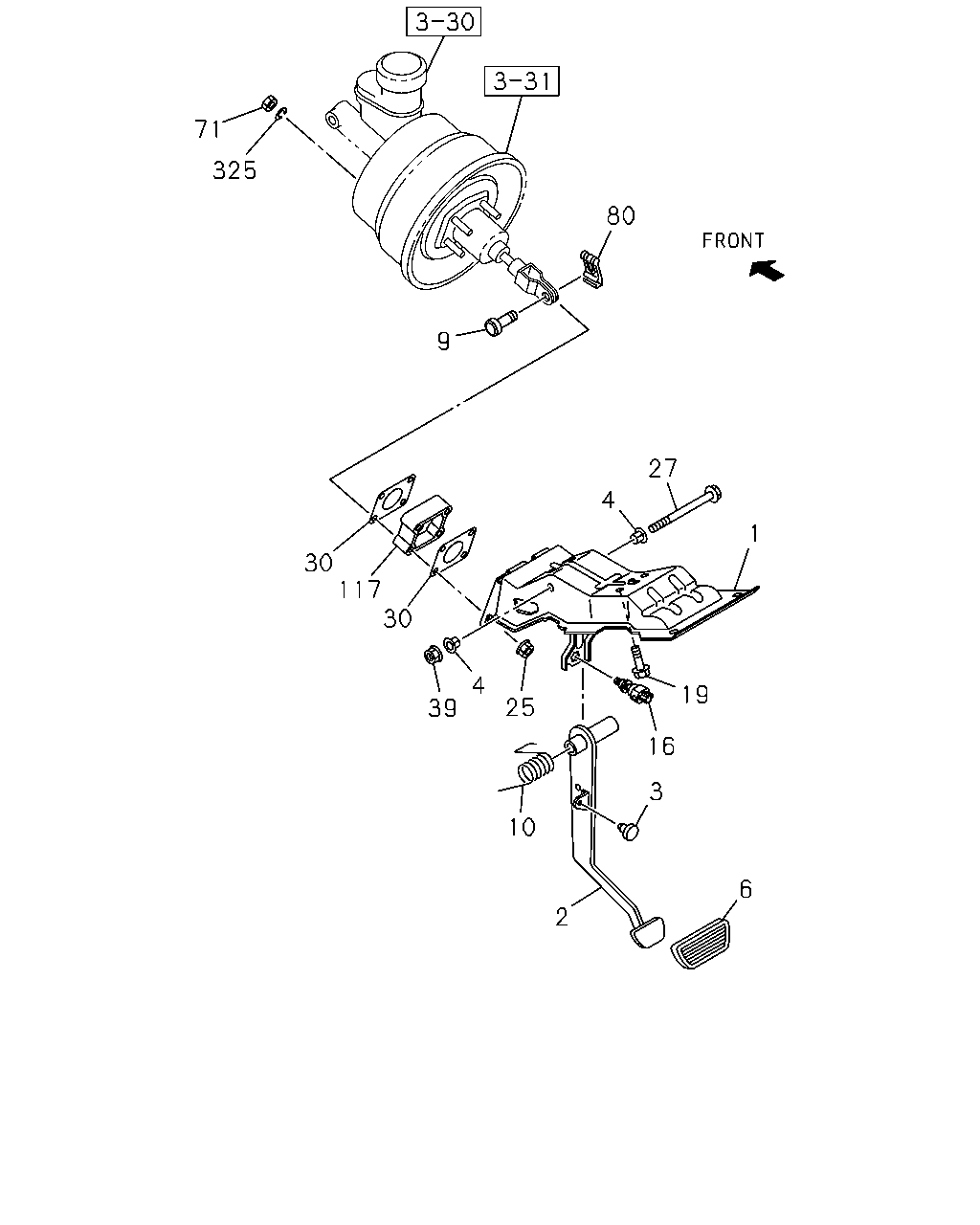

çizim 153203
71 325 80 9 27 4 1 30 117 30 4 19 25 39 16 3 10 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 04.634 BRACKET ASM; PEDAL 8-97358-793-0 01 1 0306-0410 ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-97358-793-0 01 1 0411-0609 ● ● ● ● ● ●
1 04.634 BRACKET ASM; PEDAL 8-98013-695-0 01 1 0610- ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED 5G(RSP) 		8-97354-044-0 01 1 0306-0410 ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MUA 5 SPEED 5G(RSP) 		8-97354-044-0 01 1 0411-0508 ● ● ● ● ● ●
2 04.625 PEDAL; BRK
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97354-044-0 01 1 0509-0609 ● ● ● ● ● ●
2 04.625 PEDAL; BRK
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97354-044-0 01 1 0610- ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T 4 SPEED-JATCO(RMK) 		8-97354-045-0 01 1 0306-0508 ● ●
2 04.625 PEDAL; BRK
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97354-045-0 01 1 0509-0609 ● ●
2 04.625 PEDAL; BRK
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-97354-045-0 01 1 0610- ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0306-0410 ● ● ● ● ●
3 04.634 STOPPER; BRK PEDAL 8-97302-035-0 01 1 0411- ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0306-0410 ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL 8-97301-688-0 02 1 0411-1007 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 0306-0410 ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 0411-0508 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) M/T MUA 5 SPEED 5G(RSP) 		8-97318-799-0 01 1 0509-0609 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 0610- ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0306-0508 ● ●
6 04.630 COVER; BRK PEDAL
4JA1-TC ENG(L4Z),4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK) 		8-97263-035-0 01 1 0509-0609 ● ●
6 04.630 COVER; BRK PEDAL
4JJ1-TCX ENG(LS0) A/T AISIN(RMD) 		8-97263-035-0 01 1 0610- ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0306-0410 ● ● ● ● ●
9 04.634 PIN; JAW JOINT 8-97311-602-0 01 1 0411- ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97333-917-0 01 1 0306-0410 ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97333-917-0 01 1 0411-0609 ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-97387-813-0 01 1 0610- ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97327-156-0 01 1 0306-0410 ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97327-156-0 01 1 0411-0609 ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97301-684-0 01 1 0610-0709 ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0610-0709 ● ● ●
16 02.447 SWITCH; STOP LAMP 8-97301-684-0 01 1 0710- ● ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. AUTO CRUISE CONT<K30> 		8-97301-684-0 01 1 0710- ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0610-0709 ● ● ●
16 02.447 SWITCH; STOP LAMP
AUTO CRUISE CONT<K30> 		8-97327-156-0 01 1 0710- ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0306-0410 ● ● ● ● ●
19 04.634 BOLT; BRKT
01.531 M8X20 FLANGE 		0-28650-820-0 02 1 0411- ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97943-102-0 04 1 0306-0410 ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97943-102-0 04 1 0411-0609 ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0610- ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0306-0410 ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-97304-171-0 01 1 0411- ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97301-539-0 02 1 0306-0410 ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97301-539-0 02 1 0411-0609 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY 8-97943-457-0 02 1 0610- ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
00.833 M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0306-0410 ● ● ● ● ●
39 04.634 NUT; STOPPER LK
00.833 M10 LOCK NUT FLANGE 		0-91303-610-0 01 1 0411-0609 ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
M10 LOCK NUT FLANGE 		0-91380-010-0 01 1 0610- ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-97301-537-0 02 1 0306-0410 ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-97301-537-0 02 1 0411-0501 ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
04.662 		8-97301-598-0 02 1 0502-0609 ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL 8-98031-675-0 02 1 0610- ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0306-0410 ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL 8-97311-594-0 01 1 0411-0609 ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
00.833 		8-98007-161-0 01 1 0610- ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-97354-052-0 01 1 0306-0410 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-97354-052-0 01 1 0411-0609 ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY 8-98008-069-0 01 1 0610- ● ● ● ● ● ●
325 04.634 WASHER; BRK M/CYL 8-97301-538-0 02 1 0306-0410 ● ● ● ● ●
325 04.634 WASHER; BRK M/CYL 8-97301-538-0 02 1 0411-0501 ● ● ● ● ● ●
