2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#74154) — 36 parça

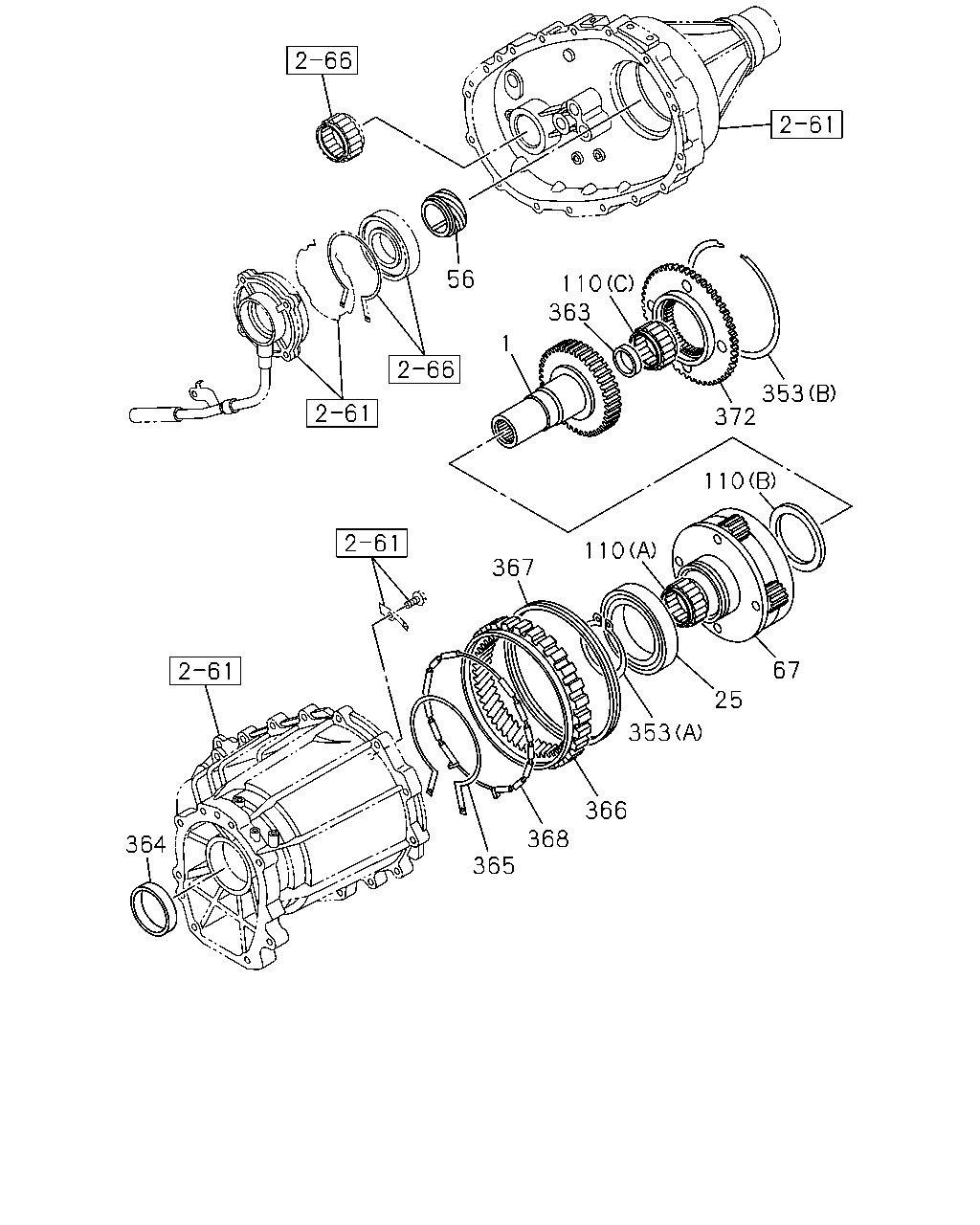

çizim 153146
56 110 363 1 353 372 110 110 367 67 25 353 366 364 368 365
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.162 SHAFT; GEAR,INPUT 8-97231-827-1 01 1 0306-0310 ● ●
1 04.162 SHAFT; GEAR,INPUT 8-97373-467-0 01 1 0311-0410 ● ●
1 04.162 SHAFT; GEAR,INPUT 8-97373-467-0 01 1 0411- ● ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
NSK 		8-97234-735-0 01 1 0306-0410 ● ●
25 04.164 BEARING; BALL,INPUT SHAFT
NSK 		8-97234-735-0 01 1 0411- ● ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
Z=6 		8-97238-581-0 01 1 0306-0410 ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
Z=6 		8-97238-581-0 01 1 0411-0609 ● ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD) Z=6 		8-97238-581-0 01 1 0610- ● ● ●
56 04.343 GEAR; SPD DRIVE,TRANSFER
M/T MUX 5 SPEED 5S(MZJ) Z=7 		8-98008-938-0 01 1 0610- ● ● ●
67 04.532 CARRIER; TRANSFER 8-97252-987-1 01 1 0306-0410 ● ●
67 04.532 CARRIER; TRANSFER 8-97252-987-1 01 1 0411-1001 ● ● ●
67 04.532 CARRIER; TRANSFER 8-98158-116-0 01 1 1002- ● ● ●
110 04.532 BEARING; NEEDLE
(A) 		8-97234-739-0 01 1 0306-0410 ● ●
110 04.532 BEARING; NEEDLE
(A) 		8-97234-739-0 01 1 0411- ● ● ●
110 04.532 BEARING; NEEDLE
(B) 		8-97234-741-0 01 1 0306-0410 ● ●
110 04.532 BEARING; NEEDLE
(B) 		8-97234-741-0 01 1 0411- ● ● ●
110 04.532 BEARING; NEEDLE
(C) 		8-97234-743-0 01 1 0306-0410 ● ●
110 04.532 BEARING; NEEDLE
(C) 		8-97234-743-0 01 1 0411- ● ● ●
353 04.545 RING; SNAP,CARRIER
(A) ID=65.5 		8-97305-403-0 01 1 0306-0410 ● ●
353 04.545 RING; SNAP,CARRIER
(A) ID=65.5 		8-97305-403-0 01 1 0411- ● ● ●
353 04.545 RING; SNAP,CARRIER
(B) ID=137 		8-97305-406-0 01 1 0306-0410 ● ●
353 04.545 RING; SNAP,CARRIER
(B) ID=137 		8-97305-406-0 01 1 0411- ● ● ●
363 04.545 CAP; SEAL,INPUT SHAFT 8-97238-725-0 01 1 0306-0410 ● ●
363 04.545 CAP; SEAL,INPUT SHAFT 8-97238-725-0 01 1 0411- ● ● ●
364 04.545 SEAL; OIL,COVER,INPUT
04.510 NOK 		8-97238-999-0 01 1 0306-0410 ● ●
364 04.545 SEAL; OIL,COVER,INPUT
04.510 NOK 		8-97238-999-0 01 1 0411- ● ● ●
365 04.545 RING; RETAINING,OUTER INPUT
ID=97 		8-97305-010-1 01 1 0306-0410 ● ●
365 04.545 RING; RETAINING,OUTER INPUT
ID=97 		8-97305-010-1 01 1 0411- ● ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
Z=27 		8-97231-831-2 01 1 0306-0410 ● ●
366 04.532 GEAR; INTERNAL,HIGH-LOW
Z=27 		8-97231-831-2 01 1 0411- ● ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 		8-97247-459-0 01 1 0306-0410 ● ●
367 04.545 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 		8-97247-459-0 01 1 0411- ● ● ●
368 04.545 RING; DAMPER,TRANSFER
ID=168.4 OD=178 		8-97320-914-0 01 1 0306-0410 ● ●
368 04.545 RING; DAMPER,TRANSFER
ID=168.4 OD=178 		8-97320-914-0 01 1 0411- ● ● ●
372 04.162 TEETH; DOG,PLANETARY
01.462 Z=56 		8-97358-244-0 01 1 0306-0410 ● ●
372 04.162 TEETH; DOG,PLANETARY
01.462 Z=56 		8-97358-244-0 01 1 0411- ● ● ●
