2-61 — TRANSFER CASE AND GEAR SHIFTER (#74152) — 57 parça

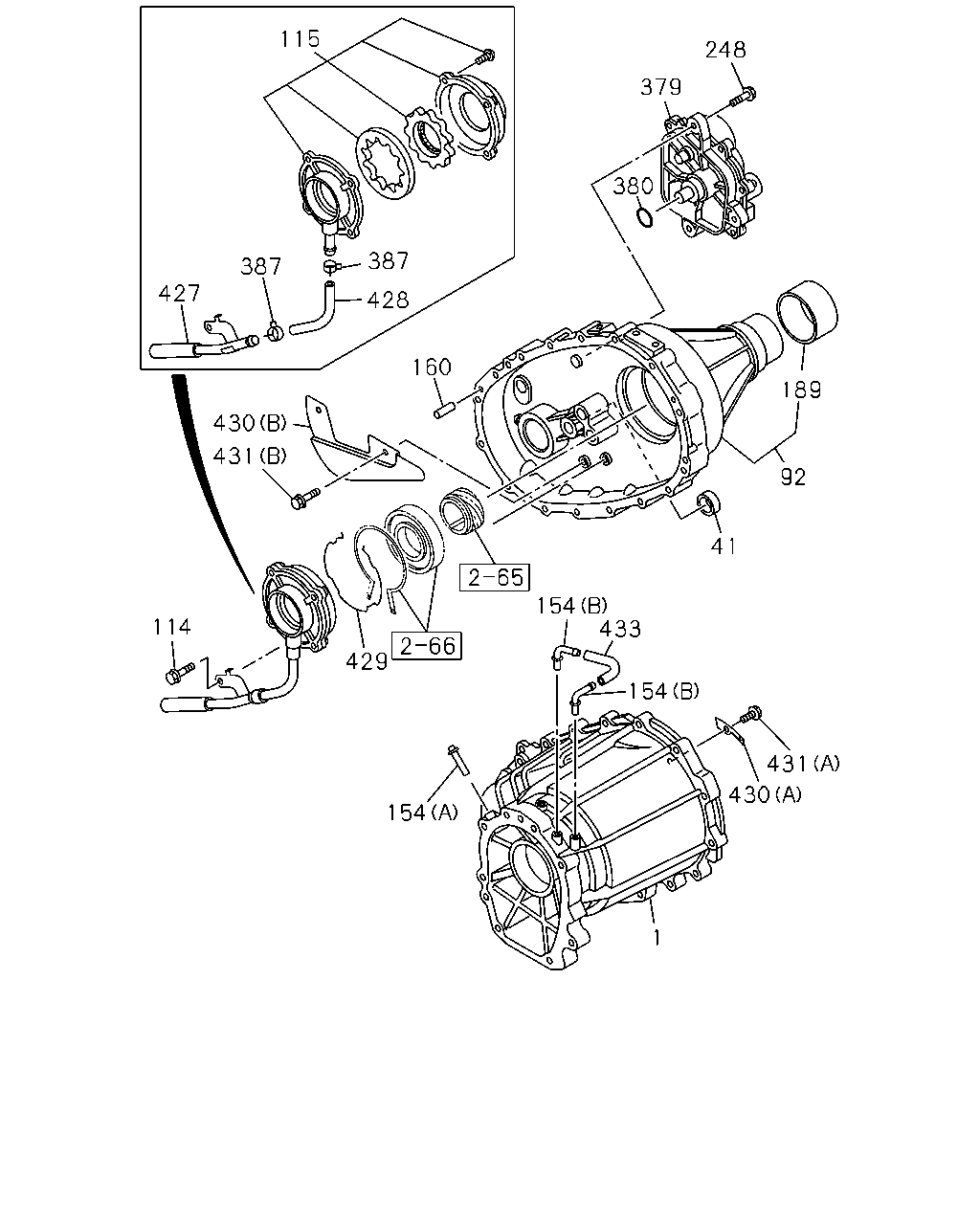

çizim 153167
115 248 379 380 387 387 427 428 160 189 430 431 92 41 154 433 114 429 154 431 430 154 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.510 CASE; TRANSFER 8-97306-571-5 01 1 0306-0410 ● ●
1 04.510 CASE; TRANSFER 8-97306-571-5 01 1 0411- ● ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97238-998-0 01 1 0306-0410 ● ●
41 04.515 SEAL; OIL,SHIFT ROD 8-97238-998-0 01 1 0411- ● ● ●
92 04.552 COVER; RR,TRANSFER 8-97306-579-3 01 1 0306-0402 ● ●
92 04.552 COVER; RR,TRANSFER 8-97376-868-1 01 1 0403-0410 ● ●
92 04.552 COVER; RR,TRANSFER 8-97376-868-1 01 1 0411-0506 ● ● ●
92 04.552 COVER; RR,TRANSFER 8-98013-523-0 01 1 0507- ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0306-0410 ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 0411-0601 ● ● ●
114 04.200 BOLT; OIL PUMP,TRANSFER
01.531 M8X20 FLANGE 		0-28650-820-0 01 1 0602- ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER 8-97233-741-0 01 1 0306-0410 ● ●
115 04.200 PUMP ASM; OIL,TRANSFER 8-97233-741-0 01 1 0411-0603 ● ● ●
115 04.200 PUMP ASM; OIL,TRANSFER 8-98029-157-0 01 1 0604- ● ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97173-545-0 01 1 0306-0410 ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97173-545-0 01 1 0411-0603 ● ● ●
154 04.510 PIPE; BREATHER
(A) 		8-97358-319-0 01 1 0604- ● ● ●
154 04.510 PIPE; BREATHER
04.302 (B) 		8-97305-517-0 02 1 0306-0410 ● ●
154 04.510 PIPE; BREATHER
04.302 (B) 		8-97305-517-0 02 1 0411-0603 ● ● ●
154 04.510 PIPE; BREATHER
(B) 		8-97358-318-0 02 1 0604- ● ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0306-0410 ● ●
160 04.107 PIN; KNOCK,SHIFT CASE
04.510 OD=10 L=20 		8-97135-423-0 02 1 0411- ● ● ●
189 04.510 COVER; DUST,OIL SEAL
04.317 		8-94310-493-0 01 1 0306-0410 ● ●
189 04.510 COVER; DUST,OIL SEAL
04.317 		8-94310-493-0 01 1 0411-0603 ● ● ●
189 04.510 COVER; DUST,OIL SEAL
04.317 		8-98027-802-0 01 1 0604-1109 ● ● ●
189 04.510 COVER; DUST,OIL SEAL 8-98173-748-0 01 1 1110- ● ● ●
248 04.105 BOLT
04.686 M8X30 FLANGE 		0-28680-830-0 03 1 0306-0410 ● ●
248 04.105 BOLT
04.686 M8X30 FLANGE 		0-28680-830-0 03 1 0411-0601 ● ● ●
248 04.105 BOLT
03.403 M8X30 FLANGE 		0-28650-830-0 03 1 0602- ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-97366-626-0 01 1 0306-0410 ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-97366-626-0 01 1 0411-1110 ● ● ●
379 04.505 ACTUATOR; TRANSFER,2-4 SHIFT 8-98196-415-0 01 1 1111- ● ● ●
380 04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 0306-0410 ● ●
380 04.505 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 0411- ● ● ●
387 04.319 CLAMP; HOSE
03.162 ID=14.2 		8-97087-056-1 02 1 0306-0410 ● ●
387 04.319 CLAMP; HOSE
03.162 ID=14.2 		8-97087-056-1 02 1 0411-0502 ● ● ●
387 04.319 CLAMP; HOSE
01.240 ID=16 		8-94392-924-0 02 1 0503-0603 ● ● ●
387 04.319 CLAMP; HOSE
01.097 ID=16 		8-97329-628-0 02 1 0604- ● ● ●
427 04.510 SCREEN; OIL PUMP 8-97234-488-3 01 1 0306-0410 ● ●
427 04.510 SCREEN; OIL PUMP 8-97234-488-3 01 1 0411- ● ● ●
428 04.510 HOSE; OIL PUMP
04.128 L=80 SERVICED BY L=3000 		0-02259-300-0 01 1 0306-0410 ● ●
428 04.510 HOSE; OIL PUMP
04.128 L=80 SERVICED BY L=3000 		0-02259-300-0 01 1 0411-0502 ● ● ●
428 04.510 HOSE; OIL PUMP
ID=9.5 OD=16.5 L=80 		8-98009-116-0 01 1 0503- ● ● ●
429 04.525 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 0306-0410 ● ●
429 04.525 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 0411- ● ● ●
430 04.500 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 0306-0410 ● ●
430 04.500 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 0411- ● ● ●
430 04.500 PLATE; BAFFLE
(B) 		8-97249-300-1 01 1 0306-0410 ● ●
430 04.500 PLATE; BAFFLE
(B) 		8-97249-300-1 01 1 0411- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0306-0410 ● ●
431 04.200 BOLT; BAFFLE PLATE
04.439 (A) M6X16 FLANGE 		0-28680-616-0 01 1 0411-0601 ● ● ●
431 04.200 BOLT; BAFFLE PLATE
02.343 (A) M6X16 FLANGE 		0-28650-616-0 01 1 0602- ● ● ●
431 04.200 BOLT; BAFFLE PLATE
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0306-0410 ● ●
431 04.200 BOLT; BAFFLE PLATE
02.664 (B) M8X20 FLANGE 		0-28680-820-0 02 1 0411-0601 ● ● ●
431 04.200 BOLT; BAFFLE PLATE
01.531 (B) M8X20 FLANGE 		0-28650-820-0 02 1 0602- ● ● ●
433 04.510 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 0306-0410 ● ●
433 04.510 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 0411- ● ● ●
