Isuzu WW
▶
PICKUP
▶
TFR
▶
50966 - TFR/TFS(EUROPE)-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-60 - TRANSFER
▶

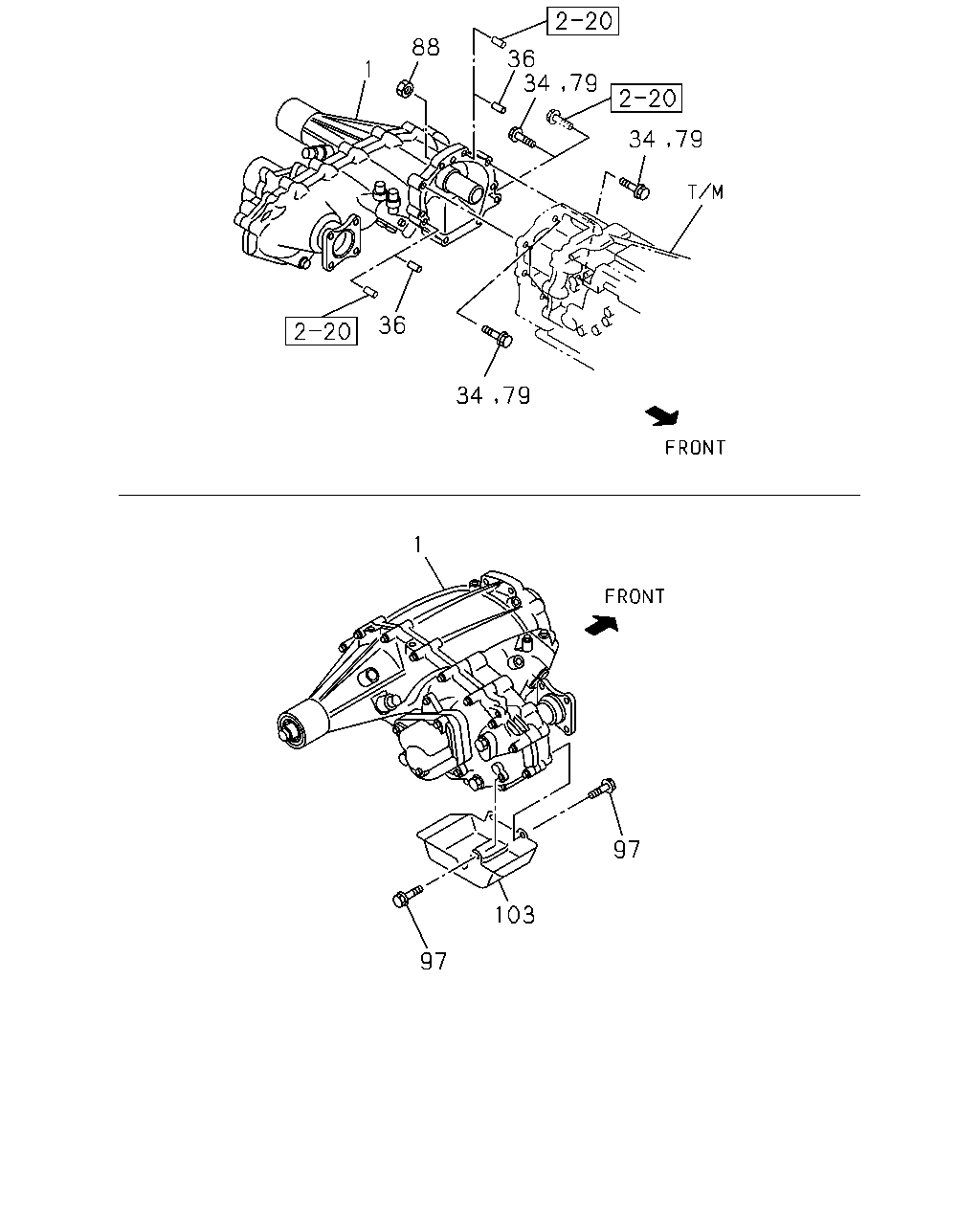

2-60 — TRANSFER
(#74151) — 23 parça
Tümü
A - TFS6CF
B - TFS6WF
C - TFS6SF
88
36
34
1
79
34
79
36
34
79
1
97
103
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
04.505 TRANSFER ASM
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
8-97368-283-0
01
1
0306-0402
●
●
1
04.505 TRANSFER ASM
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 43/10(GY2)
8-97376-877-0
01
1
0403-0410
●
●
1
04.505 TRANSFER ASM
8-97376-877-0
01
1
0411-0609
●
●
●
1
04.505 TRANSFER ASM
M/T MUA 5 SPEED 5H(MWQ),A/T AISIN(RMD)
8-98028-766-0
01
1
0610-
●
●
●
1
04.505 TRANSFER ASM
M/T MUX 5 SPEED 5S(MZJ)
8-98028-765-0
01
1
0610-
●
●
●
34
04.510 BOLT; TRANSFER
A/T 4 SPEED-JATCO(RMK) M10X35 FLANGE
0-28051-035-0
07
1
0306-0609
●
●
34
04.510 BOLT; TRANSFER
M/T MUA 5 SPEED 5G(RSP) M10X35 FLANGE
0-28051-035-0
06
1
0306-0410
●
●
34
04.510 BOLT; TRANSFER
M/T MUA 5 SPEED 5G(RSP) M10X35 FLANGE
0-28051-035-0
06
1
0411-0609
●
●
●
36
04.510 PIN; KNOCK,TRANSFER
OD=10 L=20
8-97135-423-0
02
1
0306-0410
●
●
36
04.510 PIN; KNOCK,TRANSFER
OD=10 L=20
8-97135-423-0
02
1
0411-0609
●
●
●
79
04.512 BOLT; STOPPER
A/T AISIN(RMD) 04.510 M10X35 FLANGE
0-28051-035-0
07
1
0610-1007
●
●
79
04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE
0-28051-035-0
06
1
0610-0703
●
●
79
04.512 BOLT; STOPPER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE
0-28051-035-0
06
1
0704-0710
●
●
●
79
04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE
0-28051-035-0
06
1
0704-0710
●
●
79
04.512 BOLT; STOPPER
4JJ1-TCX ENG(LS0) M/T MUX 5 SPEED 5S(MZJ) IDENTIFICATION LABEL FOR KD<6UT> 04.510 M10X35 FLANGE
0-28051-035-0
06
1
0711-1003
●
●
●
79
04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE
0-28051-035-0
06
1
0711-1003
●
●
●
79
04.512 BOLT; STOPPER
M/T MUA 5 SPEED 5H(MWQ) 04.510 M10X35 FLANGE
0-28051-035-0
06
1
1004-1007
●
●
●
88
04.512 NUT
M/T MUA 5 SPEED 5G(RSP) 03.162 M10 FLANGE
0-91180-110-0
01
1
0306-0410
●
●
88
04.512 NUT
M/T MUA 5 SPEED 5G(RSP) 03.162 M10 FLANGE
0-91180-110-0
01
1
0411-0609
●
●
●
97
04.512 BOLT
01.531 M8X20 FLANGE
0-28650-820-0
03
1
0306-0410
●
●
97
04.512 BOLT
01.531 M8X20 FLANGE
0-28650-820-0
03
1
0411-
●
●
●
103
04.510 GUARD; TRANSFER
8-97234-751-0
01
1
0306-0410
●
●
103
04.510 GUARD; TRANSFER
8-97234-751-0
01
1
0411-
●
●
●
