3-45 — LOAD SENSING PROPORTIONING VALVE (#7415) — 63 parça

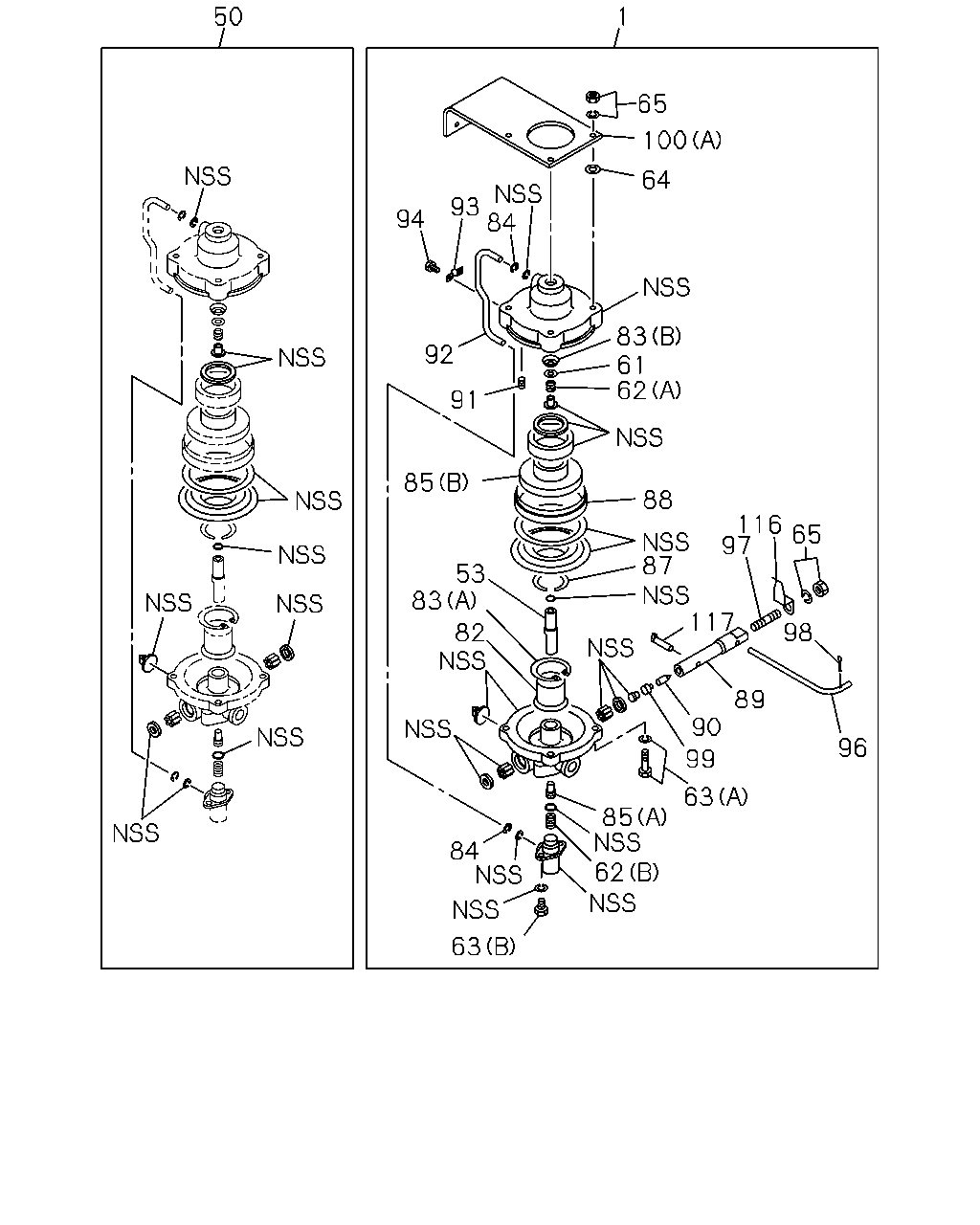

50 1 65 100 64 93 84 94 83 61 62 92 91 85 88 116 65 97 87 117 53 83 98 82 89 90 96 99 63 85 62 84 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING WHEEL BASE 4700MM(47W)	1-47720-061-0	01	1	9902-
50	REPAIR KIT; LSPV WHEEL BASE 4700MM(47W)	1-47769-088-0	01	1	9902-
53	PLUNGER; LSPV WHEEL BASE 4700MM(47W)	1-47769-033-0	01	1	9902-
61	RETAINER; SPRING WHEEL BASE 4700MM(47W)	1-47769-026-0	01	1	9902-
62	SPRING; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-025-0	01	1	9902-
62	SPRING; LSPV WHEEL BASE 4700MM(47W) (B)	1-47769-042-0	01	1	9902-
63	BOLT; LSPV WHEEL BASE 4700MM(47W) (B)	1-47769-045-0	02	1	9902-
63	BOLT; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-094-0	04	1	9902-
64	WASHER; LSPV WHEEL BASE 4700MM(47W)	1-47769-079-0	04	1	9902-
65	NUT; LSPV WHEEL BASE 4700MM(47W)	1-48199-320-0	05	1	9902-
82	GUIDE; PISTON,LSPV WHEEL BASE 4700MM(47W)	1-47769-016-0	01	1	9902-
83	RING; SNAP,RET WHEEL BASE 4700MM(47W) (A)	1-47769-017-0	01	1	9902-
83	RING; SNAP,RET WHEEL BASE 4700MM(47W) (B)	1-47769-027-0	01	1	9902-
84	RETAINER; GASKET WHEEL BASE 4700MM(47W)	1-47769-021-0	02	1	9902-
85	PISTON; LSPV WHEEL BASE 4700MM(47W) (B)	1-47769-023-0	01	1	9902-
85	PISTON; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-043-0	01	1	9902-
87	RETAINER; DIAPH WHEEL BASE 4700MM(47W)	1-47769-086-0	01	1	9902-
88	GUIDE; DIAPH WHEEL BASE 4700MM(47W)	1-47769-032-0	01	1	9902-
89	ROD; CONN,LSPV WHEEL BASE 4700MM(47W)	1-47769-083-0	01	1	9902-
90	SCREW; CAM WHEEL BASE 4700MM(47W)	1-47769-039-0	01	1	9902-
91	FILTER; LSPV WHEEL BASE 4700MM(47W)	1-47769-047-0	01	1	9902-
92	PIPE; LSPV WHEEL BASE 4700MM(47W)	1-47769-048-0	01	1	9902-
93	CLIP; PIPE WHEEL BASE 4700MM(47W)	1-47769-050-0	01	1	9902-
94	SCREW; CLIP WHEEL BASE 4700MM(47W)	1-47769-144-0	02	1	9902-
96	ARM; OPERATING WHEEL BASE 4700MM(47W)	1-47769-143-0	01	1	9902-
97	BOLT; OPERATING ARM WHEEL BASE 4700MM(47W)	1-47769-081-0	01	1	9902-
98	PIN; SPLIT WHEEL BASE 4700MM(47W) OD=1.8 L=15	9-08112-015-0	01	1	9902-
99	CAP; SCREW WHEEL BASE 4700MM(47W)	1-47769-055-0	01	1	9902-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (B)	1-42129-245-0	01	1	9902-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-147-0	01	1	9902-
116	INDICATOR; LSPV WHEEL BASE 4700MM(47W)	1-47769-078-0	01	1	9902-
117	CAM; LSPV WHEEL BASE 4700MM(47W)	1-47769-038-0	01	1	9902-

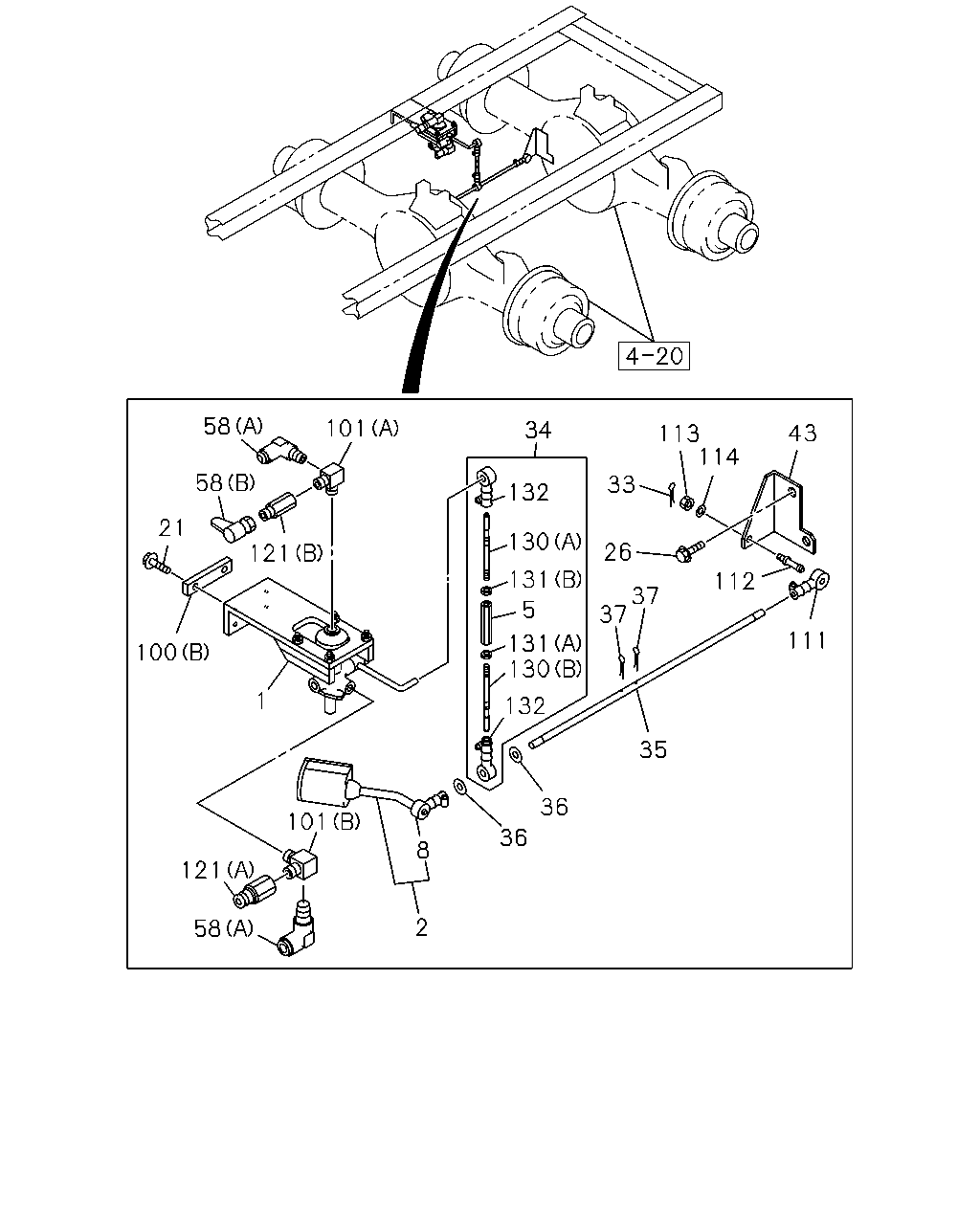

58 101 34 43 113 114 58 33 132 21 130 26 121 131 112 37 37 5 111 131 130 100 1 132 35 36 101 36 8 121 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING WHEEL BASE 4700MM(47W)	1-47720-061-0	01	1	9902-
2	DAMPER BRAKE REGULATION ECE<TDV>	1-47725-016-0	01	1	9902-
5	JOINT BRAKE REGULATION ECE<TDV>	1-09768-091-0	01	1	9902-
8	ROD END BRAKE REGULATION ECE<TDV>	1-47723-001-0	01	1	9902-
21	BOLT; BRKT WHEEL BASE 4700MM(47W) M8X35 FLANGE	0-28680-835-0	04	1	9902-
26	BOLT; DAMPER BRAKE REGULATION ECE<TDV> M8X12 FLANGE	0-28080-812-0	02	1	9902-
33	PIN; SPLIT BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	01	1	9902-
34	ROD; LEVER TO ROD,LSPV BRAKE REGULATION ECE<TDV>	1-47725-025-0	01	1	9902-
35	ROD; LINK,LSPV BRAKE REGULATION ECE<TDV>	1-09740-086-0	01	1	9902-
36	WASHER; PL,ROD BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9902-
37	PIN; SPLIT,ROD BRAKE REGULATION ECE<TDV> OD=1.8 L=25	9-08112-025-0	02	1	9902-
43	BRACKET; DAMPER TO AXLE BRAKE REGULATION ECE<TDV>	1-42129-185-0	01	1	9902-
58	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	9902-
58	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9902-
58	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (B)	1-47459-013-0	01	1	9902-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (B)	1-42129-245-0	01	1	9902-
100	BRACKET; LSPV WHEEL BASE 4700MM(47W) (A)	1-47769-147-0	01	1	9902-
101	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (B)	1-09656-557-1	01	1	9902-
101	CONNECTOR; LSPV WHEEL BASE 4700MM(47W) (A) M16 & PT1/4 & PT3/8 3WAY	1-09656-671-0	01	1	9902-
111	RUBBER; JOINT,LSPV BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9902-
112	PIN; JOINT RUBBER BRAKE REGULATION ECE<TDV>	1-09744-123-0	01	1	9902-
113	NUT; JOINT RUBBER BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	9902-
114	WASHER; PL,JOINT RUBBER BRAKE REGULATION ECE<TDV> ID=8.4	9-09160-508-0	02	1	9902-
121	ADAPTER WHEEL BASE 4700MM(47W) (B) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	9902-
121	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9902-0007
121	ADAPTER WHEEL BASE 4700MM(47W) (A) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (A)	1-09765-282-0	01	1	9902-
130	ROD; JOINT BRAKE REGULATION ECE<TDV> (B)	1-09765-283-0	01	1	9902-
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (A) LH THREAD	1-09409-002-0	01	1	9902-
131	NUT; JOINT BRAKE REGULATION ECE<TDV> (B)	1-48119-089-0	01	1	9902-
132	RUBBER ASM; CONN BRAKE REGULATION ECE<TDV>	1-47723-001-0	02	1	9902-
