Isuzu WW
▶
PICKUP
▶
TFR
▶
50966 - TFR/TFS(EUROPE)-LHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-53 - TRANSMISSION OIL COOLER SYSTEM
▶
2-53 — TRANSMISSION OIL COOLER SYSTEM
(#74148) — 38 parça
Tümü
A - A/T 4 SPEED-JATCO
B - A/T AISIN
◀

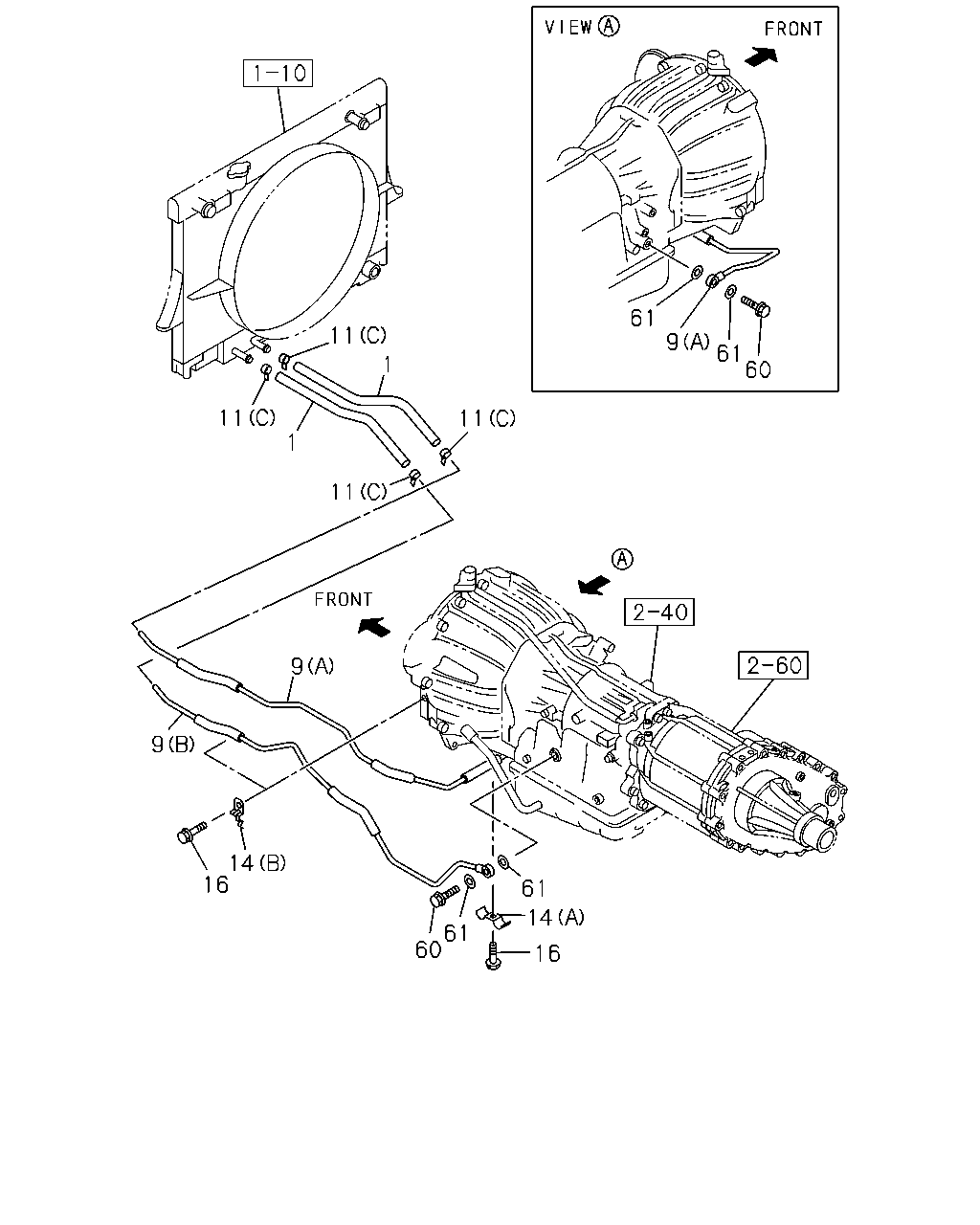

[253A] A/T 4 SPEED-JATCO (20 parça)

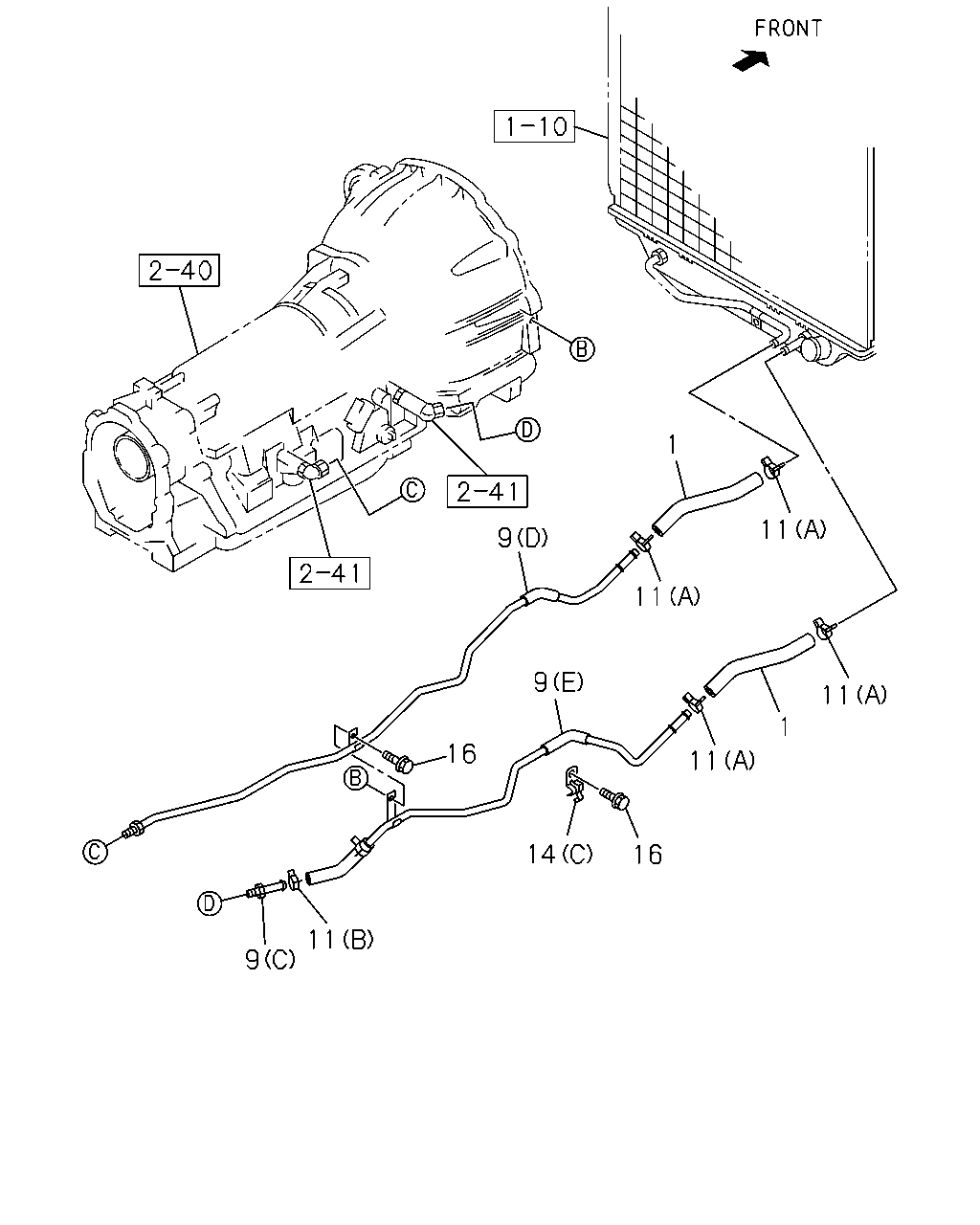

[253A] A/T AISIN (18 parça)
▶
61
11
9
61
60
1
11
11
1
11
9
9
14
16
61
14
61
60
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0306-0609
●
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0610-
●
9
04.128 PIPE; ATF,INL,A/T
(A)
8-97941-850-0
01
1
0306-0306
●
9
04.128 PIPE; ATF,INL,A/T
(A)
8-97368-297-0
01
1
0307-0609
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-98048-111-0
01
1
0610-0707
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-98085-689-0
01
1
0708-
●
9
04.128 PIPE; ATF,INL,A/T
(B)
8-97941-851-2
01
1
0306-0306
●
9
04.128 PIPE; ATF,INL,A/T
(B)
8-97368-298-0
01
1
0307-0609
●
9
04.128 PIPE; ATF,INL,A/T
(C)
8-98036-273-0
01
1
0610-
●
9
04.128 PIPE; ATF,INL,A/T
(E)
8-98061-107-0
01
1
0610-
●
11
04.128 CLIP; PIPE
00.034 (C) ID=13.5
8-97015-754-1
04
1
0306-0609
●
11
04.128 CLIP; PIPE
(A)
8-98008-165-0
04
1
0610-
●
11
04.128 CLIP; PIPE
01.762 (B) ID=16
8-98030-682-0
01
1
0610-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(A)
8-94334-345-1
01
1
0306-0609
●
14
04.128 CLIP; PIPE TO ENG SIDE
(C)
8-98008-163-0
01
1
0610-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(B)
8-97062-040-0
02
1
0306-0609
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
0306-0609
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0610-
●
60
04.128 BOLT; EYE,ATF PIPE
1-09675-033-0
02
1
0306-0609
●
61
04.128 GASKET; EYE BOLT,ATF PIPE
08.955 ID=14.2 OD=20.0
9-09571-414-0
04
1
0306-0609
●
1
11
9
11
9
11
1
16
11
14
16
11
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0306-0609
●
1
04.128 HOSE; ATF
L=250 SERVICED BY L=3000
0-02259-300-0
02
1
0610-
●
9
04.128 PIPE; ATF,INL,A/T
(A)
8-97941-850-0
01
1
0306-0306
●
9
04.128 PIPE; ATF,INL,A/T
(A)
8-97368-297-0
01
1
0307-0609
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-98048-111-0
01
1
0610-0707
●
9
04.128 PIPE; ATF,INL,A/T
(D)
8-98085-689-0
01
1
0708-
●
9
04.128 PIPE; ATF,INL,A/T
(B)
8-97941-851-2
01
1
0306-0306
●
9
04.128 PIPE; ATF,INL,A/T
(B)
8-97368-298-0
01
1
0307-0609
●
9
04.128 PIPE; ATF,INL,A/T
(C)
8-98036-273-0
01
1
0610-
●
9
04.128 PIPE; ATF,INL,A/T
(E)
8-98061-107-0
01
1
0610-
●
11
04.128 CLIP; PIPE
00.034 (C) ID=13.5
8-97015-754-1
04
1
0306-0609
●
11
04.128 CLIP; PIPE
(A)
8-98008-165-0
04
1
0610-
●
11
04.128 CLIP; PIPE
01.762 (B) ID=16
8-98030-682-0
01
1
0610-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(A)
8-94334-345-1
01
1
0306-0609
●
14
04.128 CLIP; PIPE TO ENG SIDE
(C)
8-98008-163-0
01
1
0610-
●
14
04.128 CLIP; PIPE TO ENG SIDE
(B)
8-97062-040-0
02
1
0306-0609
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
0306-0609
●
16
04.128 BOLT; CLIP,ENG SIDE
02.343 M8X16 FLANGE
0-28050-816-0
02
1
0610-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
