2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#74146) — 34 parça

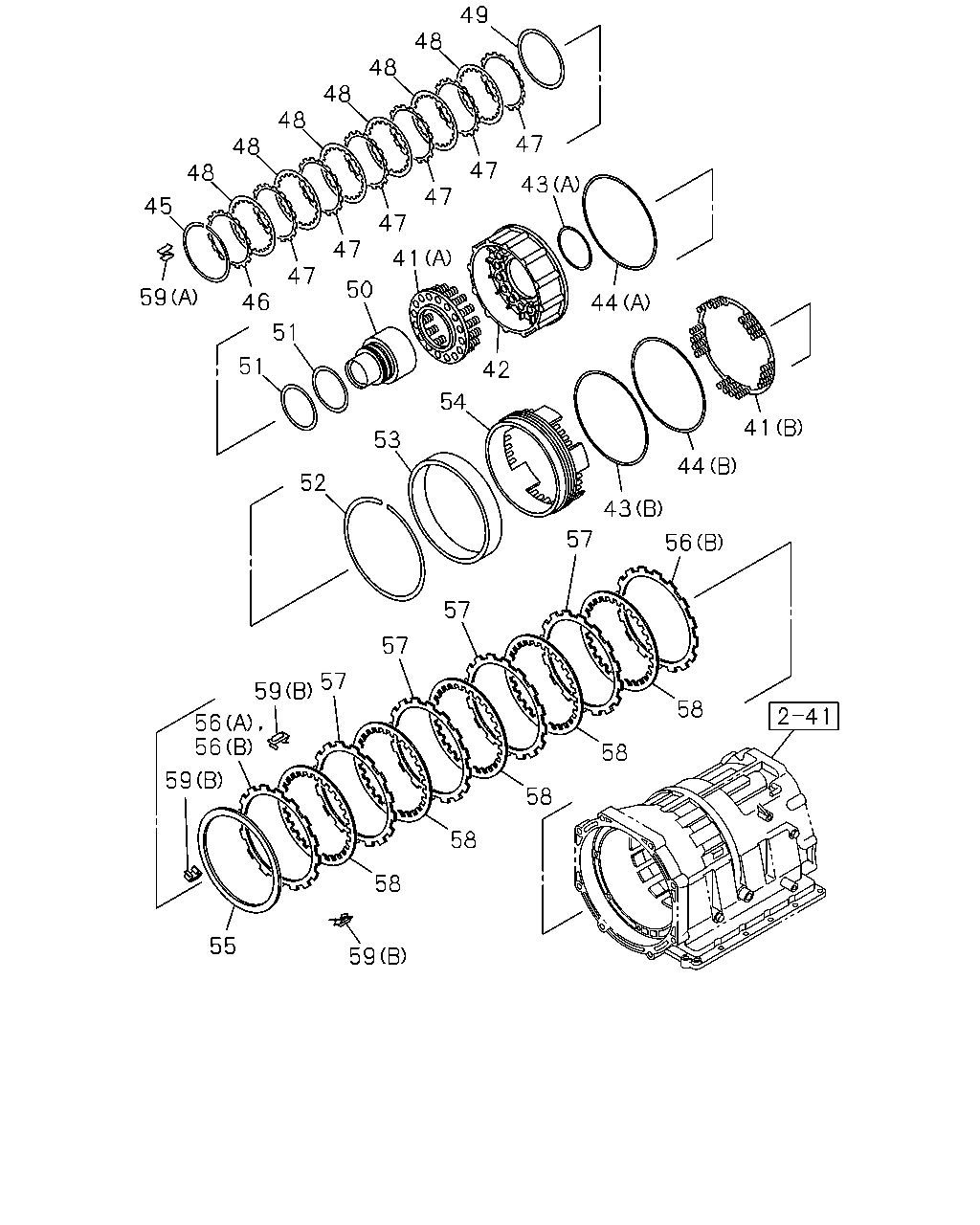

çizim 153139
49 48 48 48 48 47 48 47 48 43 47 45 47 47 41 47 50 59 46 44 51 51 42 54 41 53 44 52 43 57 56 57 57 57 59 58 56 56 58 59 58 58 58 55 59
BalonParca AdiParca NoAdetTipApplied Date
41 04.164 SPRING; RETURN,PISTON,BRAKE
(A) 		8-97331-047-0 01 1 0306-0609
41 04.164 SPRING; RETURN,PISTON,BRAKE
(B) 		8-97331-048-0 01 1 0306-0609
42 04.264 PISTON; LOW BRAKE 8-97331-046-0 01 1 0306-0609
43 04.212 SEAL; BRAKE PISTON,INNER
04.166 (A) 		8-94483-385-0 01 1 0306-0609
43 04.212 SEAL; BRAKE PISTON,INNER
(B) 		8-97330-992-0 01 1 0306-0609
44 04.212 SEAL; BRAKE PISTON,OUTER
04.166 (A) 		8-94483-382-0 01 1 0306-0609
44 04.212 SEAL; BRAKE PISTON,OUTER
(B) 		8-97330-993-0 01 1 0306-0609
45 04.166 RING; SNAP,LOW BRAKE PLATE 8-97330-964-0 01 1 0306-0609
46 04.265 PLATE; RET,LOW BRAKE
T=5.2 		8-97331-051-0 01 1 0306-0609
46 04.265 PLATE; RET,LOW BRAKE
T=5.4 		8-97331-052-0 01 1 0306-0609
46 04.265 PLATE; RET,LOW BRAKE
T=5.6 		8-97331-053-0 01 1 0306-0609
46 04.265 PLATE; RET,LOW BRAKE
T=5.8 		8-97331-054-0 01 1 0306-0609
46 04.265 PLATE; RET,LOW BRAKE
T=6.0 		8-97331-055-0 01 1 0306-0609
47 04.265 PLATE; DRIVEN,LOW BRAKE 8-97331-050-0 06 1 0306-0609
48 04.265 PLATE; DRIVE,LOW BRAKE 8-97330-996-0 06 1 0306-0609
49 04.265 PLATE; DISHED,LOW BRAKE 8-97331-001-0 01 1 0306-0609
50 04.265 SUPPORT; LOW BRAKE 8-97330-958-0 01 1 0306-0609
51 04.266 RING; SEAL,SUPPORT 8-97330-982-0 02 1 0306-0609
52 04.266 RING; SNAP,RET,2 & 4 BRAKE 8-97330-972-0 01 1 0306-0609
53 04.266 RETAINER; PISTON,2 & 4 BRAKE 8-97331-045-0 01 1 0306-0609
54 04.264 PISTON; 2 & 4 BRAKE 8-97331-042-0 01 1 0306-0609
55 04.265 PLATE; DISHED,2 & 4 BRAKE 8-97331-002-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.0 		8-97331-025-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.2 		8-97331-026-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.4 		8-97331-027-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(B) T=5.6 		8-97331-028-0 02 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=5.8 		8-97331-029-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.0 		8-97331-030-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.2 		8-97331-031-0 01 1 0306-0609
56 04.265 PLATE; RET,2 & 4 BRAKE
(A) T=6.4 		8-97331-032-0 01 1 0306-0609
57 04.265 PLATE; DRIVEN,2 & 4 BRAKE 8-97331-009-0 04 1 0306-0609
58 04.265 PLATE; DRIVE,2 & 4 BRAKE 8-97330-999-0 05 1 0306-0609
59 04.164 SPRING; PLATE HOLD
(A) 		8-97331-043-0 01 1 0306-0609
59 04.164 SPRING; PLATE HOLD
(B) 		8-97331-044-0 03 1 0306-0609
