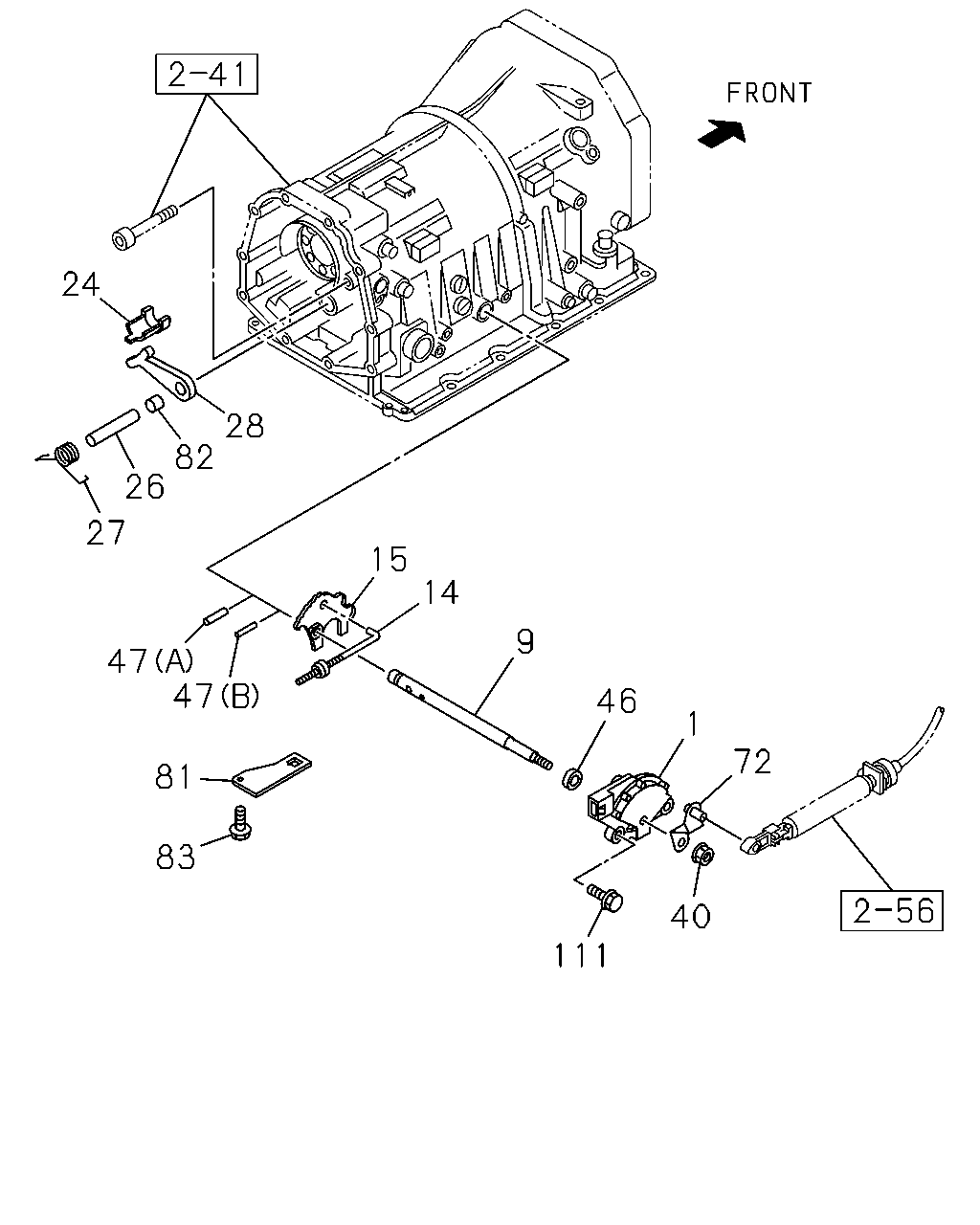

2-49 — AUTO TRANS INHIBITOR SWITCH (#74145) — 59 parça

24 28 82 26 27 15 14 9 47 47 46 1 72 81 83 40 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.054 SWITCH; INHIBITOR,A/T	8-97331-105-0	01	1	0306-0609	●
9	04.275 SHAFT; MANUAL,A/T	8-97331-106-0	01	1	0306-0609	●
14	04.290 ROD ASM; PARKING,A/T	8-97331-114-0	01	1	0306-0609	●
15	04.275 PLATE; MANUAL SHAFT,A/T	8-97331-107-0	01	1	0306-0609	●
24	04.290 SUPPORT; ACTUATOR,A/T	8-97331-116-0	01	1	0306-0609	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0306-0609	●
26	04.294 SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG(LS0)	8-94479-975-0	01	1	0610-		●
27	04.295 SPRING; PAWL RETURN,A/T	8-97331-118-0	01	1	0306-0609	●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0306-0609	●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCX ENG(LS0)	8-97143-087-0	01	1	0610-		●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE	0-91180-110-0	01	1	0306-0609	●
40	04.037 NUT; LEVER TO SHAFT 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-		●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0306-0609	●
46	04.282 SEAL; OIL 4JJ1-TCX ENG(LS0) 04.027 OD=22	8-94479-740-0	02	1	0610-		●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0306-0609	●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCX ENG(LS0) 04.052 (C) D=4	8-94257-081-0	01	1	0610-		●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0306-0609	●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0306-0609	●
72	04.035 LEVER; SELECT CONT	8-98005-235-0	01	1	0610-		●
81	04.293 SPRING; DETENT,MANUAL CONT PLATE	8-97331-113-0	01	1	0306-0609	●
82	02.559 SPACER; DETENT SPRING	8-97330-950-0	01	1	0306-0609	●
83	04.169 SCREW; DETENT SPRING,MANUAL CONT	8-97331-124-0	01	1	0306-0609	●
111	02.559 BOLT; INHIBITOR SW	8-97331-127-0	02	1	0306-0609	●

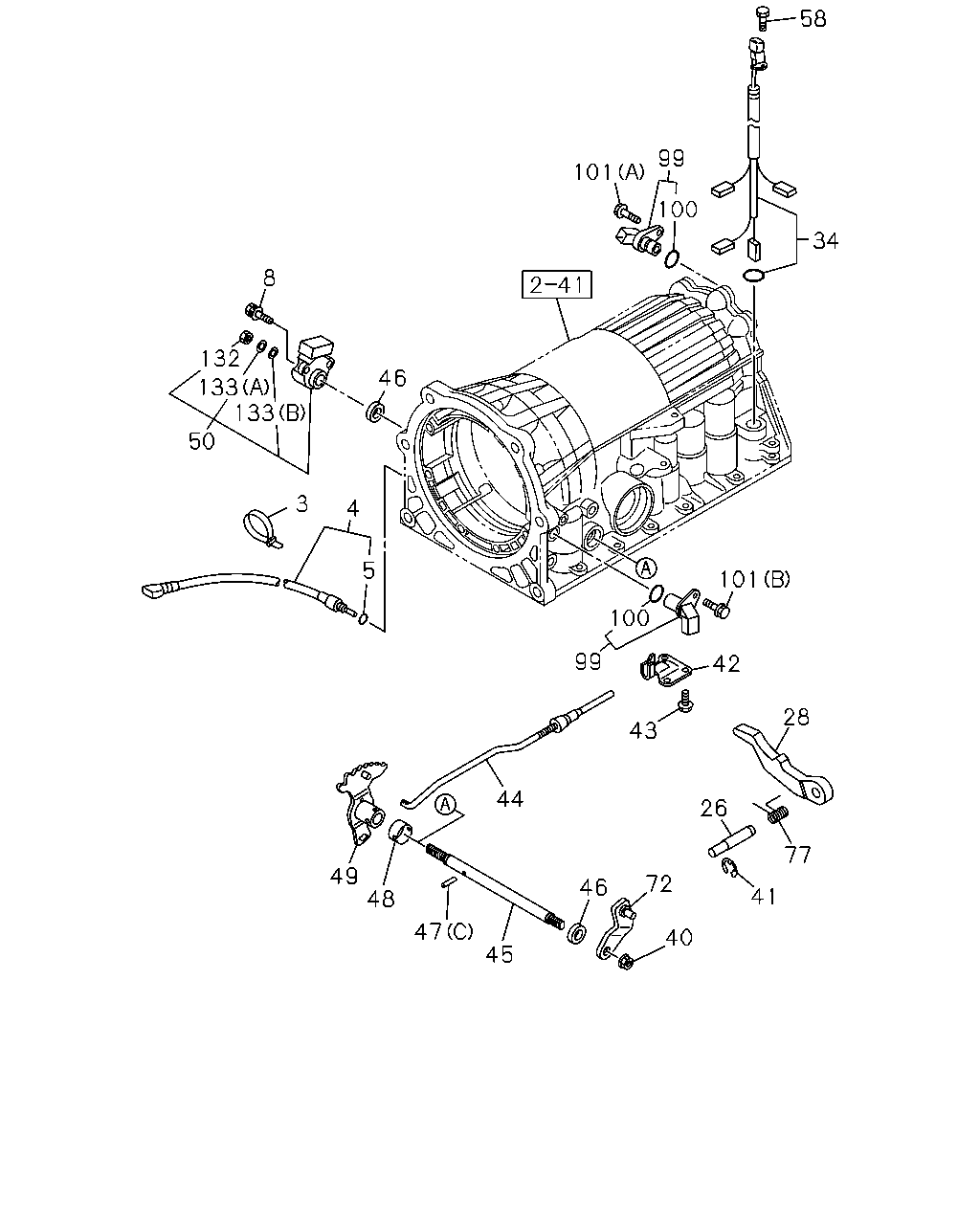

58 99 101 100 34 8 132 46 133 133 50 3 4 5 101 100 99 42 28 43 44 26 77 49 48 72 46 41 47 40 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.054 CLIP; INHIBITOR SW,A/T 4JJ1-TCX ENG(LS0)	8-94473-565-0	01	1	0610-		●
4	04.054 SENSOR; THERMO,A/T OIL 4JJ1-TCX ENG(LS0) 04.050	8-97331-531-0	01	1	0610-		●
5	04.054 GASKET; OIL THERMO SENSOR,A/T 4JJ1-TCX ENG(LS0)	8-94479-726-0	01	1	0610-		●
8	04.054 BOLT; NEUTRAL START SW,A/T 4JJ1-TCX ENG(LS0) M8X30	8-97130-929-0	01	1	0610-		●
26	04.294 SHAFT; PARKING PAWL,A/T	8-97331-117-0	01	1	0306-0609	●
26	04.294 SHAFT; PARKING PAWL,A/T 4JJ1-TCX ENG(LS0)	8-94479-975-0	01	1	0610-		●
28	04.294 PAWL; PARKING,A/T	8-97331-119-0	01	1	0306-0609	●
28	04.294 PAWL; PARKING,A/T 4JJ1-TCX ENG(LS0)	8-97143-087-0	01	1	0610-		●
34	04.265 SOLENOID ASM; A/T 4JJ1-TCX ENG(LS0)	8-98050-495-0	01	1	0610-		●
40	04.037 NUT; LEVER TO SHAFT 03.162 M10 FLANGE	0-91180-110-0	01	1	0306-0609	●
40	04.037 NUT; LEVER TO SHAFT 01.062 M8 FLANGE	0-91180-108-0	01	1	0610-		●
41	04.290 RETAINER; SPR,SHAFT 4JJ1-TCX ENG(LS0)	5-34488-002-0	01	1	0610-		●
42	04.290 BRACKET; PARKING LOCK 4JJ1-TCX ENG(LS0)	8-97126-815-0	01	1	0610-		●
43	04.290 BOLT; BRKT 4JJ1-TCX ENG(LS0) M6X14	8-94479-978-0	03	1	0610-		●
44	04.290 ROD ASM; PARKING PAWL 4JJ1-TCX ENG(LS0)	8-98050-534-0	01	1	0610-		●
45	04.275 SHAFT; VALVE LEVER 4JJ1-TCX ENG(LS0)	8-97025-848-0	01	1	0610-		●
46	04.282 SEAL; OIL	8-97330-908-0	01	1	0306-0609	●
46	04.282 SEAL; OIL 4JJ1-TCX ENG(LS0) 04.027 OD=22	8-94479-740-0	02	1	0610-		●
47	04.275 PIN; ROLL SHAFT (A)	8-97331-125-0	01	1	0306-0609	●
47	04.275 PIN; ROLL SHAFT 4JJ1-TCX ENG(LS0) 04.052 (C) D=4	8-94257-081-0	01	1	0610-		●
47	04.275 PIN; ROLL SHAFT (B)	8-97331-126-0	01	1	0306-0609	●
48	04.008 COVER; SLEEVE 4JJ1-TCX ENG(LS0)	8-97362-483-0	01	1	0610-		●
49	04.279 LEVER ASM; CAM 4JJ1-TCX ENG(LS0)	8-97331-535-0	01	1	0610-		●
50	04.054 SWITCH; NEUTRAL,A/T 4JJ1-TCX ENG(LS0)	8-97207-138-0	01	1	0610-		●
58	04.260 BOLT; SOLENOID TO A/T 4JJ1-TCX ENG(LS0) 04.050 M6X16	8-94479-712-0	01	1	0610-		●
72	04.035 LEVER; SELECT CONT	8-97231-904-1	01	1	0306-0609	●
72	04.035 LEVER; SELECT CONT	8-98005-235-0	01	1	0610-		●
77	04.295 SPRING; TORSION,PARKING BRK LK,A 4JJ1-TCX ENG(LS0)	8-94479-976-0	01	1	0610-		●
99	04.329 SENSOR; SPD 4JJ1-TCX ENG(LS0)	8-97027-383-0	02	1	1008-		●
99	04.329 SENSOR; SPD 4JJ1-TCX ENG(LS0)	8-97027-383-0	01	1	0610-1007		●
100	04.239 GASKET; SPD SENSOR 4JJ1-TCX ENG(LS0)	8-97027-197-0	02	1	0610-		●
101	04.329 BOLT; SPD SENSOR 4JJ1-TCX ENG(LS0) 04.050 (A) M6X16	8-94479-712-0	01	1	0610-		●
101	04.329 BOLT; SPD SENSOR 4JJ1-TCX ENG(LS0) 04.290 (B) M6X14	8-94479-978-0	01	1	0610-		●
132	04.248 NUT; SWITCH 4JJ1-TCX ENG(LS0) M16	8-97354-883-0	01	1	0610-		●
133	04.248 WASHER; SWITCH 4JJ1-TCX ENG(LS0) (B)	8-97354-888-0	01	1	0610-		●
133	04.248 WASHER; SWITCH 4JJ1-TCX ENG(LS0) (A) ID=16	8-97354-889-0	01	1	0610-		●
