2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#74143) — 84 parça

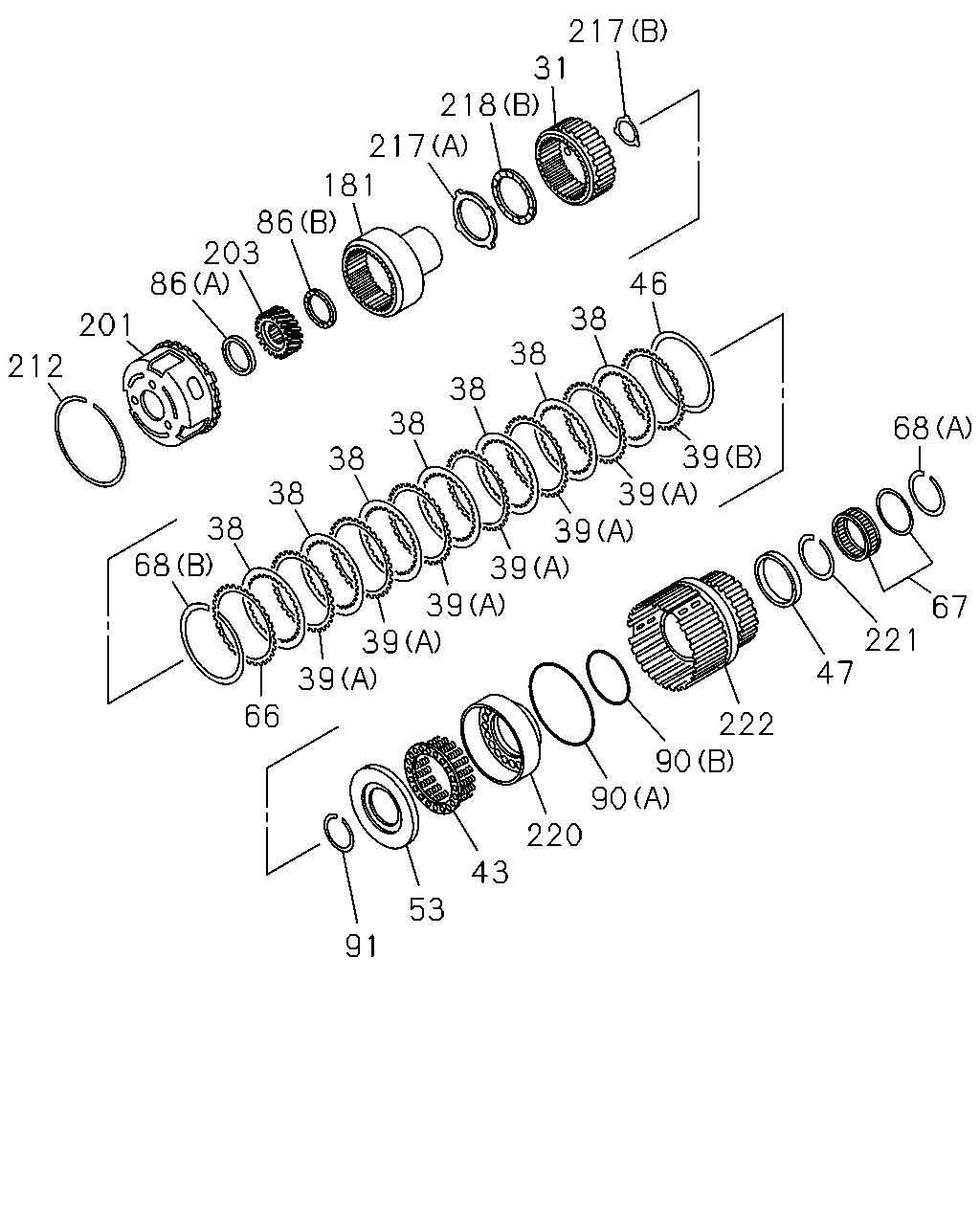

çizim 153122
217 31 218 217 181 86 203 86 46 38 201 38 212 38 38 68 39 39 39 39 39 39 39 38 38 38 68 67 221 47 66 222 90 90 220 43 53 91
BalonParca AdiParca NoAdetTipApplied Date A B
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0306-0609 ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-94479-854-0 01 1 0610- ●
38 04.163 PLATE; DRIVE,LOW & REV,A/T 8-97330-998-0 07 1 0306-0609 ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(A) 		8-97331-005-0 06 1 0306-0609 ●
39 04.163 PLATE; DRIVEN,LOW & REV,A/T
(B) 		8-97331-008-0 01 1 0306-0609 ●
43 04.164 SPRING; PISTON RETURN,A/T 8-97330-981-0 01 1 0306-0609 ●
46 04.164 PLATE; DISHED,LOW & REV,A/T 8-97331-004-0 01 1 0306-0609 ●
47 04.176 BEARING; NEEDLE,LOW & REV 8-97330-954-0 01 1 0306-0609 ●
53 04.180 RETAINER; LOW & REV,CLU SPR 8-97331-041-0 01 1 0306-0609 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=3.8 		8-97331-010-0 01 1 0306-0609 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.0 		8-97331-011-0 01 1 0306-0609 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.2 		8-97331-012-0 01 1 0306-0609 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.4 		8-97331-013-0 01 1 0306-0609 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.6 		8-97331-014-0 01 1 0306-0609 ●
66 04.163 PLATE; RET,CLU,LOW & REV,A/T
T=4.8 		8-97331-024-0 01 1 0306-0609 ●
67 04.164 CLUTCH ASM; ONEWAY,LOW & REV,A/T 8-97330-959-0 01 1 0306-0609 ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
(A) 		8-97330-965-0 01 1 0306-0609 ●
68 04.164 RING; SNAP,CLU,LOW & REV,A/T
(B) 		8-97330-966-0 01 1 0306-0609 ●
86 04.166 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0306-0609 ●
86 04.166 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0306-0609 ●
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0306-0609 ●
90 04.166 SEAL; PISTON,LOW & REV
(A) 		8-97330-990-0 01 1 0306-0609 ●
90 04.166 SEAL; PISTON,LOW & REV
(B) 		8-97330-991-0 01 1 0306-0609 ●
91 04.166 RING; SNAP,SPRING RET 8-97330-969-0 01 1 0306-0609 ●
181 04.176 CARRIER ASM; RR PLANETARY,A/T 8-97330-952-0 01 1 0306-0609 ●
201 04.176 CARRIER; PLANETARY 8-97357-797-0 01 1 0306-0609 ●
203 04.166 GEAR; SUN 8-97330-956-0 01 1 0306-0609 ●
212 04.166 RING; SNAP,PLANETARY CARRIER 8-97330-967-0 01 1 0306-0609 ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-97330-939-0 01 1 0306-0609 ●
217 04.164 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-97330-947-0 01 1 0306-0609 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0306-0609 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0306-0609 ●
220 04.264 PISTON; LOW CLUTCH 8-97331-040-0 01 1 0306-0609 ●
221 04.166 RING; SNAP,BRG,LOW CLUTCH
04.180 		8-94483-379-0 01 1 0306-0609 ●
222 04.164 DRUM; LOW CLUTCH 8-97331-039-0 01 1 0306-0609 ●

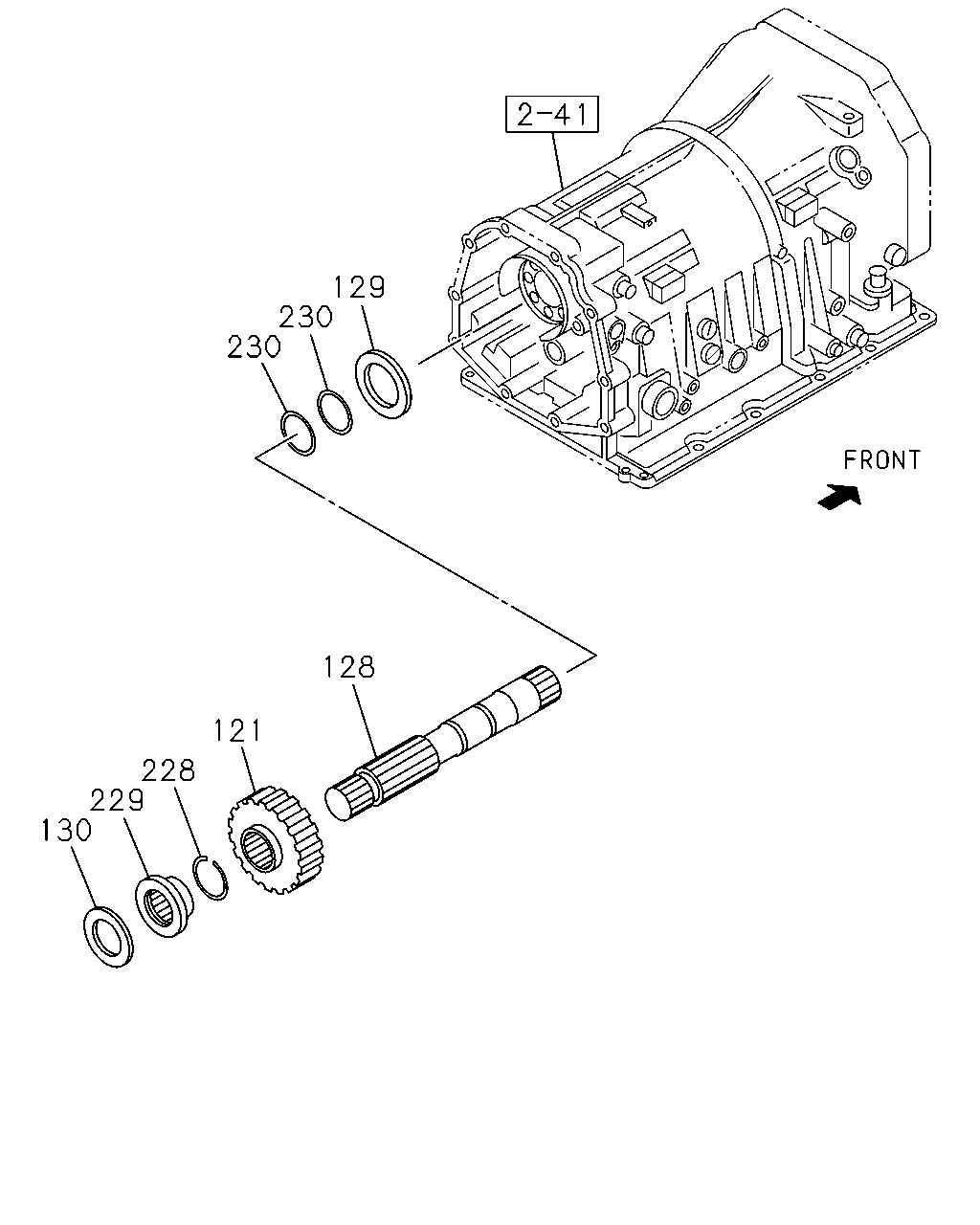

çizim 153187
129 230 230 128 121 228 229 130
BalonParca AdiParca NoAdetTipApplied Date A B
121 04.162 GEAR; PARKING LK,A/T 8-97330-962-0 01 1 0306-0609 ●
128 04.175 SHAFT; OUTPUT,A/T 8-97330-961-0 01 1 0306-0609 ●
128 04.175 SHAFT; OUTPUT,A/T
4JJ1-TCX ENG(LS0) 		8-98050-557-0 01 1 0610- ●
129 04.176 BEARING; OUTPUT SHAFT,FRT,A/T 8-97330-918-0 01 1 0306-0609 ●
130 04.176 BEARING; OUTPUT SHAFT,RR,A/T 8-97330-918-0 01 1 0306-0609 ●
228 04.166 RING; SNAP,OUTPUT SHAFT 8-97330-963-0 01 1 0306-0609 ●
229 04.176 SPACER; OUTPUT SHAFT 8-97330-951-0 01 1 0306-0609 ●
230 04.166 RING; SEAL,OUTPUT SHAFT 8-97330-983-0 02 1 0306-0609 ●

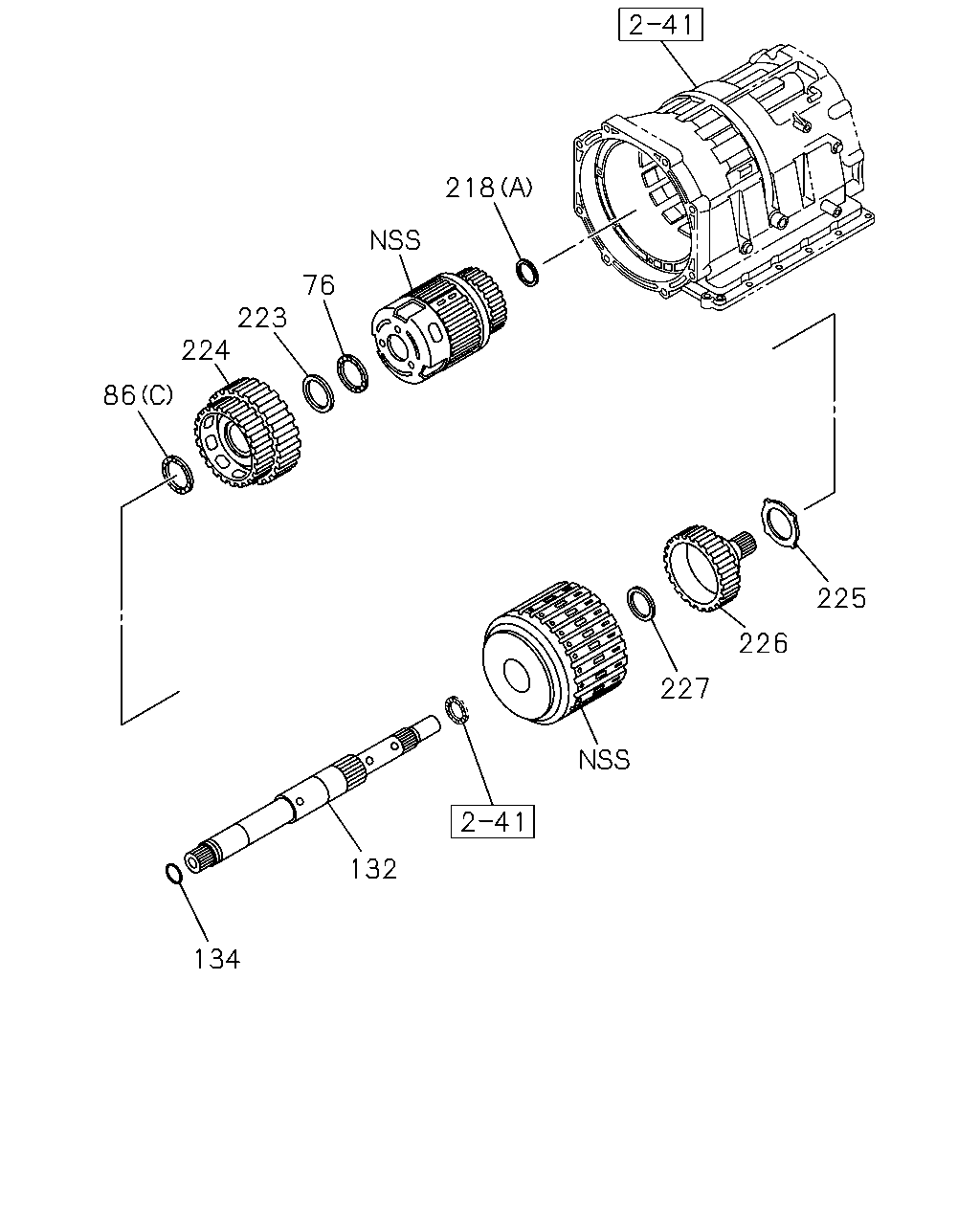

çizim 153206
218 76 223 224 86 225 226 227 132 134
BalonParca AdiParca NoAdetTipApplied Date A B
76 04.164 BEARING; THRUST,CARRIER 8-97330-927-0 01 1 0306-0609 ●
86 04.166 BEARING; THRUST,SUN GEAR
(A) 		8-97330-919-0 01 1 0306-0609 ●
86 04.166 BEARING; THRUST,SUN GEAR
(B) 		8-97330-920-0 01 1 0306-0609 ●
86 04.166 BEARING; THRUST,SUN GEAR
(C) 		8-97330-926-0 01 1 0306-0609 ●
132 04.123 SHAFT; INPUT,A/T 8-97330-931-0 01 1 0306-0609 ●
134 04.166 SEAL; INPUT SHAFT,FRT 8-97331-697-0 01 1 0306-0609 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(A) 		8-97330-928-0 01 1 0306-0609 ●
218 04.164 BEARING; THRUST,INTERNAL GEAR
(B) 		8-97330-938-0 01 1 0306-0609 ●
223 04.164 RACE; BRG,CARRIER 8-97330-946-0 01 1 0306-0609 ●
224 04.164 GEAR ASM; SUN,FRT 8-97357-796-0 01 1 0306-0609 ●
225 04.164 RACE; BRG,SUN GEAR 8-97330-949-0 01 1 0306-0609 ●
226 04.164 HUB; HIGH CLUTCH 8-97331-038-0 01 1 0306-0609 ●
227 04.164 BEARING; HUB,HIGH CLUTCH 8-97330-925-0 01 1 0306-0609 ●

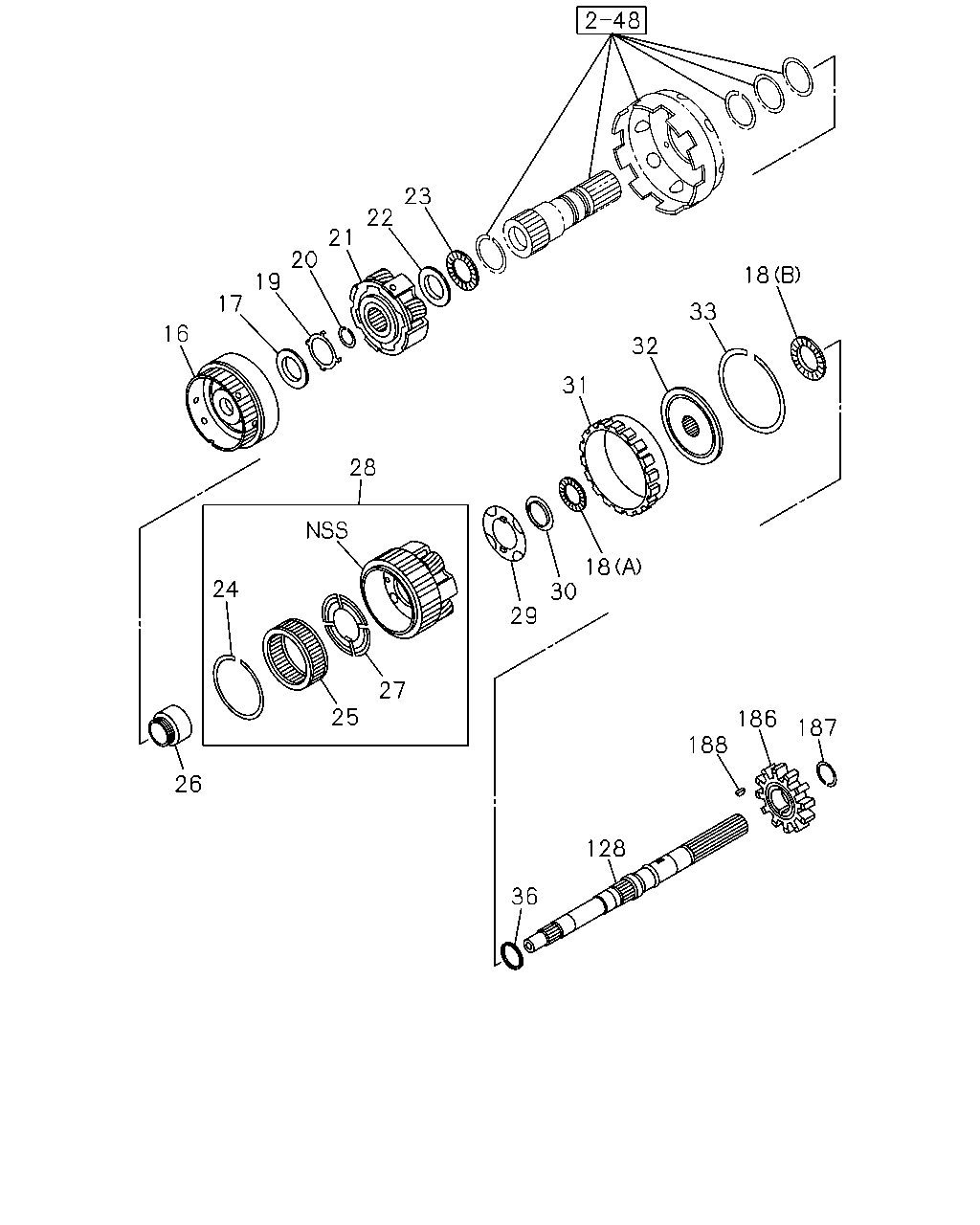

çizim 153467
23 22 21 20 18 19 17 33 16 32 31 28 18 30 24 29 27 25 186 187 188 26 128 36
BalonParca AdiParca NoAdetTipApplied Date A B
16 04.256 GEAR ASM; FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98050-544-0 01 1 0610-0801 ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98112-185-0 01 1 0802- ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT
4JJ1-TCX ENG(LS0) 		8-98050-545-0 01 1 0610- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4JJ1-TCX ENG(LS0) (B) 		8-97249-735-0 01 1 0610- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
4JJ1-TCX ENG(LS0) (A) 		8-97331-548-0 01 1 0610- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT
4JJ1-TCX ENG(LS0) 		8-98050-546-0 01 1 0610- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T
4JJ1-TCX ENG(LS0) 		8-94479-842-0 01 1 0610- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T
4JJ1-TCX ENG(LS0) 		8-98050-547-0 01 1 0610- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S
4JJ1-TCX ENG(LS0) 		8-98050-548-0 01 1 0610- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT,
4JJ1-TCX ENG(LS0) 		8-98050-549-0 01 1 0610- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-97143-129-0 01 1 0610- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY
4JJ1-TCX ENG(LS0) 		8-94364-924-0 01 1 0610- ●
26 04.168 RACE; ONEWAY CLU,A/T
4JJ1-TCX ENG(LS0) 		8-97019-542-0 01 1 0610- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98050-550-0 01 1 0610- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98065-077-0 01 1 1008- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-97232-050-0 01 1 0610-1007 ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-98050-551-0 01 1 0610- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
4JJ1-TCX ENG(LS0) 		8-97331-549-0 01 1 0610- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-97330-953-0 01 1 0306-0609 ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T
4JJ1-TCX ENG(LS0) 		8-94479-854-0 01 1 0610- ●
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A
4JJ1-TCX ENG(LS0) 		8-94479-852-0 01 1 0610- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T
4JJ1-TCX ENG(LS0) 		8-94479-853-0 01 1 0610- ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF
4JJ1-TCX ENG(LS0) 		8-94479-902-0 01 1 0610- ●
128 04.175 SHAFT; OUTPUT,A/T 8-97330-961-0 01 1 0306-0609 ●
128 04.175 SHAFT; OUTPUT,A/T
4JJ1-TCX ENG(LS0) 		8-98050-557-0 01 1 0610- ●
186 04.329 ROTOR; SPEED SENSOR
4JJ1-TCX ENG(LS0) 		8-97331-553-0 01 1 0610- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4JJ1-TCX ENG(LS0) 04.337 		8-94479-905-0 01 1 0610- ●
188 04.330 KEY; SPEED SENSOR ROTOR
4JJ1-TCX ENG(LS0) 04.337 		8-94479-904-0 01 1 0610- ●
