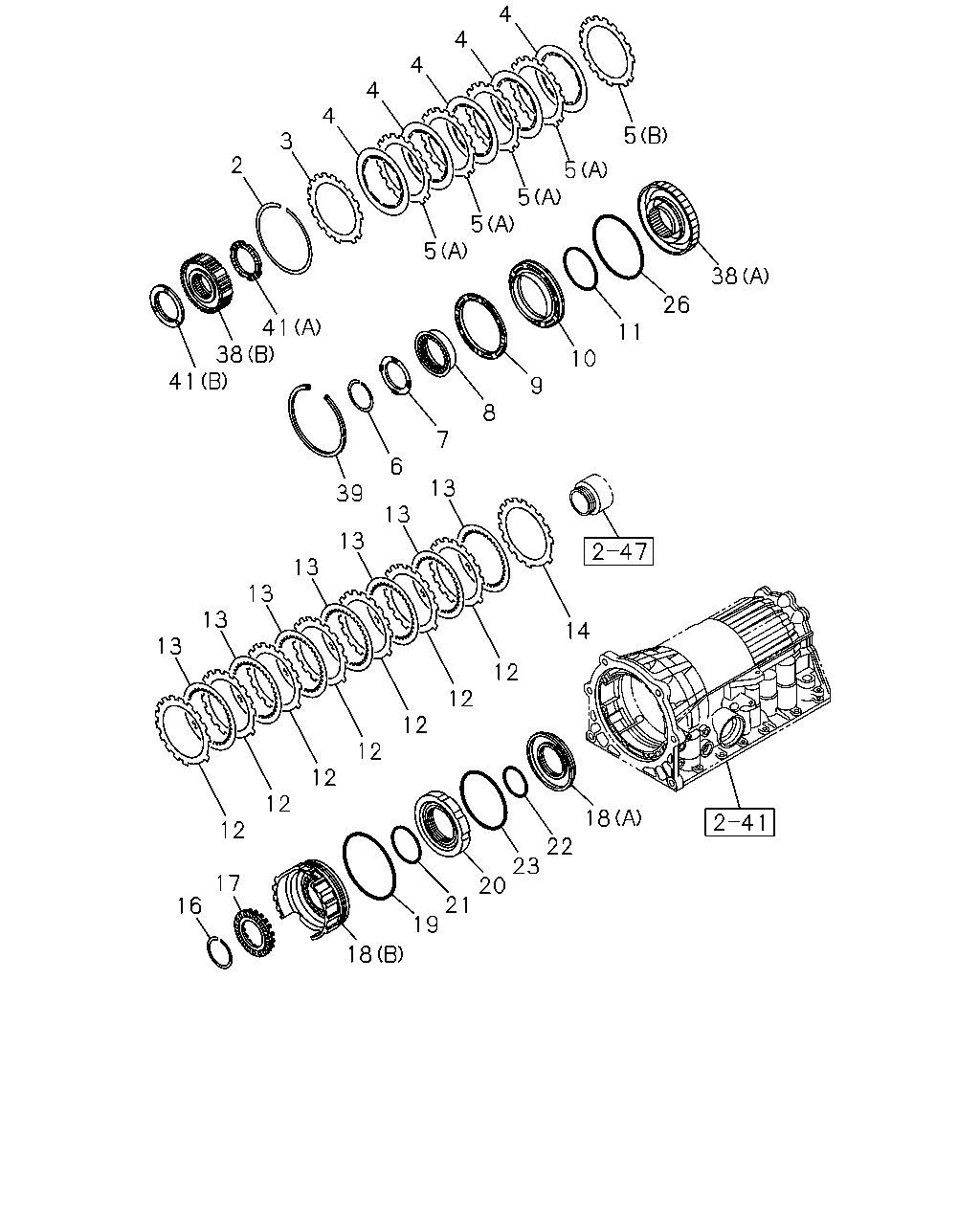

2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#74142) — 36 parça

4 4 4 4 4 5 3 2 5 5 5 5 38 26 41 38 41 11 10 9 8 7 6 13 39 13 13 13 13 13 14 13 12 12 12 12 12 12 18 12 22 23 20 17 21 19 16 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.166 RING; RET,FRT BRK,2ND BRK,A/T 4JJ1-TCX ENG(LS0) 04.164	8-94479-795-0	01	1	0610-
3	04.164 PLATE; CLU BACKING,2ND BRK,A/T 4JJ1-TCX ENG(LS0)	8-94479-806-0	01	1	0610-
4	04.163 DISC ASM; CLU & FACING,2ND BRK,A 4JJ1-TCX ENG(LS0)	8-98050-541-0	05	1	0610-
5	04.163 DISC; CLU,2ND BRK,A/T 4JJ1-TCX ENG(LS0) (A)	8-94479-807-0	04	1	0610-
5	04.163 DISC; CLU,2ND BRK,A/T 4JJ1-TCX ENG(LS0) (B)	8-97025-835-0	01	1	0610-
6	04.166 RING; SNAP,FRT BRK,A/T 4JJ1-TCX ENG(LS0)	8-94479-804-0	01	1	0610-
7	04.163 RETAINER; BRK,RETURN SPR,FRT BRK 4JJ1-TCX ENG(LS0)	8-94479-803-0	01	1	0610-
8	04.166 SPRING; RETURN,FRT BRK,A/T 4JJ1-TCX ENG(LS0)	8-94479-805-0	01	1	0610-
9	04.166 SLEEVE; 2ND BRK PISTON 4JJ1-TCX ENG(LS0)	8-97025-834-0	01	1	0610-
10	04.166 PISTON; BRK,FRT,2ND BRK,A/T 4JJ1-TCX ENG(LS0)	8-94479-799-0	01	1	0610-
11	04.166 GASKET; BRK PISTON,FRT,INNER,A/T 4JJ1-TCX ENG(LS0) ID=85	8-94479-800-0	01	1	0610-
12	04.166 PLATE; CLU,LOW & REV BRK,A/T 4JJ1-TCX ENG(LS0)	8-94479-832-0	07	1	0610-
13	04.163 DISC; CLU,LOW & REV BRK 4JJ1-TCX ENG(LS0)	8-97232-040-0	07	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=5.0	8-97019-534-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=4.8	8-97019-535-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=4.6	8-97019-536-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=4.4	8-97019-537-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=4.2	8-97019-538-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=4.0	8-97019-539-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=5.2	8-97184-319-0	01	1	0610-
14	04.166 FLANGE; BRK,LOW & REV BRAKE 4JJ1-TCX ENG(LS0) T=5.4	8-97184-320-0	01	1	0610-
16	04.163 RETAINER; RETURN SPR,RR BRK,A/T 4JJ1-TCX ENG(LS0) 04.472	5-34268-006-0	01	1	0610-
17	04.166 SPRING; RETURN,RR BRK,A/T 4JJ1-TCX ENG(LS0)	8-97214-554-0	01	1	0610-
18	04.166 PISTON; LOW & REV BRK,A/T 4JJ1-TCX ENG(LS0) (A)	8-94479-826-0	01	1	0610-
18	04.166 PISTON; LOW & REV BRK,A/T 4JJ1-TCX ENG(LS0) (B)	8-97232-056-0	01	1	0610-
19	04.166 GASKET; LOW & REV BRK PISTON 4JJ1-TCX ENG(LS0)	8-97264-817-0	01	1	0610-
20	04.166 SLEEVE; BRK REACTION,A/T 4JJ1-TCX ENG(LS0)	8-94479-827-0	01	1	0610-
21	04.166 RING; BRK REACTION SLEEVE,INNER 4JJ1-TCX ENG(LS0)	8-97184-352-0	01	1	0610-
22	04.166 GASKET; BRK PISTON,RR,INNER,A/T 4JJ1-TCX ENG(LS0)	8-97184-348-0	01	1	0610-
23	04.166 GASKET; BRK PISTON,RR,OUTER,A/T 4JJ1-TCX ENG(LS0)	8-97184-353-0	01	1	0610-
26	04.166 GASKET; BRK PISTON,FRT,OUTER,A/T 4JJ1-TCX ENG(LS0) ID=124	8-94479-801-0	01	1	0610-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JJ1-TCX ENG(LS0) (A)	8-94479-798-0	01	1	0610-
38	04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T 4JJ1-TCX ENG(LS0) (B)	8-97143-134-0	01	1	0610-
39	04.164 RING; RET,SUN GEAR TO CLU 4JJ1-TCX ENG(LS0) 04.166	8-94479-797-0	01	1	0610-
41	04.162 WASHER; THRUST 4JJ1-TCX ENG(LS0) 04.164 (A)	8-94479-809-0	01	1	0610-
41	04.162 WASHER; THRUST 4JJ1-TCX ENG(LS0) 04.164 (B)	8-94479-811-0	01	1	0610-
