2-45 — AUTO TRANS CLUTCH AND PLANETARY GEAR (#74141) — 28 parça

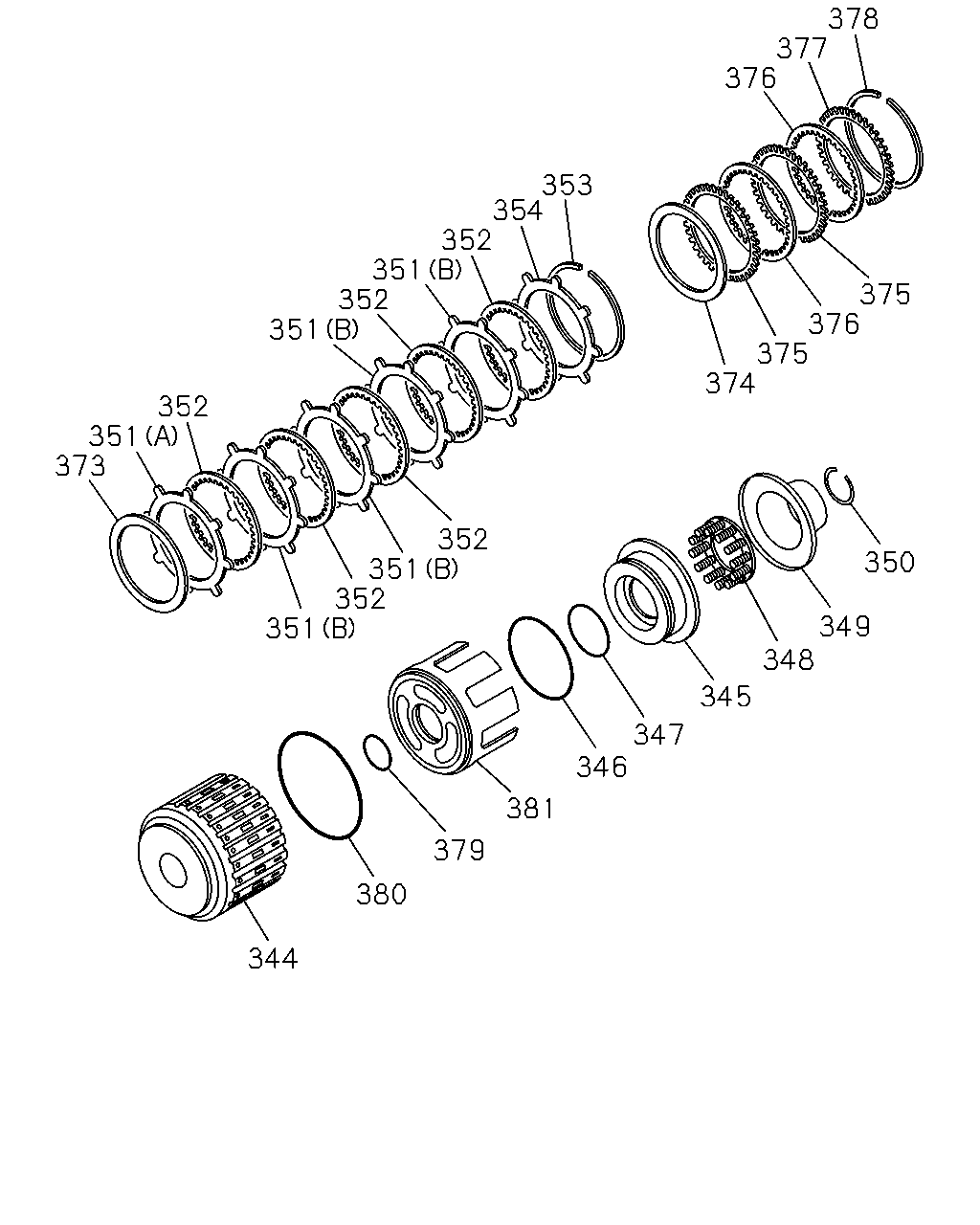

çizim 153175
378 377 376 353 354 352 351 352 351 375 376 375 374 352 351 373 352 351 352 351 350 349 348 345 347 346 381 379 380 344
BalonParca AdiParca NoAdetTipApplied Date
344 04.169 DRUM; HIGH CLU 8-97330-978-0 01 1 0306-0609
345 04.166 PISTON; HIGH CLU 8-97331-033-0 01 1 0306-0609
346 04.166 SEAL; HIGH CLU PISTON,OUTER 8-97330-989-0 01 1 0306-0609
347 04.166 SEAL; HIGH CLU PISTON,INNER 8-97331-035-0 01 1 0306-0609
348 04.164 SPRING; RETURN,HIGH CLU PISTON 8-97330-980-0 01 1 0306-0609
349 04.164 RETAINER; RETURN SPRING,CLU PIST 8-97331-034-0 01 1 0306-0609
350 04.164 RING; SNAP,SPRING RET,HIGH CLU 8-97330-975-0 01 1 0306-0609
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
(A) T=2.0 		8-97331-007-0 01 1 0306-0609
351 04.176 PLATE; DRIVEN,HIGH CLU,A/T
(B) T=2.9 		8-97357-799-0 04 1 0306-0609
352 04.176 PLATE; DRIVE,HIGH CLU,A/T 8-97331-000-0 05 1 0306-0609
353 04.176 RING; SNAP,HIGH CLU PLATE 8-97330-976-0 01 1 0306-0609
354 04.176 PLATE; RET,HIGH CLU
T=4.6 		8-97331-019-0 01 1 0306-0609
354 04.176 PLATE; RET,HIGH CLU
T=4.8 		8-97331-020-0 01 1 0306-0609
354 04.176 PLATE; RET,HIGH CLU
T=5.0 		8-97331-021-0 01 1 0306-0609
354 04.176 PLATE; RET,HIGH CLU
T=5.2 		8-97331-022-0 01 1 0306-0609
354 04.176 PLATE; RET,HIGH CLU
T=5.4 		8-97331-023-0 01 1 0306-0609
373 04.176 PLATE; DISHED,HIGH CLU 8-97331-003-0 01 1 0306-0609
374 04.176 PLATE; DISHED,REV CLU 8-97331-049-0 01 1 0306-0609
375 04.176 PLATE; DRIVEN,REV CLU 8-97331-006-0 02 1 0306-0609
376 04.176 PLATE; DRIVE,REV CLU 8-97330-997-0 02 1 0306-0609
377 04.176 PLATE; RET,REV CLU
T=4.8 		8-97331-015-0 01 1 0306-0609
377 04.176 PLATE; RET,REV CLU
T=5.0 		8-97331-016-0 01 1 0306-0609
377 04.176 PLATE; RET,REV CLU
T=5.2 		8-97331-017-0 01 1 0306-0609
377 04.176 PLATE; RET,REV CLU
T=5.4 		8-97331-018-0 01 1 0306-0609
378 04.176 RING; SNAP,REV CLU PLATE 8-97330-973-0 01 1 0306-0609
379 04.176 SEAL; REV CLU PISTON,INNER 8-97330-994-0 01 1 0306-0609
380 04.176 SEAL; REV CLU PISTON,OUTER 8-97330-995-0 01 1 0306-0609
381 04.176 PISTON; REV CLUTCH 8-97357-798-0 01 1 0306-0609
