◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10796 - EXZ LHD FUEL TANK 400L ▶ 3 - Brakes, Brake System ▶ 3-41 - REAR BRAKE POWER CHAMBER ▶
3-41 — REAR BRAKE POWER CHAMBER (#7414) — 232 parça

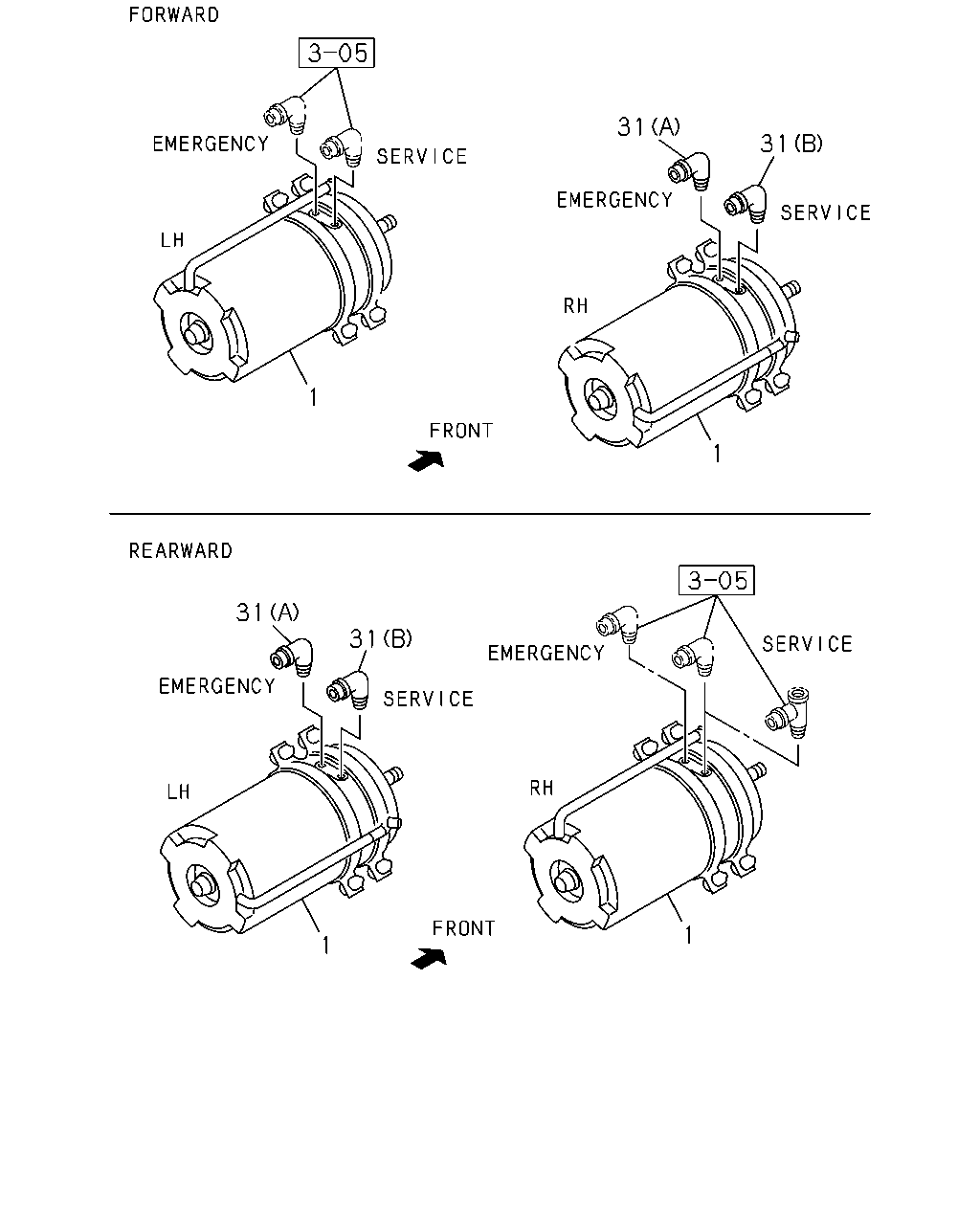

çizim 5621
31 31 1 1 31 31 1 1
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-181-2 01 1 9812-
1 CHAMBER ASM; SPRING 1-48250-181-2 01 1 9812-
1 CHAMBER ASM; SPRING 1-48250-180-2 01 1 9812-
1 CHAMBER ASM; SPRING 1-48250-180-2 01 1 9812-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-
31 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 9812-
31 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9812-
31 CONNECTOR
(B) DIN12 & R3/8 ELBOW 		1-09660-653-1 01 1 9812-

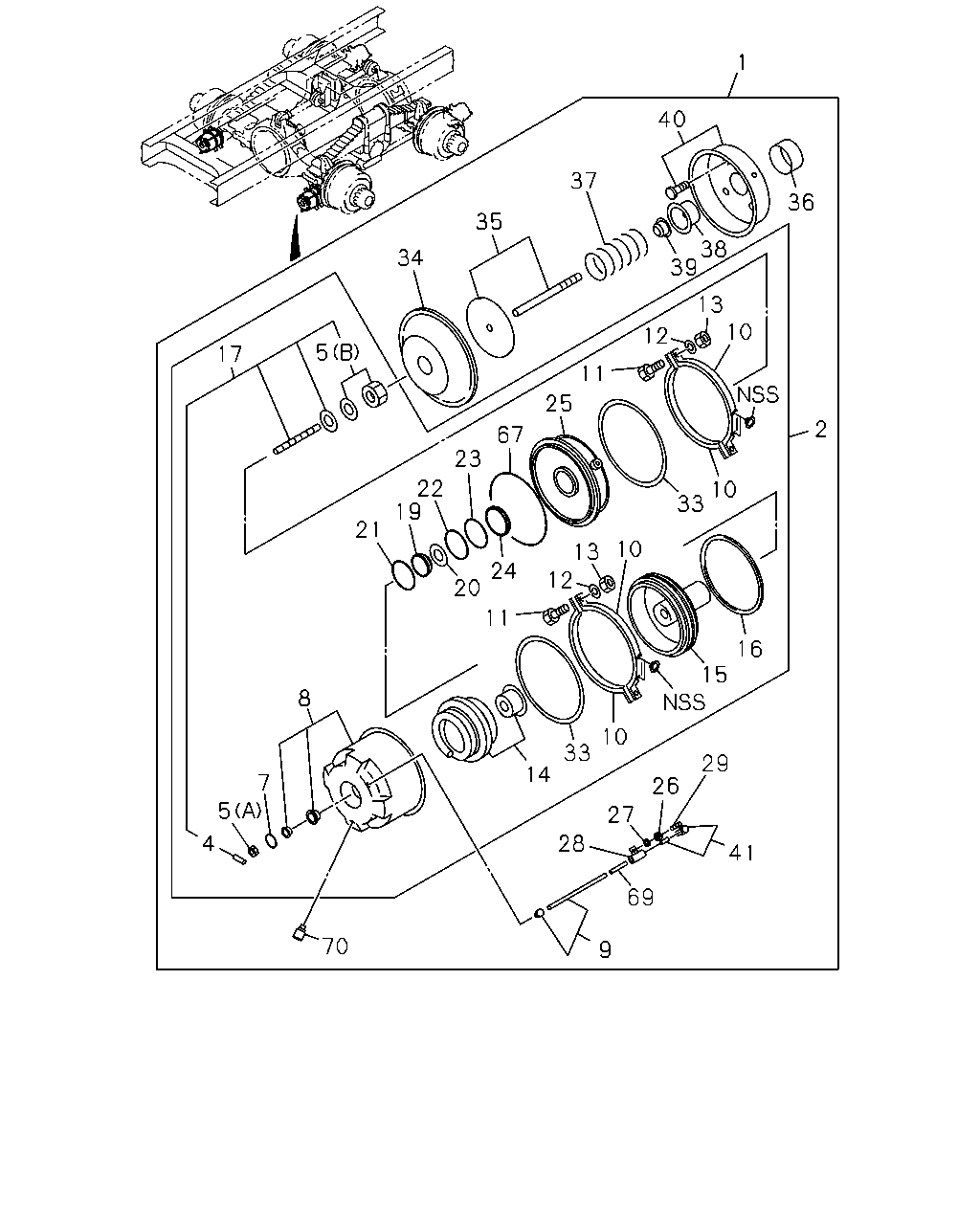

çizim 7183
1 40 37 36 35 38 39 34 13 10 12 5 17 11 25 2 67 23 22 19 10 33 21 10 13 24 12 20 11 16 15 8 10 33 29 14 7 26 5 27 28 4 41 69 70 9
BalonParca AdiParca NoAdetTipApplied Date
1 CHAMBER ASM; SPRING 1-48250-181-2 01 1 9812-
1 CHAMBER ASM; SPRING 1-48250-181-2 01 1 9812-
1 CHAMBER ASM; SPRING 1-48250-180-2 01 1 9812-
1 CHAMBER ASM; SPRING 1-48250-180-2 01 1 9812-
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 9812-
2 CHAMBER; EMERGENCY 1-48252-019-0 01 1 9812-
2 CHAMBER; EMERGENCY 1-48252-018-0 01 1 9812-
2 CHAMBER; EMERGENCY 1-48252-018-0 01 1 9812-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9812-9901
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9812-9901
4 PIN; STRAIGHT,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-056-0 02 1 9902-
4 PIN; STRAIGHT,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-056-0 02 1 9902-
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 9902-
4 PIN; STRAIGHT,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-056-0 04 1 9902-
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9812-9901
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9812-9901
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 9902-
5 NUT; SHELL
REAR AXLE RT260<C2B> (A) 		1-48259-054-0 02 1 9902-
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9812-9901
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9812-9901
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 9902-
5 NUT; SHELL
REAR AXLE RT260<C2B> (B) 		1-48259-074-0 02 1 9902-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (A) 		1-48259-054-0 01 1 9902-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (A) 		1-48259-054-0 01 1 9902-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (B) 		1-48259-074-0 01 1 9902-
5 NUT; SHELL
EXC. REAR AXLE RT260<C2B> (B) 		1-48259-074-0 01 1 9902-
7 GASKET 1-48259-055-0 02 1 9812-9901
7 GASKET 1-48259-055-0 02 1 9812-9901
7 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-055-0 01 1 9902-
7 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-055-0 01 1 9902-
7 GASKET 1-48259-055-0 02 1 9902-
7 GASKET
REAR AXLE RT260<C2B> 		1-48259-055-0 02 1 9902-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-1 01 1 9812-
8 SHELL; CYL,SPR CHAMBER 1-48259-070-1 01 1 9812-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-1 01 1 9812-
8 SHELL; CYL,SPR CHAMBER 1-48259-069-1 01 1 9812-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9812-9901
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9812-9901
9 PIPE ASM; SHELL
EXC. REAR AXLE RT260<C2B> 		1-48259-076-0 01 1 9902-
9 PIPE ASM; SHELL
EXC. REAR AXLE RT260<C2B> 		1-48259-076-0 01 1 9902-
9 PIPE ASM; SHELL 1-48259-076-0 02 1 9902-
9 PIPE ASM; SHELL
REAR AXLE RT260<C2B> 		1-48259-076-0 02 1 9902-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 9812-9901
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 9812-9901
10 RING; CLAMP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-016-0 04 1 9902-
10 RING; CLAMP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-016-0 04 1 9902-
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 9902-
10 RING; CLAMP,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-016-0 08 1 9902-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9812-9901
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9812-9901
11 BOLT; CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-035-0 04 1 9902-
11 BOLT; CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-035-0 04 1 9902-
11 BOLT; CLAMP RING 1-48259-035-0 08 1 9902-
11 BOLT; CLAMP RING
REAR AXLE RT260<C2B> 		1-48259-035-0 08 1 9902-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 9812-9901
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 9812-9901
12 WASHER; LK,CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-046-0 04 1 9902-
12 WASHER; LK,CLAMP RING
EXC. REAR AXLE RT260<C2B> 		1-48259-046-0 04 1 9902-
12 WASHER; LK,CLAMP RING 1-48259-046-0 08 1 9902-
12 WASHER; LK,CLAMP RING
REAR AXLE RT260<C2B> 		1-48259-046-0 08 1 9902-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 9812-9901
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 9812-9901
13 NUT; CLAMP RING
EXC. REAR AXLE RT260<C2B> M10 		9-09110-510-0 04 1 9902-
13 NUT; CLAMP RING
EXC. REAR AXLE RT260<C2B> M10 		9-09110-510-0 04 1 9902-
13 NUT; CLAMP RING
M10 		9-09110-510-0 08 1 9902-
13 NUT; CLAMP RING
REAR AXLE RT260<C2B> M10 		9-09110-510-0 08 1 9902-
14 SPRING & SEAT SET 1-48259-037-0 02 1 9812-9901
14 SPRING & SEAT SET 1-48259-037-0 02 1 9812-9901
14 SPRING & SEAT SET
EXC. REAR AXLE RT260<C2B> 		1-48259-037-0 01 1 9902-
14 SPRING & SEAT SET
EXC. REAR AXLE RT260<C2B> 		1-48259-037-0 01 1 9902-
14 SPRING & SEAT SET 1-48259-037-0 02 1 9902-
14 SPRING & SEAT SET
REAR AXLE RT260<C2B> 		1-48259-037-0 02 1 9902-
15 PISTON 1-48262-005-0 02 1 9812-9901
15 PISTON 1-48262-005-0 02 1 9812-9901
15 PISTON
EXC. REAR AXLE RT260<C2B> 		1-48262-005-0 01 1 9902-
15 PISTON
EXC. REAR AXLE RT260<C2B> 		1-48262-005-0 01 1 9902-
15 PISTON 1-48262-005-0 02 1 9902-
15 PISTON
REAR AXLE RT260<C2B> 		1-48262-005-0 02 1 9902-
16 GASKET 1-48259-048-0 02 1 9812-9901
16 GASKET 1-48259-048-0 02 1 9812-9901
16 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-048-0 01 1 9902-
16 GASKET
EXC. REAR AXLE RT260<C2B> 		1-48259-048-0 01 1 9902-
16 GASKET 1-48259-048-0 02 1 9902-
16 GASKET
REAR AXLE RT260<C2B> 		1-48259-048-0 02 1 9902-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9812-9901
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9812-9901
17 BOLT ASM; EMERGENCY
EXC. REAR AXLE RT260<C2B> 		1-48259-073-0 01 1 9902-
17 BOLT ASM; EMERGENCY
EXC. REAR AXLE RT260<C2B> 		1-48259-073-0 01 1 9902-
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 9902-
17 BOLT ASM; EMERGENCY
REAR AXLE RT260<C2B> 		1-48259-073-0 02 1 9902-
19 COVER; PISTON 1-48269-011-0 02 1 9812-9901
19 COVER; PISTON 1-48269-011-0 02 1 9812-9901
19 COVER; PISTON
EXC. REAR AXLE RT260<C2B> 		1-48269-011-0 01 1 9902-
19 COVER; PISTON
EXC. REAR AXLE RT260<C2B> 		1-48269-011-0 01 1 9902-
19 COVER; PISTON 1-48269-011-0 02 1 9902-
19 COVER; PISTON
REAR AXLE RT260<C2B> 		1-48269-011-0 02 1 9902-
20 RING; RET 1-48259-060-0 02 1 9812-9901
20 RING; RET 1-48259-060-0 02 1 9812-9901
20 RING; RET
EXC. REAR AXLE RT260<C2B> 		1-48259-060-0 01 1 9902-
20 RING; RET
EXC. REAR AXLE RT260<C2B> 		1-48259-060-0 01 1 9902-
20 RING; RET 1-48259-060-0 02 1 9902-
20 RING; RET
REAR AXLE RT260<C2B> 		1-48259-060-0 02 1 9902-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9812-9901
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9812-9901
21 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-049-0 01 1 9902-
21 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-049-0 01 1 9902-
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 9902-
21 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-049-0 02 1 9902-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9812-9901
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9812-9901
22 RING; BACKUP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-019-0 01 1 9902-
22 RING; BACKUP,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-019-0 01 1 9902-
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 9902-
22 RING; BACKUP,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-019-0 02 1 9902-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9812-9901
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9812-9901
23 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-047-0 01 1 9902-
23 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-047-0 01 1 9902-
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 9902-
23 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-047-0 02 1 9902-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9812-9901
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9812-9901
24 BEARING; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-020-0 01 1 9902-
24 BEARING; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-020-0 01 1 9902-
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 9902-
24 BEARING; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-020-0 02 1 9902-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 01 1 9812-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-086-0 01 1 9812-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-085-0 01 1 9812-
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-085-0 01 1 9812-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9812-9901
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9812-9901
26 NUT; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-058-0 02 1 9902-
26 NUT; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-058-0 02 1 9902-
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 9902-
26 NUT; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-058-0 04 1 9902-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 9812-9901
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 9812-9901
27 WASHER; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-057-0 01 1 9902-
27 WASHER; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-057-0 01 1 9902-
27 WASHER; PRESSURE PLATE 1-48259-057-0 02 1 9902-
27 WASHER; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-057-0 02 1 9902-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9812-9901
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9812-9901
28 BRACKET; PRESSURE PLATE,HOSE
EXC. REAR AXLE RT260<C2B> 		1-48259-059-0 01 1 9902-
28 BRACKET; PRESSURE PLATE,HOSE
EXC. REAR AXLE RT260<C2B> 		1-48259-059-0 01 1 9902-
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 9902-
28 BRACKET; PRESSURE PLATE,HOSE
REAR AXLE RT260<C2B> 		1-48259-059-0 02 1 9902-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9812-9901
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9812-9901
29 STUD; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-050-0 01 1 9902-
29 STUD; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-050-0 01 1 9902-
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 9902-
29 STUD; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-050-0 02 1 9902-
33 RETAINER; DIAPH 1-48259-044-0 04 1 9812-9901
33 RETAINER; DIAPH 1-48259-044-0 04 1 9812-9901
33 RETAINER; DIAPH
EXC. REAR AXLE RT260<C2B> 		1-48259-044-0 02 1 9902-
33 RETAINER; DIAPH
EXC. REAR AXLE RT260<C2B> 		1-48259-044-0 02 1 9902-
33 RETAINER; DIAPH 1-48259-044-0 04 1 9902-
33 RETAINER; DIAPH
REAR AXLE RT260<C2B> 		1-48259-044-0 04 1 9902-
34 DIAPHRAGM 1-48252-010-0 02 1 9812-9901
34 DIAPHRAGM 1-48252-010-0 02 1 9812-9901
34 DIAPHRAGM
EXC. REAR AXLE RT260<C2B> 		1-48252-010-0 01 1 9902-
34 DIAPHRAGM
EXC. REAR AXLE RT260<C2B> 		1-48252-010-0 01 1 9902-
34 DIAPHRAGM 1-48252-010-0 02 1 9902-
34 DIAPHRAGM
REAR AXLE RT260<C2B> 		1-48252-010-0 02 1 9902-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 9812-9901
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 9812-9901
35 PLATE; ROD END,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48253-010-0 01 1 9902-
35 PLATE; ROD END,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48253-010-0 01 1 9902-
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 9902-
35 PLATE; ROD END,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48253-010-0 02 1 9902-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9812-9901
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9812-9901
36 RETAINER; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-043-0 01 1 9902-
36 RETAINER; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-043-0 01 1 9902-
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 9902-
36 RETAINER; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-043-0 02 1 9902-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9812-9901
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9812-9901
37 SPRING; LWR,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48255-003-0 01 1 9902-
37 SPRING; LWR,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48255-003-0 01 1 9902-
37 SPRING; LWR,SPR CHAMBER 1-48255-003-0 02 1 9902-
37 SPRING; LWR,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48255-003-0 02 1 9902-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9812-9901
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9812-9901
38 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-066-0 01 1 9902-
38 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-066-0 01 1 9902-
38 COVER; ROD & PLATE 1-48259-066-0 02 1 9902-
38 COVER; ROD & PLATE
REAR AXLE RT260<C2B> 		1-48259-066-0 02 1 9902-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9812-9901
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9812-9901
39 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-065-0 01 1 9902-
39 COVER; ROD & PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-065-0 01 1 9902-
39 COVER; ROD & PLATE 1-48259-065-0 02 1 9902-
39 COVER; ROD & PLATE
REAR AXLE RT260<C2B> 		1-48259-065-0 02 1 9902-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 9812-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 9812-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 9812-
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 9812-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 9812-9901
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 9812-9901
41 PIPE ASM; LWR COVER
EXC. REAR AXLE RT260<C2B> 		1-48259-075-0 01 1 9902-
41 PIPE ASM; LWR COVER
EXC. REAR AXLE RT260<C2B> 		1-48259-075-0 01 1 9902-
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 9902-
41 PIPE ASM; LWR COVER
REAR AXLE RT260<C2B> 		1-48259-075-0 02 1 9902-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9812-9901
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9812-9901
67 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-053-0 01 1 9902-
67 GASKET; SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-053-0 01 1 9902-
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 9902-
67 GASKET; SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-053-0 02 1 9902-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9812-9901
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9812-9901
69 HOSE; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-051-0 01 1 9902-
69 HOSE; PRESSURE PLATE
EXC. REAR AXLE RT260<C2B> 		1-48259-051-0 01 1 9902-
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 9902-
69 HOSE; PRESSURE PLATE
REAR AXLE RT260<C2B> 		1-48259-051-0 02 1 9902-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9812-9901
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9812-9901
70 COVER; EXH,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-052-0 01 1 9902-
70 COVER; EXH,SPR CHAMBER
EXC. REAR AXLE RT260<C2B> 		1-48259-052-0 01 1 9902-
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 9902-
70 COVER; EXH,SPR CHAMBER
REAR AXLE RT260<C2B> 		1-48259-052-0 02 1 9902-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
