2-43 — AUTO TRANS CONTROL VALVE; UPPER BODY (#74139) — 34 parça

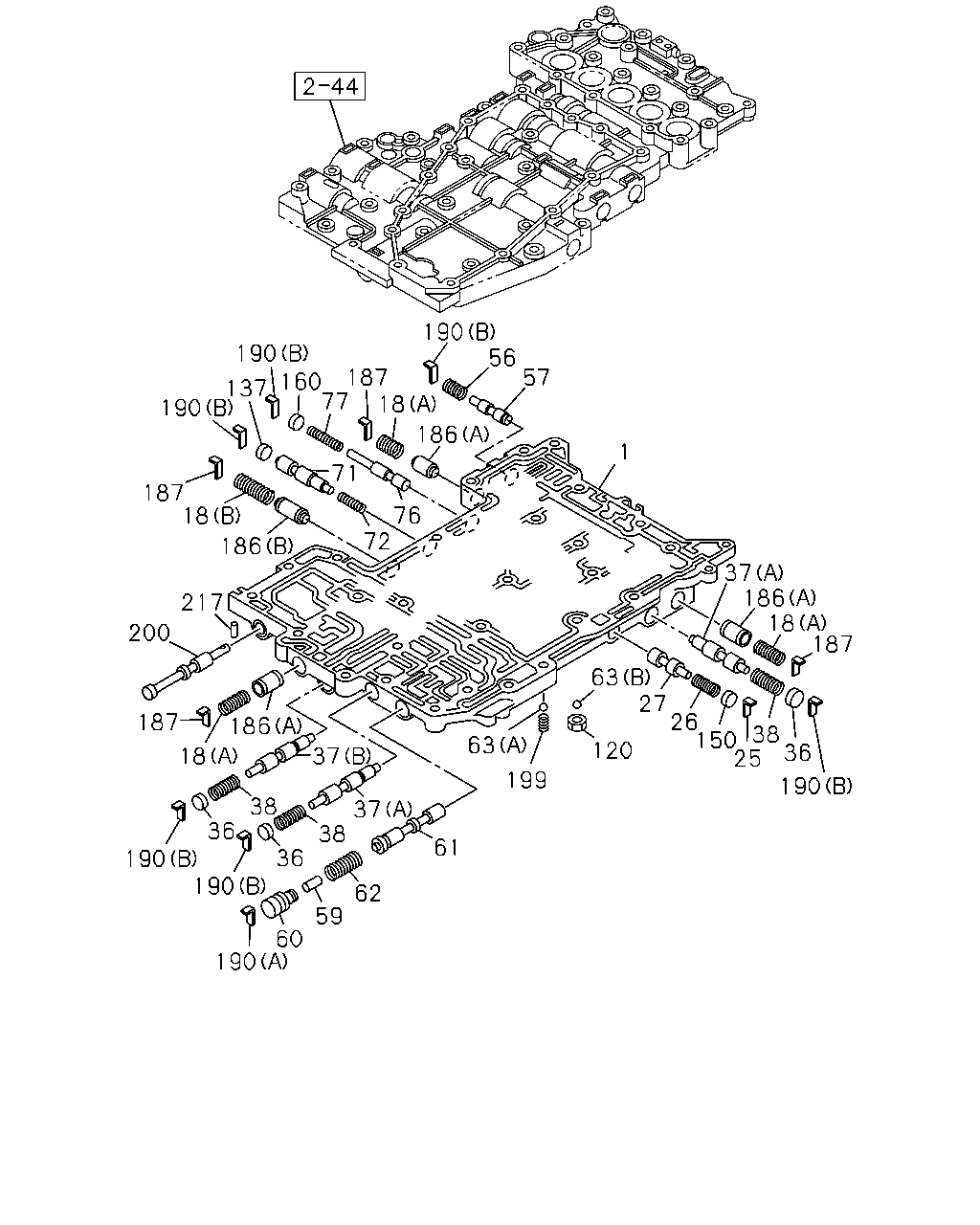

çizim 153155
190 56 57 190 187 160 77 18 137 190 186 1 71 187 18 76 72 186 37 186 18 187 217 200 63 27 26 38 150 36 25 186 187 37 63 120 18 199 190 38 37 38 62 36 61 36 190 190 59 60 190
BalonParca AdiParca NoAdetTipApplied Date
1 04.265 BODY ASM; UPR,VALVE,A/T 8-97331-058-0 01 1 0306-0609
18 04.265 SPRING; ACCUMLATOR CONT VLV
04.246 (A) 		8-97092-821-0 03 1 0306-0609
18 04.265 SPRING; ACCUMLATOR CONT VLV
(B) 		8-97331-077-0 01 1 0306-0609
25 04.265 PLATE; RET,SHIFT CONT VLV 8-97331-080-0 01 1 0306-0609
26 04.265 SPRING; SHIFT CONT VLV 8-97331-076-0 01 1 0306-0609
27 04.265 VALVE; SHIFT CONT,UPR BODY 8-97331-084-0 01 1 0306-0609
36 04.265 PLUG; SPOOL CONT VLV,UPR BODY 8-97331-098-0 03 1 0306-0609
37 04.265 VALVE; SPOOL CONT,UPR BODY
(A) 		8-97331-086-0 02 1 0306-0609
37 04.265 VALVE; SPOOL CONT,UPR BODY
(B) 		8-97331-090-0 01 1 0306-0609
38 04.265 SPRING; SPOOL CONT VLV 8-97331-068-0 03 1 0306-0609
56 04.265 SPRING; PILOT VALVE,SPOOL CONT 8-97331-066-0 01 1 0306-0609
57 04.265 VALVE; PILOT,SPOOL CONT 8-97331-088-0 01 1 0306-0609
59 04.265 SLEEVE; LOCKUP CONT VALVE 8-97331-095-0 01 1 0306-0609
60 04.265 PLUG; LOCKUP CONT VALVE 8-97331-094-0 01 1 0306-0609
61 04.265 VALVE; LOCKUP CONT,UPR BODY 8-97331-093-0 01 1 0306-0609
62 04.265 SPRING; LOCKUP CONT VALVE 8-97331-067-0 01 1 0306-0609
63 04.265 BALL; STEEL,VLV UPR,A/T
(A) 		8-97135-609-0 10 1 0306-0609
63 04.265 BALL; STEEL,VLV UPR,A/T
(B) 		8-97331-092-0 01 1 0306-0609
71 04.265 VALVE; LOW,VLV UPR RR,A/T 8-97331-082-0 01 1 0306-0609
72 04.265 SPRING; VLV LOW,VLV UPR RR,A/T 8-97331-070-0 01 1 0306-0609
76 04.265 VALVE; REV CLU,A/T 8-97331-085-0 01 1 0306-0609
77 04.265 SPRING; VLV,REV,A/T 8-97331-074-0 01 1 0306-0609
120 04.265 NUT; UPR BODY,VLV,A/T 8-97112-969-0 02 1 0306-0609
137 04.265 PLUG; LOW MODULATOR VALVE 8-97331-099-0 01 1 0306-0609
150 04.265 PLUG; SHIFT VLV 8-97331-099-0 01 1 0306-0609
160 04.265 PLUG; VLV BODY 8-97331-097-0 01 1 0306-0609
186 04.241 PISTON; ACCUMLATOR VLV,A/T
(A) 		8-94342-922-0 03 1 0306-0609
186 04.241 PISTON; ACCUMLATOR VLV,A/T
(B) 		8-97331-056-0 01 1 0306-0609
187 04.265 PLATE; ACCUM CONT VLV,A/T 8-94385-905-0 04 1 0306-0609
190 04.265 PLATE; VLV RET,A/T
(A) 		8-94385-905-0 01 1 0306-0609
190 04.265 PLATE; VLV RET,A/T
(B) 		8-97331-080-0 06 1 0306-0609
199 04.265 SPRING; VALVE,A/T 8-97331-079-0 01 1 0306-0609
200 04.265 VALVE; MANUAL,UPR BODY 8-97331-065-0 01 1 0306-0609
217 04.105 PIN; DOWEL 8-97331-120-0 01 1 0306-0609
