◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#74135) — 34 parça

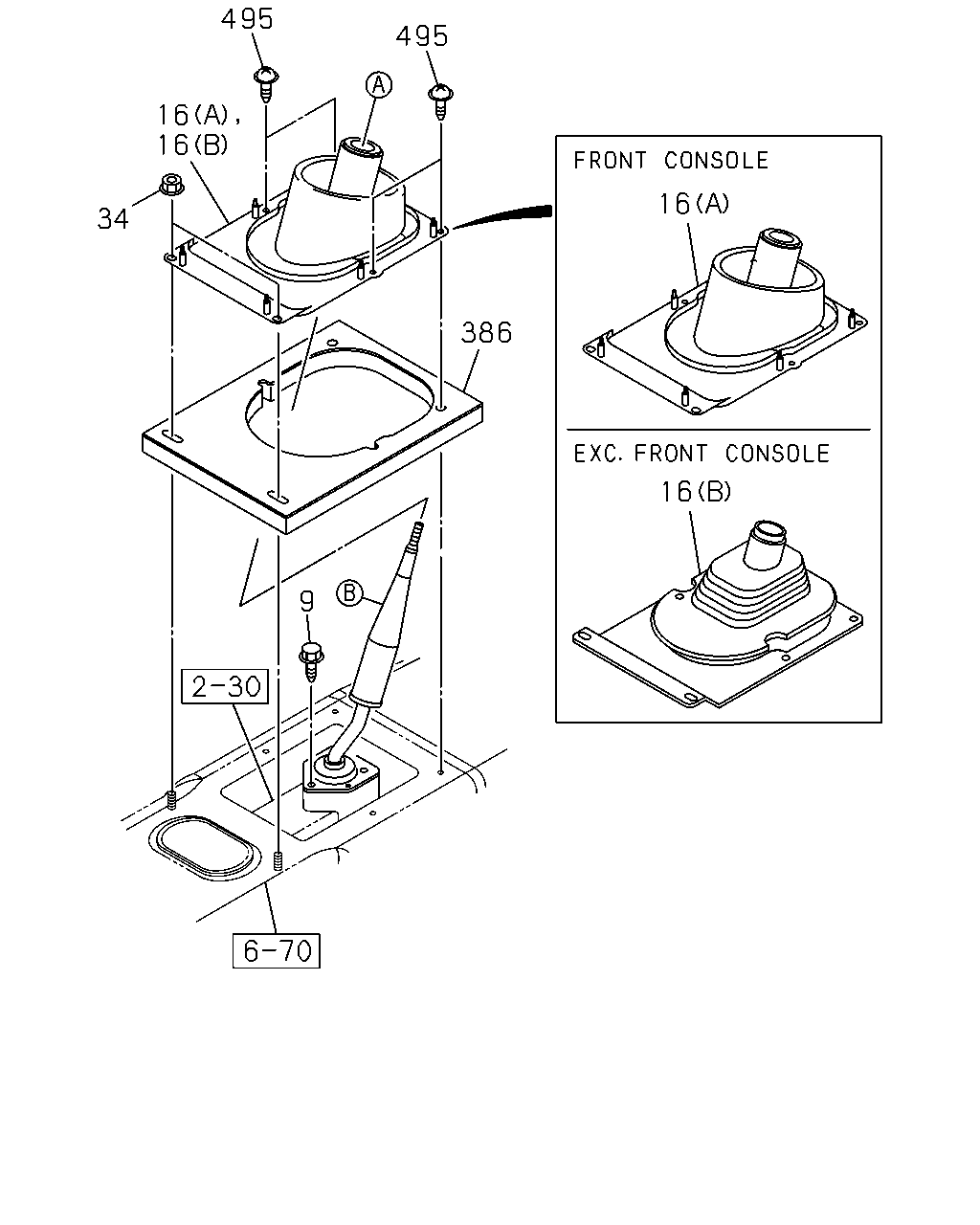

çizim 153153
495 495 16 16 16 34 386 16 9
BalonParca AdiParca NoAdetTipApplied Date A B C
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0306-0609 ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 03 1 0610- ●
9 04.012 BOLT; CHANGE LEVER
01.531 M8X20 FLANGE 		0-28650-820-0 04 1 0610- ●
16 04.015 BOOT; CHANGE LEVER
(A) 		8-97235-879-2 01 1 0306-0609 ●
16 04.015 BOOT; CHANGE LEVER
FRONT CONSOLE<D55> (A) 		8-97235-879-2 01 1 0610- ● ●
16 04.015 BOOT; CHANGE LEVER
EXC. FRONT CONSOLE<D55> (B) 		8-98003-438-0 01 1 0610- ● ●
34 08.915 NUT
07.833 M6 FLANGE 		8-97063-399-0 02 1 0306-0609 ●
34 08.915 NUT
M6 FLANGE 		8-98055-704-0 02 1 0610- ● ●
386 04.015 INSULATION; CHANGE LEVER 8-98063-555-0 01 1 0611- ●
495 04.012 SCREW; GROMMET
10.240 M5X16 TAPPING W/PL WASHER 		0-74305-516-0 04 1 0306-0605 ●
495 04.012 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 0606-0609 ●
495 04.012 SCREW; GROMMET
M5X16 TAPPING W/PL WASHER 		0-74365-516-0 04 1 0610- ● ●
çizim 153346
1 1 8 8 22 24 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY 		8-97298-804-0 01 1 0306-0404 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY 		8-97944-165-0 01 1 0405-0508 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY 		8-97398-543-0 01 1 0509-0512 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY 		8-97406-181-0 01 1 0601-0609 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB LEATHER<VY7> (A) DARK GRAY 		8-97406-182-0 01 1 0610- ● ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY 		8-97298-803-0 01 1 0306-0508 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY 		8-97398-545-0 01 1 0509-0512 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY 		8-97406-183-0 01 1 0601-0609 ●
1 04.006 KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) DARK GRAY 		8-97406-184-0 01 1 0610- ● ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B) 		8-94473-778-0 01 1 0306-0311 ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B) 		8-97371-734-0 01 1 0312-0609 ●
1 04.006 KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOBLEATHER<VY7> (B) 		8-97371-734-0 01 1 0610- ● ●
8 04.006 LEVER; CHANGE
(A) 		8-97235-806-3 01 1 0306-0306 ●
8 04.006 LEVER; CHANGE
(A) 		8-97943-608-0 01 1 0306-0609 ●
8 04.006 LEVER; CHANGE
(A) 		8-97945-707-0 01 1 0610-0610 ●
8 04.006 LEVER; CHANGE
(A) 		8-97945-847-0 01 1 0611- ●
8 04.006 LEVER; CHANGE
(B) 		8-97945-472-0 01 1 0610- ●
22 04.015 COVER; DUST,CHANGE LEVER 8-97945-801-0 01 1 0611- ●
24 04.008 BUSHING; CHANGE LEVER 8-97161-606-0 01 1 0306-0306 ●
24 04.008 BUSHING; CHANGE LEVER 8-97943-618-0 01 1 0306-0609 ●
24 04.008 BUSHING; CHANGE LEVER
4JK1-TCX ENG(LR0) 		8-97943-618-0 01 1 0610- ●
24 04.008 BUSHING; CHANGE LEVER
4JJ1-TCX ENG(LS0) 		8-97943-618-0 01 1 0610- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
