Sayfa 2-30 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶

2-30 — GEAR SHIFTER AND QUADRANT BOX (#74134) — 165 parça

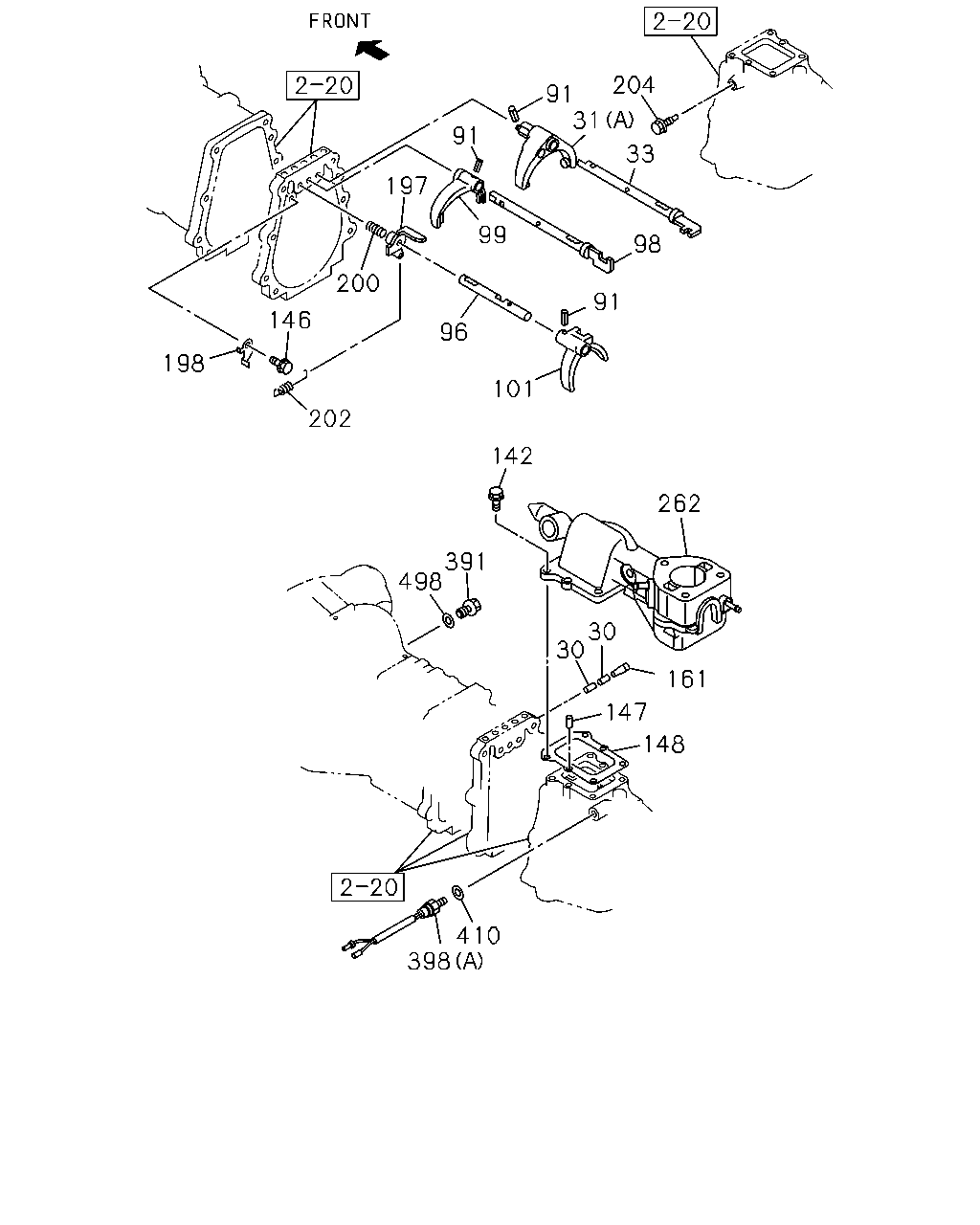

204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 262 391 498 30 30 161 147 148 410 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0306-0609	●
30	04.307 PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	0610-		●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0306-0609	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-		●
31	04.302 ARM; SHIFT,LOW & 2ND (B)	8-97362-435-0	01	1	0610-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0306-0609	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	0610-			●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0306-0609	●
91	04.302 PIN; SPR,SHIFT ARM 04.303 D=4.2 L=25	8-94171-541-0	03	1	0610-		●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0306-0609	●
96	04.309 ROD; SHIFT,5TH	8-94440-079-1	01	1	0610-		●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0306-0609	●
98	04.309 ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	0610-		●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	0610-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0306-0609	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0306-0609	●
101	04.302 ARM; SHIFT,REV & 5TH	8-94448-755-2	01	1	0610-		●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0306-0604	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-		●
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0610-			●
146	04.032 BOLT; REV INHIBITOR 07.010 M8X20 FLANGE	0-28080-820-0	01	1	0306-0512	●
146	04.032 BOLT; REV INHIBITOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0601-0609	●
146	04.032 BOLT; REV INHIBITOR 04.338 M8X20 FLANGE	0-28050-820-0	01	1	0610-		●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0306-0609	●
147	04.020 PIN; KNOCK 04.510 OD=6 L=12	9-08150-612-0	02	1	0610-		●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0306-0609	●
148	04.015 GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	0610-		●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0306-0609	●
161	04.307 PLUG; INTER LK HOLE	8-94239-543-1	01	1	0610-		●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0306-0609	●
197	04.309 INHIBITOR; REV SHIFT	8-94448-753-0	01	1	0610-		●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0306-0609	●
198	04.309 BRACKET; REV INHIBITOR	8-94448-199-0	01	1	0610-		●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0306-0609	●
200	04.309 SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	0610-		●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0306-0609	●
202	04.309 SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	0610-		●
204	04.309 STOPPER; REV INHIBITOR	8-94479-434-2	01	1	0306-0604	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0605-0609	●
204	04.309 STOPPER; REV INHIBITOR	8-98035-673-0	01	1	0610-		●
262	04.105 BOX ASM; SHIFT CONT	8-97180-891-2	01	1	0306-0306	●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0604-0609	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0610-1204		●
262	04.105 BOX ASM; SHIFT CONT	8-98203-264-0	01	1	1205-		●
391	04.104 PLUG; SW HOLE M14X11	8-94252-142-0	01	1	0306-0604	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	0605-0609	●
391	04.104 PLUG; SW HOLE M14X11	8-98035-674-0	01	1	0610-1008		●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0306-0604	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0605-0609	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0610-1405		●
398	02.698 SWITCH; REV LAMP (A)	8-98181-802-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP (B)	8-98037-159-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (B)	8-98181-801-0	01	1	1406-			●
398	02.698 SWITCH; REV LAMP (C)	8-98037-160-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (C)	8-98180-973-0	01	1	1406-			●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0306-0609	●
410	04.054 GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-		●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0306-0609	●
498	04.075 GASKET; SWITCH,1ST & 2ND 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	0610-1008		●

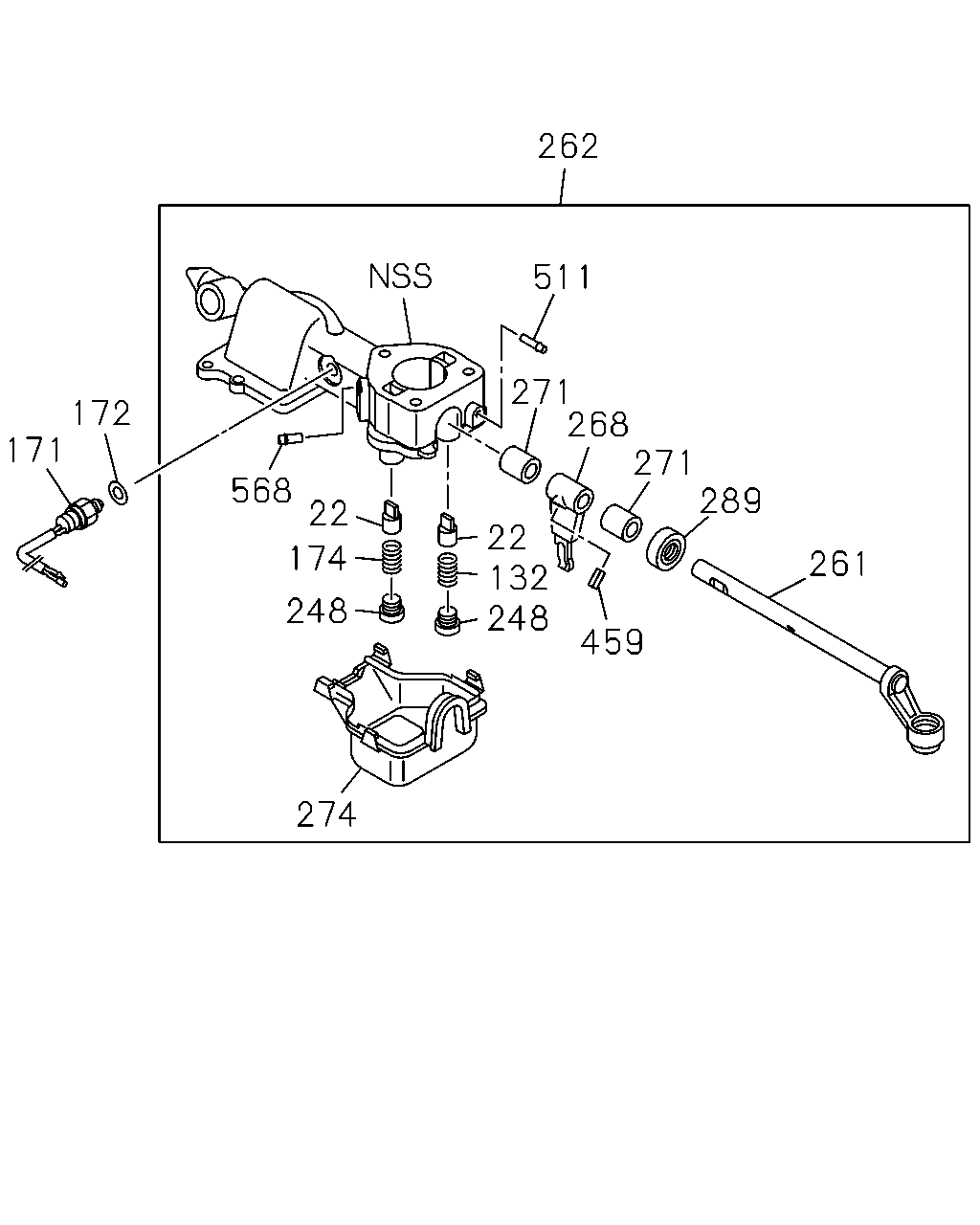

262 511 271 268 271 289 172 171 568 22 22 132 248 174 261 248 459 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0306-0609	●
22	04.307 CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	0610-		●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0306-0609	●
132	04.027 SPRING; SELECT STOP	8-97181-395-0	01	1	0610-		●
171	04.054 SWITCH; NEUTRAL	8-97138-631-0	01	1	0306-0609	●
171	04.054 SWITCH; NEUTRAL	8-97138-631-0	01	1	0610-0612		●
171	04.054 SWITCH; NEUTRAL	8-98035-680-0	01	1	0701-		●
171	04.054 SWITCH; NEUTRAL 04.075	8-97358-606-0	01	1	0610-1405			●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1406-			●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0306-0609	●
172	04.054 GASKET; NEUTRAL SW ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2	8-94462-114-0	01	1	0610-		●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0306-0609	●
174	04.307 SPRING; REV	8-97181-394-0	01	1	0610-		●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0306-0609	●
248	04.105 RETAINER; CONT BOX 04.307	8-97181-325-0	02	1	0610-1211		●
248	04.105 RETAINER; CONT BOX	8-98210-983-0	02	1	1212-		●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0306-0609	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	0610-			●
262	04.105 BOX ASM; SHIFT CONT	8-97180-891-2	01	1	0306-0306	●
262	04.105 BOX ASM; SHIFT CONT	8-97357-040-0	01	1	0306-0603	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0604-0609	●
262	04.105 BOX ASM; SHIFT CONT	8-98017-729-0	01	1	0610-1204		●
262	04.105 BOX ASM; SHIFT CONT	8-98203-264-0	01	1	1205-		●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0306-0609	●
268	04.302 LEVER; CONT,INTERNAL	8-97184-895-0	01	1	0610-		●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-97203-909-0	02	1	0306-0603	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0604-0609	●
271	04.105 BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	0610-		●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0306-0609	●
274	04.105 COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	0610-		●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-97181-327-0	01	1	0306-0603	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	0604-0609	●
289	04.107 SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	0610-		●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0306-0609	●
459	04.302 PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	0610-		●
511	04.302 PIPE; AIR 04.510	8-97173-545-0	01	1	0306-0306	●
568	04.302 PIPE; BREATHER 04.510	8-97173-544-0	01	1	0306-0306	●

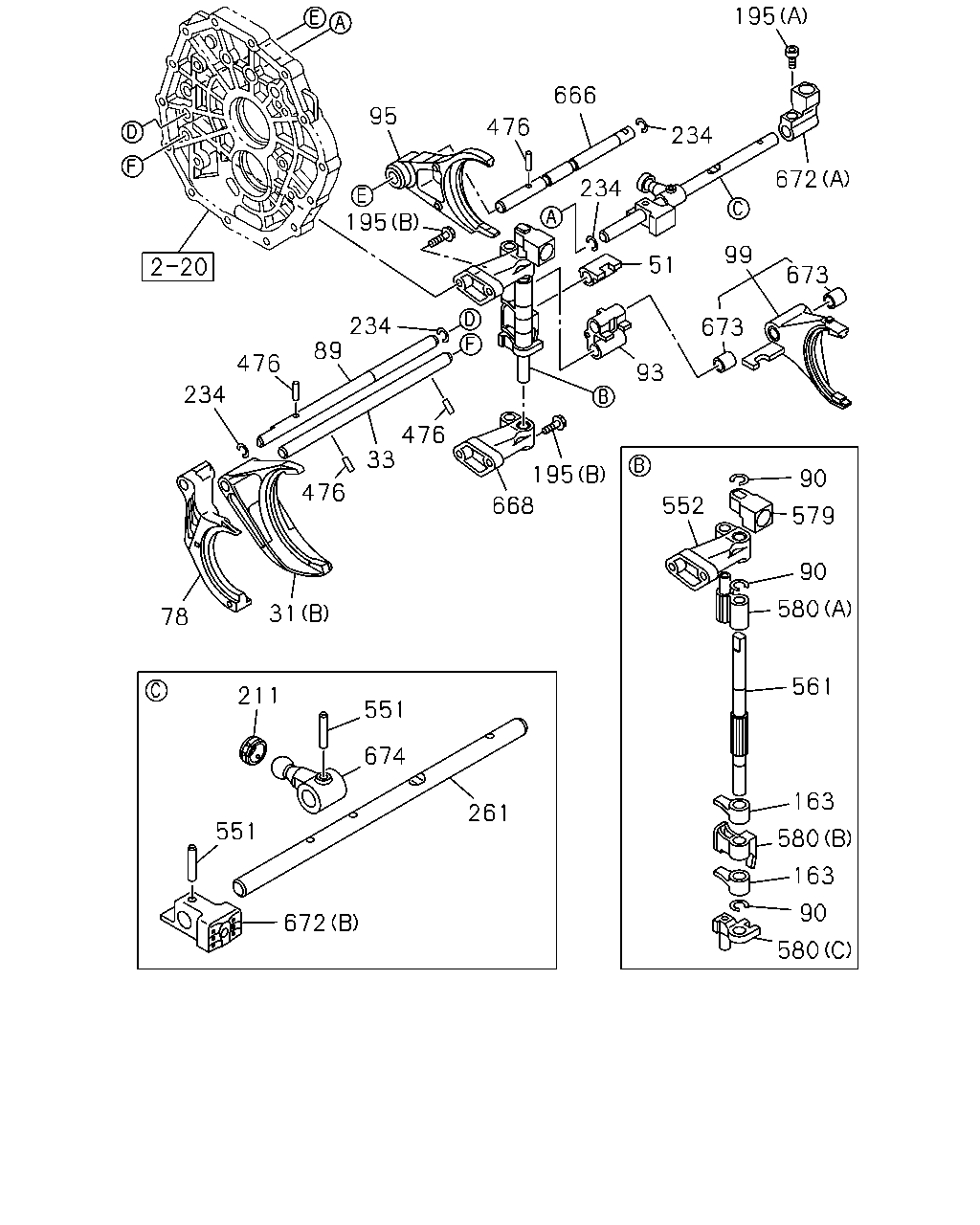

195 666 95 476 234 672 234 195 99 51 673 234 89 673 476 93 234 476 33 195 90 476 552 668 579 90 580 31 78 561 211 551 674 163 261 551 580 163 90 672 580

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0306-0609	●
31	04.302 ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	0610-		●
31	04.302 ARM; SHIFT,LOW & 2ND (B)	8-97362-435-0	01	1	0610-			●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0306-0609	●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	0610-		●
33	04.309 ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	0610-			●
51	04.303 BLOCK; SHIFT,1ST & 2ND 04.302	8-97362-445-2	01	1	0610-1102			●
51	04.303 BLOCK; SHIFT,1ST & 2ND 04.302	8-98186-703-0	01	1	1103-			●
78	04.302 ARM; SHIFT,REV	8-97362-434-1	01	1	0610-			●
89	04.309 ROD; SHIFT,REV	8-97362-440-1	01	1	0610-			●
90	04.307 RING; SNAP,SHIFT ROD ID=12	8-94460-357-0	03	1	0610-			●
93	04.303 BLOCK; SHIFT,REV & 5TH 04.302	8-98004-541-1	01	1	0610-			●
95	04.302 ARM; SHIFT,5TH	8-97362-436-1	01	1	0610-			●
99	04.302 ARM; SHIFT,4TH & 3RD 04.303	8-97362-439-2	01	1	0610-			●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0306-0609	●
99	04.302 ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	0610-		●
163	04.302 LEVER; SELECT,INTERNAL	8-98052-461-0	02	1	0610-			●
195	04.105 BOLT (A) M8X8.5 TAPER	8-97250-975-0	01	1	0610-			●
195	04.105 BOLT (B) M8X30 FLANGE	8-98034-764-0	04	1	0610-			●
211	04.307 SEAT; BALL	8-98042-833-1	01	1	0610-0612			●
211	04.307 SEAT; BALL	8-98073-812-0	01	1	0701-			●
234	04.311 RING; SNAP 04.307 ID=12	8-94460-357-0	04	1	0610-			●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0306-0609	●
261	04.309 ROD; GEAR CONT	8-97257-911-0	01	1	0610-		●
261	04.309 ROD; GEAR CONT	8-97362-444-0	01	1	0610-			●
476	04.311 PIN; SHIFT ROD 04.303 D=4.2 L=25	8-94171-541-0	04	1	0610-			●
551	04.303 PIN; SPRING D=4.2 L=25	8-94171-541-0	02	1	0610-			●
552	04.105 BRACKET	8-97362-465-1	01	1	0610-			●
561	04.309 ROD; SHIFT	8-98052-463-0	01	1	0610-			●
579	04.303 BLOCK; SHIFT,ROD GUIDE	8-97362-447-2	01	1	0610-			●
580	04.303 BLOCK; INTERLOCK (A)	8-97362-461-1	01	1	0610-			●
580	04.303 BLOCK; INTERLOCK (C)	8-97362-463-1	01	1	0610-1102			●
580	04.303 BLOCK; INTERLOCK (C)	8-98186-700-0	01	1	1103-			●
580	04.303 BLOCK; INTERLOCK (B)	8-98052-462-0	01	1	0610-			●
666	04.309 ROD; GEAR SHIFT,3RD,4TH & 4TH	8-97362-442-2	01	1	0610-			●
668	04.309 BRACKET; SHIFT ROD 04.105	8-97362-465-1	01	1	0610-			●
672	04.303 BLOCK; SHIFT,T/M CONTROL (A)	8-97362-467-0	01	1	0610-			●
672	04.303 BLOCK; SHIFT,T/M CONTROL (B)	8-97362-470-1	01	1	0610-0707			●
672	04.303 BLOCK; SHIFT,T/M CONTROL (B)	8-98083-873-0	01	1	0708-			●
673	04.309 BEARING; SHIFT ARM 00.683	8-97362-853-0	02	1	1008-			●
673	04.309 BEARING; SHIFT ARM 00.683	8-97362-853-0	02	1	0610-1007			●
674	04.302 LEVER; CONT	8-97362-466-0	01	1	0610-			●

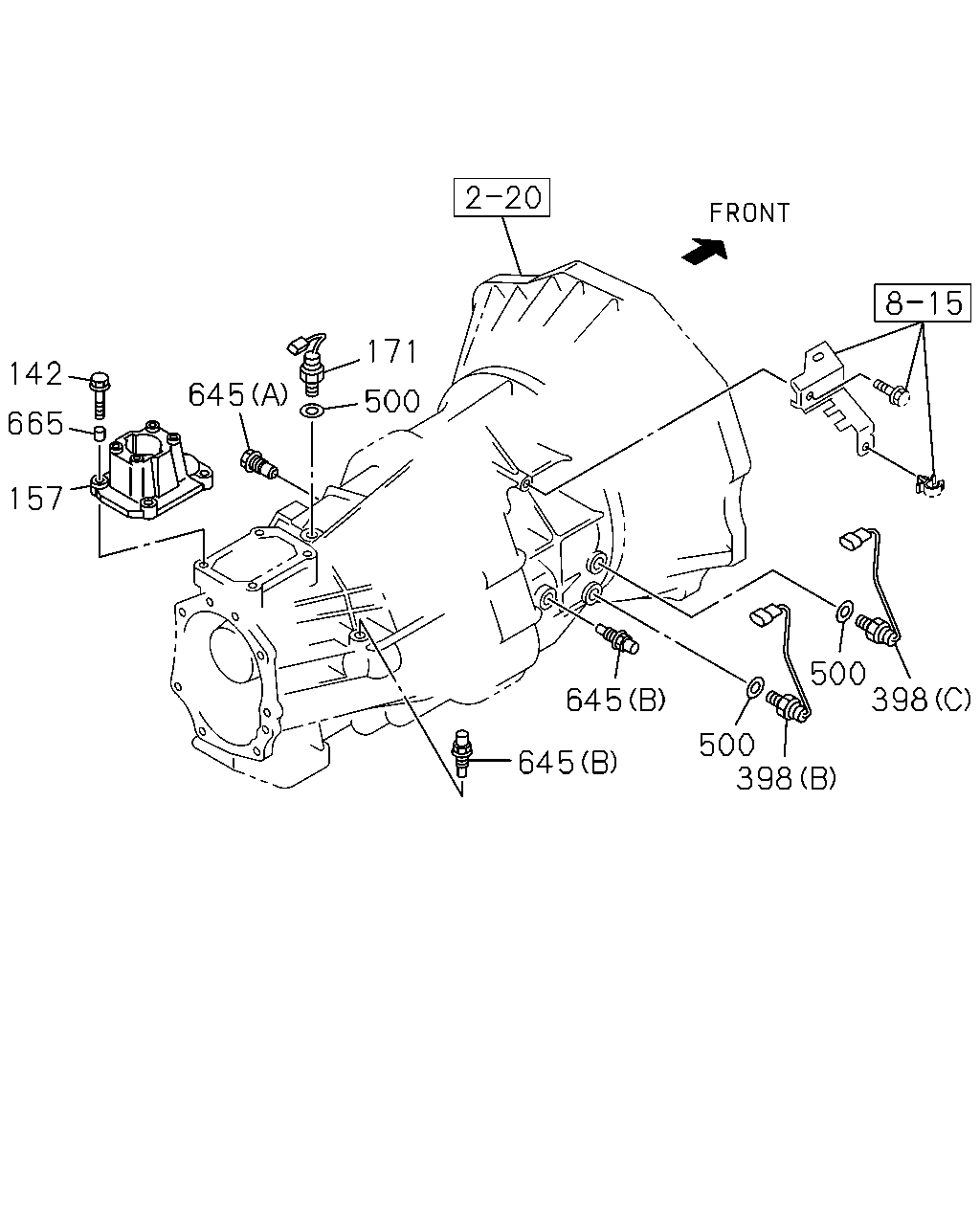

171 142 645 500 665 157 500 398 645 500 398 645

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-94448-815-3	04	1	0306-0604	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0605-0609	●
142	04.012 BOLT; QUAD BOX 04.356 M8X22 FLANGE	8-97365-376-0	04	1	0610-		●
142	04.012 BOLT; QUAD BOX 01.060 M8X35 FLANGE	0-28650-835-0	04	1	0610-			●
157	04.105 BOX; QUAD,TRANS	8-97362-383-0	01	1	0610-			●
171	04.054 SWITCH; NEUTRAL	8-97138-631-0	01	1	0306-0609	●
171	04.054 SWITCH; NEUTRAL	8-97138-631-0	01	1	0610-0612		●
171	04.054 SWITCH; NEUTRAL	8-98035-680-0	01	1	0701-		●
171	04.054 SWITCH; NEUTRAL 04.075	8-97358-606-0	01	1	0610-1405			●
171	04.054 SWITCH; NEUTRAL	8-98180-974-0	01	1	1406-			●
398	02.698 SWITCH; REV LAMP (A)	8-97138-635-0	01	1	0306-0604	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0605-0609	●
398	02.698 SWITCH; REV LAMP (A)	8-98035-681-0	01	1	0610-1405		●
398	02.698 SWITCH; REV LAMP (A)	8-98181-802-0	01	1	1406-		●
398	02.698 SWITCH; REV LAMP (B)	8-98037-159-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (B)	8-98181-801-0	01	1	1406-			●
398	02.698 SWITCH; REV LAMP (C)	8-98037-160-0	01	1	0610-1405			●
398	02.698 SWITCH; REV LAMP (C)	8-98180-973-0	01	1	1406-			●
500	04.075 GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0	9-09571-414-0	03	1	0610-			●
645	04.311 DETENT ASM (A)	8-97362-469-2	01	1	0610-			●
645	04.311 DETENT ASM 04.307 (B)	8-98019-536-0	02	1	0610-			●
665	00.206 DOWEL OD=11 L=8	9-11229-058-1	02	1	0610-			●
