Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#74133) — 503 parça

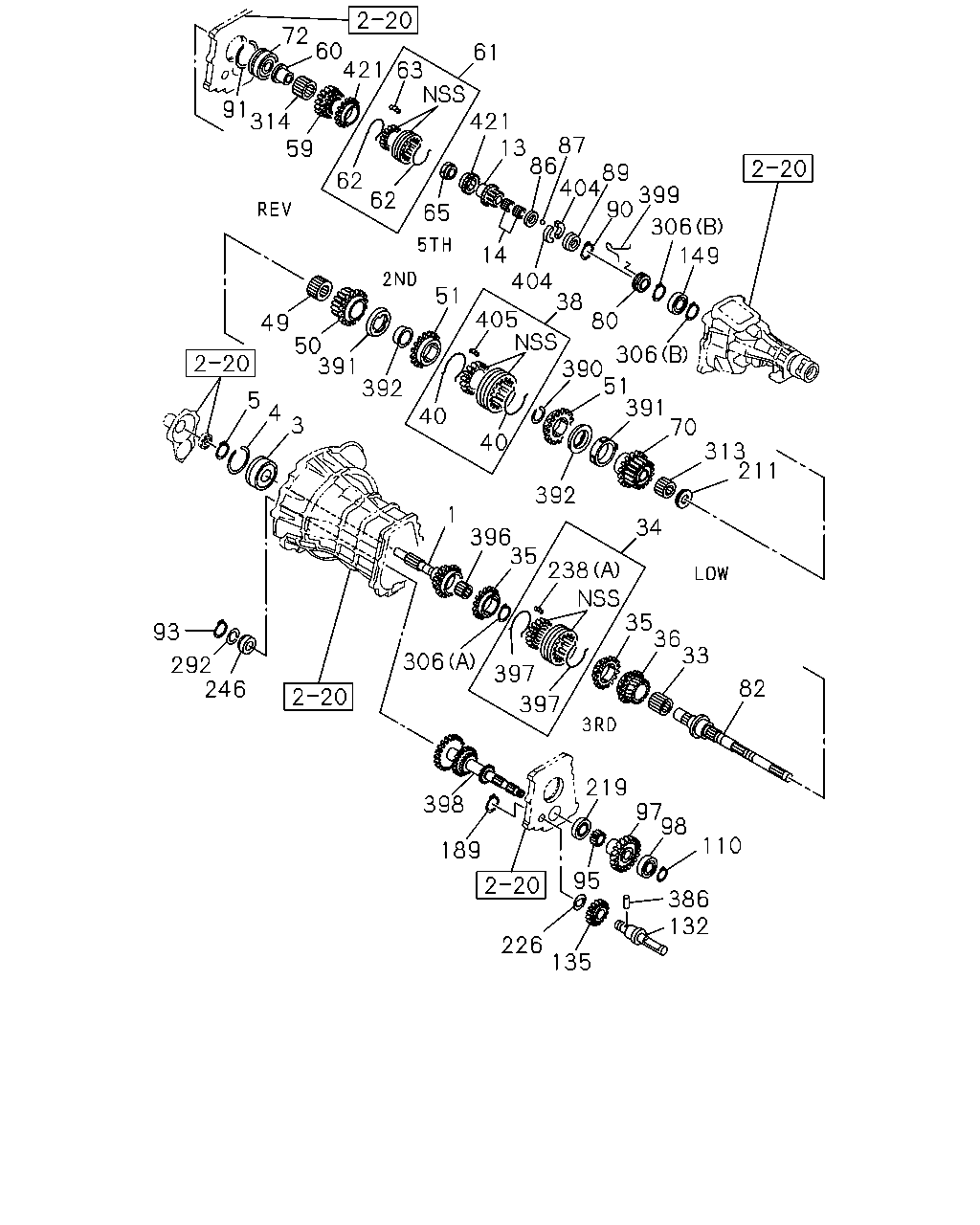

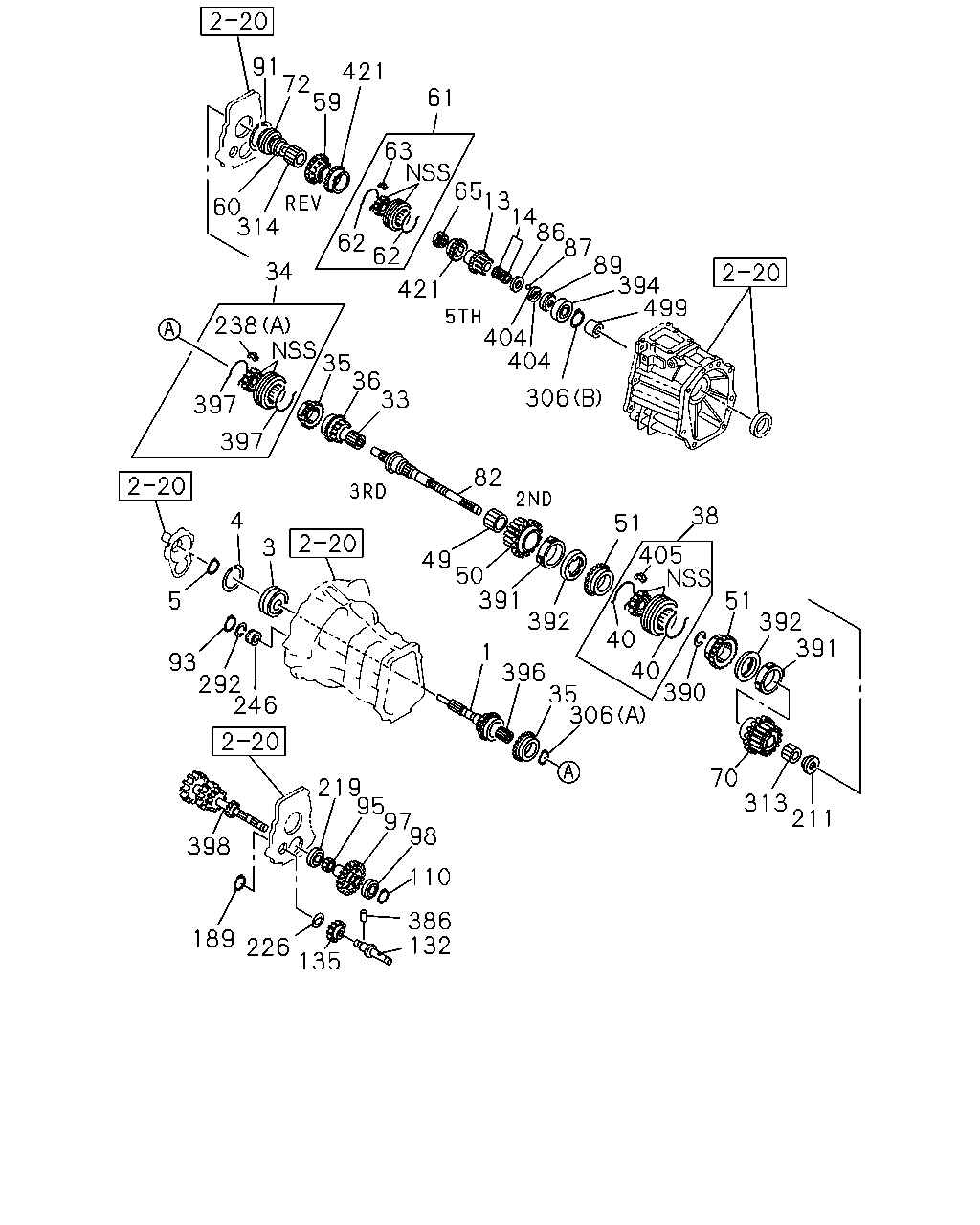

91 72 59 421 61 63 65 13 14 86 87 89 394 499 60 314 62 62 34 421 404 404 238 35 36 33 306 397 397 82 38 4 51 3 405 49 50 391 392 51 5 392 391 40 1 93 292 246 40 390 396 35 306 70 313 211 219 95 97 98 398 110 386 132 135 189 226

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-1	01	1	0306-0609	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-1	01	1	0610-1204		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1205-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0306-0609	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0306-0609	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0306-0609	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0306-0609	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-3	01	1	0610-1204		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1205-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0306-0609	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	0610-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0306-0609	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0306-0609	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	0610-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0306-0609	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0306-0609	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-1204		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1205-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0306-0609	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	0610-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0306-0609	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0306-0609	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0306-0609	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1105-1106			●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0306-0609	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-1104		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	1105-1106		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0306-0609	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-1205		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1206-		●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0306-0609	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0610-		●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0306-0609	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0306-0609	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0306-0609	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-		●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0306-0609	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0306-0609	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0306-0609	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0610-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0306-0609	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0610-		●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0306-0609	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0610-		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0306-0609	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0610-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0306-0609	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0306-0609	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●
95	04.417 GEAR; REV,COUNTER Z=41	8-97362-499-0	01	1	0610-1204			●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1205-			●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0306-0609	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-		●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	0610-			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0306-0609	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0610-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0306-0609	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-1308		●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1309-		●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	0610-			●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0306-0609	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-		●
135	04.430 GEAR; REV IDLER Z=32	8-97362-513-1	01	1	0610-1302			●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1303-			●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0610-		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0610-		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0610-		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0306-0609	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0610-		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0306-0609	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0610-		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0306-0609	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0610-		●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0306-0609	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●
238	04.384 INSERT (B)	8-94249-576-2	03	1	0610-			●
238	04.384 INSERT (C)	8-98004-522-0	06	1	0610-			●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0306-0609	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0610-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0306-0609	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0610-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0306-0609	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	0610-			●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0306-0609	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-		●
386	04.435 PIN; REV SHAFT 00.662 OD=4 L=8	9-08160-408-0	01	1	0610-			●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0610-		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0610-		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0610-		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0306-0609	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0610-		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0306-0609	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0610-1106		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1107-		●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0306-0609	●
394	04.419 BEARING; BALL,MAINSHAFT RR 4X4(TFS***) 04.352 NSK	8-97018-921-1	01	1	0610-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0306-0609	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0306-0609	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-		●
398	04.421 GEAR; COUNTER Z=26	8-98079-114-0	01	1	1205-			●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0306-0609	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●
398	04.421 GEAR; COUNTER Z=26	8-98023-110-1	01	1	0610-0703			●
398	04.421 GEAR; COUNTER Z=26	8-98079-114-0	01	1	0704-1204			●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0306-0609	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0610-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0306-0609	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0306-0609	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0610-		●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	0306-0609	●
499	04.419 COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	0610-		●

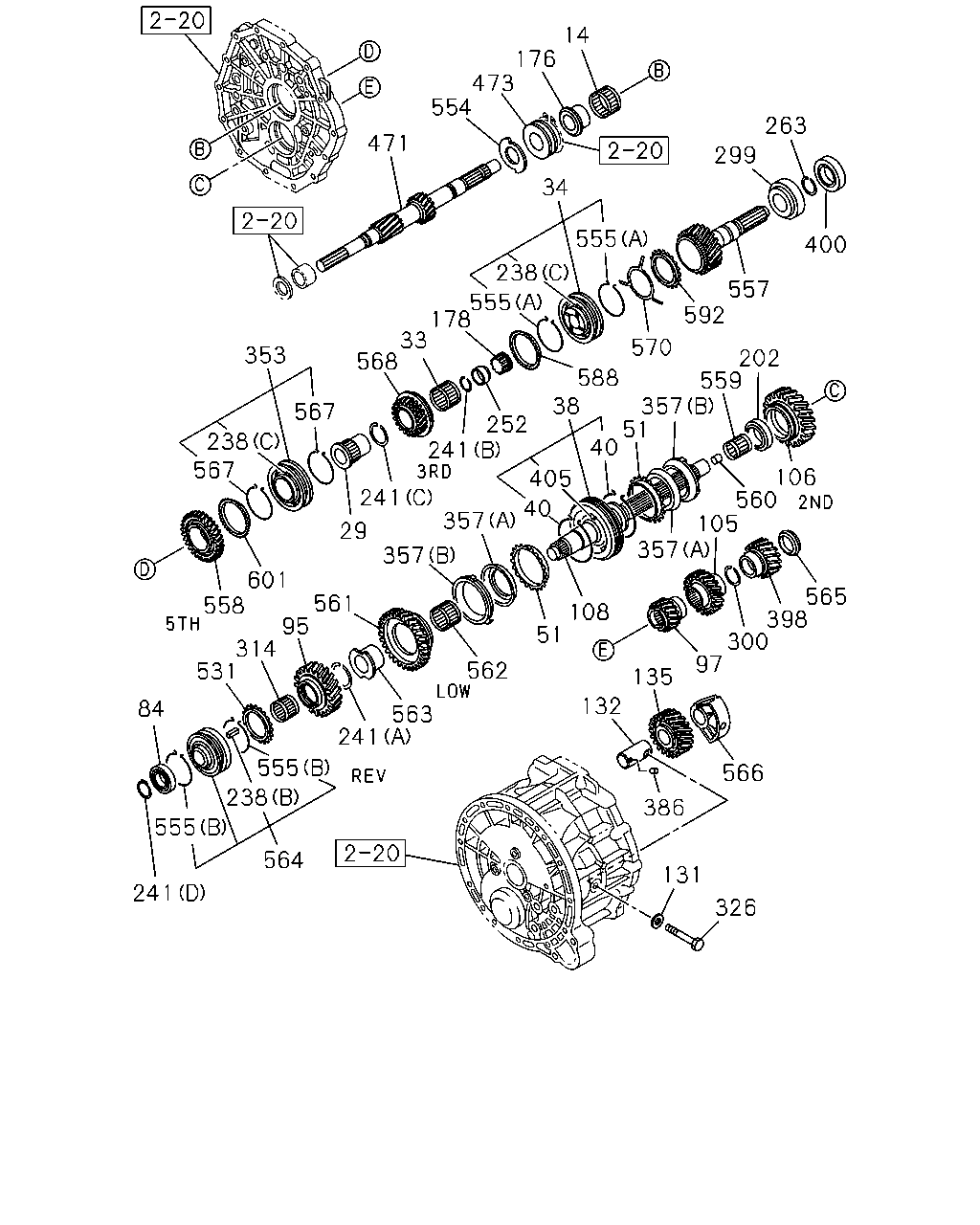

14 176 473 554 263 471 299 34 555 400 238 557 592 555 178 33 568 570 353 202 559 357 51 40 588 38 567 252 241 241 238 567 106 105 405 40 357 29 357 357 601 558 565 398 300 97 561 95 314 531 108 51 562 563 241 135 132 84 555 566 238 386 555 564 131 241 326 560

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0306-0609	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	0610-			●
29	04.416 COLLAR; 3RD GEAR	8-97362-568-1	01	1	0610-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0306-0609	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0306-0609	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	0610-			●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0306-0609	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	0610-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0306-0609	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1105-1106			●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0306-0609	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-1104		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	1105-1106		●
84	04.422 BEARING; COUNTER SHAFT,FRT	8-97362-724-0	01	1	0610-			●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0306-0609	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●
95	04.417 GEAR; REV,COUNTER Z=41	8-97362-499-0	01	1	0610-1204			●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1205-			●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0306-0609	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-		●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	0610-			●
105	04.415 GEAR; 3RD,COUNTER Z=31	8-98023-109-0	01	1	0610-1302			●
105	04.415 GEAR; 3RD,COUNTER Z=31	8-98233-612-0	01	1	1303-			●
106	04.395 GEAR; 2ND,COUNTER Z=38	8-97362-505-0	01	1	0610-1204			●
106	04.395 GEAR; 2ND,COUNTER Z=38	8-98210-236-0	01	1	1205-			●
108	04.428 SHAFT; COUNTER Z=26-34-26-26	8-98023-108-1	01	1	0610-			●
131	04.435 GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=12.2	9-09571-412-0	01	1	0610-			●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0306-0609	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-1308		●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1309-		●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	0610-			●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0306-0609	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-		●
135	04.430 GEAR; REV IDLER Z=32	8-97362-513-1	01	1	0610-1302			●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1303-			●
176	04.415 COLLAR; 5TH GEAR	8-97362-567-0	01	1	0610-			●
178	04.352 BEARING; NEEDLE,MAINSHAFT	8-97362-869-0	01	1	0610-			●
202	04.422 BEARING; COUNTER GEAR	8-97362-725-0	01	1	0610-			●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0306-0609	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●
238	04.384 INSERT (B)	8-94249-576-2	03	1	0610-			●
238	04.384 INSERT (C)	8-98004-522-0	06	1	0610-			●
241	04.416 RING; SNAP 04.422 (A) ID=34.4 T=1.9	8-97254-735-0	01	1	0610-			●
241	04.416 RING; SNAP (B) ID=27.1 T=1.9	8-97362-871-0	01	1	0610-			●
241	04.416 RING; SNAP (B) ID=27.1 T=2.1	8-97362-872-0	01	1	0610-			●
241	04.416 RING; SNAP (B) ID=27.1 T=2.3	8-97362-873-0	01	1	0610-			●
241	04.416 RING; SNAP (C) ID=37 T=1.95	8-98004-523-1	01	1	0610-			●
241	04.416 RING; SNAP (C) ID=37 T=2.1	8-98004-524-1	01	1	0610-			●
241	04.416 RING; SNAP (D) ID=27.9	9-09180-030-0	01	1	0610-			●
252	04.412 SPACER	8-98024-456-0	01	1	0610-			●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1	8-98004-525-0	01	1	0610-			●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2	8-98004-526-0	01	1	0610-			●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3	8-98004-527-0	01	1	0610-			●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4	8-98004-528-0	01	1	0610-			●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5	8-98004-529-0	01	1	0610-			●
263	04.525 RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6	8-98004-530-0	01	1	0610-			●
299	04.422 BEARING; OUTPUT SHAFT FRT	8-97362-722-0	01	1	0610-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3	8-98024-222-1	01	1	0610-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5	8-98024-223-1	01	1	0610-			●
300	04.422 RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7	8-98024-224-1	01	1	0610-			●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	0610-			●
326	04.412 BOLT; REV SHAFT 04.439 M12X70	9-92621-270-0	01	1	0610-			●
353	04.380 SYNCHRONIZER; 5TH	8-98004-511-1	01	1	0610-			●
357	04.383 RING (A) OD=90.0	8-94363-055-1	02	1	0610-1104			●
357	04.383 RING (A) OD=90.0	8-98115-793-0	02	1	1105-			●
357	04.383 RING (B) OD=95.8	8-94363-056-0	02	1	0610-			●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0306-0609	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-		●
386	04.435 PIN; REV SHAFT 00.662 OD=4 L=8	9-08160-408-0	01	1	0610-			●
398	04.421 GEAR; COUNTER Z=26	8-98079-114-0	01	1	1205-			●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0306-0609	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●
398	04.421 GEAR; COUNTER Z=26	8-98023-110-1	01	1	0610-0703			●
398	04.421 GEAR; COUNTER Z=26	8-98079-114-0	01	1	0704-1204			●
400	04.408 BEARING; OUTPUT SHAFT RR	8-97362-723-0	01	1	0610-			●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0306-0609	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●
471	04.530 SHAFT; INPUT	8-98049-345-1	01	1	0610-			●
473	04.352 BEARING; INPUT SHAFT	8-97362-721-1	01	1	0610-			●
531	04.383 RING; BLOCK,REV OD=74	8-98037-846-0	01	1	0610-			●
554	04.422 IMPELLER; OIL	8-97362-730-0	01	1	0610-			●
555	04.384 SPRING; INSERT (A)	5-33264-012-0	02	1	0610-			●
555	04.384 SPRING; INSERT (B)	8-97109-690-0	02	1	0610-			●
557	04.535 GEAR; OUTPUT Z=35-27	8-97362-488-2	01	1	0610-0703			●
557	04.535 GEAR; OUTPUT Z=35-27	8-98079-111-0	01	1	0704-1205			●
557	04.535 GEAR; OUTPUT Z=35-27	8-98210-258-0	01	1	1206-			●
558	04.415 GEAR; 5TH,INPUT SHAFT Z=46	8-98040-112-0	01	1	0610-1205			●
558	04.415 GEAR; 5TH,INPUT SHAFT Z=46	8-98210-234-0	01	1	1206-1302			●
558	04.415 GEAR; 5TH,INPUT SHAFT Z=46	8-98233-610-0	01	1	1303-			●
559	04.352 BEARING; NEEDLE,LOW & 2ND	8-97362-727-0	01	1	0610-			●
560	04.416 RING; DUM	8-97078-729-1	01	1	0610-			●
561	04.395 GEAR; LOW,COUNTER Z=45	8-97362-501-0	01	1	0610-1204			●
561	04.395 GEAR; LOW,COUNTER Z=45	8-98210-235-0	01	1	1205-			●
562	04.422 BEARING; NEEDLE,LOW & 2ND 04.352	8-97362-727-0	01	1	0610-			●
563	04.419 COLLAR; 1ST GEAR	8-97362-569-1	01	1	0610-			●
564	04.380 SYNCHRONIZER; REV	8-97362-496-1	01	1	0610-			●
565	04.338 SEAL; RUBBER	8-98024-457-0	01	1	0610-0910			●
566	04.342 BRACKET; REV IDLER	8-97362-516-0	01	1	0610-			●
567	04.384 SPRING; INSERT,5TH	5-33264-012-0	02	1	0610-			●
568	04.415 GEAR; 3RD,INPUT SHAFT Z=28	8-97362-480-0	01	1	0610-1205			●
568	04.415 GEAR; 3RD,INPUT SHAFT Z=28	8-98210-233-0	01	1	1206-1302			●
568	04.415 GEAR; 3RD,INPUT SHAFT Z=28	8-98233-608-0	01	1	1303-			●
570	04.422 SPRING; PLATE	8-98057-960-0	01	1	0610-0611			●
570	04.422 SPRING; PLATE	8-98072-467-2	01	1	0612-			●
588	04.383 RING; BLOCK,3RD Z=36	8-98052-559-0	01	1	0610-			●
592	04.383 RING; BLOCK,4TH Z=36	8-98052-559-0	01	1	0610-1106			●
592	04.383 RING; BLOCK,4TH	8-98197-460-0	01	1	1107-			●
601	04.383 RING; BLOCK,5TH	8-98283-241-0	01	1	0610-			●

72 60 421 61 63 421 13 87 86 89 404 399 90 91 314 59 62 62 65 306 14 404 38 80 149 51 405 390 51 391 70 313 211 49 50 391 392 306 5 4 3 40 40 392 1 34 396 35 238 35 36 33 93 306 292 246 397 82 397 219 97 98 398 110 189 95 386 132 226 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-1	01	1	0306-0609	●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-97300-948-1	01	1	0610-1204		●
1	04.351 SHAFT; TOP GEAR,TRANS Z=26	8-98210-225-0	01	1	1205-		●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0306-0609	●
3	04.403 BEARING; TOP GEAR SHAFT NSK	8-94380-015-1	01	1	0610-		●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0306-0609	●
4	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	0610-		●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0306-0609	●
5	04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 04.525 ID=37.4	8-97254-316-0	01	1	0610-		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=24	8-97216-153-0	01	1	0306-0609	●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-97104-023-3	01	1	0610-1204		●
13	04.415 GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1205-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0306-0609	●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97029-341-0	01	1	0610-1102		●
14	04.419 BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1103-		●
14	04.419 BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	0610-			●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0306-0609	●
33	04.352 BEARING; NEEDLE,3RD GEAR 04.419 NSK	1-09811-028-1	01	1	0610-		●	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97188-798-0	01	1	0306-0609	●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97104-027-0	01	1	0610-		●
34	04.380 SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	0610-			●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0306-0609	●
35	04.383 RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	0610-		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0306-0609	●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-97216-150-1	01	1	0610-1204		●
36	04.415 GEAR; 3RD,MAINSHAFT Z=27	8-98210-226-0	01	1	1205-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97188-799-0	01	1	0306-0609	●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-94363-059-1	01	1	0610-		●
38	04.384 SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	0610-			●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0306-0609	●
40	04.384 SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	0610-		●	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0306-0609	●
49	04.352 BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	0610-		●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0306-0609	●
50	04.395 GEAR; 2ND,MAINSHAFT Z=34	8-97300-953-1	01	1	0610-		●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1105-1106			●
51	04.383 RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1107-		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0306-0609	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	0610-1104		●	●
51	04.383 RING; BLOCK,LOW & 2ND Z=48	8-94363-054-1	02	1	1105-1106		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0306-0609	●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-97104-025-2	01	1	0610-1205		●
59	04.417 GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1206-		●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0306-0609	●
60	04.419 COLLAR; REV MAIN	8-97031-079-0	01	1	0610-		●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97188-800-0	01	1	0306-0609	●
61	04.380 SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	0610-		●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0306-0609	●
62	04.384 SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	0610-		●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0306-0609	●
63	04.384 INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	0610-		●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0306-0609	●
65	04.356 NUT; MAINSHAFT M34	8-94422-071-1	01	1	0610-		●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0306-0609	●
70	04.417 GEAR; 1ST,MAINSHAFT Z=45	8-97300-952-1	01	1	0610-		●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0306-0609	●
72	04.352 BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	0610-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	0306-0609	●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5) Z=6	8-94472-608-1	01	1	0610-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) Z=6	8-97227-220-0	01	1	0610-1101		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=6	8-97227-220-0	01	1	1102-		●
80	04.343 GEAR; SPD DRIVE 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=6	8-97227-220-0	01	1	1102-		●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	0610-		●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0306-0609	●
82	04.403 SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	0610-		●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0306-0609	●
86	04.416 WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	0610-		●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0306-0609	●
87	04.416 BALL; THRUST WASHER	8-94201-356-0	01	1	0610-		●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0306-0609	●
89	04.416 RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	0610-		●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0306-0609	●
90	04.416 RING; SNAP,THRUST RING 4X2(TFB***) 04.422 ID=29.6	9-09180-032-0	01	1	0610-		●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0306-0609	●
91	04.416 RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	0610-		●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0306-0609	●
93	04.422 RING; SNAP,COUNTER FRT BRG 08.934 ID=23.2	9-09180-025-0	01	1	0610-		●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0306-0609	●
95	04.417 GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	0610-		●
95	04.417 GEAR; REV,COUNTER Z=41	8-97362-499-0	01	1	0610-1204			●
95	04.417 GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1205-			●
97	04.415 GEAR; 5TH,COUNTER Z=49	8-97216-154-0	01	1	0306-0609	●
97	04.415 GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	0610-		●
97	04.415 GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	0610-			●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0306-0609	●
98	04.422 BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	0610-		●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0306-0609	●
110	04.422 RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	0610-		●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0306-0609	●
132	04.433 SHAFT; REV	8-97019-155-1	01	1	0610-1308		●
132	04.433 SHAFT; REV	8-98249-849-0	01	1	1309-		●
132	04.433 SHAFT; REV	8-98023-113-0	01	1	0610-			●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0306-0609	●
135	04.430 GEAR; REV IDLER Z=33	8-94377-435-1	01	1	0610-0705		●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0706-0708		●
135	04.430 GEAR; REV IDLER Z=33	8-98082-803-0	01	1	0709-0809		●
135	04.430 GEAR; REV IDLER Z=33	8-98080-125-0	01	1	0810-1003		●
135	04.430 GEAR; REV IDLER Z=33	8-98146-726-1	01	1	1004-		●
135	04.430 GEAR; REV IDLER Z=32	8-97362-513-1	01	1	0610-1302			●
135	04.430 GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1303-			●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0306-0609	●
149	04.352 BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) 04.422 NSK	8-94173-863-0	01	1	0610-		●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	0610-		●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	0610-		●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0306-0609	●
189	04.435 RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	0610-		●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0306-0609	●
211	04.419 BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	0610-		●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0306-0609	●
219	04.422 BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	0610-		●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0306-0609	●
226	04.437 WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	0610-		●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0306-0609	●
238	04.384 INSERT (A)	8-94448-202-2	03	1	0610-		●
238	04.384 INSERT (B)	8-94249-576-2	03	1	0610-			●
238	04.384 INSERT (C)	8-98004-522-0	06	1	0610-			●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0306-0609	●
246	04.422 BEARING; ROLLER,COUNTER SHAFT FR NSK	8-97029-600-4	01	1	0610-		●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0306-0609	●
292	04.422 RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	0610-		●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0306-0609	●
306	04.416 RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	0610-		●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0306-0609	●
313	04.419 BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0306-0609	●
314	04.419 BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	0610-		●
314	04.419 BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	0610-			●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0306-0609	●
386	04.435 PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	0610-		●
386	04.435 PIN; REV SHAFT 00.662 OD=4 L=8	9-08160-408-0	01	1	0610-			●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	0610-		●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	0610-		●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0306-0609	●
390	04.383 RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	0610-		●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0306-0609	●
391	04.383 RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	0610-		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0306-0609	●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-94363-055-1	02	1	0610-1106		●
392	04.383 RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1107-		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0306-0609	●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-94422-068-1	01	1	0610-1102		●
396	04.352 BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1103-		●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0306-0609	●
397	04.384 SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	0610-		●
398	04.421 GEAR; COUNTER Z=26	8-98079-114-0	01	1	1205-			●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0306-0609	●
398	04.421 GEAR; COUNTER Z=44-32-25-19	8-97216-164-1	01	1	0610-		●
398	04.421 GEAR; COUNTER Z=26	8-98023-110-1	01	1	0610-0703			●
398	04.421 GEAR; COUNTER Z=26	8-98079-114-0	01	1	0704-1204			●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0306-0609	●
399	04.345 CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	0610-		●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0306-0609	●
404	04.307 PLATE; THRUST	8-94421-892-0	02	1	0610-		●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0306-0609	●
405	04.384 INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	0610-		●	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0306-0609	●
421	04.383 RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	0610-		●

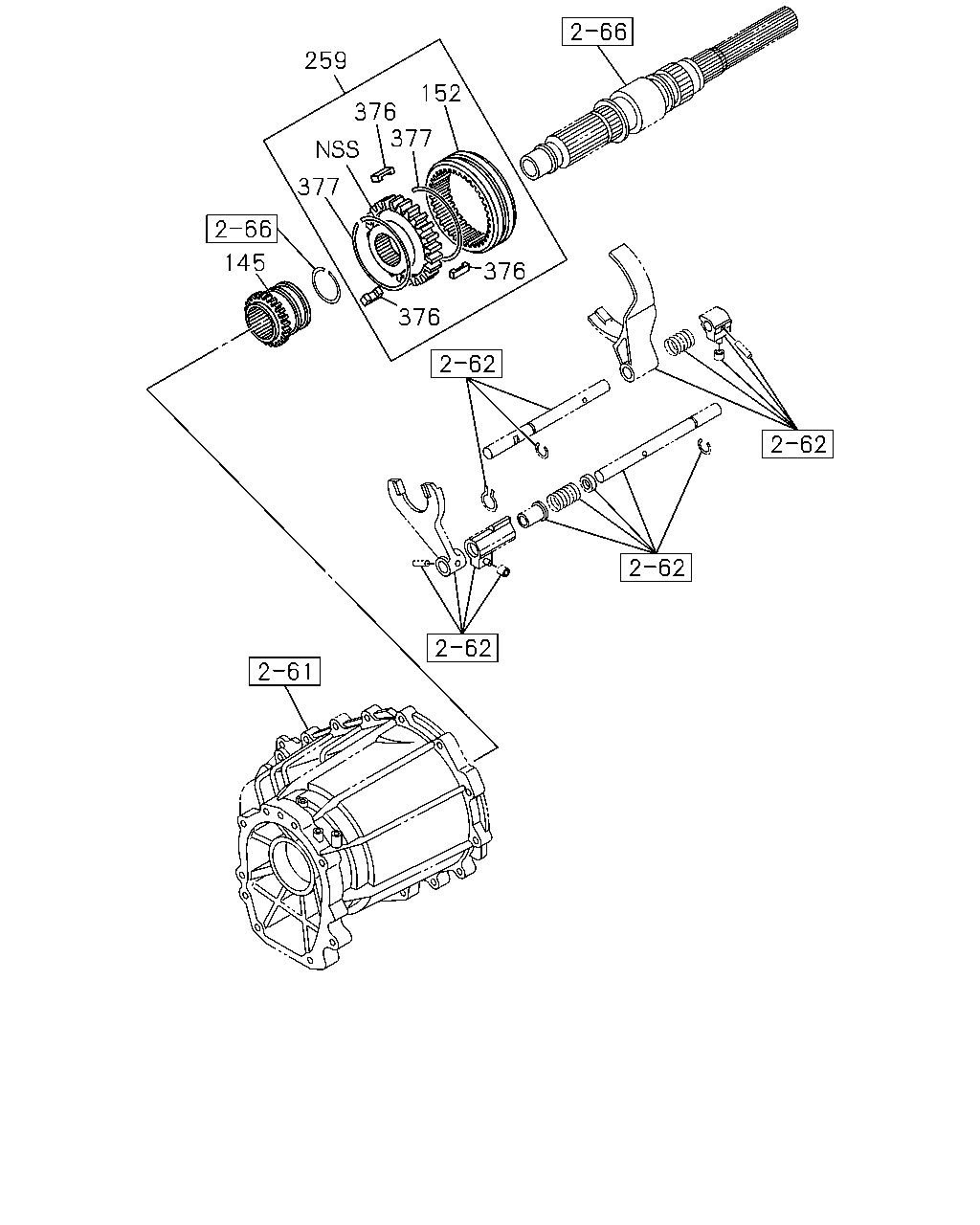

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2)	8-97358-245-0	01	1	0306-0609	●			●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-97358-245-0	01	1	0610-1109		●	●		●
145	04.530 SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1110-		●	●		●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2)	8-94363-060-0	01	1	0306-0609	●			●
152	04.535 SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	0610-		●	●		●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2)	8-97234-225-0	01	1	0306-0609	●			●
259	04.538 SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	0610-		●	●		●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2)	8-97238-590-0	03	1	0306-0609	●			●
376	04.384 INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	0610-		●	●		●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2)	8-94448-045-0	02	1	0306-0609	●			●
377	04.384 SPRING; INSERT,4X2-4X4 SYN,TRANS 4X4(TFS***)	8-94448-045-0	02	1	0610-		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
