2-25 — SPEEDOMETER DRIVEN GEAR (#74132) — 117 parça

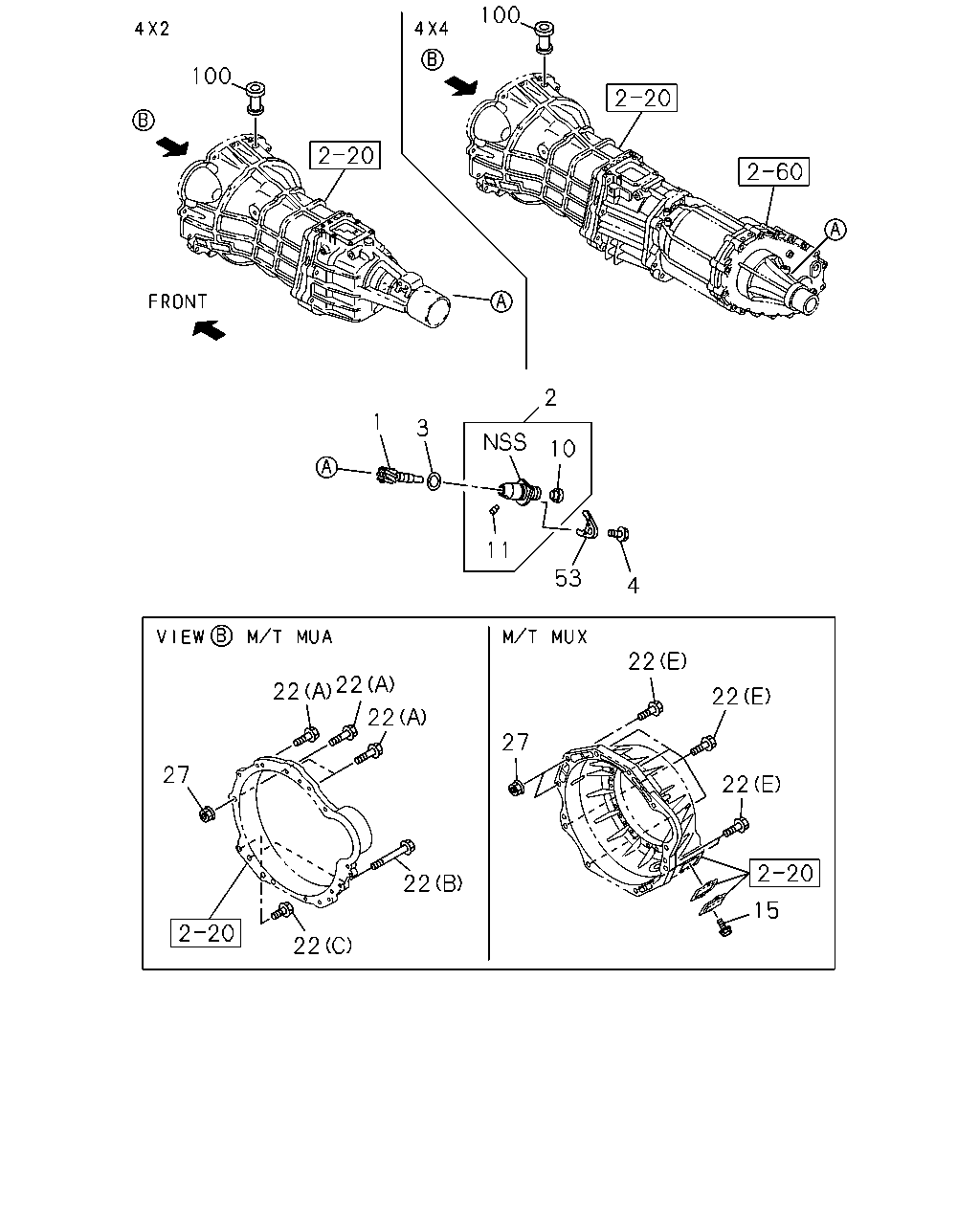

100 100 2 1 3 10 11 53 4 22 22 22 22 22 27 27 22 22 15 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-1007		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	1008-		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97238-583-0	01	1	0306-0508	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0509-0609	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-		●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0306-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-1007	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	0610-1007		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-		●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0610-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98008-940-0	01	1	0610-					●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0306-0609	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0306-0609	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-		●		●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609	●		●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-		●		●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0306-0609	●		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-		●		●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0306-0609	●		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-		●		●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0306-0609	●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-		●		●	●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0306-0609			●
15	00.685 BOLT; UNDER COVER TO TRANS 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-					●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (B) M10X60 FLANGE	0-28051-060-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG (B) M10X60 FLANGE	0-28051-060-0	02	1	0610-		●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0610-		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	0306-0609	●		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	0610-		●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X45 FLANGE	0-28051-245-0	04	1	0306-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X45 FLANGE	0-28051-245-0	02	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (E) M12X50 FLANGE	0-28051-250-0	08	1	0610-					●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	03	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X20,M10X40 L=70	8-98005-380-0	01	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176 FLANGE	8-98005-381-0	02	1	0610-				●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	0306-0404	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-0609	●		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	0610-					●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0306-0609	●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0610-0703		●		●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-		●		●	●
100	02.510 PLUG; HOLE	8-97318-961-0	01	1	0610-		●

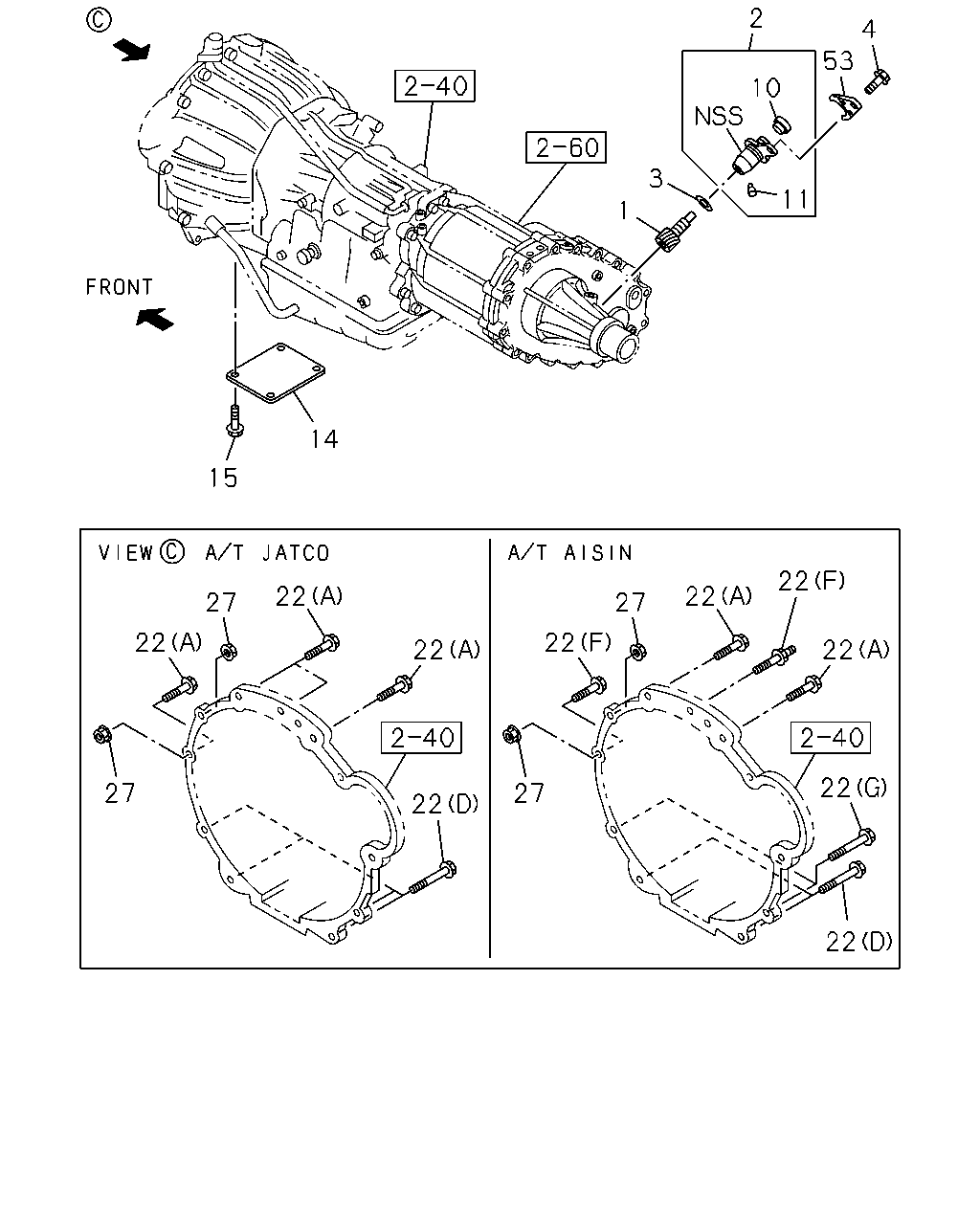

2 4 53 10 3 11 1 14 15 22 22 22 27 27 22 22 22 22 22 27 27 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) Z=17	8-97012-085-2	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FRT&RR 195R14C(CNU),FRT&RR 215/70R15C(QBQ) Z=17	8-97012-085-2	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	0610-1007		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97012-085-2	01	1	1008-		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16(BSW) Z=17	8-97238-583-0	01	1	0306-0508	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0306-0508	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0509-0609	●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC) Z=17	8-97238-583-0	01	1	0509-0609	●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ) Z=17	8-97238-583-0	01	1	0610-		●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) FINAL GEAR RATIO 43/10(GY2) FRT&RR 225/75R15C(BZC) Z=18	8-97238-584-2	01	1	0306-0609			●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) FRT&RR 225/75R15C(BZC),FRT&RR 245/70R16 ALS(QCQ),FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	0610-1007	●	●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=16	8-97169-434-1	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 43/11(GW1) FRT&RR 245/70R16 ALS(QCQ) Z=16	8-97169-434-1	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97169-434-1	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X2 EXTEND CAB LONG(TFB6CF) 4X2 CREW CAB LONG(TFB6WF) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	0610-1007		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	1008-1101		●
1	04.337 GEAR; DRIVEN,SPD 4X2(TFB***) FINAL GEAR RATIO 41/10(GT5) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT) Z=18	8-97012-086-2	01	1	1102-		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JK1-TCX ENG(LR0),4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC) Z=16	8-97238-582-0	01	1	0610-		●		●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 43/12(GM0) FRT&RR 225/75R15C(BZC) Z=18	8-98008-940-0	01	1	0610-					●
1	04.337 GEAR; DRIVEN,SPD 4X4(TFS***) 4JJ1-TCX ENG(LS0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 245/70R16 ALS(QCQ) Z=18	8-98008-940-0	01	1	0610-					●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0306-0609	●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X2(TFB***)	8-97021-133-4	01	1	0610-		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0306-0609	●		●
2	04.345 BUSHING; DRIVEN GEAR,SPEEDOMETER 4X4(TFS***)	8-97305-454-1	01	1	0610-		●		●	●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0306-0609	●		●
3	04.338 GASKET; BUSHING ID=21.7 OD=28.7	9-09921-100-0	01	1	0610-		●		●	●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0306-0609	●		●
4	04.338 BOLT; RET,DRIVEN GEAR M8X20 FLANGE	0-28050-820-0	01	1	0610-		●		●	●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0306-0609	●		●
10	04.338 SEAL; OIL,DRIVE GEAR NOK	8-97131-328-1	01	1	0610-		●		●	●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0306-0609	●		●
11	04.338 FILTER; BUSHING,SPEEDOMETER DRIV	8-94446-571-1	01	1	0610-		●		●	●
14	00.679 COVER; UNDER,TRANS	8-94375-252-0	01	1	0306-0609			●
14	00.679 COVER; UNDER,TRANS	8-98049-857-0	01	1	0610-				●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0306-0609			●
15	00.685 BOLT; UNDER COVER TO TRANS 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-					●
15	00.685 BOLT; UNDER COVER TO TRANS 02.343 M6X16 FLANGE	0-28650-616-0	04	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (B) M10X60 FLANGE	0-28051-060-0	02	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG (B) M10X60 FLANGE	0-28051-060-0	02	1	0610-		●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0306-0609	●
22	00.685 BOLT; TRANS CASE TO ENG (C) M12X40 FLANGE	0-28051-240-0	01	1	0610-		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	0306-0609	●		●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	04	1	0610-		●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X45 FLANGE	0-28051-245-0	04	1	0306-0609			●
22	00.685 BOLT; TRANS CASE TO ENG (D) M12X45 FLANGE	0-28051-245-0	02	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG 00.724 (E) M12X50 FLANGE	0-28051-250-0	08	1	0610-					●
22	00.685 BOLT; TRANS CASE TO ENG (A) M10X40 FLANGE	0-28051-040-0	03	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (F) M10X20,M10X40 L=70	8-98005-380-0	01	1	0610-				●
22	00.685 BOLT; TRANS CASE TO ENG (G) M12X176 FLANGE	8-98005-381-0	02	1	0610-				●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	0306-0404	●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0306-0609	●		●
27	00.685 NUT; CLU HSG TO TRANS 03.162 M10 FLANGE	0-91180-110-0	02	1	0610-		●		●
27	00.685 NUT; CLU HSG TO TRANS 02.042 M12 FLANGE	0-91180-112-0	02	1	0610-					●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0306-0609	●		●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-97021-019-0	01	1	0610-0703		●		●	●
53	04.338 PLATE; LOCK,DRIVEN GEAR	8-98035-572-0	01	1	0704-		●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
