Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#74131) — 503 parça

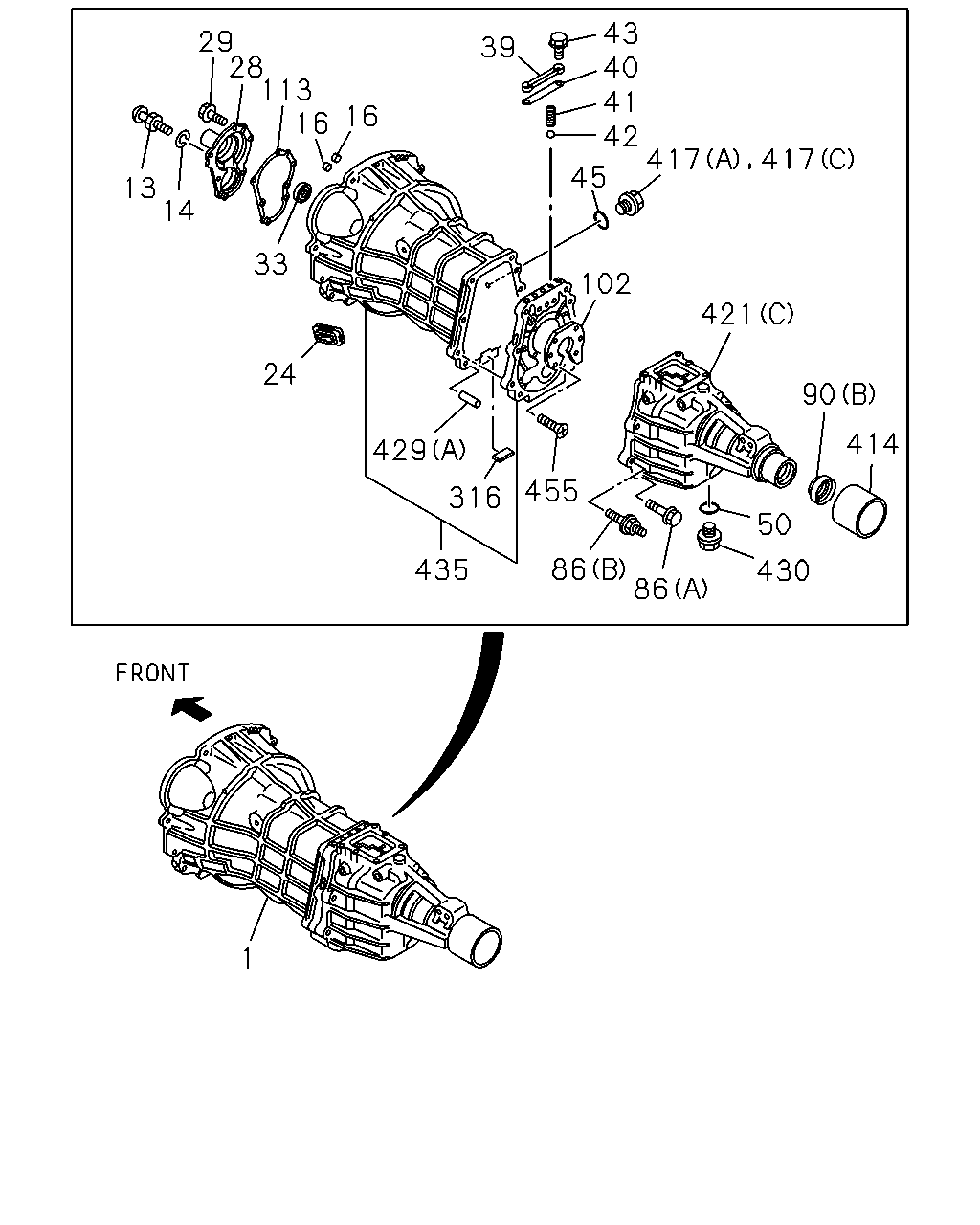

43 40 41 42 417 29 28 113 16 39 16 45 13 14 33 102 421 24 90 414 429 455 316 50 86 86 435 430 1 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97315-296-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97373-800-0	01	1	0312-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97376-950-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97315-305-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97376-953-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98036-624-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98087-282-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98036-613-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98087-269-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98132-782-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98150-146-0	01	1	1005-1101		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98008-948-0	01	1	0610-0711			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98090-195-0	01	1	0712-			●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0306-0609	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0610-		●
13	04.302 SUPPORT; SHIFT FORK	8-98004-443-1	01	1	0610-			●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0306-0603	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0604-0609	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0610-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0306-0604	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-0609	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0610-		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0306-0609	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0610-		●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0306-0609	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0610-		●
28	04.356 COVER; FRT,TRANS CASE	8-97362-409-0	01	1	0610-			●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0306-0604	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0609	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0610-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1209-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0610-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0610-1208		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1209-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0306-0604	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0605-0609	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0610-		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0306-0609	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0610-		●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0306-0609	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0610-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0306-0609	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0610-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0306-0604	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0605-0609	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0610-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0306-0609	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0610-1007		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-		●	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	0610-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0610-1007		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1008-		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-		●	●		●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0610-			●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0610-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-3	01	1	0306-0609	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-			●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	0610-			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0306-0609	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0610-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0306-0609	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0610-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0306-0609	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0610-		●	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-94310-493-0	01	1	0306-0604	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	0605-0609	●
414	04.317 COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	0610-		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1004-1007		●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0604-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0604-0609	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0610-0704		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0610-0704		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	0705-1003		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	0705-1003		●	●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	02	1	1004-1007			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	1008-		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	1008-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 (B) M20X10.5	8-98009-333-0	01	1	0610-0704			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-97039-528-2	01	1	0306-0309	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-97373-749-0	01	1	0310-0504	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98014-386-0	01	1	0505-0609	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98014-386-0	01	1	0610-1202		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98191-921-0	01	1	1203-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97301-224-2	01	1	0306-0609	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97301-224-2	01	1	0610-		●
421	04.317 COVER; RR,TRANS (A)	8-97362-423-1	01	1	0610-			●
421	04.317 COVER; RR,TRANS (B)	8-98048-277-0	01	1	0610-			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0610-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-		●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1004-1007		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	0306-0603	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0604-0609	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0604-0609	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0610-0703			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0704-1003		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0704-1003		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1004-1007			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1008-		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1008-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0610-0703		●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0610-0703		●
435	04.103 CASE; TRANS	8-97301-098-0	01	1	0306-0312	●
435	04.103 CASE; TRANS	8-97376-846-0	01	1	0401-0604	●
435	04.103 CASE; TRANS	8-98047-232-0	01	1	0605-0609	●
435	04.103 CASE; TRANS	8-98047-232-0	01	1	0610-1004		●
435	04.103 CASE; TRANS	8-98162-753-0	01	1	1005-		●
435	04.103 CASE; TRANS	8-98035-882-2	01	1	0610-			●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0306-0604	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0605-0609	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0610-		●

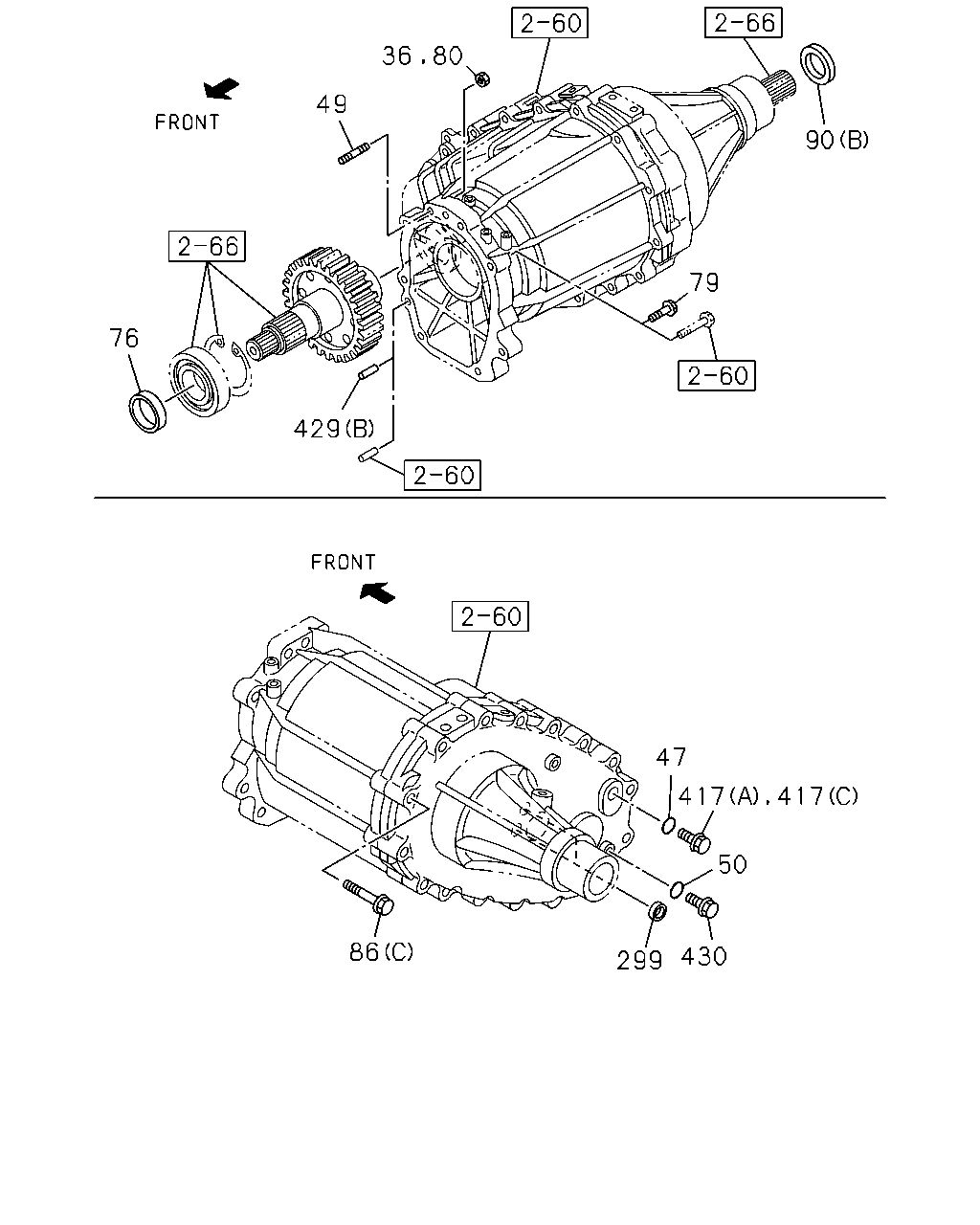

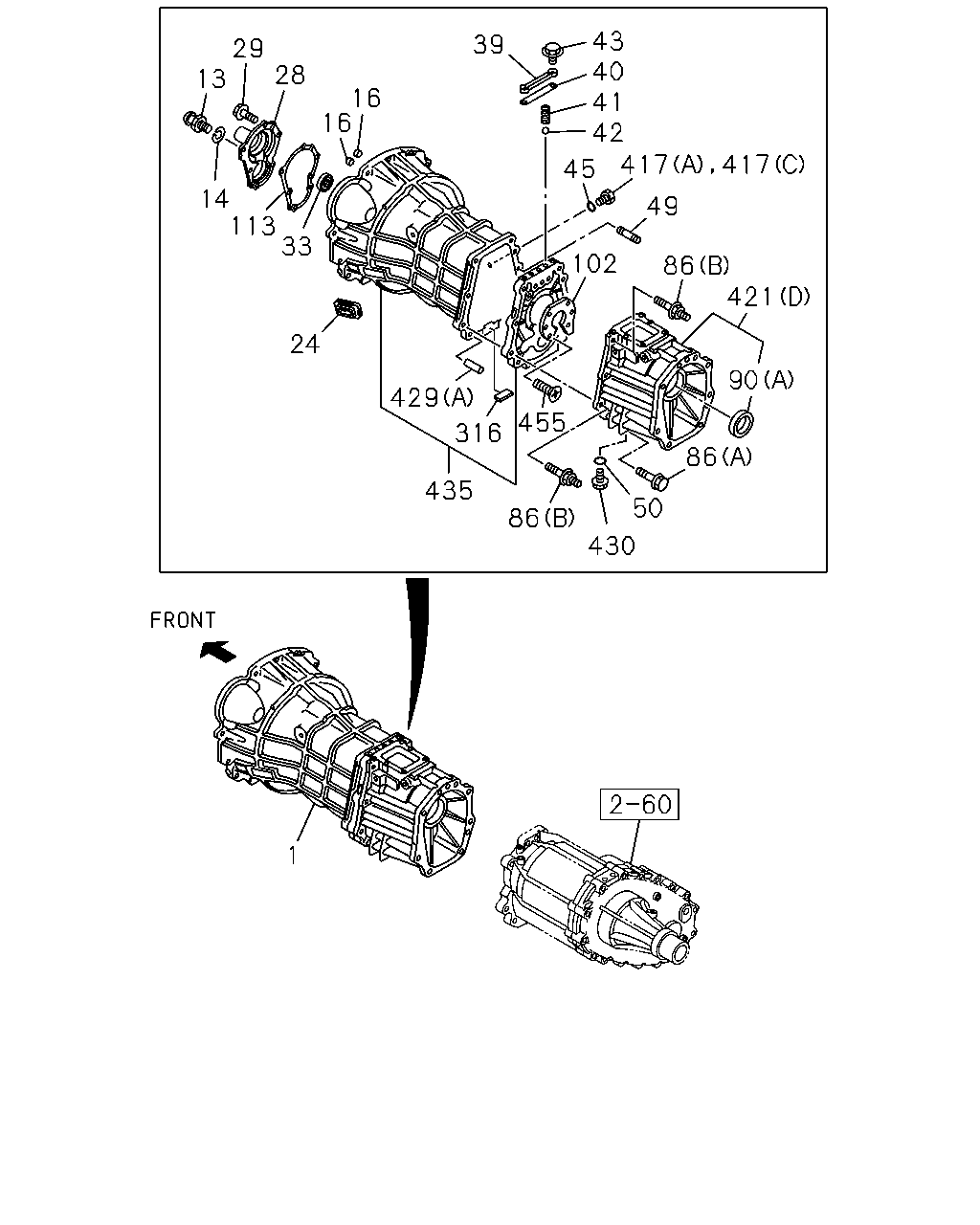

43 40 41 42 417 39 29 13 28 16 16 45 14 113 33 49 102 86 421 24 90 429 455 316 86 435 50 86 430 1 417

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97315-296-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97373-800-0	01	1	0312-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97376-950-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97315-305-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97376-953-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98036-624-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98087-282-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98036-613-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98087-269-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98132-782-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98150-146-0	01	1	1005-1101		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98008-948-0	01	1	0610-0711			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98090-195-0	01	1	0712-			●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0306-0609	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0610-		●
13	04.302 SUPPORT; SHIFT FORK	8-98004-443-1	01	1	0610-			●
14	04.302 WASHER; LK,SUPPORT 04.634 ID=12.2	9-09150-512-0	01	1	0306-0603	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0604-0609	●
14	04.302 WASHER; LK,SUPPORT 03.634 ID=12.2	0-91510-512-0	01	1	0610-		●
16	04.105 PLUG; SHIFT ROD 04.309 OD=14	5-09609-004-0	02	1	0306-0604	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-0609	●
16	04.105 PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0610-		●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0306-0609	●
24	00.797 COVER; CHECK HOLE,DUST 06.868	8-94156-700-0	01	1	0610-		●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0306-0609	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0610-		●
28	04.356 COVER; FRT,TRANS CASE	8-97362-409-0	01	1	0610-			●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0306-0604	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0609	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0610-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1209-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0610-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0610-1208		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1209-		●
39	04.311 PLATE; DETENT SPR	8-94373-864-1	01	1	0306-0604	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0605-0609	●
39	04.311 PLATE; DETENT SPR	8-98035-571-0	01	1	0610-		●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0306-0609	●
40	04.311 GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	0610-		●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0306-0609	●
41	04.311 SPRING; DETENT BALL L=26.8	8-94320-193-0	03	1	0610-		●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0306-0609	●
42	04.311 BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0610-		●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-94448-815-3	02	1	0306-0604	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0605-0609	●
43	04.311 BOLT; PLATE TO PLATE 04.356 M8X22 FLANGE	8-97365-376-0	02	1	0610-		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0306-0609	●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0610-1007		●
45	04.105 GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-		●	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***)	8-97304-116-1	01	1	0306-0604	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X27 L=43.5	8-98035-677-0	01	1	0605-0609	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X27 L=43.5	8-98035-677-0	01	1	0610-		●
49	04.510 STUD; TRANSFER CASE M10X30 L=45	8-98035-675-0	01	1	0610-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	0610-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0610-1007		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1008-		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-		●	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-		●	●		●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0610-			●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0610-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-3	01	1	0306-0609	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-			●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	0610-			●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0306-0609	●
102	04.412 RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	0610-		●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0306-0609	●
113	04.358 GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	0610-		●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0306-0609	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0610-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1004-1007		●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0604-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0604-0609	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0610-0704		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0610-0704		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	0705-1003		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	0705-1003		●	●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	02	1	1004-1007			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	1008-		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	1008-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 (B) M20X10.5	8-98009-333-0	01	1	0610-0704			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-97039-528-2	01	1	0306-0309	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-97373-749-0	01	1	0310-0504	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98014-386-0	01	1	0505-0609	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98014-386-0	01	1	0610-1202		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98191-921-0	01	1	1203-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97301-224-2	01	1	0306-0609	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97301-224-2	01	1	0610-		●
421	04.317 COVER; RR,TRANS (A)	8-97362-423-1	01	1	0610-			●
421	04.317 COVER; RR,TRANS (B)	8-98048-277-0	01	1	0610-			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0610-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-		●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1004-1007		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	0306-0603	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0604-0609	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0604-0609	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0610-0703			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0704-1003		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0704-1003		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1004-1007			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1008-		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1008-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0610-0703		●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0610-0703		●
435	04.103 CASE; TRANS	8-97301-098-0	01	1	0306-0312	●
435	04.103 CASE; TRANS	8-97376-846-0	01	1	0401-0604	●
435	04.103 CASE; TRANS	8-98047-232-0	01	1	0605-0609	●
435	04.103 CASE; TRANS	8-98047-232-0	01	1	0610-1004		●
435	04.103 CASE; TRANS	8-98162-753-0	01	1	1005-		●
435	04.103 CASE; TRANS	8-98035-882-2	01	1	0610-			●
455	04.008 SCREW; BRG RET 04.104 M8X22	8-97062-754-0	04	1	0306-0604	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0605-0609	●
455	04.008 SCREW; BRG RET M8X22	8-98035-654-0	04	1	0610-		●

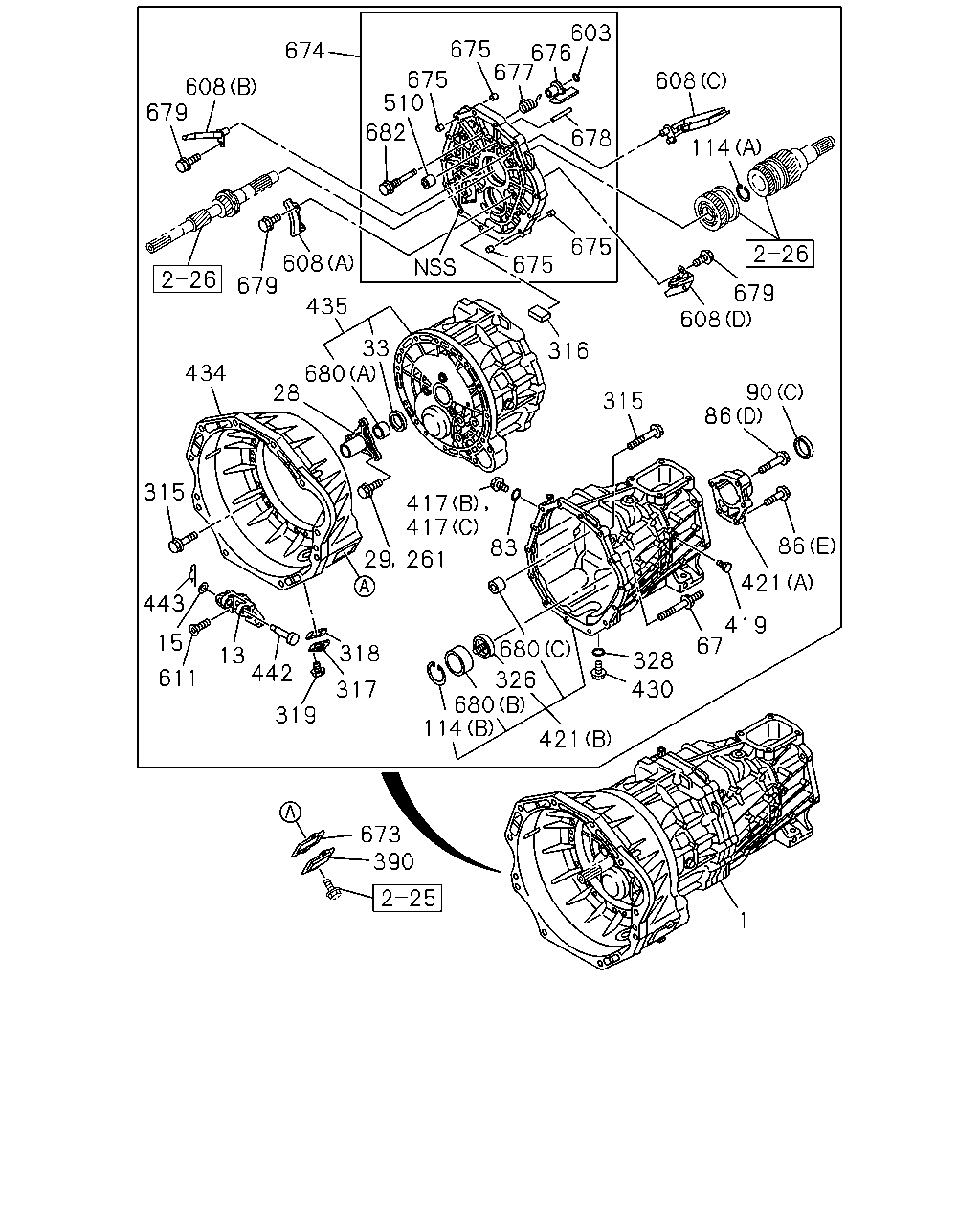

603 675 676 677 674 675 510 608 608 679 682 678 114 675 608 679 675 679 608 435 33 680 28 316 434 90 86 315 315 417 417 86 83 29 261 421 443 419 67 15 680 318 13 442 328 611 326 680 114 430 317 319 421 673 390 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97315-296-0	01	1	0306-0311	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97373-800-0	01	1	0312-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-97376-950-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98036-612-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98087-268-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98132-781-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/10(GT5)	8-98150-145-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97315-305-0	01	1	0306-0402	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-97376-953-0	01	1	0403-0609	●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98036-624-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98087-282-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98132-797-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98150-161-0	01	1	1005-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98036-613-0	01	1	0610-0709		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98087-269-0	01	1	0710-0809		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98132-782-0	01	1	0810-1004		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4),FINAL GEARRATIO 43/11(GW1)	8-98150-146-0	01	1	1005-1101		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 41/11(GT4) FRT&RR 215/70R15C DUNLOP TIRE(CWP), FRT&RR 215/70R15C GOODYEAR TIRE(QFT)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0) FINAL GEAR RATIO 43/11(GW1) FRT&RR 225/75R15C(BZC)	8-98150-146-0	01	1	1102-		●
1	04.003 TRANSMISSION ASM; MANUAL	8-98008-948-0	01	1	0610-0711			●
1	04.003 TRANSMISSION ASM; MANUAL	8-98090-195-0	01	1	0712-			●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0306-0609	●
13	04.302 SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0610-		●
13	04.302 SUPPORT; SHIFT FORK	8-98004-443-1	01	1	0610-			●
15	04.302 WASHER; PL 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0610-			●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0306-0609	●
28	04.356 COVER; FRT,TRANS CASE	8-97104-676-0	01	1	0610-		●
28	04.356 COVER; FRT,TRANS CASE	8-97362-409-0	01	1	0610-			●
29	04.356 BOLT; FRT COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	1008-			●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0306-0604	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-0609	●
29	04.356 BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0610-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1209-			●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK	8-97046-698-0	01	1	0610-		●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0306-0609	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	0610-1208		●	●
33	04.318 SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-699-3	01	1	1209-		●
67	04.105 STUD; CASE TRANS	8-98004-519-0	02	1	0610-			●
83	04.105 GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0610-1007			●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-		●	●		●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0610-			●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0610-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-3	01	1	0306-0609	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-			●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	0610-			●
114	04.105 RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	0610-			●
114	04.105 RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	0610-			●
261	04.109 BOLT; COVER 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0610-1007			●
315	04.104 BOLT; CASE 04.686 M8X60 FLANGE	0-28050-860-0	12	1	0610-			●
315	04.104 BOLT; CASE 00.685 M8X40 FLANGE	0-28650-840-0	12	1	0610-			●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0306-0609	●
316	04.105 MAGNET; TRANS CASE	8-94249-524-2	01	1	0610-		●	●
317	04.109 COVER; CASE	8-97034-422-1	01	1	0610-			●
318	04.109 GASKET; COVER	8-97035-567-0	01	1	0610-			●
319	04.109 BOLT; COVER 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0610-			●
326	04.020 NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	0610-			●
328	04.105 GASKET; PLUG ID=17	8-97115-712-0	01	1	0610-1007			●
390	00.797 COVER; DUST,CLU SHIFT	8-98007-103-0	01	1	0610-			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1004-1007		●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0604-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0604-0609	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0610-0704		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0610-0704		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	0705-1003		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	0705-1003		●	●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	02	1	1004-1007			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	1008-		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	1008-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 (B) M20X10.5	8-98009-333-0	01	1	0610-0704			●
419	04.317 PLUG; RR COVER M12X9	8-98047-054-0	01	1	0610-			●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-97039-528-2	01	1	0306-0309	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-97373-749-0	01	1	0310-0504	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98014-386-0	01	1	0505-0609	●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98014-386-0	01	1	0610-1202		●
421	04.317 COVER; RR,TRANS 4X2(TFB***) (C)	8-98191-921-0	01	1	1203-		●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97301-224-2	01	1	0306-0609	●
421	04.317 COVER; RR,TRANS 4X4(TFS***) (D)	8-97301-224-2	01	1	0610-		●
421	04.317 COVER; RR,TRANS (A)	8-97362-423-1	01	1	0610-			●
421	04.317 COVER; RR,TRANS (B)	8-98048-277-0	01	1	0610-			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1004-1007		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	0306-0603	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0604-0609	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0604-0609	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0610-0703			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0704-1003		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0704-1003		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1004-1007			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1008-		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1008-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0610-0703		●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0610-0703		●
434	00.683 HOUSING; CLU	8-97362-384-0	01	1	0610-			●
435	04.103 CASE; TRANS	8-97301-098-0	01	1	0306-0312	●
435	04.103 CASE; TRANS	8-97376-846-0	01	1	0401-0604	●
435	04.103 CASE; TRANS	8-98047-232-0	01	1	0605-0609	●
435	04.103 CASE; TRANS	8-98047-232-0	01	1	0610-1004		●
435	04.103 CASE; TRANS	8-98162-753-0	01	1	1005-		●
435	04.103 CASE; TRANS	8-98035-882-2	01	1	0610-			●
442	04.302 PIN; SHIFT FORK	8-98024-123-0	01	1	0610-			●
443	04.302 PIN; SNAP,SHIFT FORK 04.662 L=27.7	1-09747-005-0	01	1	0610-			●
510	00.683 BEARING	8-97362-853-0	01	1	0610-			●
603	04.317 RING; SNAP	8-98039-270-0	01	1	0610-			●
608	04.317 GUTTER; OIL (A)	8-97362-391-0	01	1	0610-			●
608	04.317 GUTTER; OIL (B)	8-97362-564-1	01	1	0610-			●
608	04.317 GUTTER; OIL (C)	8-97362-565-1	01	1	0610-0902			●
608	04.317 GUTTER; OIL (C)	8-98142-574-0	01	1	0903-			●
608	04.317 GUTTER; OIL (D)	8-98004-505-0	01	1	0610-			●
611	04.104 SCREW M10X27 TORQUES	8-97365-354-0	03	1	0610-			●
673	04.318 SEAL; COVER	8-98007-102-0	01	1	0610-			●
674	00.886 PLATE; INTERMEDIATE	8-98042-863-0	01	1	0610-			●
675	00.206 DOWEL OD=11 L=8	9-11229-058-1	04	1	0610-			●
676	04.439 INHIBITOR	8-98037-604-1	01	1	0610-			●
677	00.683 SPRING; INHIBITOR	8-97362-852-0	01	1	0610-			●
678	04.317 PIN	9-08160-436-0	01	1	0610-			●
679	04.104 BOLT; GUTTER 03.162 M6X12 FLANGE	0-28050-612-0	04	1	0610-			●
680	00.683 BEARING (A)	8-97362-720-1	01	1	0610-			●
680	00.683 BEARING (C)	8-97362-853-0	01	1	0610-			●
680	00.683 BEARING (B)	8-98024-431-0	01	1	0610-			●
682	00.683 BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	0610-			●

49 90 79 76 429 47 417 50 86 430 299 417 36 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-0703		●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	0704-1003		●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 4JJ1-TCX ENG(LS0) IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	01	1	0704-1003			●
36	00.683 BEARING; NEEDLE,CLU HSG 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1007		●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 04.105 ID=17	8-97115-712-0	01	1	0306-0609	●			●
47	04.510 GASKET; FILLER PLUG,TRANSFER CAS 4X4(TFS***) 04.105 ID=17	8-97115-712-0	01	1	0610-		●	●		●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***)	8-97304-116-1	01	1	0306-0604	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X27 L=43.5	8-98035-677-0	01	1	0605-0609	●
49	04.510 STUD; TRANSFER CASE 4X4(TFS***) M10X27 L=43.5	8-98035-677-0	01	1	0610-		●
49	04.510 STUD; TRANSFER CASE M10X30 L=45	8-98035-675-0	01	1	0610-			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	0306-0609	●			●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	0306-0609	●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	0610-1007		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0610-1007		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1008-		●	●		●
50	04.105 GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1008-		●	●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) NOK	8-97238-999-0	01	1	0306-0609	●			●
76	04.510 SEAL; OIL,TRANSFER CASE 4X4(TFS***) NOK	8-97238-999-0	01	1	0610-		●	●		●
79	04.510 BOLT; TRANSFER CASE M10X35 FLANGE	0-28051-035-0	07	1	1008-					●
79	04.510 BOLT; TRANSFER CASE M10X35 FLANGE	0-28051-035-0	06	1	0610-0703			●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> M10X35 FLANGE	0-28051-035-0	06	1	0704-1003			●
79	04.510 BOLT; TRANSFER CASE M10X35 FLANGE	0-28051-035-0	06	1	1004-1007			●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1008-		●	●
79	04.510 BOLT; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) IDENTIFICATION LABEL FOR KD<6UT> M10X35 FLANGE	0-28051-035-0	06	1	1008-			●
80	04.510 NUT; TRANSFER CASE 03.162 M10 FLANGE	0-91180-110-0	01	1	0610-0703			●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	01	1	0704-1003			●
80	04.510 NUT; TRANSFER CASE 03.162 M10 FLANGE	0-91180-110-0	01	1	1004-1007			●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-		●	●
80	04.510 NUT; TRANSFER CASE 4X4(TFS***) 4JJ1-TCX ENG(LS0) IDENTIFICATION LABEL FOR KD<6UT> 03.162 M10 FLANGE	0-91180-110-0	01	1	1008-			●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-94473-959-1	03	1	0306-0604	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0605-0609	●
86	04.317 BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	03	1	0610-		●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0306-0609	●
86	04.317 BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	05	1	0610-		●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 01.540 (C) M8X45 FLANGE	0-28080-845-0	16	1	0306-0601	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0602-0609	●			●
86	04.317 BOLT; RR COVER 4X4(TFS***) 09.173 (C) M8X45 FLANGE	0-28050-845-0	16	1	0610-		●	●		●
86	04.317 BOLT; RR COVER 00.386 (D) M8X50 FLANGE	0-28050-850-0	02	1	0610-			●
86	04.317 BOLT; RR COVER 01.060 (E) M8X35 FLANGE	0-28650-835-0	03	1	0610-			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) TKK	8-97046-700-0	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0306-0609	●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) 04.510 (A) NOK	8-97046-701-2	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B) NOK	8-97046-705-3	01	1	0306-0609	●			●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0610-		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	0610-			●		●
90	04.318 SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	0610-			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 04.309 OD=14	5-09609-004-0	02	1	0306-0603	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) FINAL GEAR RATIO 41/10(GT5),FINAL GEARRATIO 43/10(GY2) 04.105 OD=14	8-97358-601-0	02	1	0604-0609	●			●
299	04.317 PLUG; SHIFTER ROD 4X4(TFS***) 04.105 OD=14	8-97358-601-0	02	1	0610-		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	1004-1007		●			●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	1004-1007		●
417	04.105 PLUG; OIL FILLER,TRANS 08.971 (A)	8-94310-917-0	01	1	0306-0603	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) 08.971 (A)	8-94310-917-0	01	1	0306-0603	●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0604-0609	●			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0604-0609	●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (A)	8-97365-373-0	01	1	0610-0704		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (A)	8-97365-373-0	01	1	0610-0704		●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	0705-1003		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	0705-1003		●	●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	02	1	1004-1007			●
417	04.105 PLUG; OIL FILLER,TRANS 4X4(TFS***) (C)	8-97365-373-0	01	1	1008-		●	●		●
417	04.105 PLUG; OIL FILLER,TRANS (C)	8-97365-373-0	01	1	1008-		●	●
417	04.105 PLUG; OIL FILLER,TRANS 05.400 (B) M20X10.5	8-98009-333-0	01	1	0610-0704			●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0306-0609	●
429	04.105 PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	0610-		●
429	04.105 PIN; STRAIGHT 4X4(TFS***) 04.510 (B) OD=10 L=20	8-97135-423-0	02	1	0610-		●	●		●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1004-1007		●			●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1004-1007		●
430	04.105 PLUG; OIL DRAIN	9-09662-004-0	01	1	0306-0603	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	9-09662-004-0	01	1	0306-0603	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0604-0609	●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0604-0609	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	0610-0703			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0704-1003		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0704-1003		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	02	1	1004-1007			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1008-		●	●		●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	1008-		●	●
430	04.105 PLUG; OIL DRAIN	8-97365-374-0	01	1	0610-0703		●			●
430	04.105 PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	0610-0703		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
