10796 - EXZ LHD FUEL TANK 400L
▶
3 - Brakes, Brake System
▶
3-40 - FRONT BRAKE POWER CHAMBER
▶

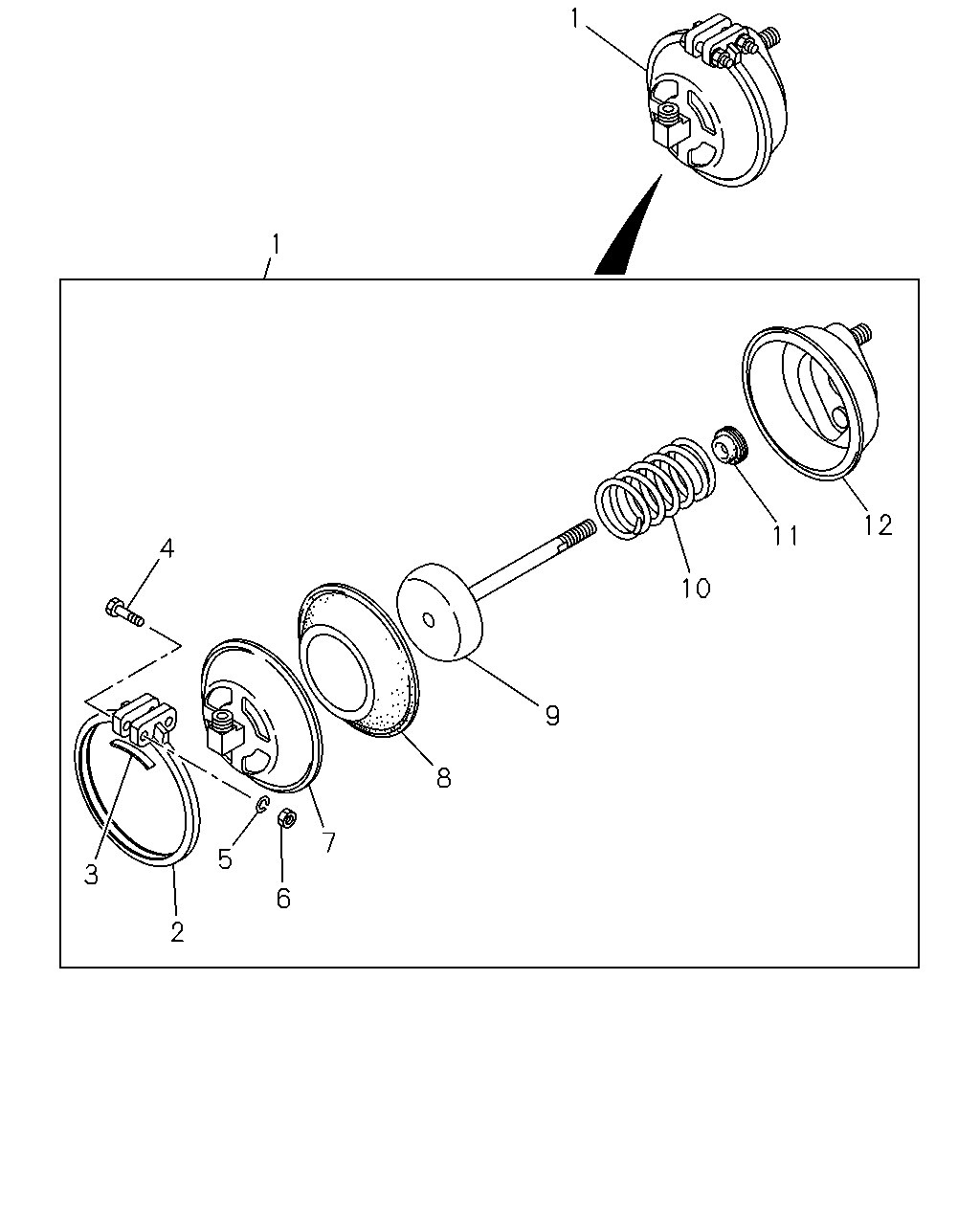

3-40 — FRONT BRAKE POWER CHAMBER
(#7413) — 21 parça
1
1
12
11
4
10
9
8
7
5
3
6
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; POWER,FRT BRK
1-48250-425-0
02
1
9812-9901
1
CHAMBER ASM; POWER,FRT BRK
EXC. BRAKE REGULATION ECE<TDV>
1-48250-425-0
02
1
9902-
1
CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV>
1-48250-425-0
01
1
9902-
1
CHAMBER ASM; POWER,FRT BRK
BRAKE REGULATION ECE<TDV>
1-48250-518-0
01
1
9902-
2
RING; CLAMP,SPR CHAMBER
9-48259-049-0
02
1
9812-
3
RETAINER; DIAPH
9-48259-016-0
02
1
9812-9901
3
RETAINER; DIAPH
EXC. BRAKE REGULATION ECE<TDV>
9-48259-016-0
02
1
9902-
3
RETAINER; DIAPH
BRAKE REGULATION ECE<TDV>
9-48259-016-0
01
1
9902-
3
RETAINER; DIAPH
BRAKE REGULATION ECE<TDV>
1-48250-044-0
01
1
9902-
4
BOLT; CLAMP RING
1-48259-002-0
04
1
9812-
5
WASHER; LK,CLAMP RING
ID=10.2
9-09150-510-0
04
1
9812-
6
NUT; CLAMP RING
M10
9-09110-010-0
04
1
9812-
7
COVER ASM; UPR,SPR CHAMBER
1-48251-050-0
02
1
9812-9901
7
COVER ASM; UPR,SPR CHAMBER
EXC. BRAKE REGULATION ECE<TDV>
1-48251-050-0
02
1
9902-
7
COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV>
1-48251-050-0
01
1
9902-
7
COVER ASM; UPR,SPR CHAMBER
BRAKE REGULATION ECE<TDV>
1-48251-051-0
01
1
9902-
8
DIAPHRAGM; SPR CHAMBER
1-48252-009-0
02
1
9812-
9
PISTON; SPR CHAMBER
1-48253-003-0
02
1
9812-
10
SPRING; PISTON,SPR CHAMBER
9-48255-012-0
02
1
9812-
11
SEAL; PISTON,SPR CHAMBER
1-48252-025-0
02
1
9812-
12
COVER ASM; LWR,SPR CHAMBER
1-48251-023-0
02
1
9812-
