◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50966 - TFR/TFS(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-06 - CLUTCH SLAVE CYLINDER ▶
2-06 — CLUTCH SLAVE CYLINDER (#74128) — 38 parça

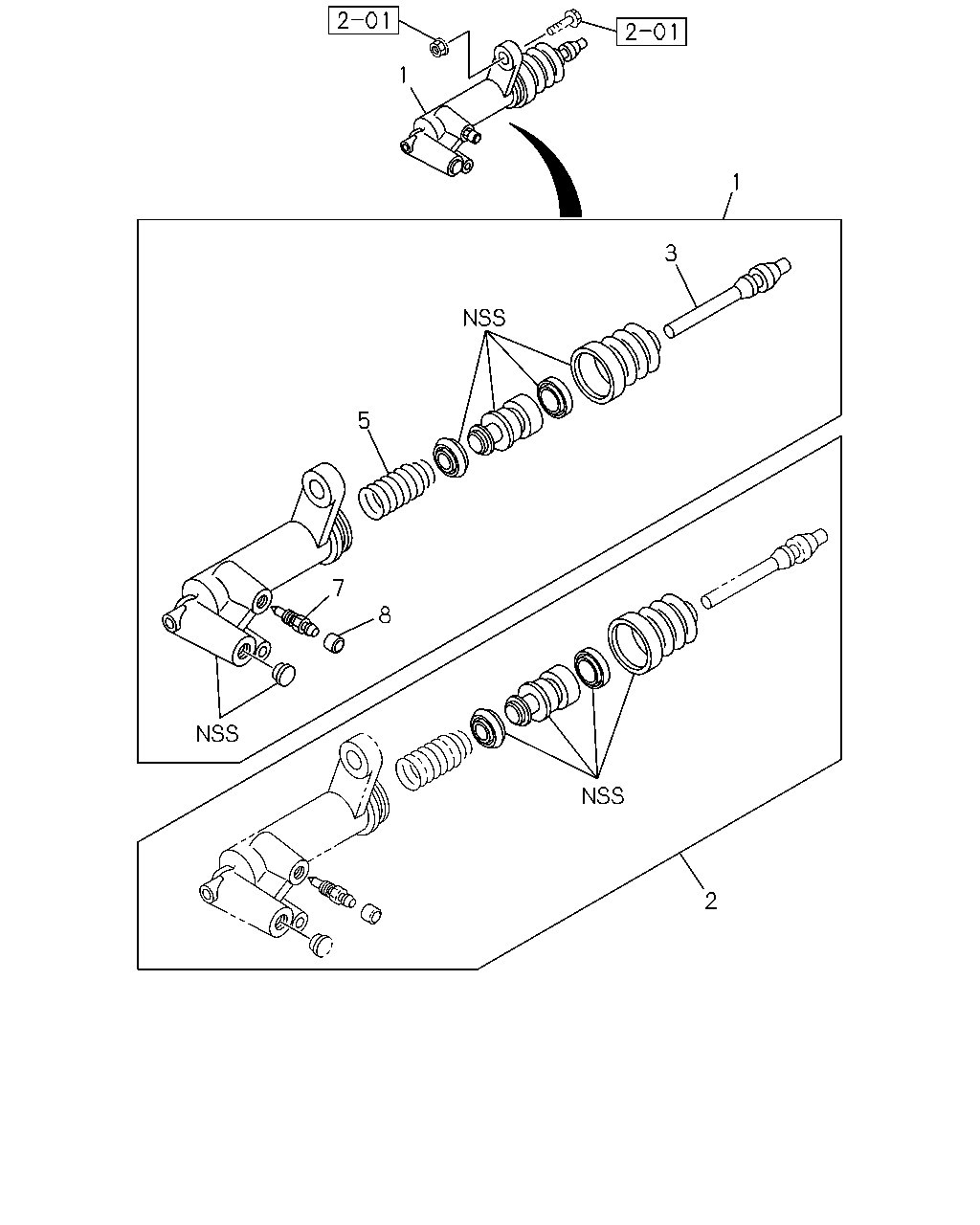

çizim 153138
1 1 3 5 7 8 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.780 CYLINDER; SLAVE,CLU 8-97941-515-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97945-177-0 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610-1108 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97947-765-0 01 1 1109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 0610- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 0610- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 0610- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0306-0609 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0306-0609 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610- ● ●

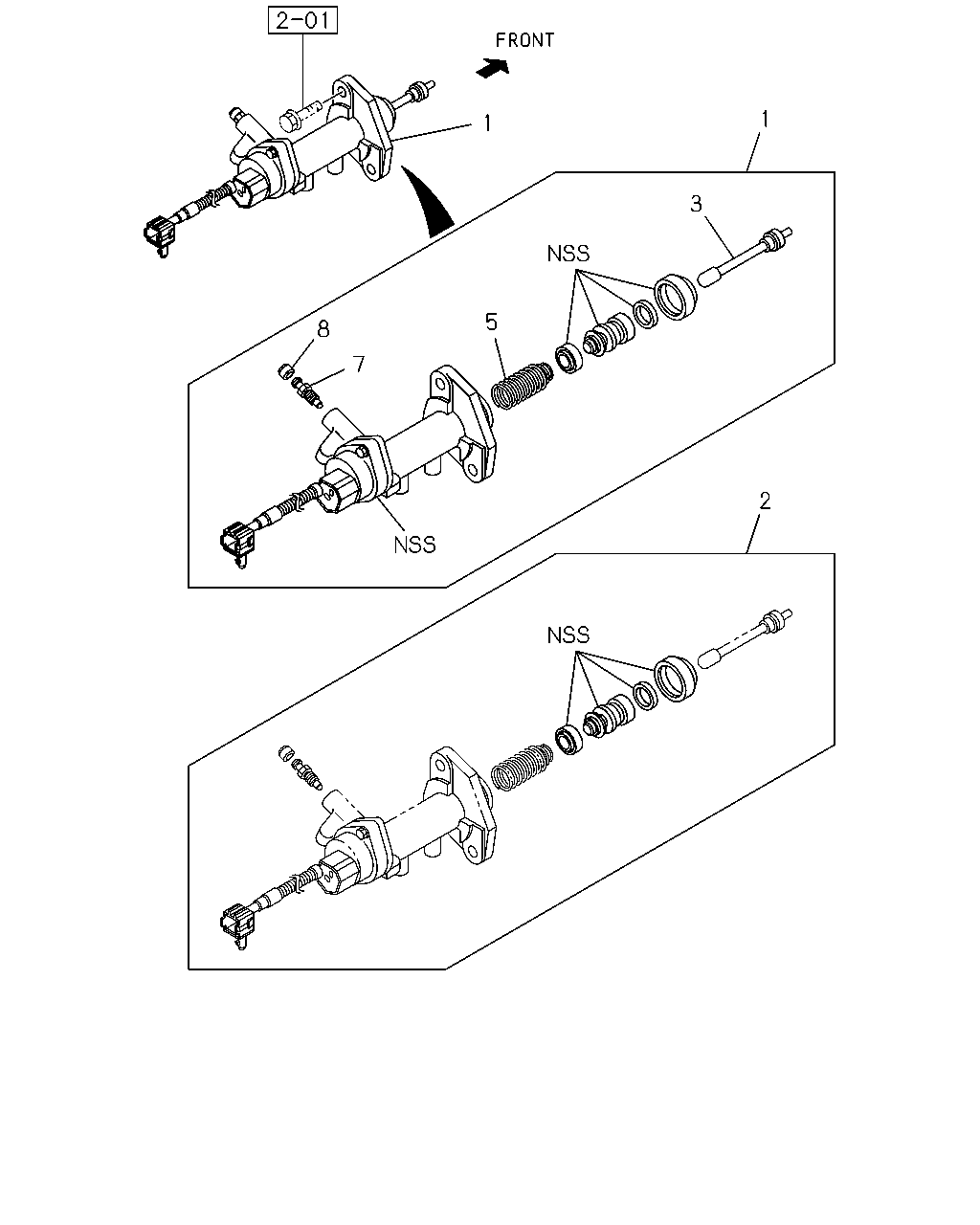

çizim 153339
1 1 3 5 8 7 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 00.780 CYLINDER; SLAVE,CLU 8-97941-515-0 01 1 0306-0609 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97945-177-0 01 1 0610- ●
1 00.780 CYLINDER; SLAVE,CLU 8-97944-513-3 01 1 0610-1108 ●
1 00.780 CYLINDER; SLAVE,CLU 8-97947-765-0 01 1 1109- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 0306-0609 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-048-0 01 1 0610- ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-067-0 01 1 0610-1102 ●
2 00.780 REPAIR KIT; CLU SLAVE CYL 5-87832-264-0 01 1 1103- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97942-803-0 01 1 0306-0609 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-722-0 01 1 0610- ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97945-721-0 01 1 0610-1108 ●
3 00.780 ROD; PUSH,SLAVE CYL 8-97947-769-0 01 1 1109- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 0306-0609 ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97942-801-0 01 1 0610- ●
5 00.780 SPRING ASM; PISTON,SLAVE CYL 8-97028-736-0 01 1 0610- ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X16.5 		8-94115-113-0 01 1 0306-0609 ●
7 00.780 SCREW; BLEEDER,SLAVE CYL
M8X10 		8-98020-477-0 01 1 0610- ● ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0306-0609 ●
8 00.780 CAP; BLEEDER,SLAVE CYL
OD=10 		8-97940-638-0 01 1 0610- ● ●
