2-05 — CLUTCH PIPING (#74127) — 25 parça

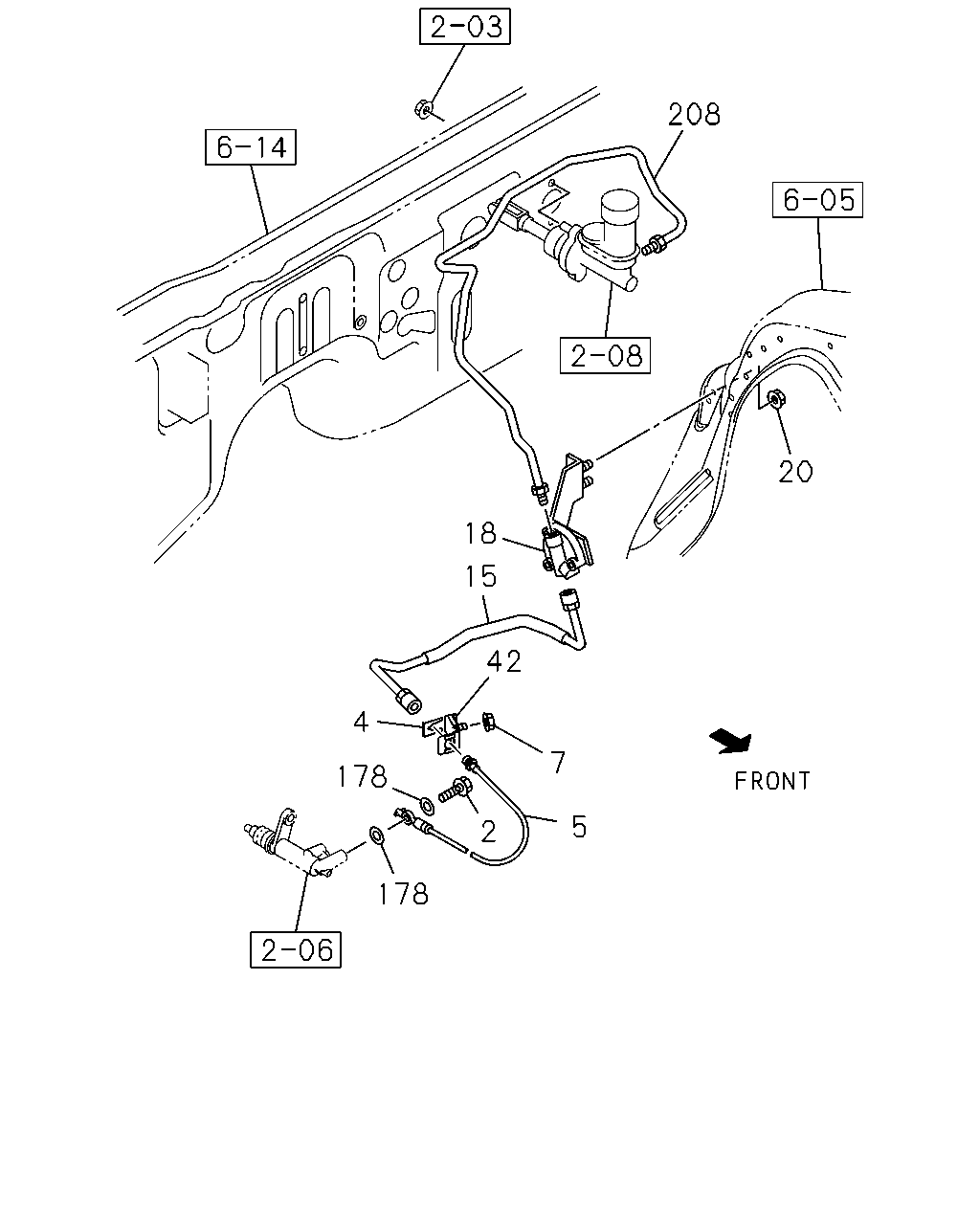

çizim 153126
208 20 18 15 42 4 7 178 5 2 178
BalonParca AdiParca NoAdetTipApplied Date A B C
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0306-0609 ●
2 00.782 BOLT; EYE,SLAVE CYL
04.665 M10X22 		5-09675-017-0 01 1 0610- ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94436-216-0 01 1 0306-0609 ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-94436-216-0 01 1 0610-0703 ● ●
4 00.785 CLIP; FLEX HOSE,CLU CONT 8-97946-552-0 01 1 0704- ● ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97942-498-0 01 1 0306-0609 ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97945-178-0 01 1 0610- ●
5 00.785 HOSE; FLEX,CLU PIPE 8-97944-870-0 01 1 0610- ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0306-0609 ●
7 00.785 NUT; FLEX HOSE,CLU CONT
01.062 M8 FLANGE 		0-91180-108-0 01 1 0610- ● ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97333-992-1 01 1 0306-0609 ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97944-808-0 01 1 0610- ●
15 00.785 PIPE; CLU,FLEX HOSE 8-97944-807-0 01 1 0610- ●
18 00.830 DAMPER ASM; CLU OIL 8-97943-172-0 01 1 0306-0609 ●
18 00.830 DAMPER ASM; CLU OIL 8-97945-175-0 01 1 0610- ● ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0306-0609 ●
20 00.837 NUT; CLU OIL DAMPER
01.062 M6 FLANGE 		0-91180-106-0 02 1 0610- ● ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-412-0 01 1 0306-0306 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0306-0609 ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97943-835-0 01 1 0610- ●
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-97944-508-0 01 1 0610- ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0306-0609 ●
178 00.777 GASKET; FLEX HOSE TO M/CYL
08.955 ID=10.2 OD=16.0 		9-09571-410-0 02 1 0610- ● ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97362-454-0 01 1 0306-0609 ●
208 00.785 PIPE; OIL,M/CYL TO DAMPER CYL 8-97945-228-0 01 1 0610- ● ●
