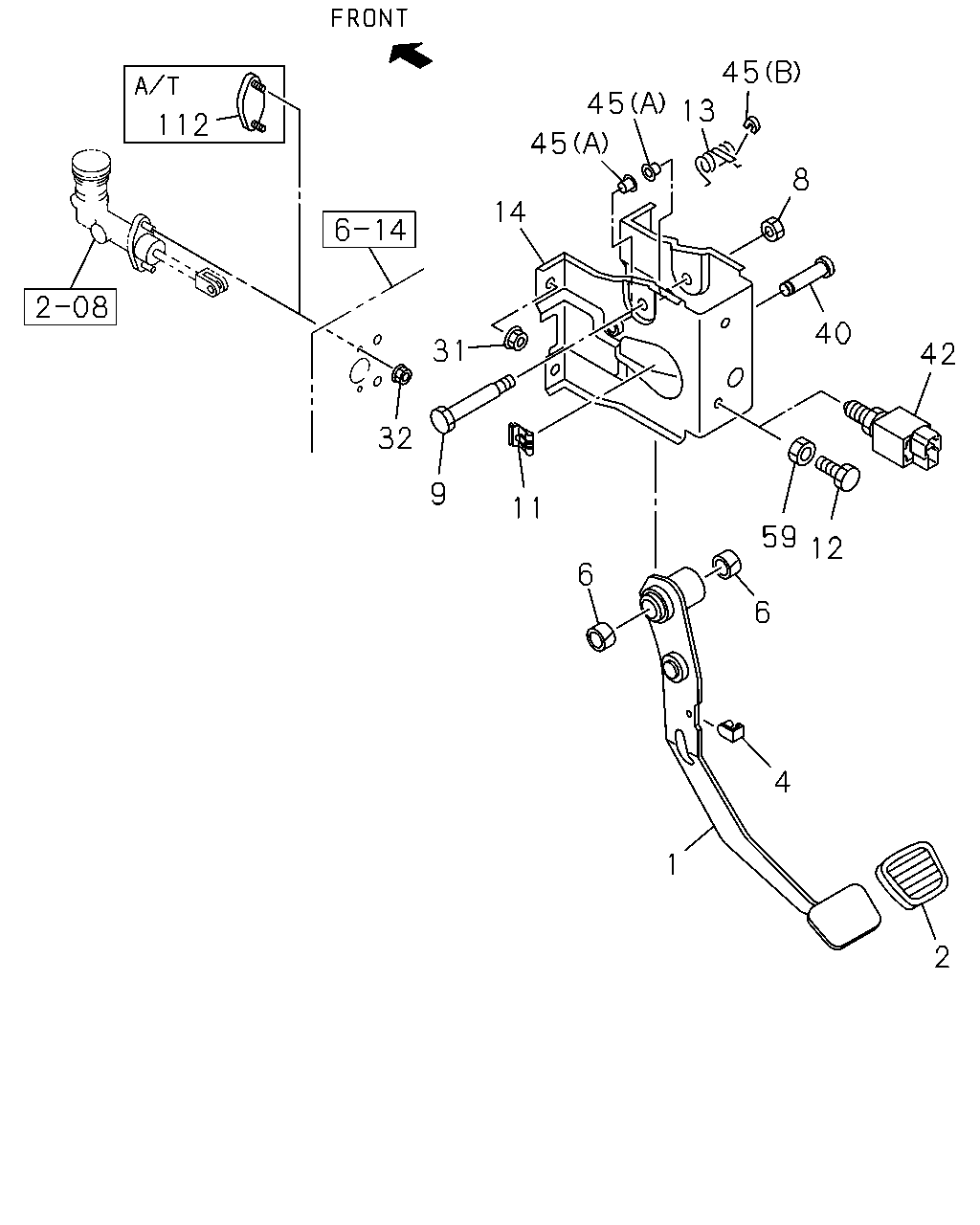

2-03 — CLUTCH PEDAL AND CONTROL (#74126) — 51 parça

45 45 13 112 45 8 14 40 31 42 32 9 11 59 12 6 6 4 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	00.830 PEDAL; CLU M/T MUA 5 SPEED 5G(RSP)	8-97943-104-0	01	1	0306-0410	●	●	●	●	●
1	00.830 PEDAL; CLU M/T MUA 5 SPEED 5G(RSP)	8-97943-104-0	01	1	0411-0609	●	●	●	●	●	●
1	00.830 PEDAL; CLU M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97943-104-0	01	1	0610-	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL M/T MUA 5 SPEED 5G(RSP)	8-97318-799-0	01	1	0306-0410	●	●	●	●	●
2	04.630 COVER; CLU PEDAL M/T MUA 5 SPEED 5G(RSP)	8-97318-799-0	01	1	0411-0609	●	●	●	●	●	●
2	04.630 COVER; CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97318-799-0	01	1	0610-	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL M/T MUA 5 SPEED 5G(RSP) 00.785	8-94463-258-0	01	1	0306-0410	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL M/T MUA 5 SPEED 5G(RSP) 00.785	8-94463-258-0	01	1	0411-0609	●	●	●	●	●	●
4	00.829 STOPPER; CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 00.785	8-94463-258-0	01	1	0610-	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T MUA 5 SPEED 5G(RSP) 04.634	8-97301-688-0	02	1	0306-0410	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T MUA 5 SPEED 5G(RSP) 04.634	8-97301-688-0	02	1	0411-0609	●	●	●	●	●	●
6	00.831 BUSHING; CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 04.634	8-97301-688-0	02	1	0610-1007	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0306-0410	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MUA 5 SPEED 5G(RSP) M10 LOCK NUT FLANGE	0-91303-610-0	01	1	0411-0609	●	●	●	●	●	●
8	00.833 NUT; PIN TO PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 04.634 M10 LOCK NUT FLANGE	0-91380-010-0	01	1	0610-	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T MUA 5 SPEED 5G(RSP)	8-97942-315-0	01	1	0306-0410	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T MUA 5 SPEED 5G(RSP)	8-97942-315-0	01	1	0411-0609	●	●	●	●	●	●
9	00.833 PIN; CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97942-315-0	01	1	0610-	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5G(RSP) 04.634	8-97311-594-0	01	1	0306-0410	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5G(RSP) 04.634	8-97311-594-0	01	1	0411-0609	●	●	●	●	●	●
11	00.833 PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-98007-161-0	01	1	0610-	●	●	●	●	●	●
12	00.841 BOLT; CLU PEDAL ADJ M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> 02.277 M10X35 FLANGE	0-28651-035-0	01	1	0610-	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5G(RSP)	8-97942-312-0	01	1	0306-0410	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5G(RSP)	8-97942-312-0	01	1	0411-0609	●	●	●	●	●	●
13	00.844 SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97942-312-0	01	1	0610-	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T MUA 5 SPEED 5G(RSP)	8-97943-426-0	01	1	0306-0410	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T MUA 5 SPEED 5G(RSP)	8-97943-426-0	01	1	0411-0609	●	●	●	●	●	●
14	00.829 BRACKET ASM; CLU PEDAL MTG M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ)	8-97943-426-0	01	1	0610-	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5G(RSP) 01.062 M8 FLANGE	0-91180-108-0	04	1	0306-0410	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5G(RSP) 01.062 M8 FLANGE	0-91180-108-0	04	1	0411-0609	●	●	●	●	●	●
31	01.153 NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 01.062 M8 FLANGE	0-91180-108-0	04	1	0610-	●	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 M8 FLANGE	0-91180-108-0	02	1	0306-0410	●	●	●	●	●
32	00.777 NUT; BRKT TO CLU M/CYL 01.062 M8 FLANGE	0-91180-108-0	02	1	0411-	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5G(RSP) OD=7.9 L=27.5	8-97312-338-0	01	1	0306-0410	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5G(RSP) OD=7.9 L=27.5	8-97312-338-0	01	1	0411-0609	●	●	●	●	●	●
40	00.833 PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) OD=7.9 L=27.5	8-97312-338-0	01	1	0610-	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0306-0410	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED 5G(RSP) 03.636	8-97358-315-0	01	1	0411-0609	●	●	●	●	●	●
42	04.054 SWITCH; CLU M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0610-0709				●	●	●
42	04.054 SWITCH; CLU M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) AUTO CRUISE CONT<K30> 03.636	8-97358-315-0	01	1	0710-				●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-313-0	02	1	0306-0410	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5G(RSP) (A)	8-97942-313-0	02	1	0411-0609	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (A)	8-97942-313-0	02	1	0610-	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5G(RSP) (B)	8-97942-314-0	01	1	0306-0410	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5G(RSP) (B)	8-97942-314-0	01	1	0411-0609	●	●	●	●	●	●
45	00.831 BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) (B)	8-97942-314-0	01	1	0610-	●	●	●	●	●	●
59	00.833 NUT; CLU PEDAL ADJ M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. AUTO CRUISE CONT<K30> M10	0-91110-510-0	01	1	0610-	●	●	●	●	●	●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0306-0402				●	●
112	00.785 PLUG; METAL,M/CYL 4JH1-TC ENG(RDM) A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0403-0508				●	●
112	00.785 PLUG; METAL,M/CYL A/T 4 SPEED-JATCO(RMK)	8-97259-210-0	01	1	0509-0609				●	●
112	00.785 PLUG; METAL,M/CYL A/T AISIN(RMD)	8-97259-210-0	01	1	0610-				●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
